Outdoor Dish / Plate Rack
Outdoor dish rack for those pretty summer plates and cups! DIY plans from
Specifications
| Project type | shelves |
|---|---|
| Room | Outdoor |
| Difficulty | Beginner Projects |
| Estimated cost | Under $20 |

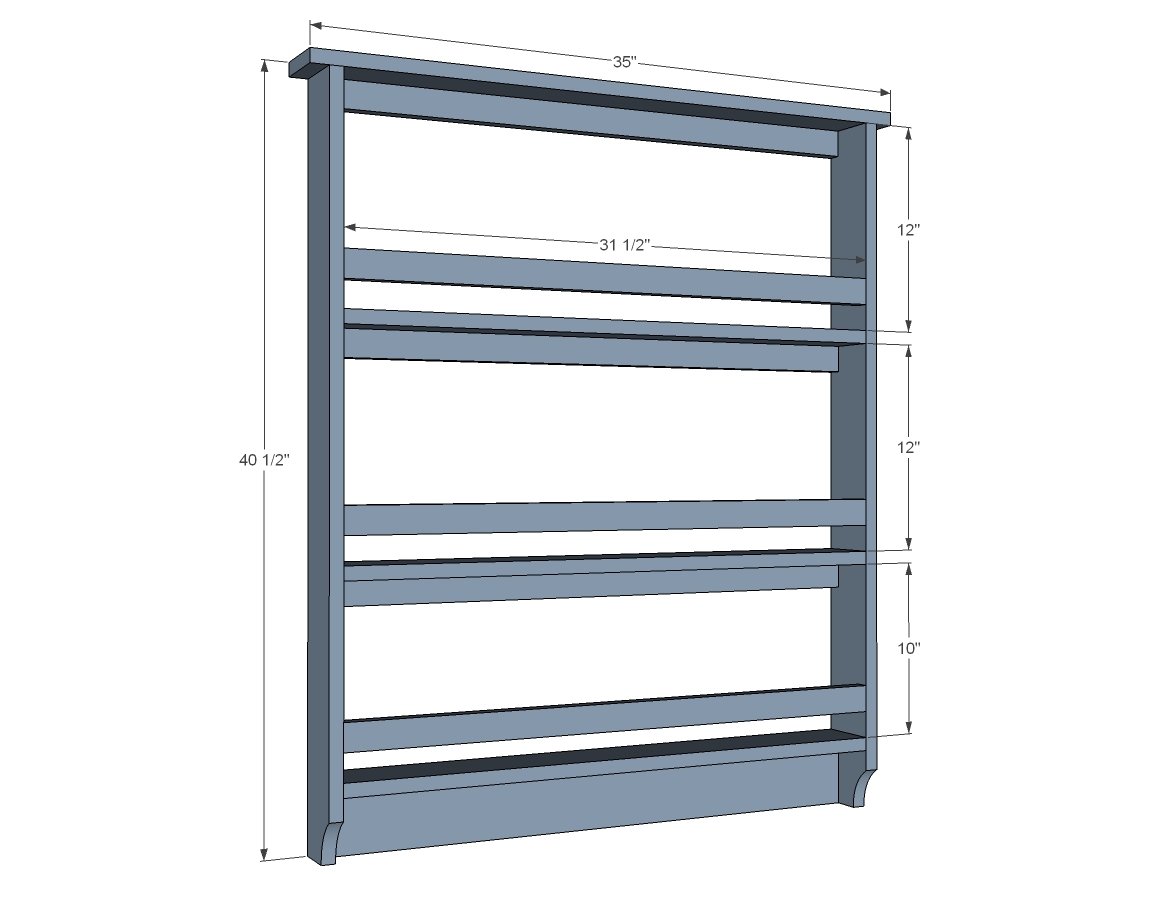

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
3 - 1x4 @ 8 feet long (there's extra figured in here)
2 - 1x2 @ 8 feet long
Cut List
2 - 1x4 @ 39-3/4" (sides)
1 - 1x4 @ 35" (top)
4 - 1x4 @ 31-1/2" (shelves)
6 - 1x2 @ 31-1/2" (rails and back supports)
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- kreg-jig
- drill
- circular saw
- jigsaw
- nailer
- sander
Step-by-step Instructions

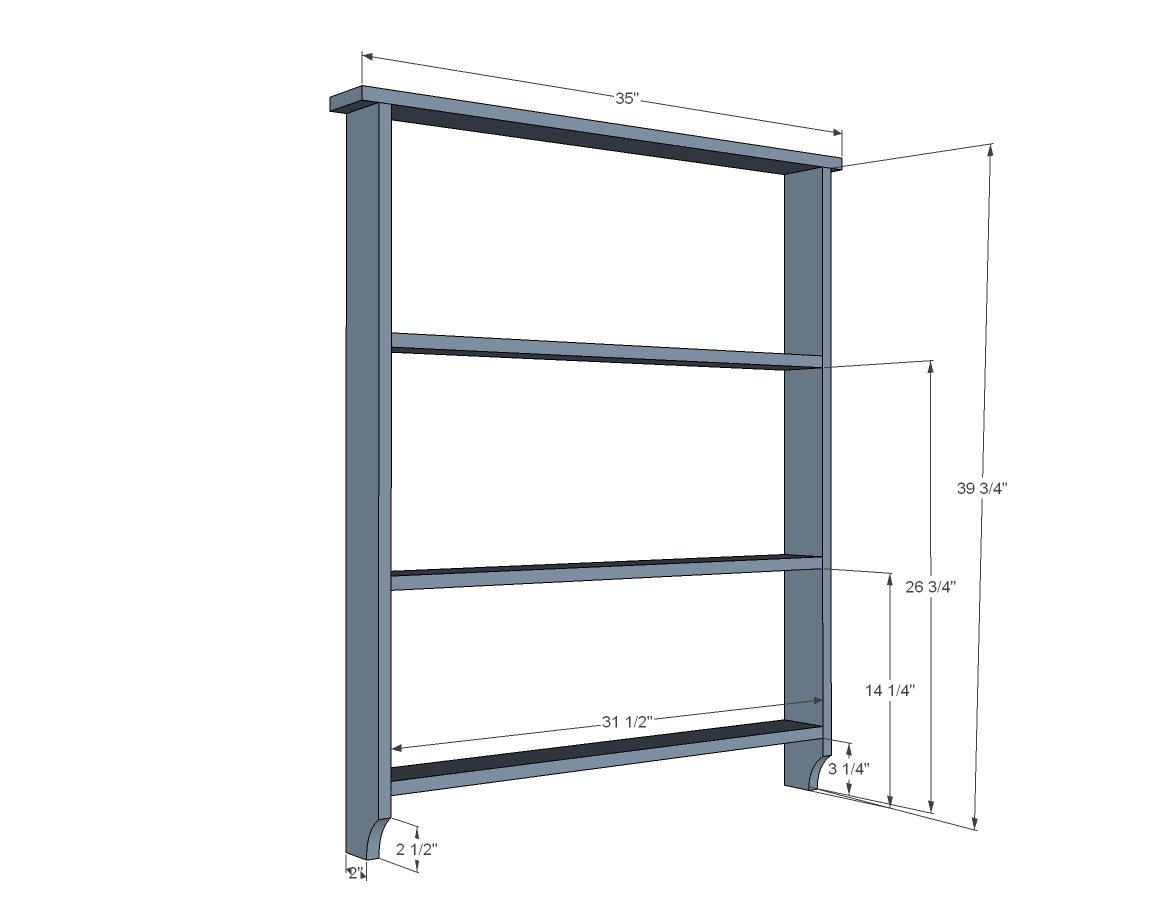

Step 1
Build the basic frame with the 1x4s. I used 3/4" pocket holes and 1-1/4" pocket hole screws.

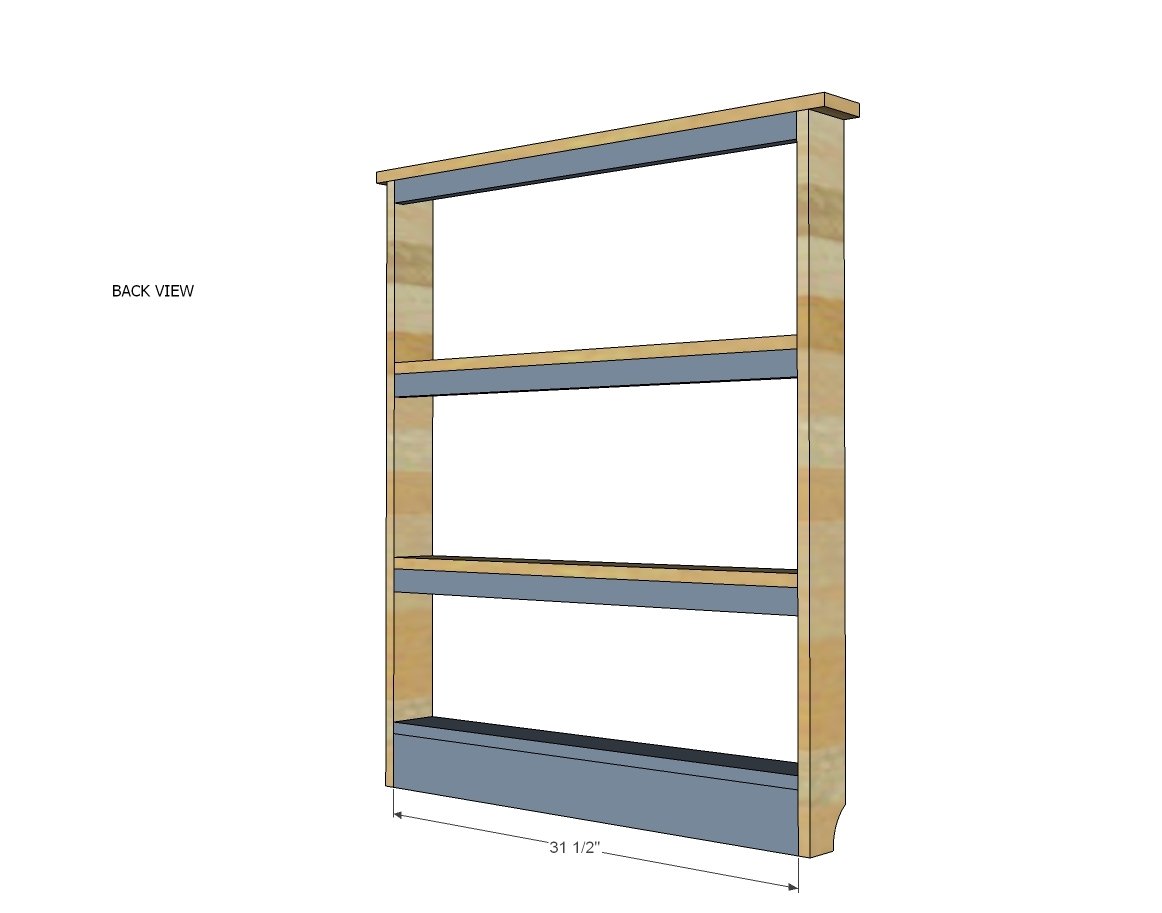

Step 2
I used pocket holes again to attach the bottom to the sides. Cup hooks can be attached to this board for added functionality.

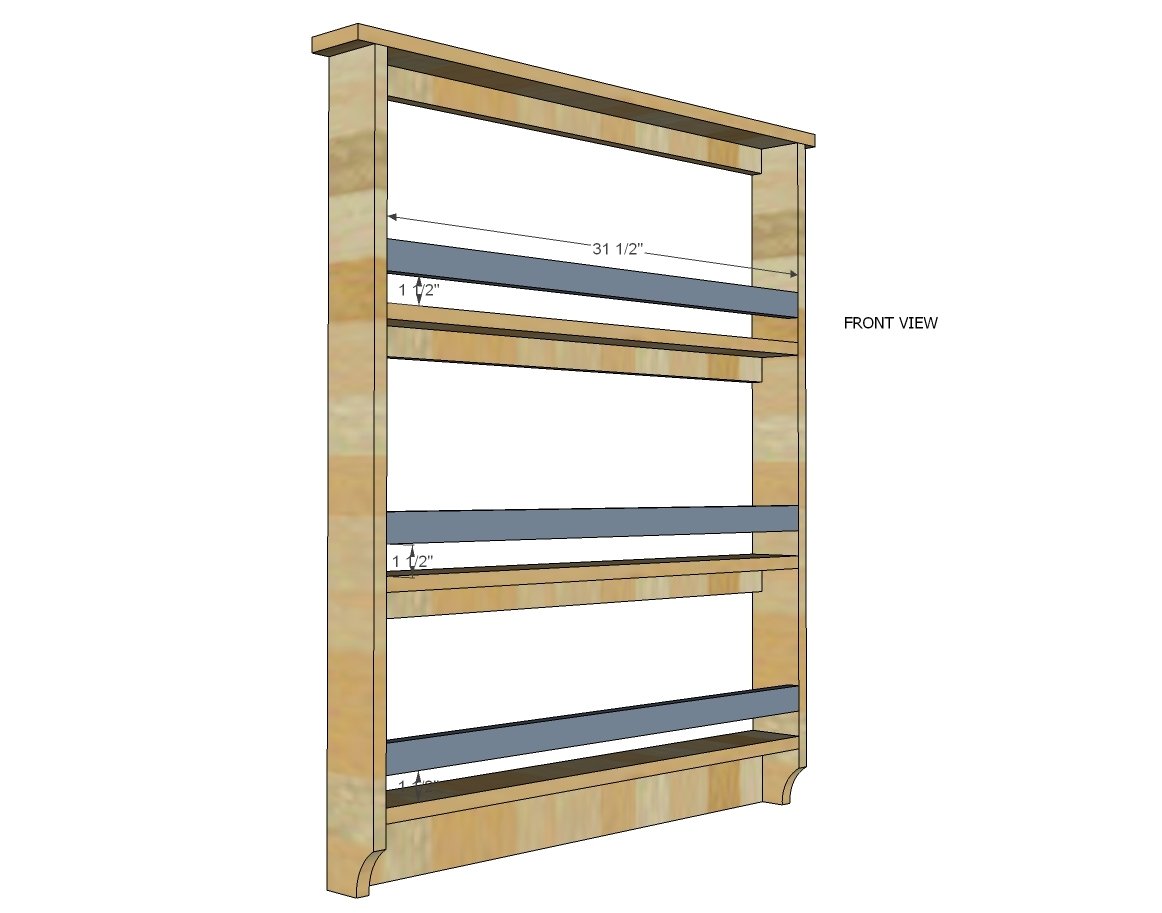

Step 3
I attached the front rails with pocket holes on the back side. For the top one, I also added finish nails through the top.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
