Outdoor Loveseat
Build your own outdoor loveseat. make it easy! Loveseat has a reclined seat and back and wide armrests for ultimate outdoor comfort. Sturdy 2x construction. Works with standard 25" x 25" deep seat cushions. Also check out our matching Outdoor Chair and our matching Outdoor Sofa.
Specifications
| Project type | Sofa |
|---|---|
| Room | Outdoor |
| Style | Modern Style Furniture Plans |
| Difficulty | Intermediate |
| Estimated cost | $20 - $50 |

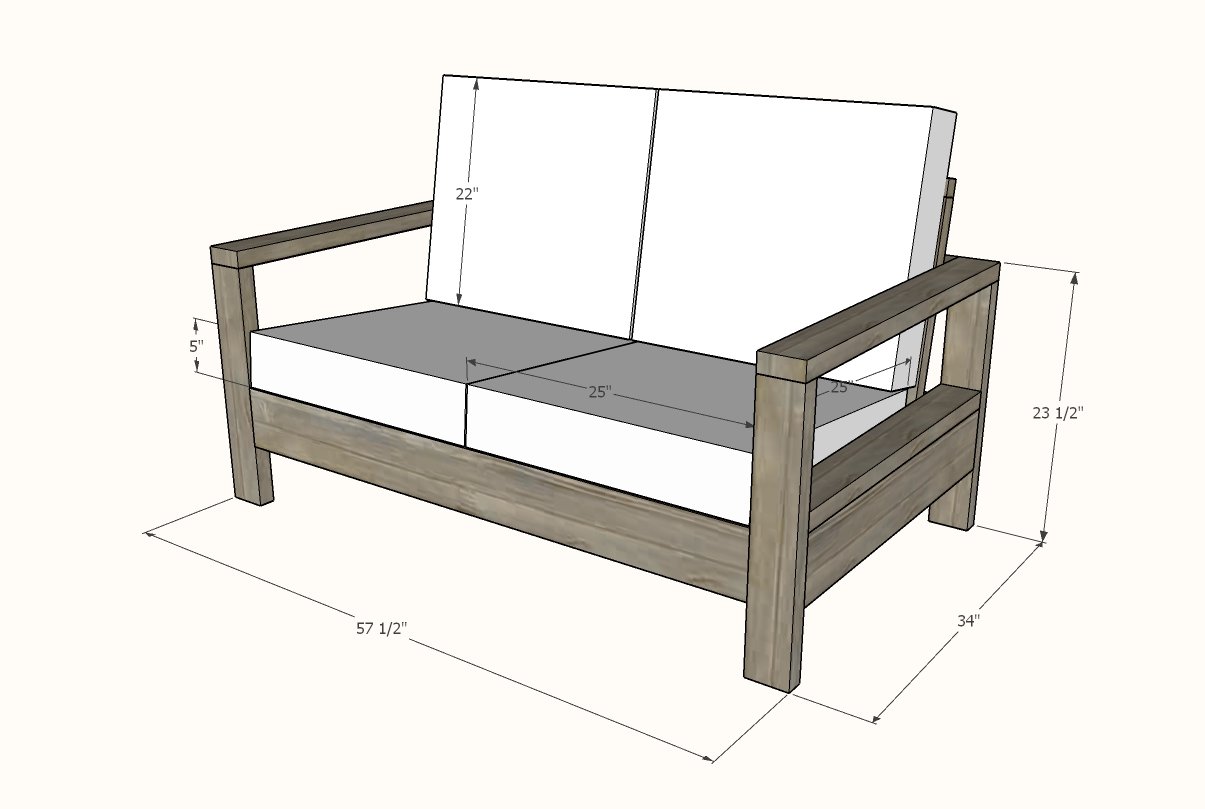

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
- 5 - 2x4 @ 8 feet long
- 3 - 2x6 @ 8 feet long
- 3 - 2x2 @ 5 feet long
- 2 - 1x4 @ 8 feet long
- About 50 - 2-1/2" self tapping exterior wood screws
- About 50 - 2-1/2" Kreg Screws, exterior grade
- About 20 - 1-1/2" self tapping exterior screws
Cut List
- 4 - 2x4 @ 22" - legs
- 2 - 2x4 @ 34" - arm rests
- 2 - 2x4 @ 31" - arm supports
- 2 - 2x6 @ 31" - arm supports
- 2 - 2x6 @ 50-1/2" - bases
- 1 - 2x4 @ 50-1/2" - back
- 1 - 2x2 @ 50-1/2" - back rest top
- 6 - 2x4 @ 23-3/4" - back slats
- 1 - 2x6 @ 54-1/2" - back base
- 2 - 2x2 @ 54-1/2" - seat slat cleats
- 8 - 1x4 @ 23-1/2" - seat slats
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- kreg-jig
- drill
- compound miter saw
Step-by-step Instructions

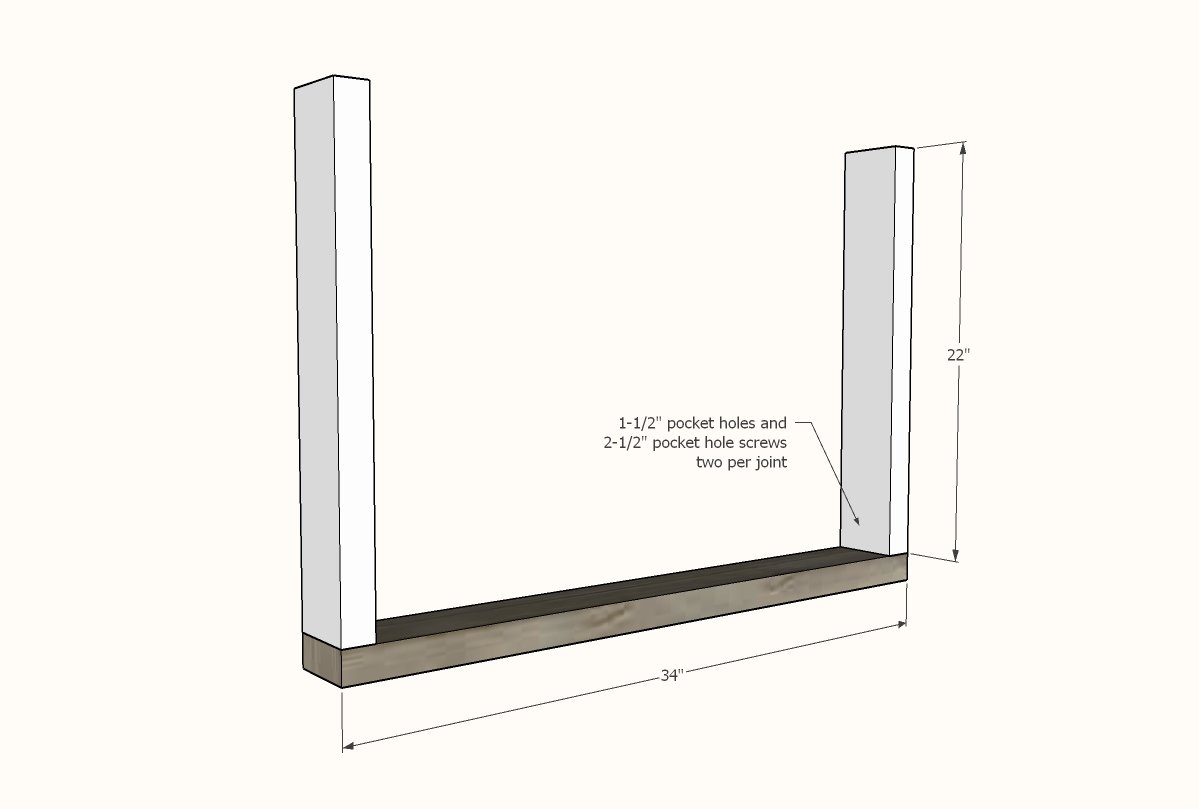

Drill two 1-1/2" pocket holes on top of each of the legs.
Attach to the arm rest from underneath with 2-1/2" pocket hole screws. Leg is shown upside down.

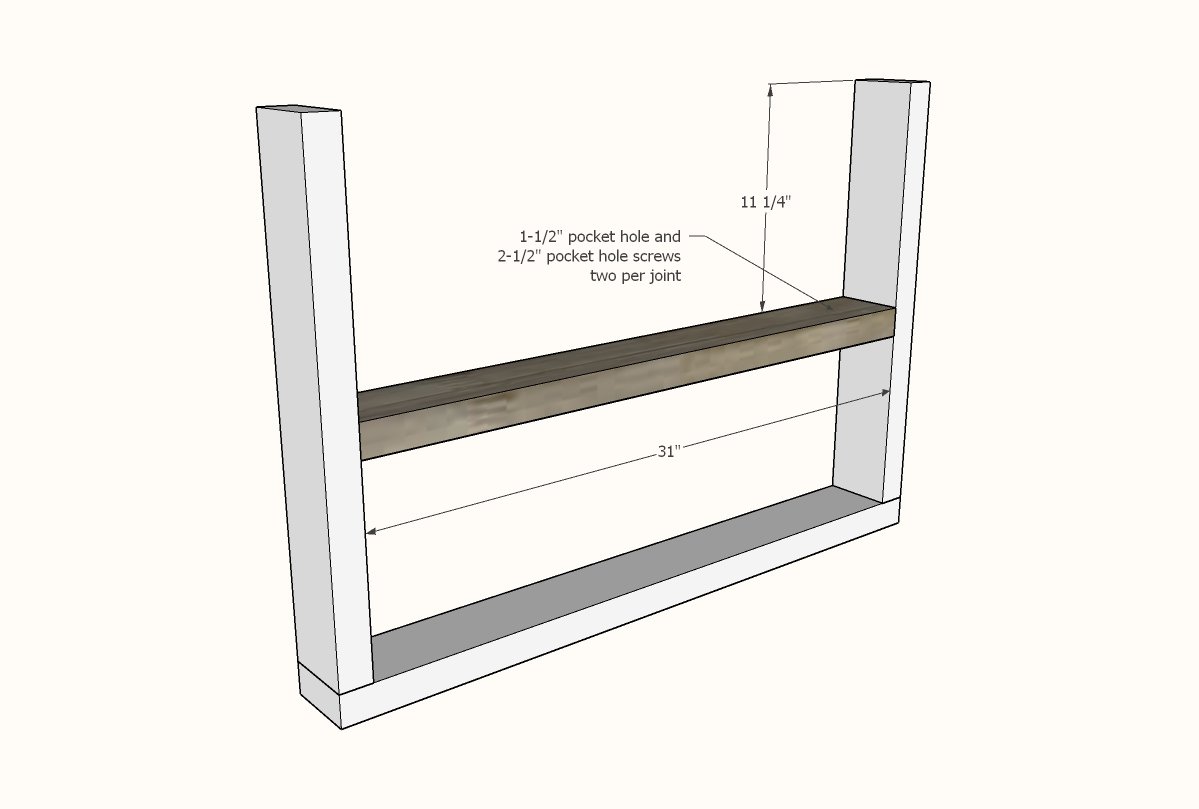

Drill two 1-1/2" pocket holes on each end of the 2x4 side supports.
Attach to the insides of the legs with 2-1/2" pocket hole screws. Leg is shown upside down.

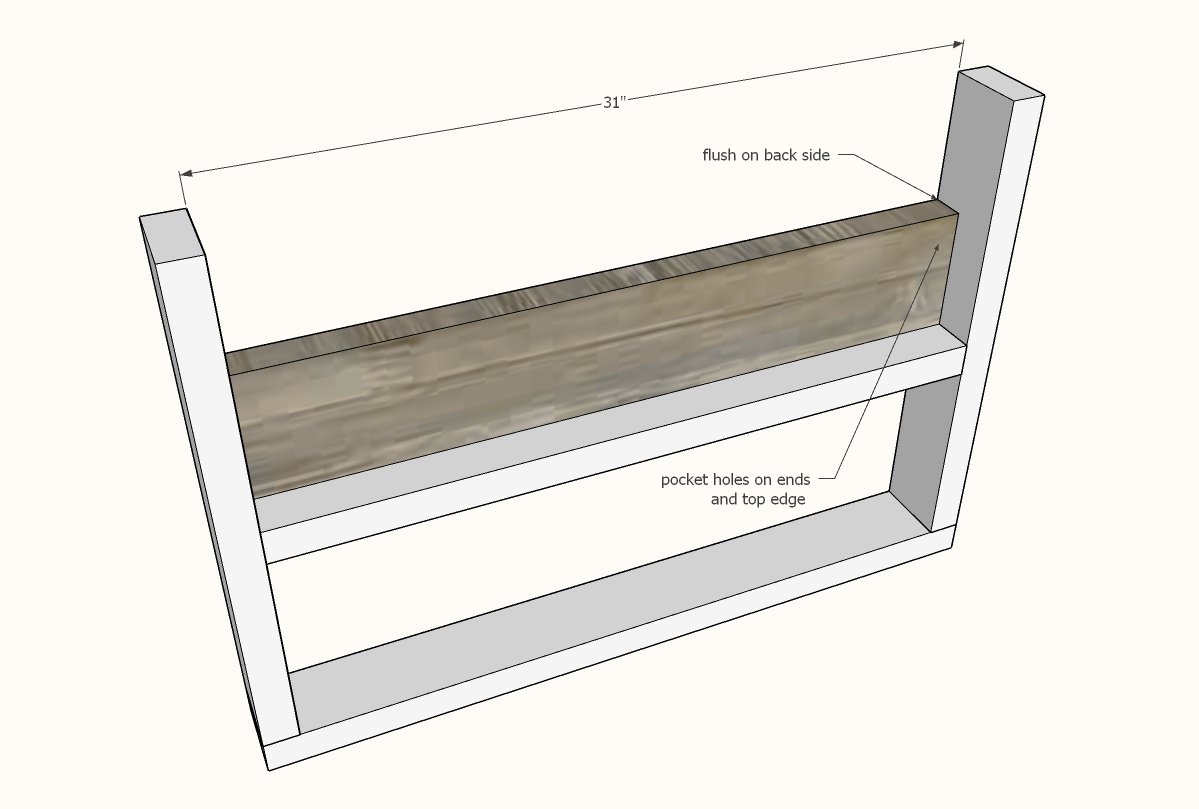

Step 3
Drill two 1-1/2" pocket holes on each end of the 2x6 end aprons. Also drill two 1-1/2" pocket holes along one edge. Attach inside the leg, flush to the outside, pocket holes hidden on insides, with 2-1/2" pocket hole screws. Leg is shown upside down.

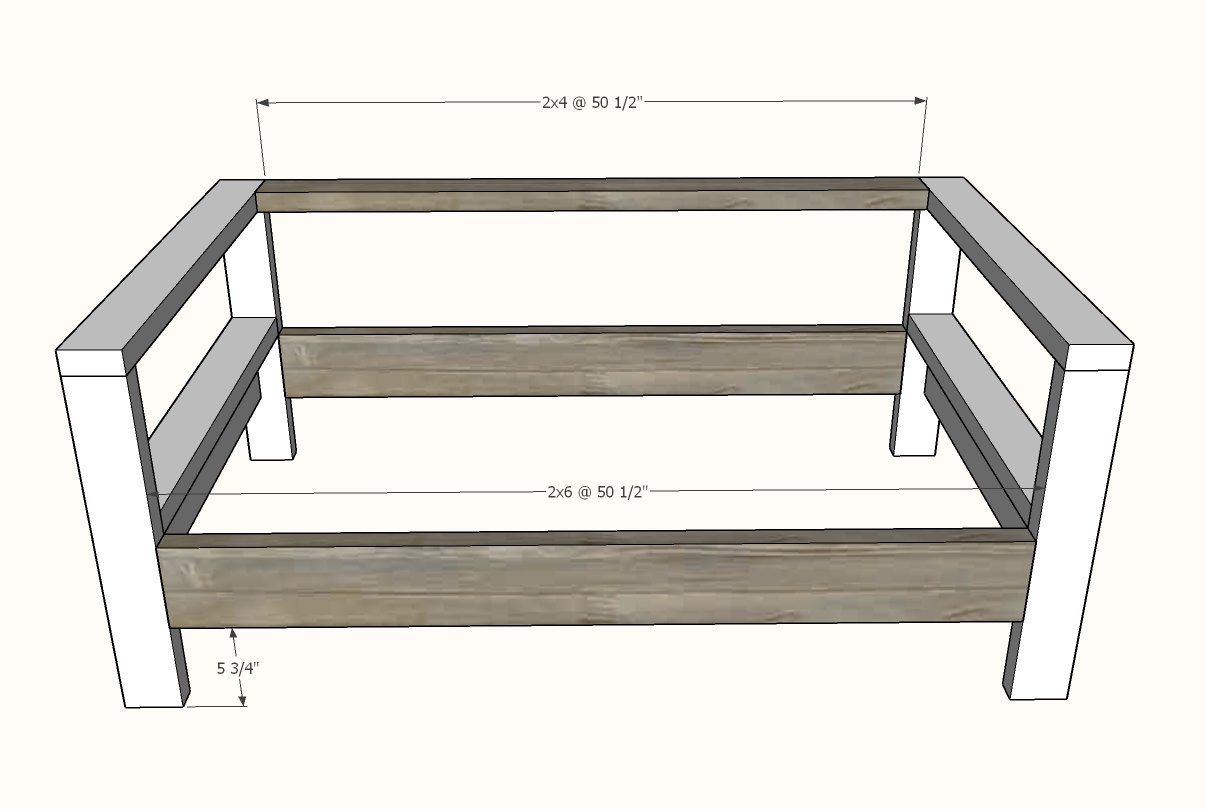

Drill two 1-1/2" pocket holes on each end of the 2x6 and 2x4s shown.
Attach with 2-1/2" pocket hole screws to the legs, all pocket holes are on the insides, or facing downward.

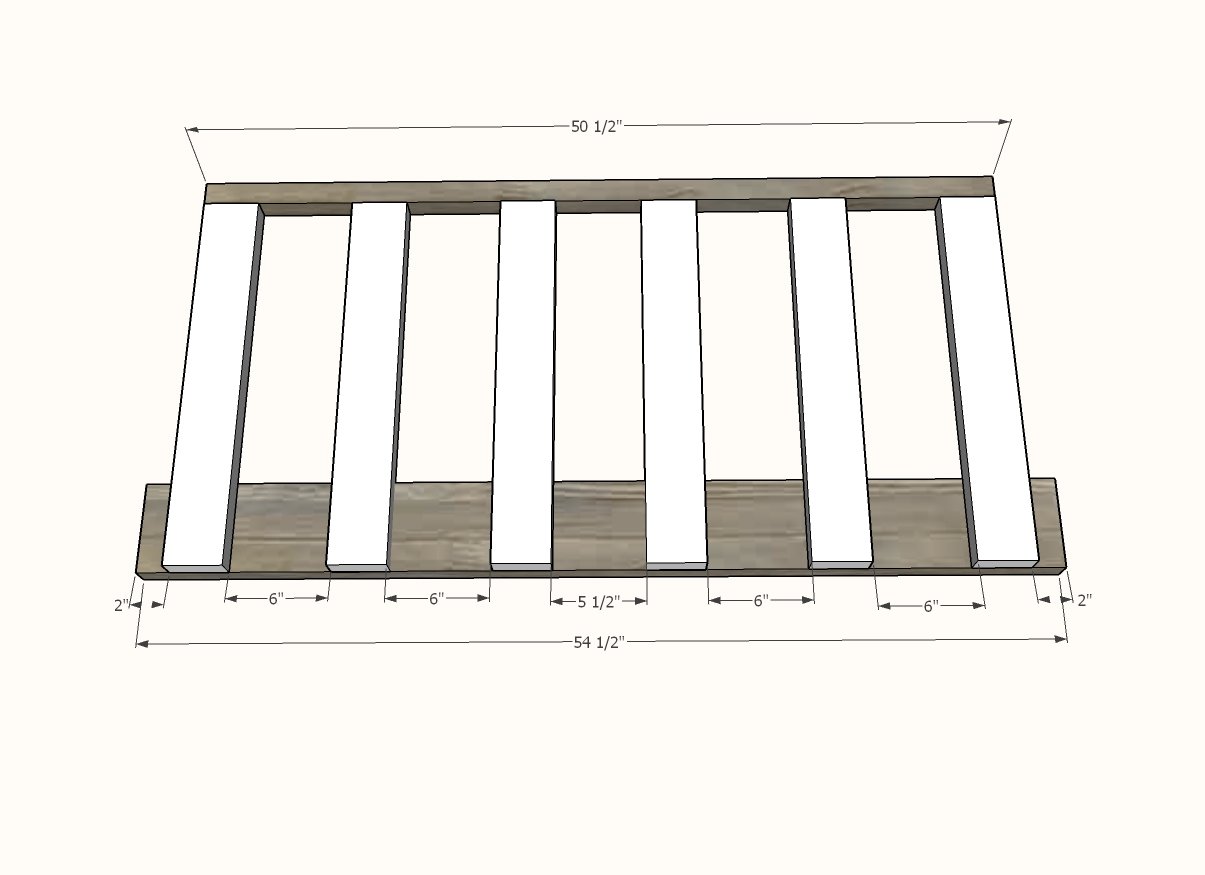

Step 5
Attach the back slats to the top 2x2, spaced evenly in between. Start on the outside and work inward. Attach with 2-1/2" self tapping wood screws. Attach to base with 2" overhangs on each end, keeping spacing same and slats paralllel.

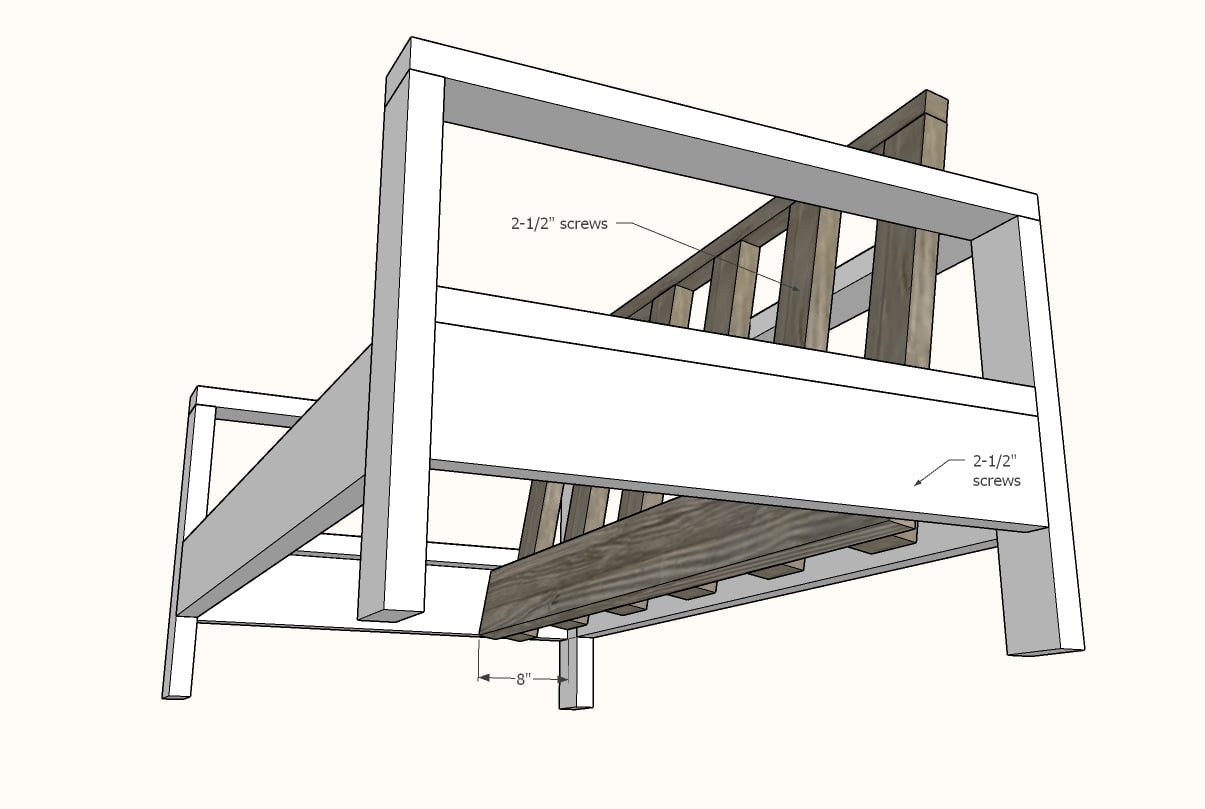

Step 6
Place back inside seat frame and attach to sides and the back with 2-1/2" screws.

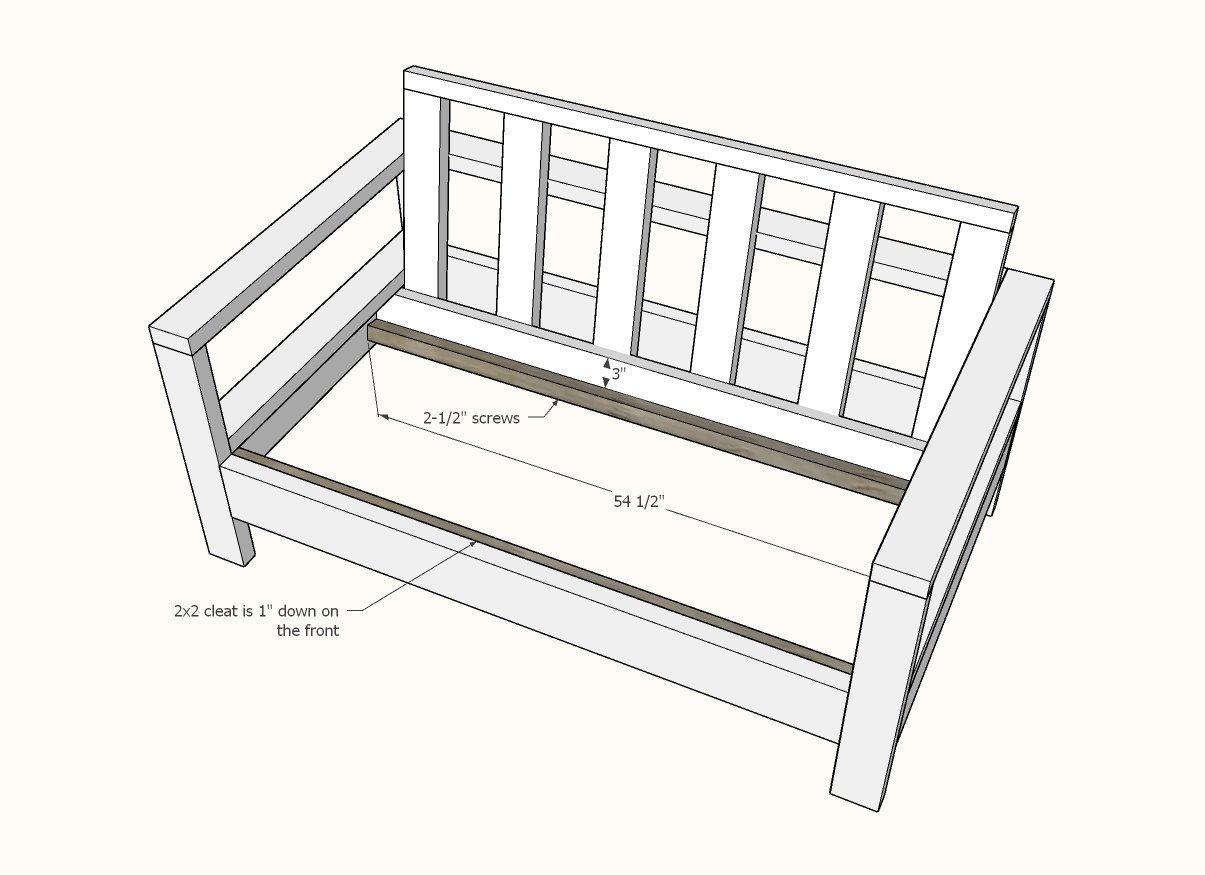

Step 7
Add 2x2 cleats inside the seat frame with 2-1/2" self tapping screws.

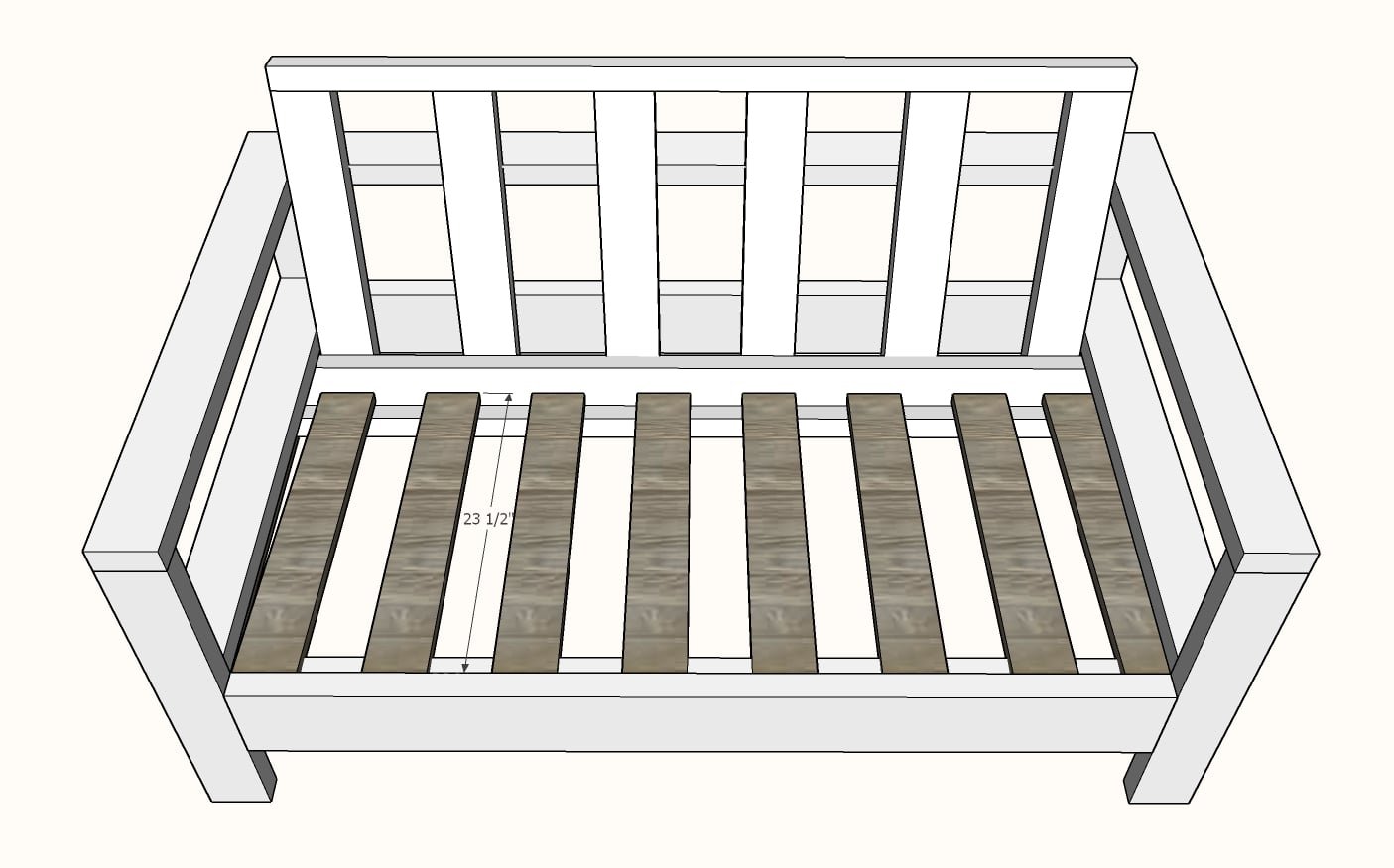

Step 8
Place seat slats inside the loveseat and screw down with 1-1/2" screws. Only one screw is needed per joint.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
