Package Delivery Drop Box
Build your own cedar package delivery drop box from This extra large package delivery drop box keeps packages safe and out of sight. This plan uses cedar fence pickets to keep the cost down, but the project materials reasonably priced. with detailed diagrams and shopping and cut list.
Specifications
| Project type | Outdoor Seating, Lounging and Accents |
|---|---|
| Room | Outdoor |
| Difficulty | Intermediate |

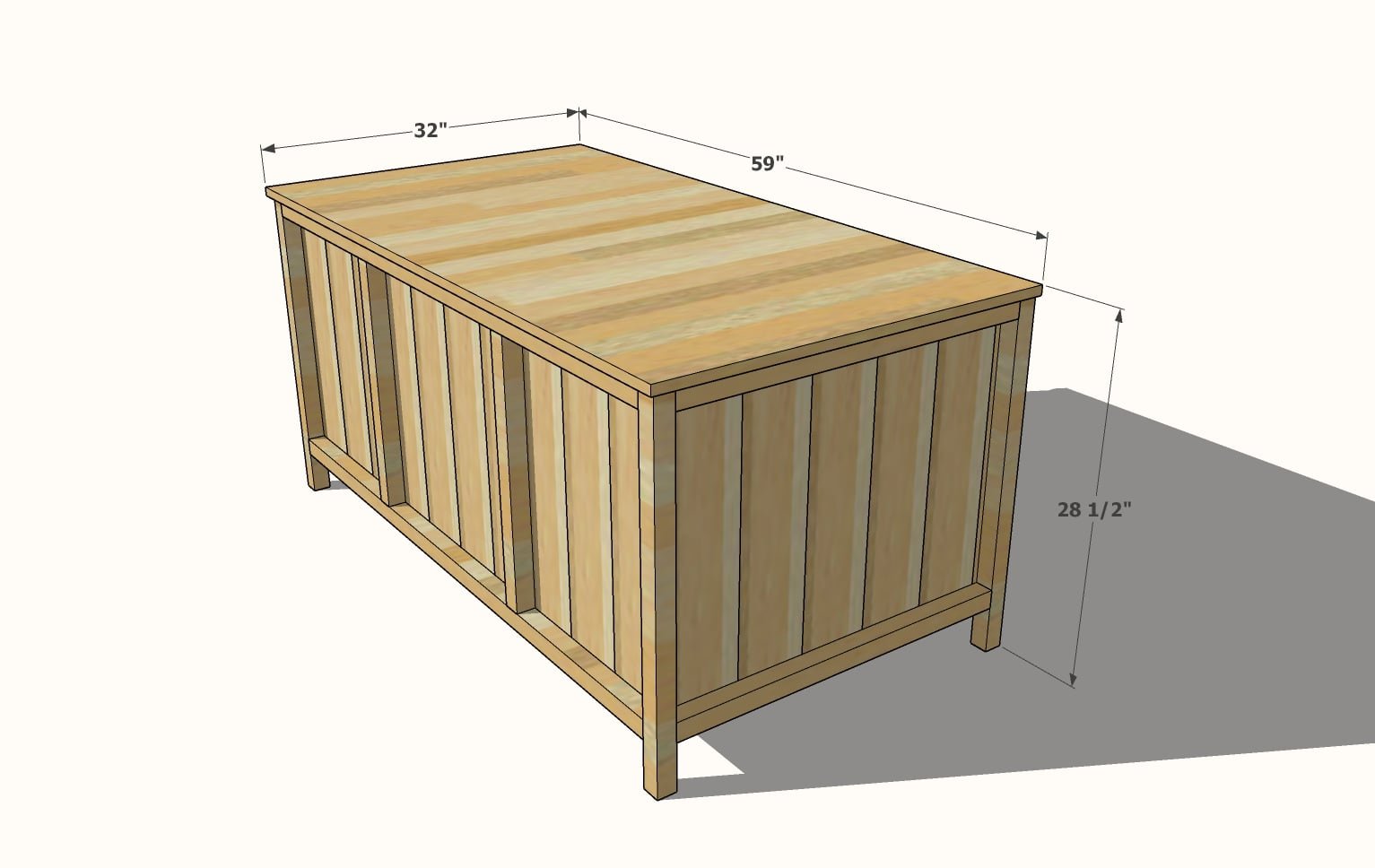

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
- 10 - 2x2 @ 8 feet long (douglas fir furring strips)*
- 1 - 3/4" plywood, exterior rated with top treated with waterproofing sealant
- 10 - 72" fence pickets, 5-1/2" wide, NOT dog eared
- 2 - 1x2 @ 8 feet long
- About 75 - 2-1/2" long pocket hole screws
- 2" self tapping wood screws, about 30 (use for building and installing the bottom frame)
- 1-1/4" brad nails or staples
- exterior appropriate wood glue
- exterior heavy duty hinges
*If you are able to source 10' 2x2s this would result in much better use of materials and decrease quantity needed
Cut List
- 4 - 2x2 @ 27-3/4" - legs
- 4 - 2x2 @ 55" - front/back horizontal frame
- 4 - 2x2 @ 28-1/2" - sides horizontal frames
- 4 - 2x2 @ 21" - front/back trim
- 30 - 5-1/2" wide fence pickets @ 24"
- 2 - 1x2 @ ~54" - inside frame *measure and cut to fit
- 9 - 2x2 @ ~26" - inside frame *measure and cut to fit
- 1 - 3/4" plywood @ 32" x 59" - exterior grade plywood
Tools
- measuring tape
- square
- pencil
- safety glasses
- kreg-jig
- drill
- compound miter saw
- sander
Step-by-step Instructions

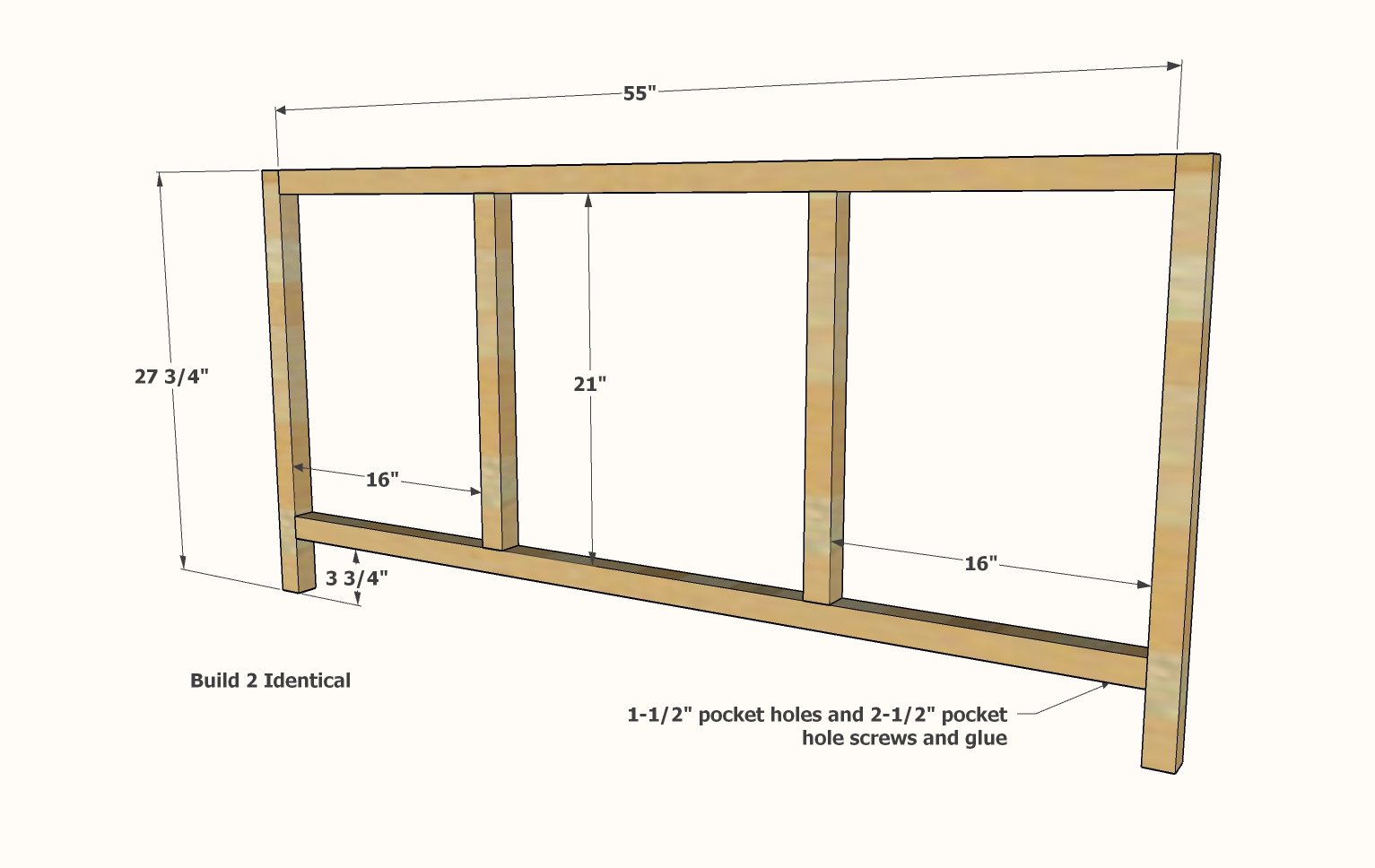

Step 1
Build two of the frames as shown using 2x2s with 1-1/2" pocket holes and 2-1/2" pocket hole screws, hiding pocket holes to insides or bottoms.

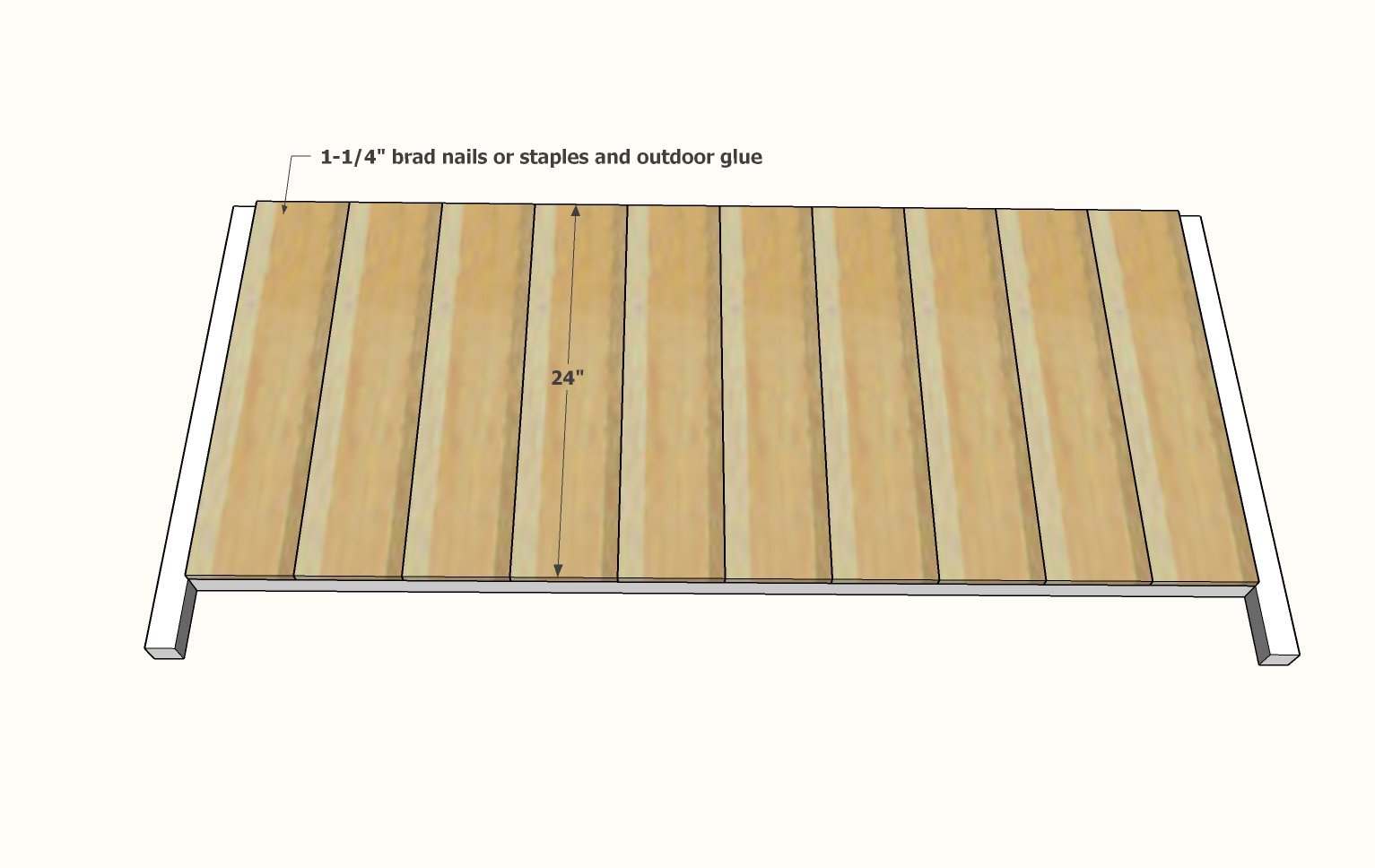

Step 2
Attach cedar fence pickets to inside as shown, spacing evenly (there may be slight gap in between to allow for expansion), using 1-1/4" brad nails and wood glue. Do not attach fence pickets over the 2x2 legs.

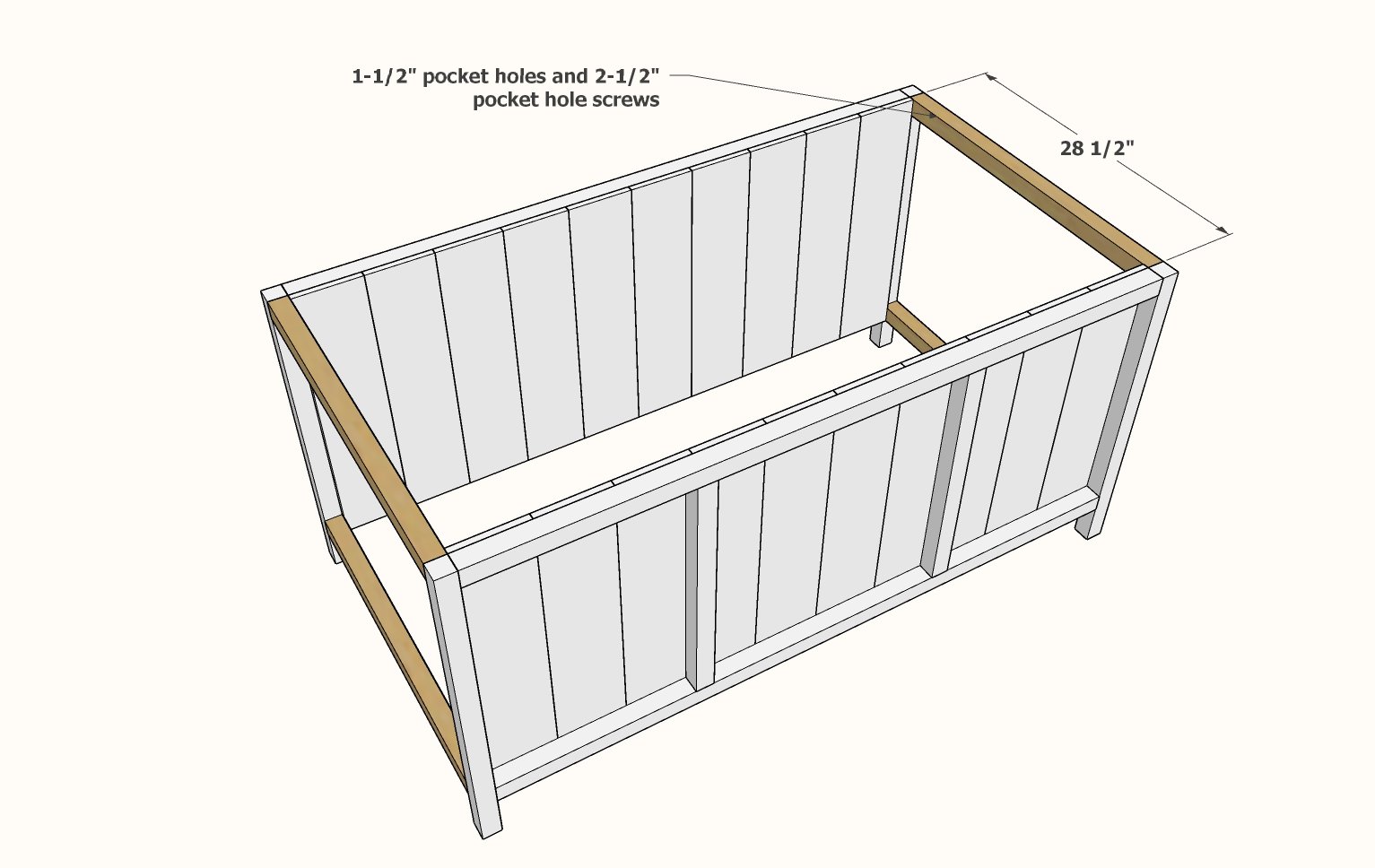

Step 3
Attach the two panels together with 2x2s on the ends, using 1-1/2" pocket holes and 2-1/2" pocket hole screws, hiding pocket holes to inside.

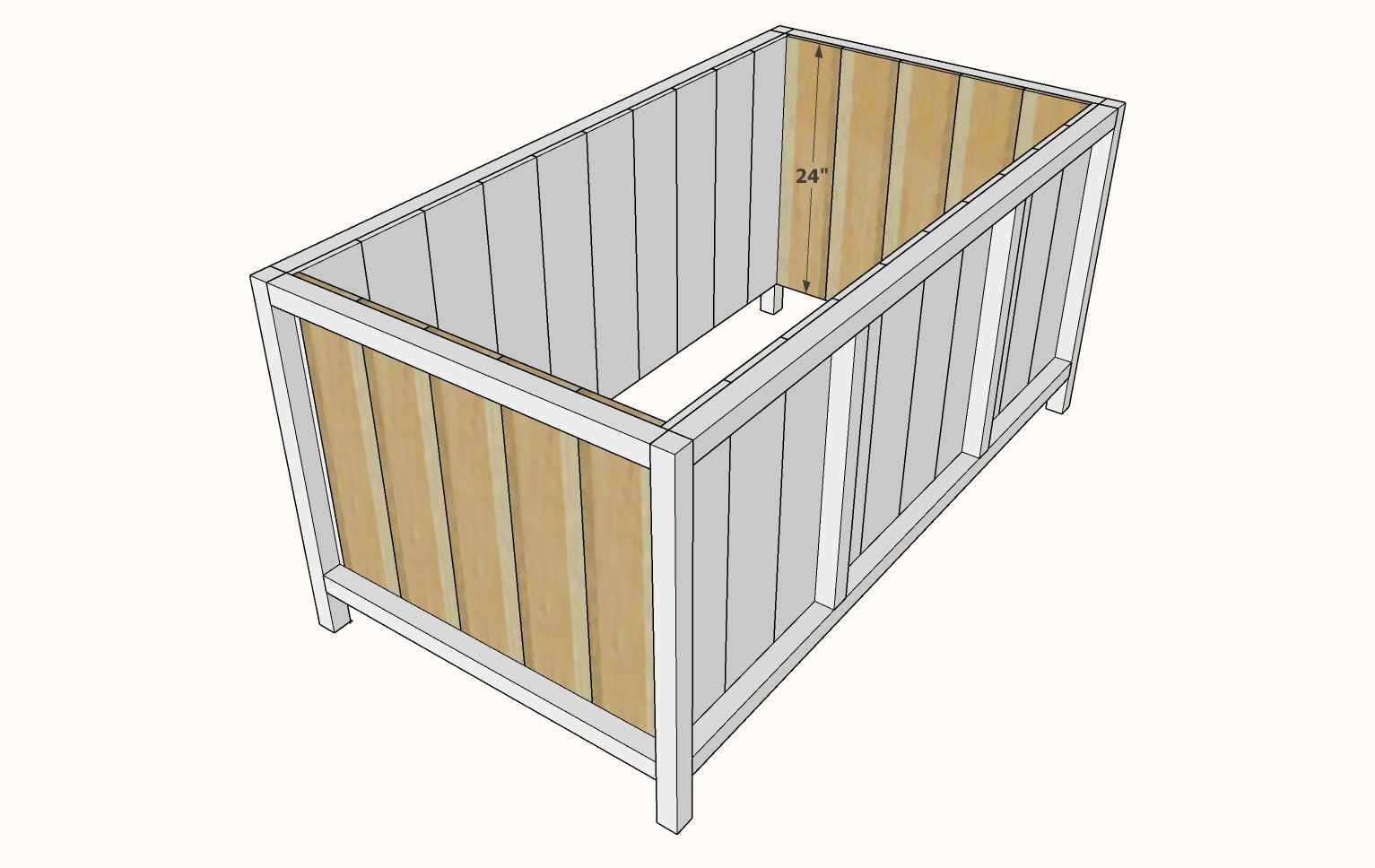

Step 4
Attach fence pickets to inside of sides with 1-1/4" brad nails and wood glue.
Measure the dimensions of the interior of the box and adjust as needed the bottom frame cuts.

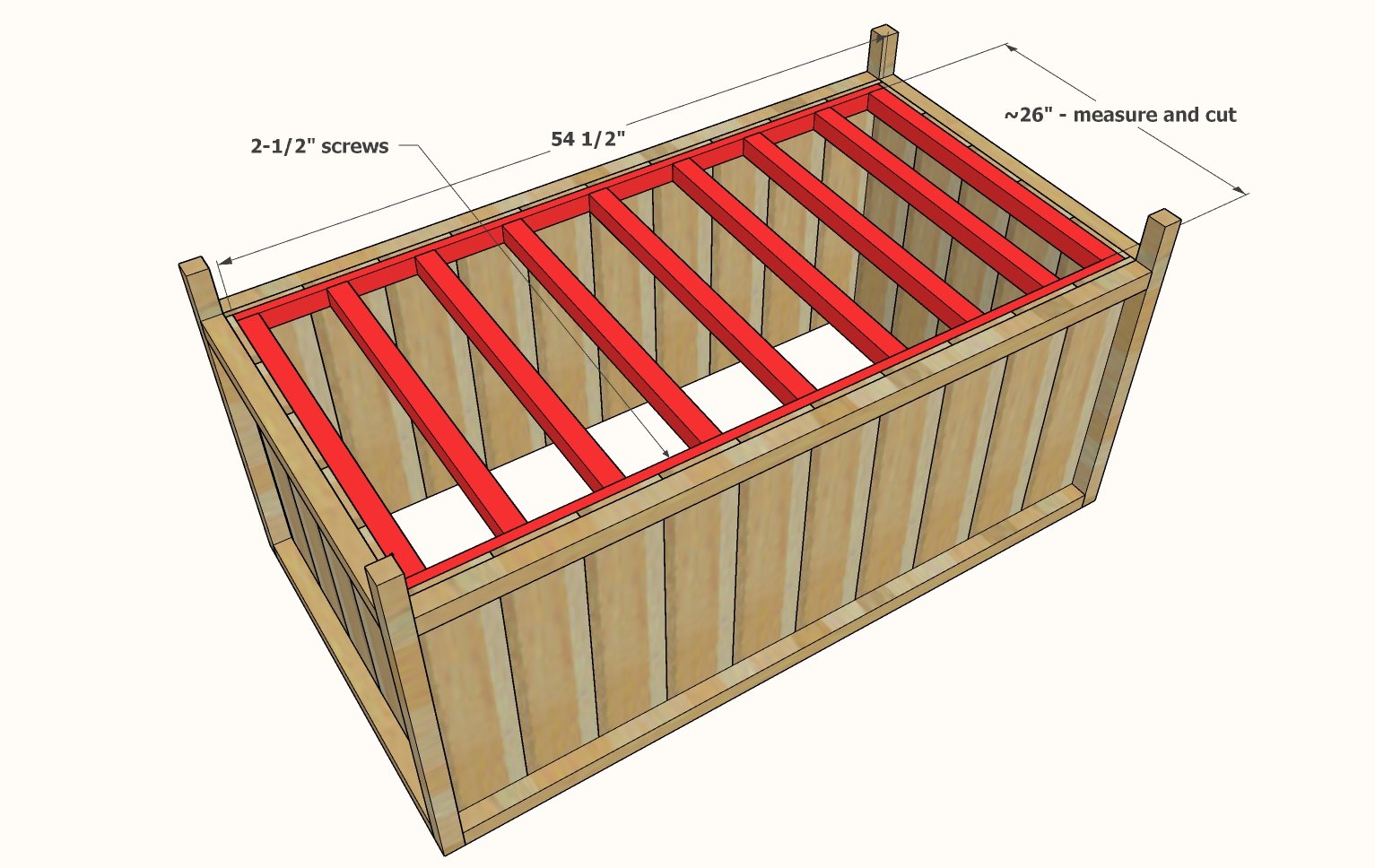

Build the bottom frame with glue and 2" self tapping screws. Install bottom frame inside the box and attach to all sides with 2" self tapping screws.

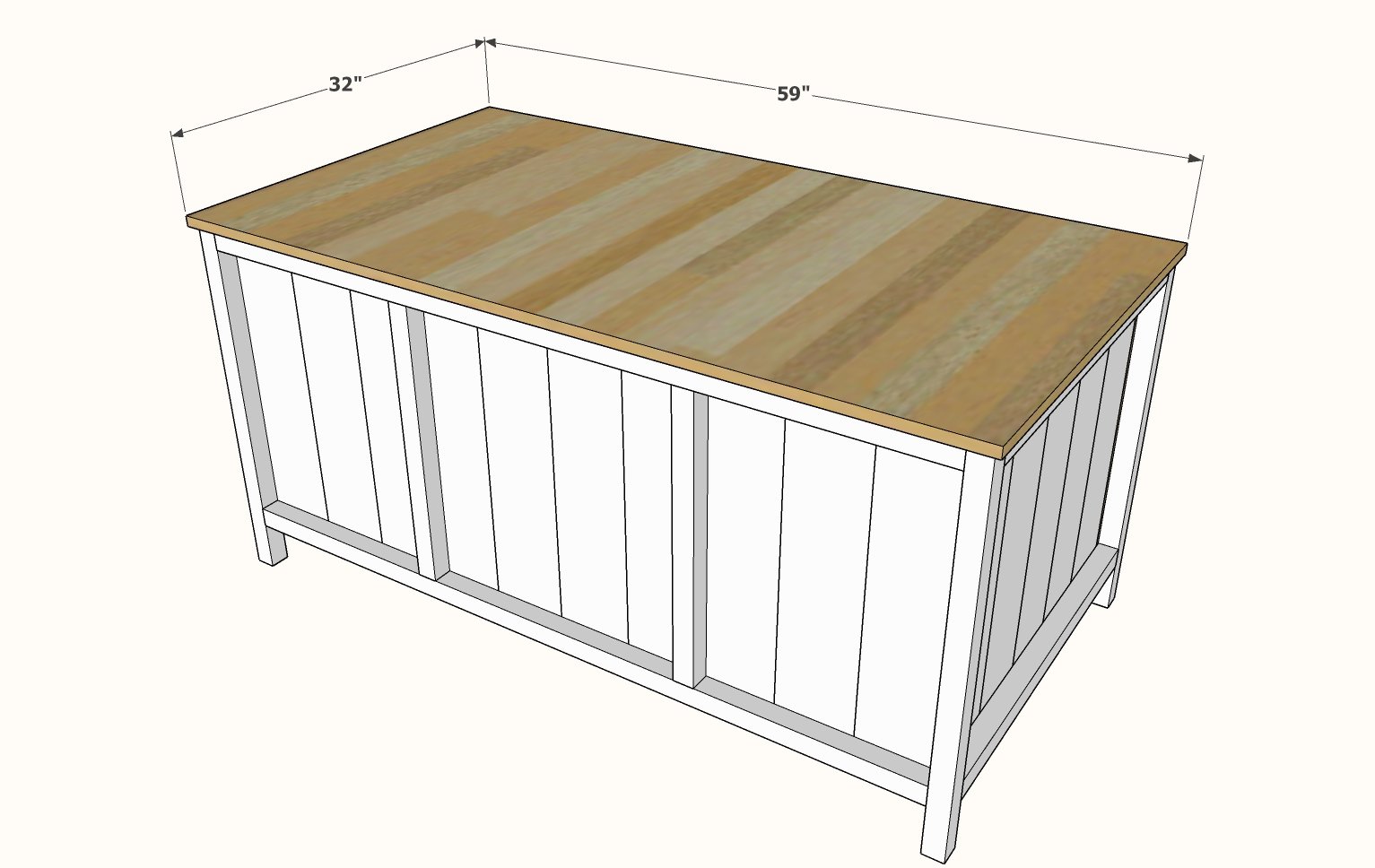

Install top with hinges at back.
For a lighter weight top, the top can be split into two pieces.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
