Patchwork Dresser on Wheels

This is a free project plan with step by step instructions to build your own modern patchwork dresser. This dresser features different drawer sizes, with drawer faces that can be stained different colors to add more interest to the piece. include diagrams, shopping and cut list, and lots of reader submitted photos - from Ana

Patchwork Dresser on Wheels

Specifications

Project typeDresser Plans
RoomBedroom
StyleModern Style Furniture Plans
DifficultyAdvanced
Estimated cost$150 - $200

Dimensions

Use the size-specific shopping and cut lists below.

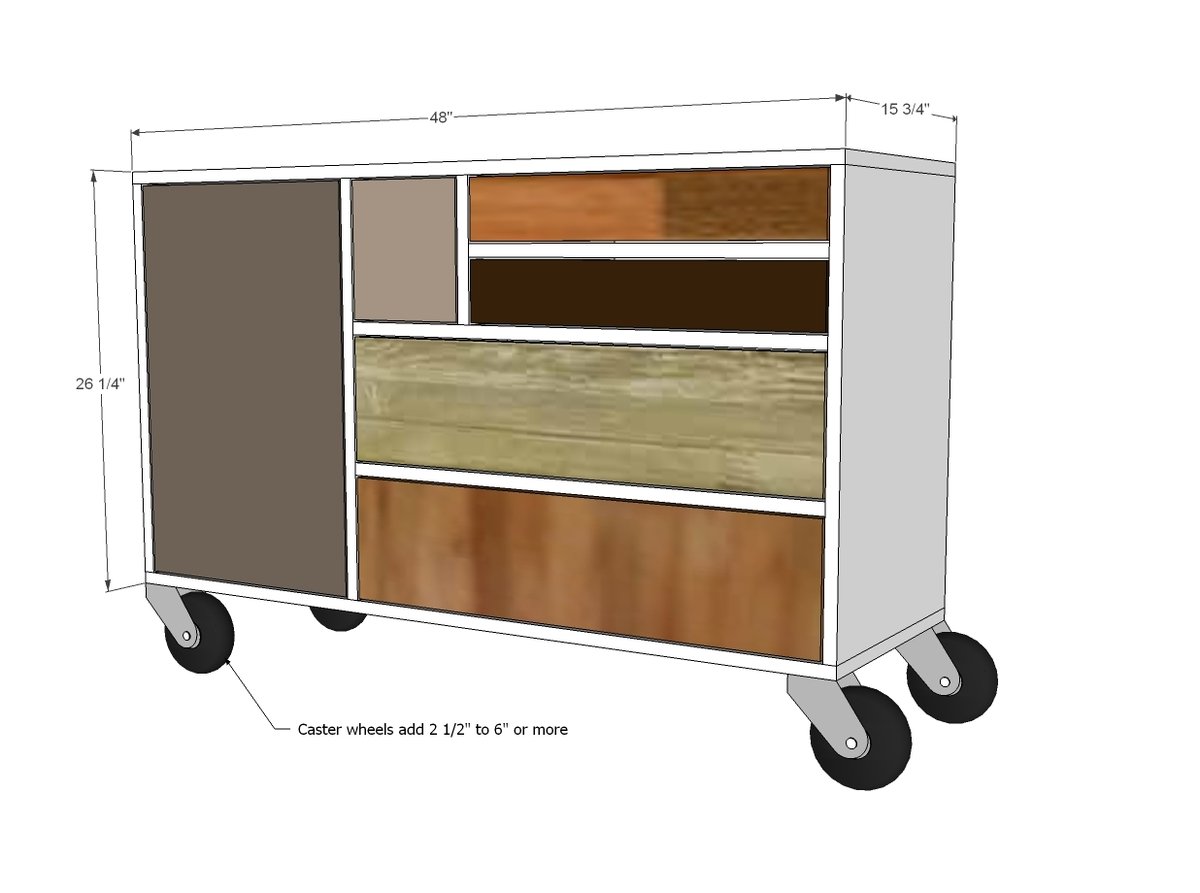

Patchwork Dresser on Wheels dimension diagram 1

Shopping List

  • 1 - sheet 3/4” plywood ripped into 15 3/4” wide strips
  • 1/2 sheet 1/4” plywood (for drawer bottoms and backs)
  • 1 - 1x6 @ 8 feet long
  • 1 - 1x6 @ 10 feet long
  • 1 - 1x3 @ 8 feet long
  • 1 - 1x4 @ 4 feet long - MUST BE 3 1/2" WIDE
  • 1 - 1x8 @ 6 feet long - MUST BE 7 1/4" WIDE
  • 5 sets 14” White European Style bottom corner mount drawer slides
  • 4 Caster Wheels
  • 1 set FULL INSET concealed hinges for Euro Style Cabinet (no face frame)
  • Edge banding if desired

Cut List

  • 3 - 3/4” plywood @ 15 3/4” x 24 3/4”
  • 1 - 3/4” plywood @ 15 3/4” x 29 3/4”
  • 1 - 3/4” plywood @ 15 3/4” x 8 1/4”
  • 2 - 3/4” plywood @ 15 3/4” x 48”
  • 2 - 1x2 @ 21 1/2”
  • 2 - 1x2 @ 29 3/4”

DRAWERS - Recommend cutting to fit slides and measured openings

  • 6 - 1x6 @ 14”
  • 2 - 1x6 @ 5”
  • 4 - 1x6 @ 27 1/4”
  • 2 - 1x3 @ 14”
  • 2 - 1x3 @ 19”
  • 2 - 1/4” plywood @ 20 1/2” x 14”
  • 2 - 1/4” plywood @ 28 3/4” x 14”
  • 1 - 1/4” plywood @ 6 1/2” x 14”

DRAWER FACES

  • 2 - 1x4 @ 21 1/4”
  • 1 - 1x8 @ 8”
  • 2 - 1x8 @ 29 1/2”
  • 1 - 3/4” plywood @ 15 3/4” x 24 1/2”
  • 1 - 1/4” plywood 48” x 26 1/4”

Tools

  • measuring tape
  • square
  • pencil
  • safety glasses
  • kreg-jig
  • drill
  • circular saw
  • compound miter saw
  • nailer
  • sander

Step-by-step Instructions

1

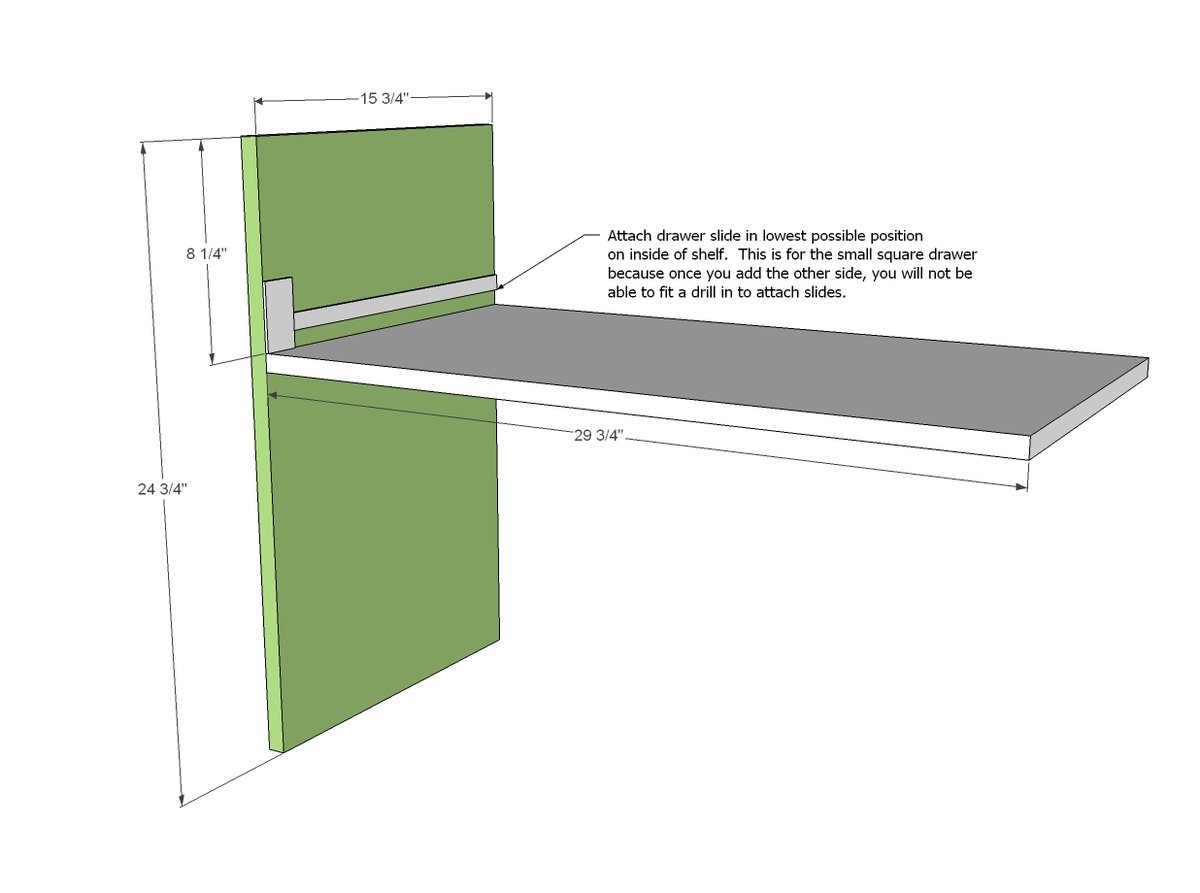

Step 1

NOTE: This slide (and all others in this dresser) MUST be attached inset 3/4” (not shown in diagram) to allow for the drawer face frames to be attached in later steps. If you are using drawer slides for the little drawer, it will be much easier to install the cabinet members now instead of when the space is super tight. Attach shelf with 3/4" pocket holes and 1 1/4" pocket hole screws and glue. This is a dresser, so make sure you are very precise when attaching boards, square all the way down - or your drawers will be cockeyed when the slide. TIP: Drill 3/4" pocket holes on top and bottom edge of divider for attaching top and bottom in step 3. Drill 3/4" pocket holes on end of shelf for attaching side in step 3.

Patchwork Dresser on Wheels — step 1
2

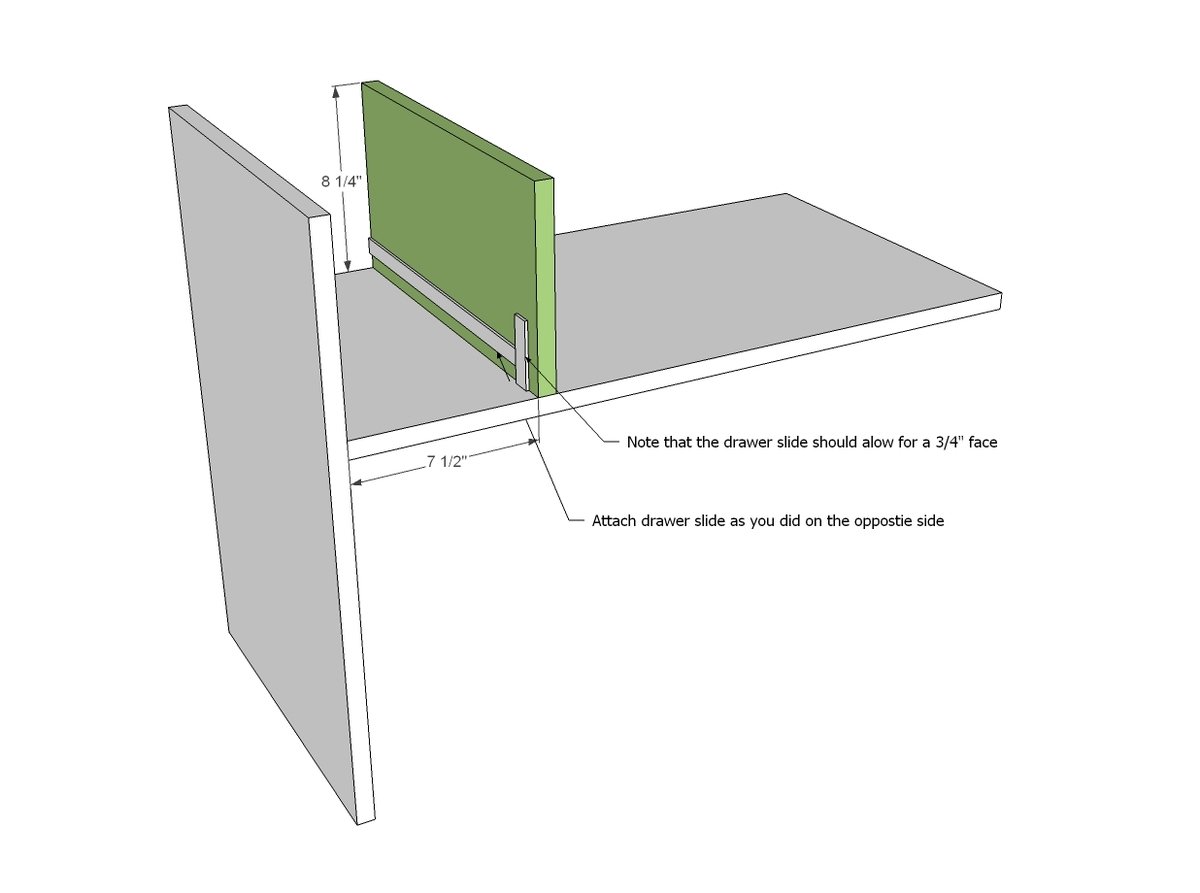

Step 2

Attach remaining drawer slide cabinet member to the small divider. Then attach the small divider to the shelf with 3/4" pocket holes and 1 1/4" pocket hole screws and glue. TIP: Drill 3/4" pocket holes on top edge of small divider facing upward for attaching top in step 3.

Patchwork Dresser on Wheels — step 2
3

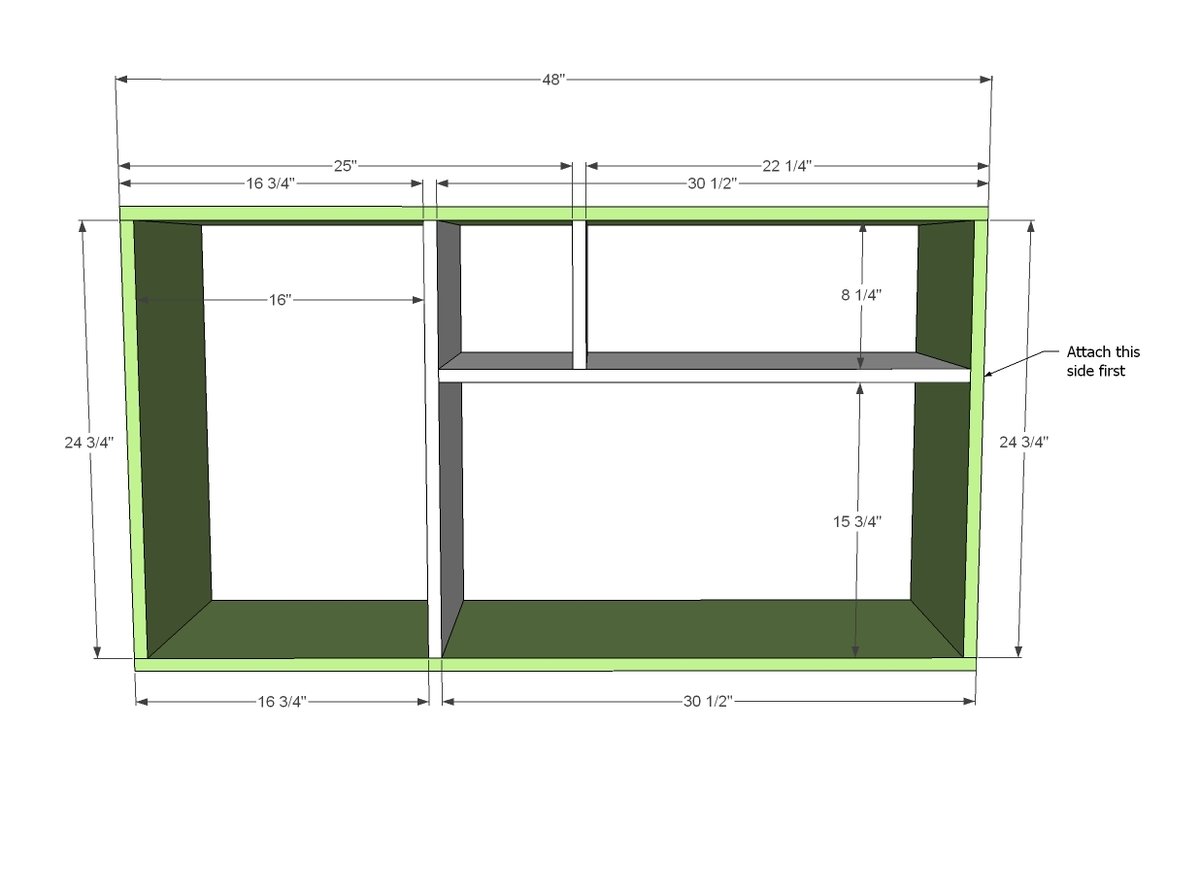

Step 3

Now attach the top and bottom to the partion boards, and the sides. Recommended is 3/4" pocket holes and 1 1/4" pocket hole screws and glue.

Patchwork Dresser on Wheels — step 3
4

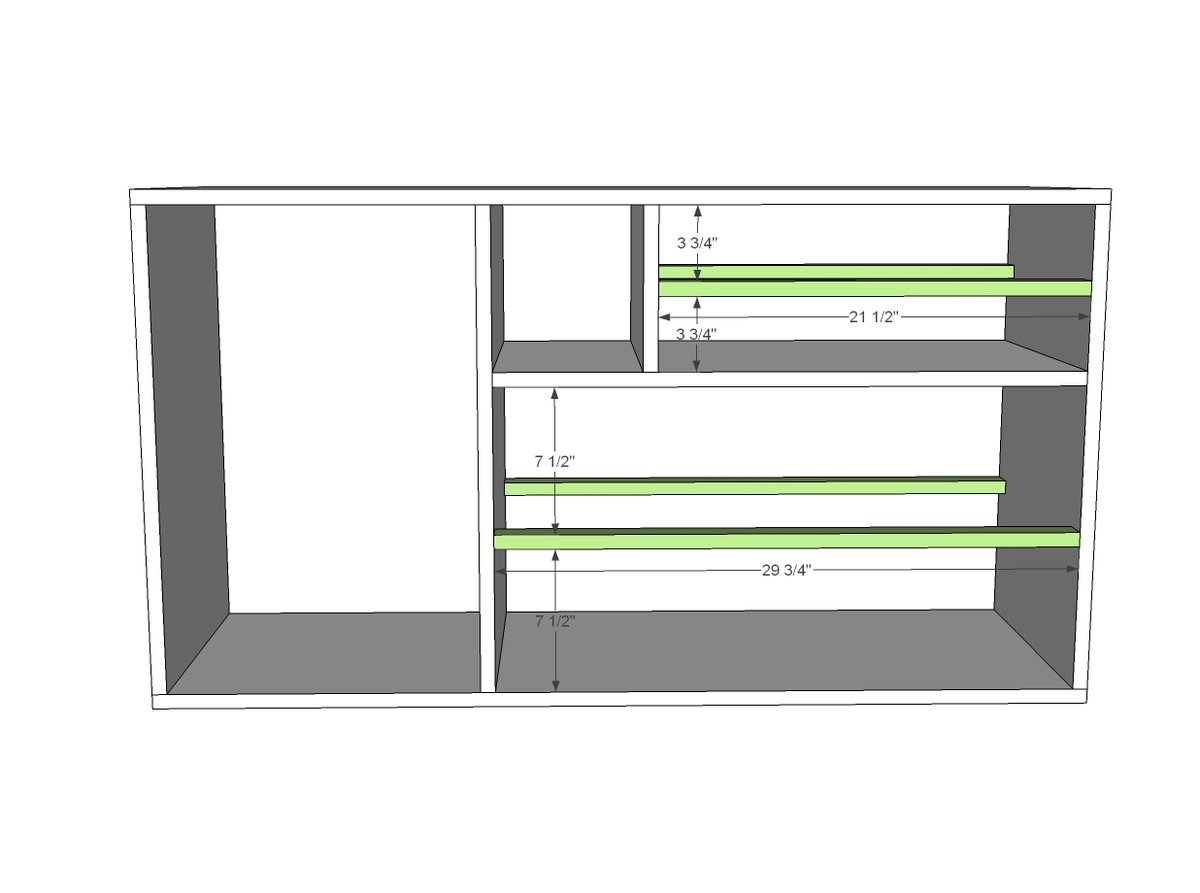

Step 4

Attach the 1x2 trim boards with 3/4" pocket holes and 1 1/4" pocket hole screws.

Patchwork Dresser on Wheels — step 4
5

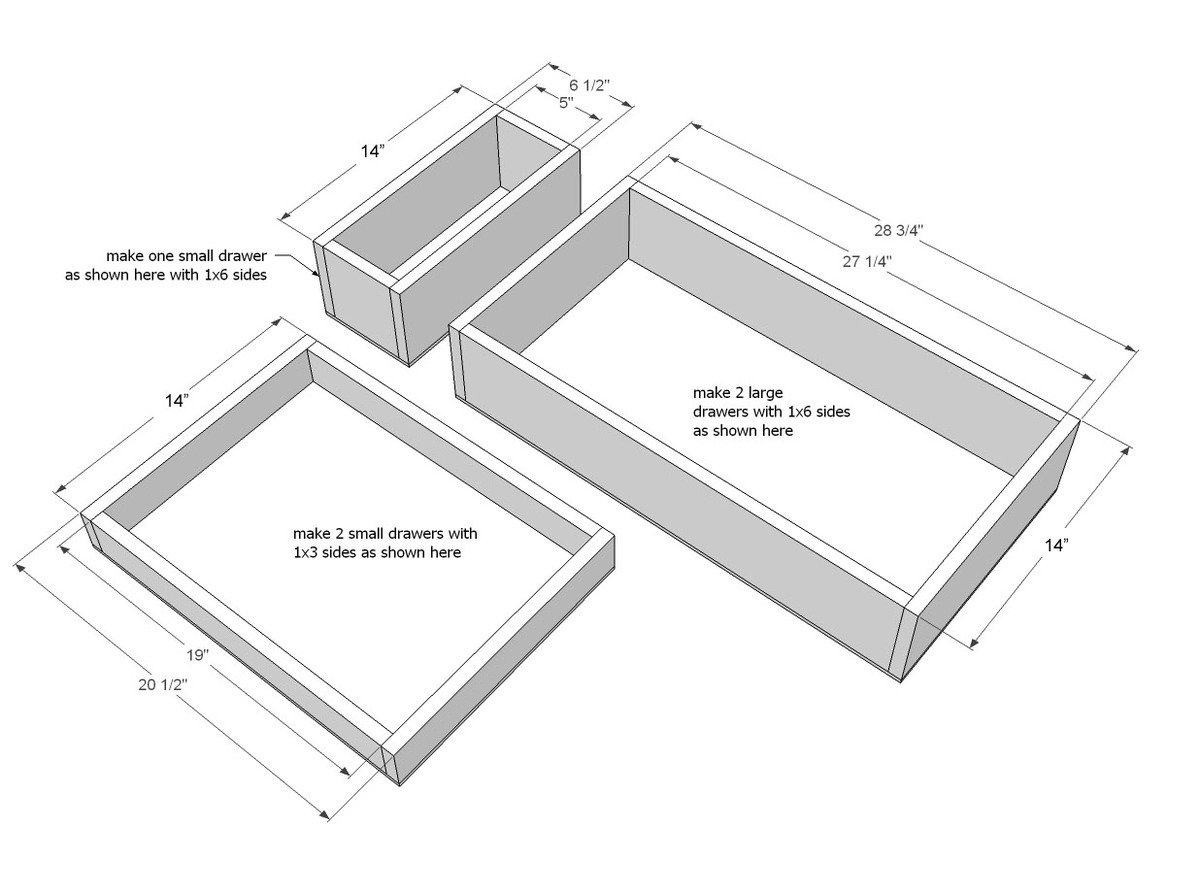

Watch this video on how to size and install drawers using Euro Drawer Slides:

Patchwork Dresser on Wheels — step 5
6

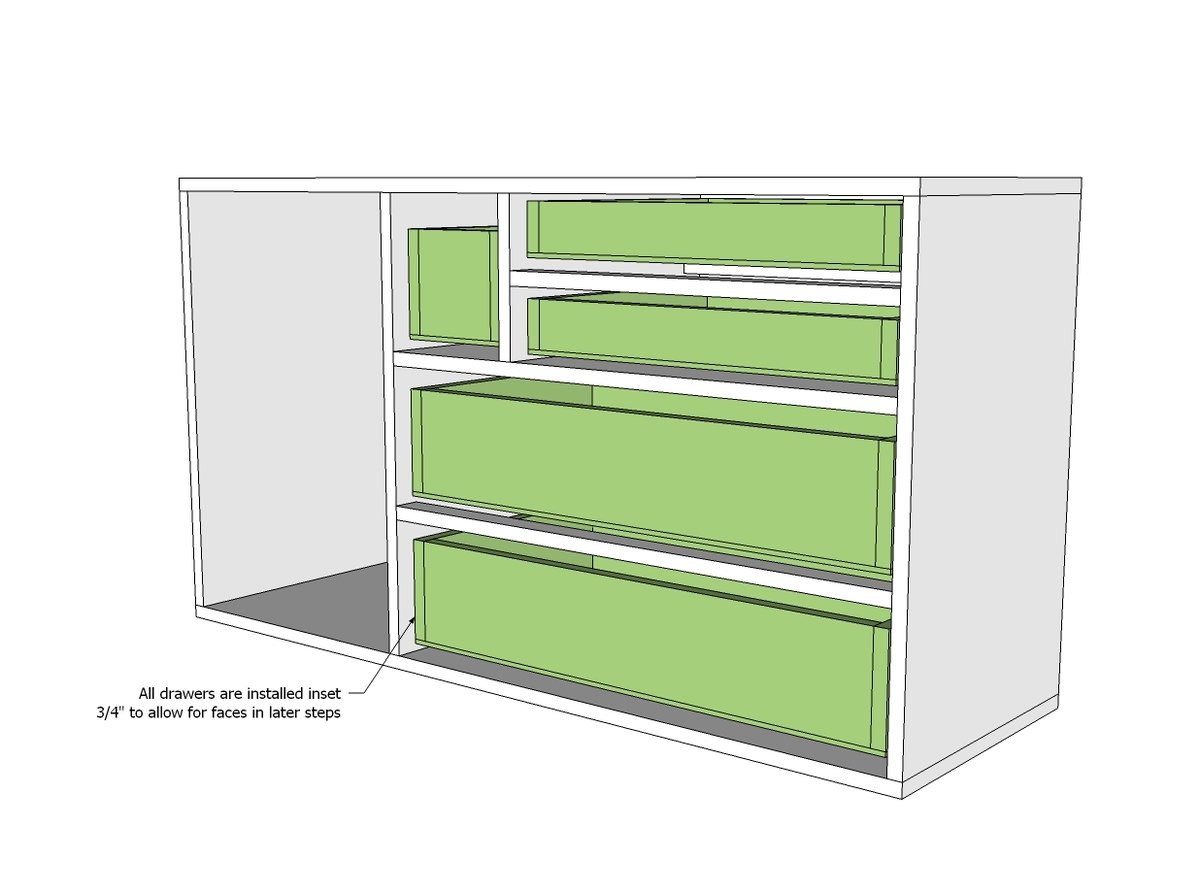

Step 6

Insert drawers into cabinet, installing with drawer slides so drawer boxes are INSET 3/4" - this is to allow for the drawer faces (next step).

Patchwork Dresser on Wheels — step 6
7

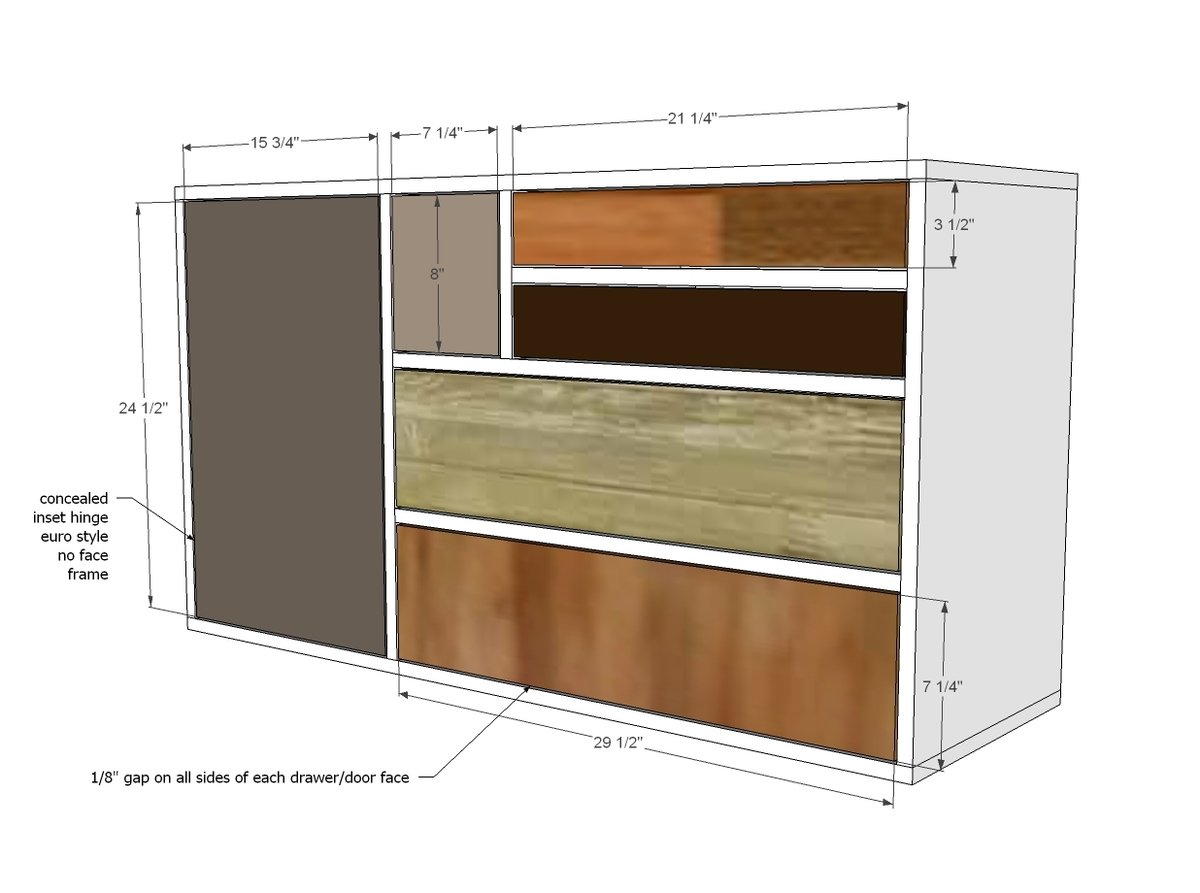

Step 7

Attach drawer faces to the drawers with a 1/8" gap around all sides. Then attach the cabient door with the inset hinges.

Patchwork Dresser on Wheels — step 7
8

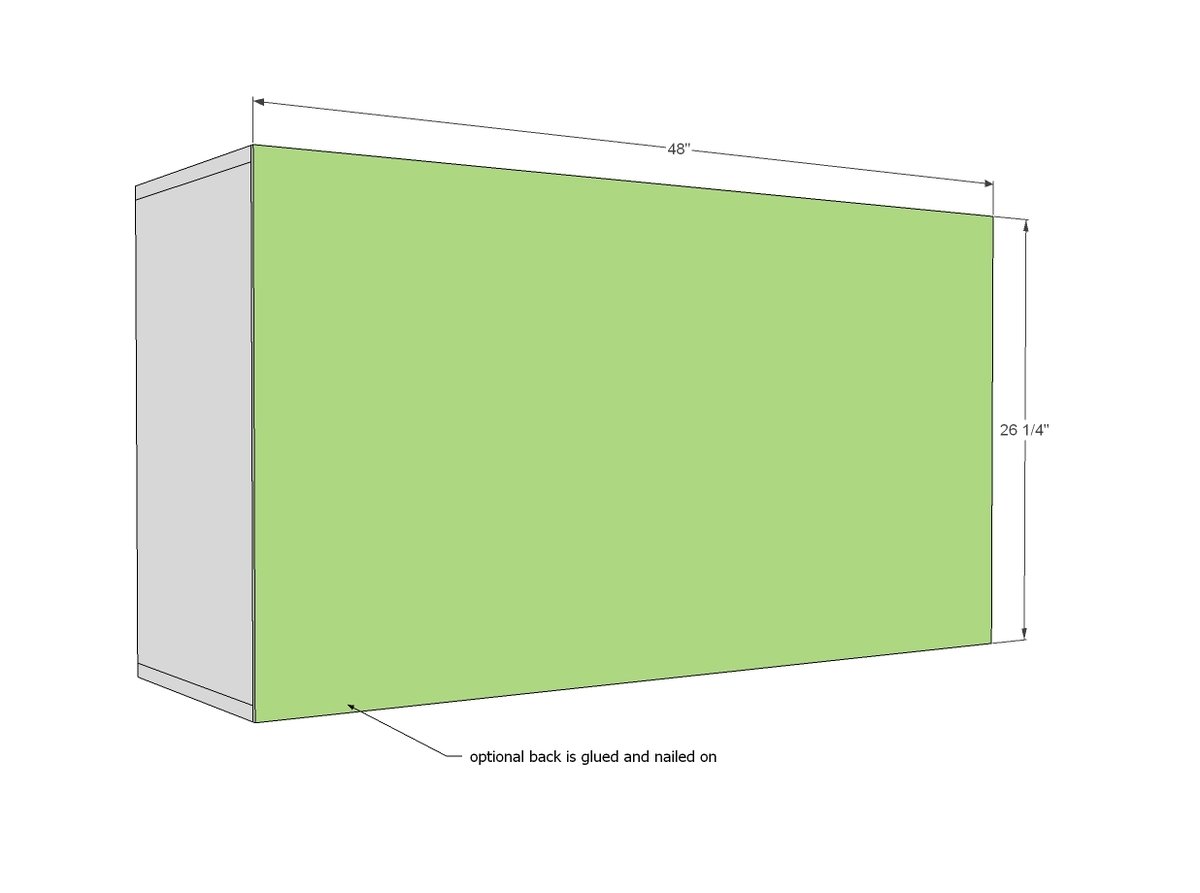

Step 8

The back can really be attached at any time, but it's nice to do this afterwards so you can reach in from back to get your drawers/hinges just right.

Patchwork Dresser on Wheels — step 8
9

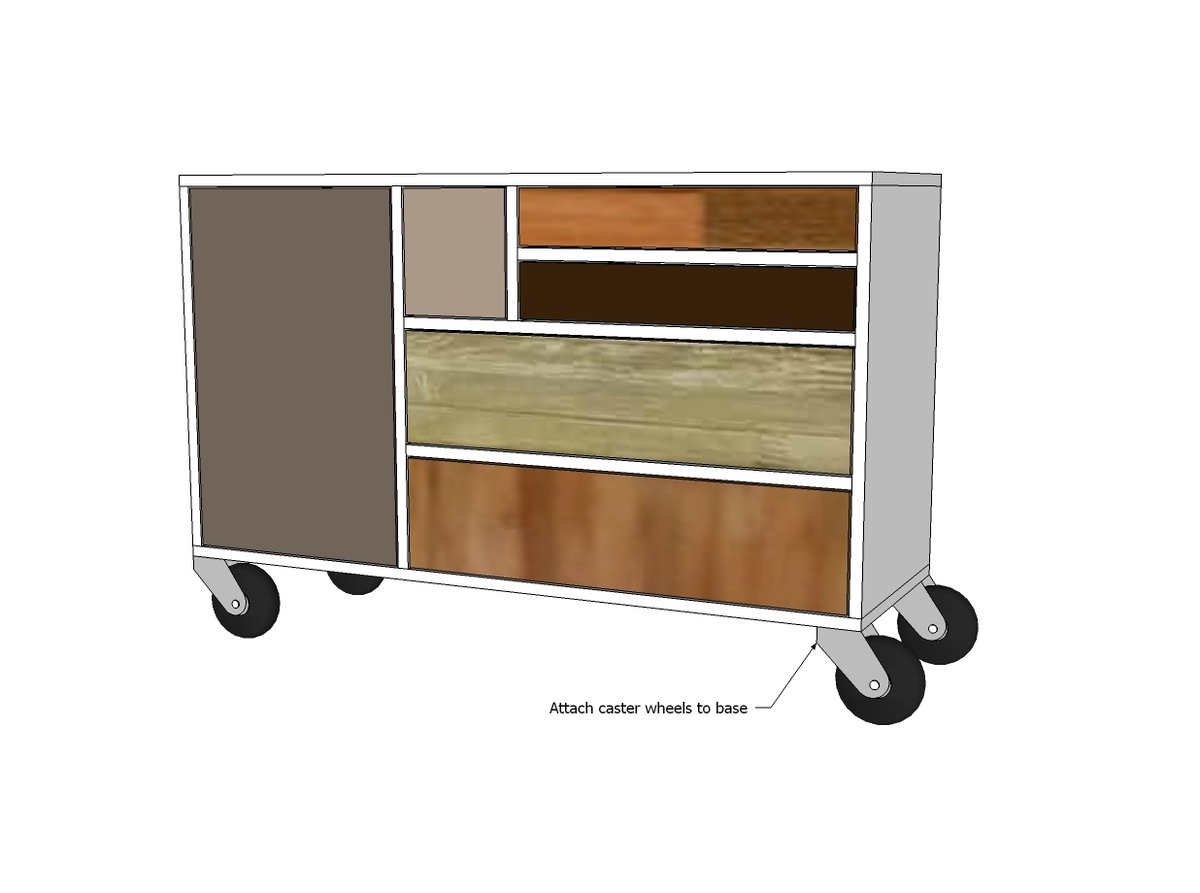

Step 9

Attach caster wheels to base. Done deal!

Patchwork Dresser on Wheels — step 9
10

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
