Pull Out Drawers
How to build a pull out drawer for cabinets - tutorial from
Specifications
| Project type | Home DIY |
|---|---|
| Room | Storage Solutions |
| Style | Farmhouse Furniture |
| Difficulty | Intermediate |
| Estimated cost | $20 - $50 |
Step-by-step Instructions

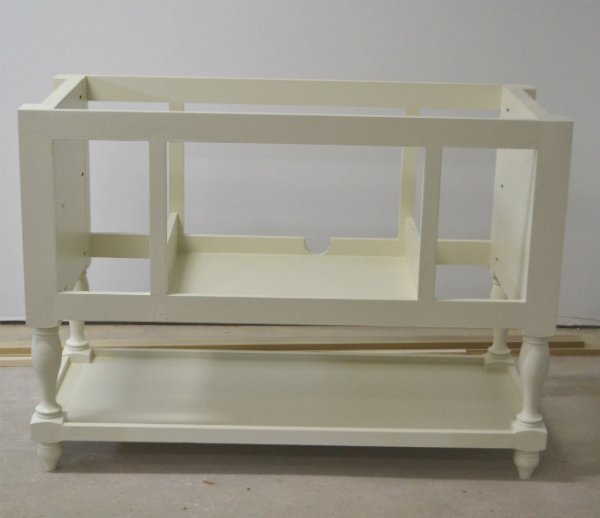

For this to work in a cabinet, the cabinet inside must be:
1. Square. Whenever you work with drawers, since they slide in and out, it's super important that the opening and especially where the slides attach is very square. Otherwise your drawers will slide in cockeyed and jamb. The best advice I can give here is to build meticulously square and use straight wood. If all else fails, you can shim your slides to get them to slide perfectly, but that should be a last resort. 2. Where the drawer slides are going to be mounted (on this cabient, it's the inside of the sides) needs to be flush to the face framing. This is so the drawer slide can slide all the way out without hitting your face framing. You can easily shim this area if needed to bring the slides out flush. 3. For this type of installation, with the side mounted drawer slides for a pull out drawer, it's best to have an opening that is taller than it is wide. Also, you'll need to use your best judgement on how many slides you'll need to support the drawer. 4. Make sure there is plenty of room to install the pull out drawer. You may wish to actually install the pull out drawer slides while you are building if the area is to be closed in and inacessible to a drill.
Step 2

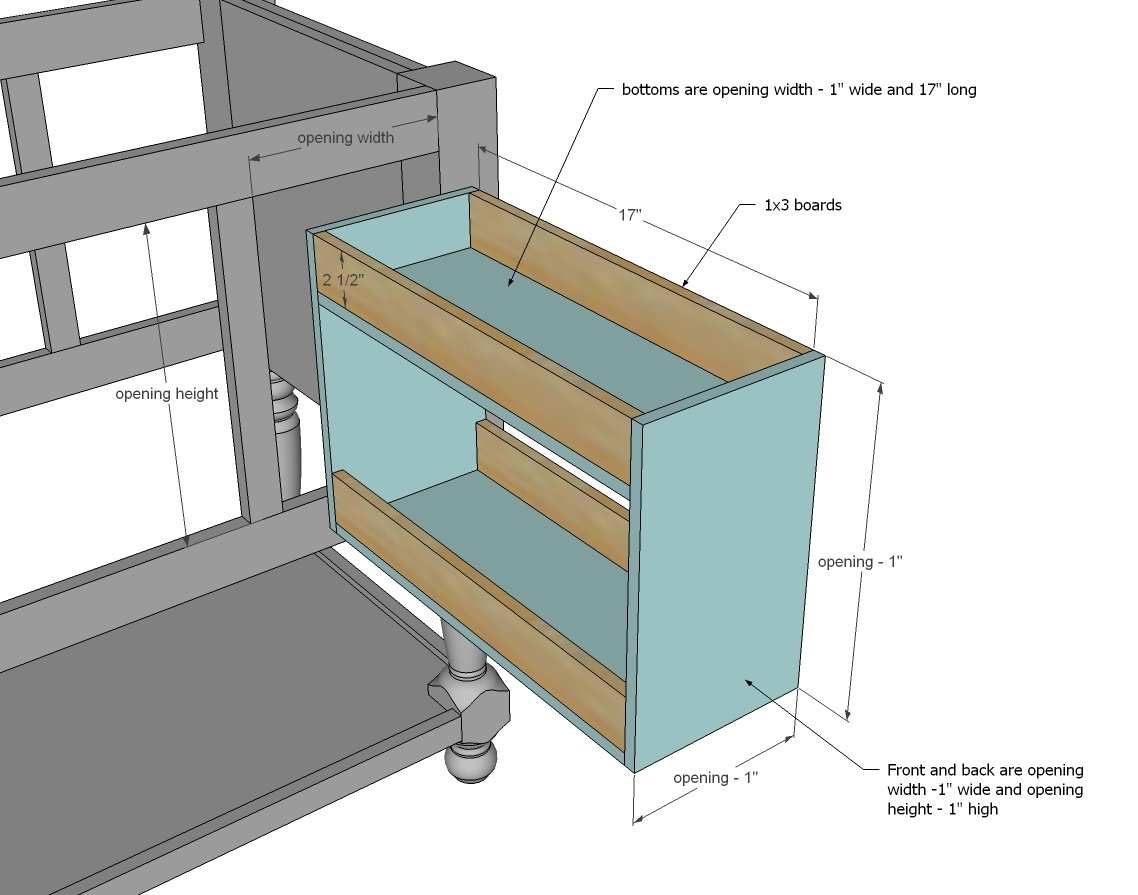

Measure the depth of the opening in the cabinet. Purchase full extension drawer slides like the ones shown in this tutorial in a length that suits your cabinet. For us, the opening was about 21". But once I figured in the drawer face of 3/4" thick, I decided to build my pull out boxes 18" overall in length. So I purchased 18" drawer slides. Then measure the height and width of the opening. Build your pull out drawer 1" smaller in height and width than the opening. What we did was rip 1/2" plywood to 1" less than the opening, and use it to make the shelves, front and back. Then we supported the shelves with more 1/2" plywood, this time ripped to 2 1/2" widths. You could also get away with using dimensional lumber - the pull out drawer does not have to be exactly 1" smaller in width - I just recommend a minimum of 1" smaller in width to give you plenty of clearance with the drawer slides. So you do have some flexibility on the size of the pull out drawer. With the pull out drawer built, seperate the drawer slides. Take the cabinet members, and install on the sides of your pull out drawer. It is crucial that the two slides are installed parallel, so we used a 1x2 block to help guide us in installing the cabinet members. The top drawer slide is screwed to the pull out drawer. And then we replace the cabinet member of the drawer slide, sliding it onto the drawer member of the drawer slide. The top is done. Then the bottom is done, taking great care to make sure the slides are installed on the pull out drawer exactly parallel. We are ready to install the pullout drawers in the vanity cabinet now!

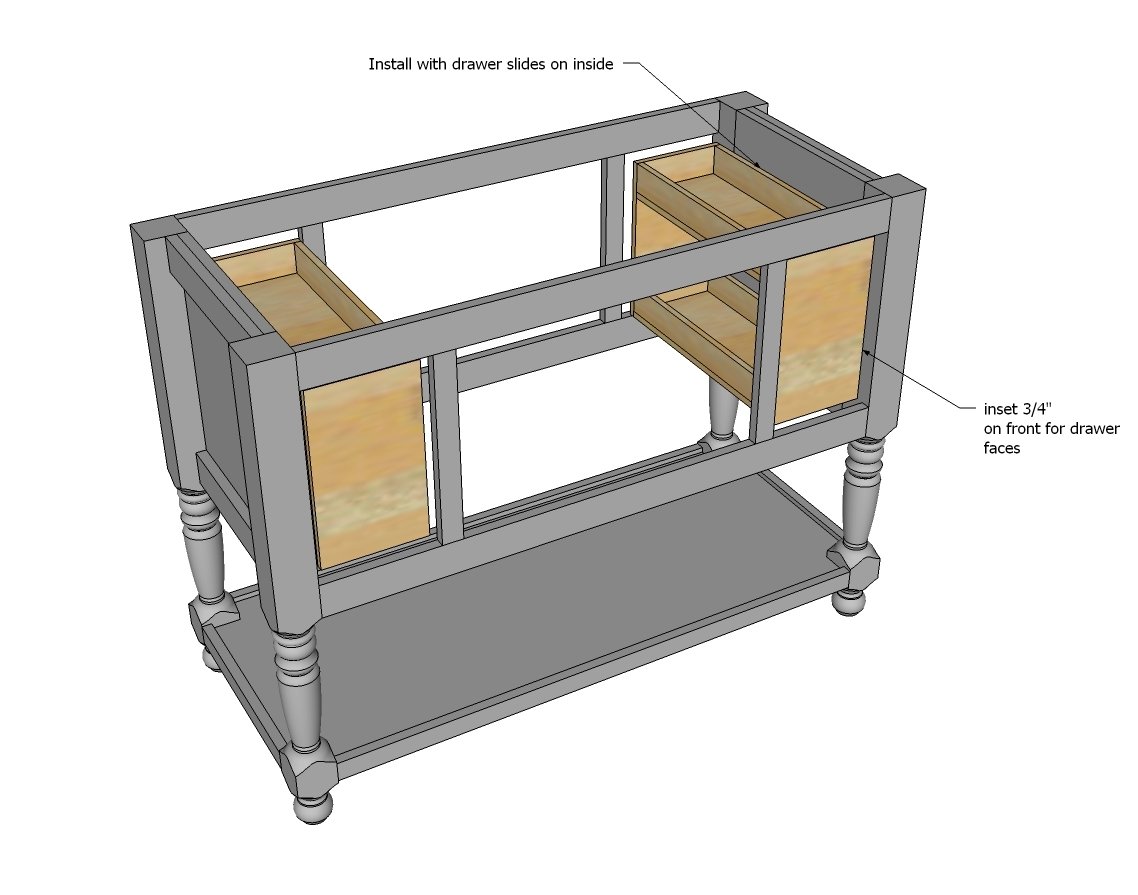

We planned to leave 1/2" gap around all sides of the pull out drawer, including the bottom.
So we used a scrap piece of 1/2" plywood on the bottom of the opening. And then rested the pullout drawer with slides attached on top of it. This of course ONLY works if you are 100% certain your front/back face framing is perfectly level. We positioned the pullout drawer inset 3/4" for the drawer face to be installed in later steps. Then we very carefully marked the location of the drawer slides on the inside of the cabinet. And then carefully pulled the drawer out, extending the slides, leaving the cabinet member part of the slides in place. We carefully matched up the cabinet member parts of the slides with our marks, And then attached the cabinet member slides to the cabinet interior with screws. We got pretty lucky that our slides slide very nicely, so no fine tuning needed, but most slides come with the ability to adjust to get your slides to slide easily.

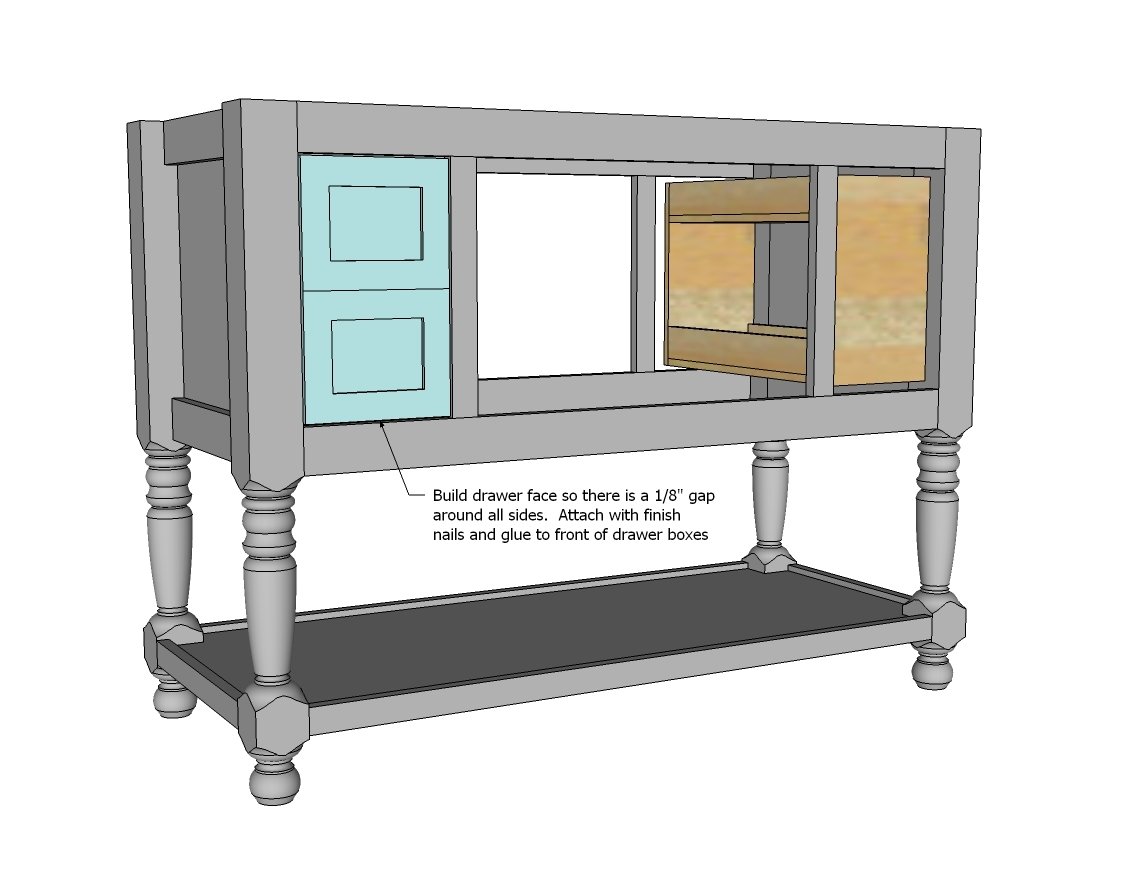

Now for the drawer face -
I held it in place, leaving an even gap around all sides, while the Ram screwed it on from the back. One side done, on to the other! The knobs we choose were designed to work with a 3/4" thick drawer face. This created an issue because of the pull out drawer added to the thickness of the drawer face. So we removed one screw of the drawer faces, installed the knobs, and then reinstalled the drawer face in the exact postion. This actually was one of the easiest drawer installations I've ever done. And we are super proud of how well lined up those drawer faces are when the cabinet is closed! Would you ever guess that much functionality is hidden behind that pretty drawer face?
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
