Rectangle End Table with Shelf
This rectangle shaped end table works on the end of a sofa or sectional. With a roomy top and generous shelf, display and store everything you need in your living room. Free step by step
Specifications
| Project type | Side and End Table Plans |
|---|---|
| Room | living room |
| Style | Cottage Style Furniture Plans |
| Difficulty | Beginner Projects |

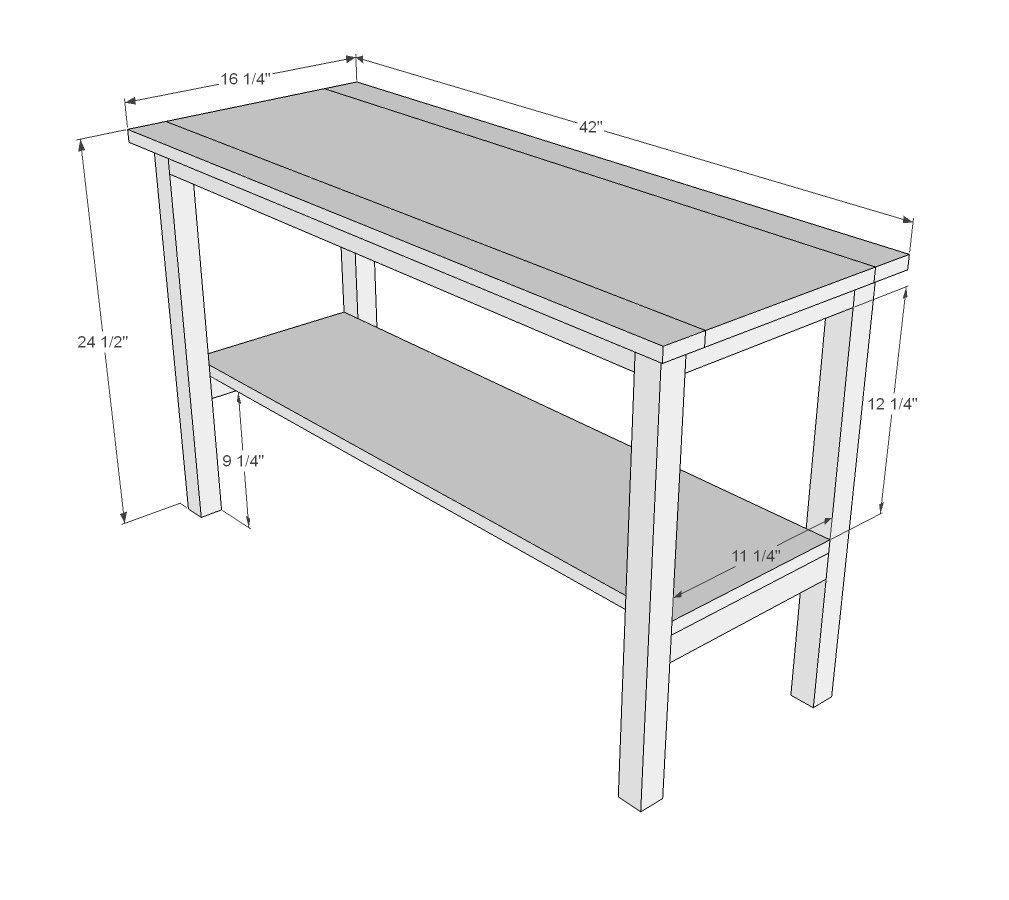

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
3 – 2x2 @ 8 feet long
1 – 1x12 @ 8 feet long
1 – 1x3 @ 8 feet long
1 ¼” and 2 ½” PH screws
1-1/4” brad nails or screws for attaching shelves
Cut List
4 – 2x2 @ 23 3/4"
4 – 2x2 @ 11 1/4" (cut these to the width of your 1x12, expected to be 11 1/4")
3 – 2x2 @ 37”
1 – 1x12 @ 40”
1 – 1x12 @ 42”
2 – 1x3 @ 42”
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- kreg-jig
- drill
- circular saw
- nailer
- sander
- countersink drill bit
Step-by-step Instructions

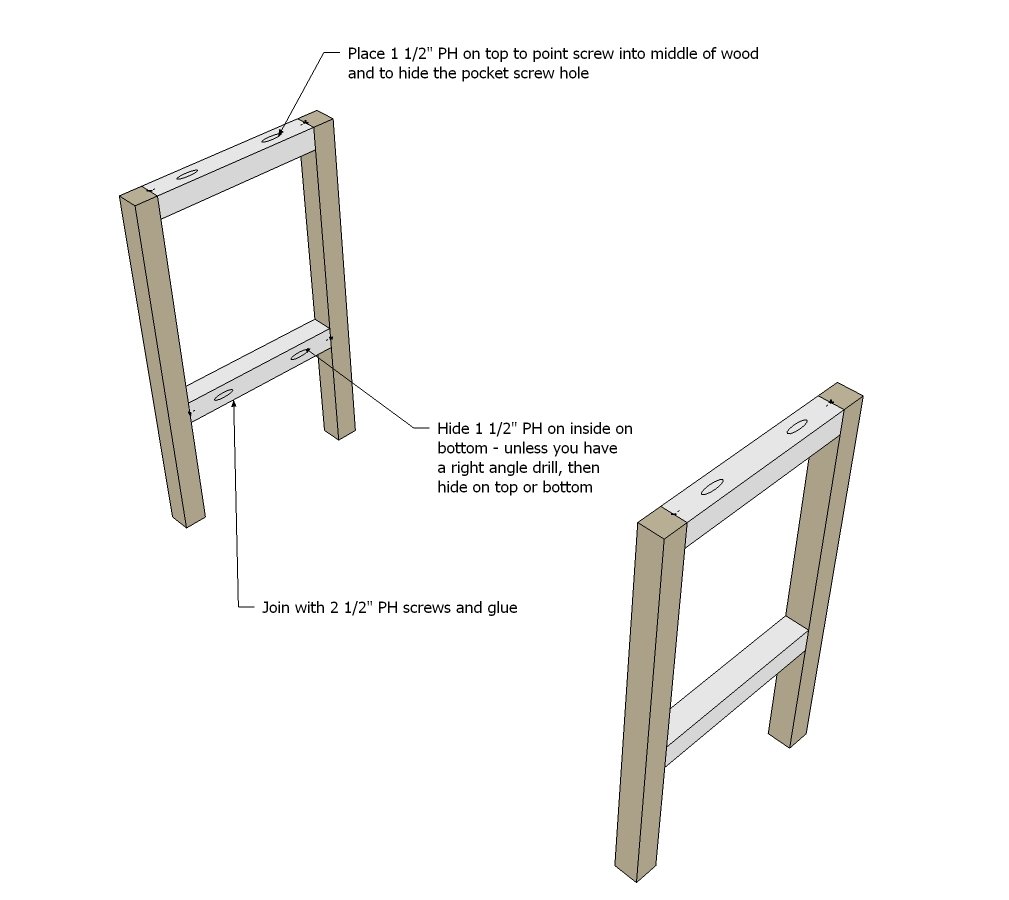

Step 1
First build two of the legs.

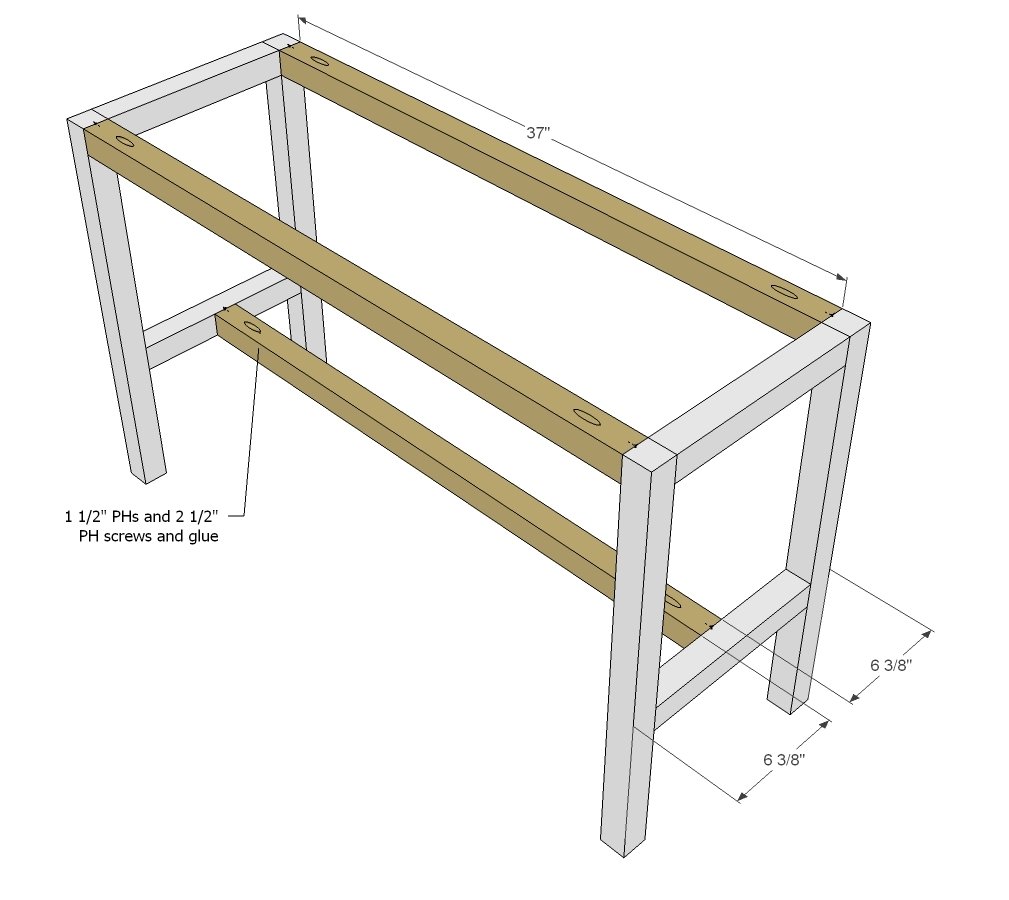

Step 2
Then join the two legs up with the side aprons and bottom support. The bottom support will make sure your bottom shelf doesn't sag.

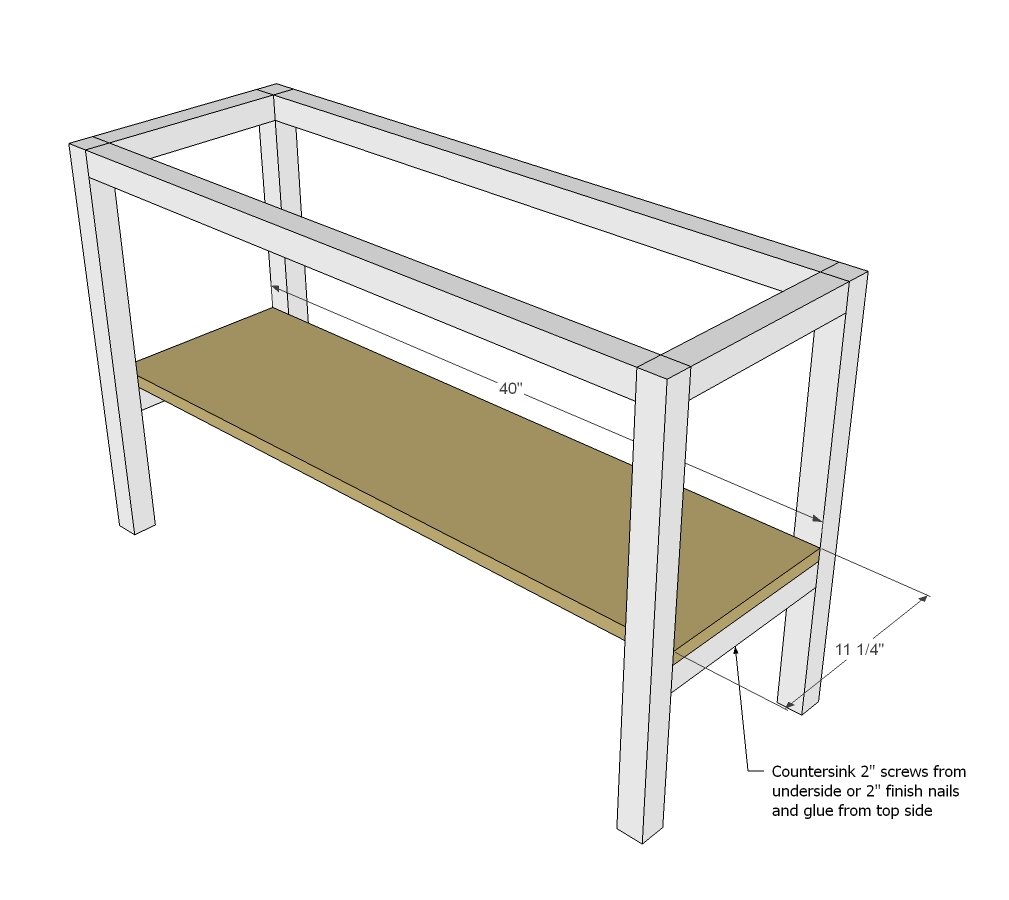

Step 3
Now add your bottom shelf - super easy - just screw through the bottom supports into underside of shelf.

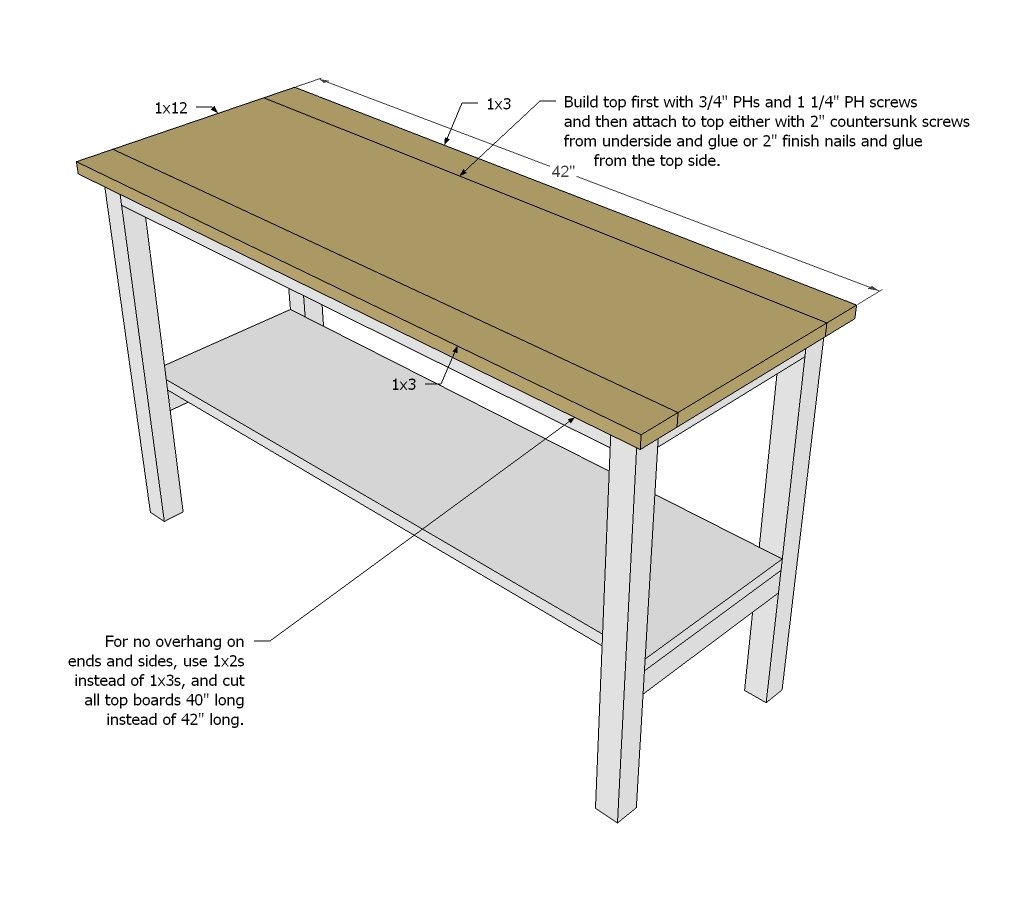

Step 4
And then build your top first with 3/4" PHs (pocket holes) and 1 1/4" PH screws (pocket hole screws) and attach same as the bottom shelf. Note: Jen used 3/4" plywood for her top instead - you can do that too!
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
