Rustic Bookshelf Plans with 2x2 Face Frames

How to build a rustic wood bookshelf., shopping list, cut list and real photos to help you build your own bookshelf. This is a reader favorite and is easy to customize in shape and size! All pine or white wood boards. From

Rustic Bookshelf Plans with 2x2 Face Frames

Specifications

Project typeBookshelf and Bookcase Plans
RoomStorage Solutions
StyleFarmhouse Furniture
DifficultyBeginner Projects
Estimated cost$50 - $100

Dimensions

Use the size-specific shopping and cut lists below.

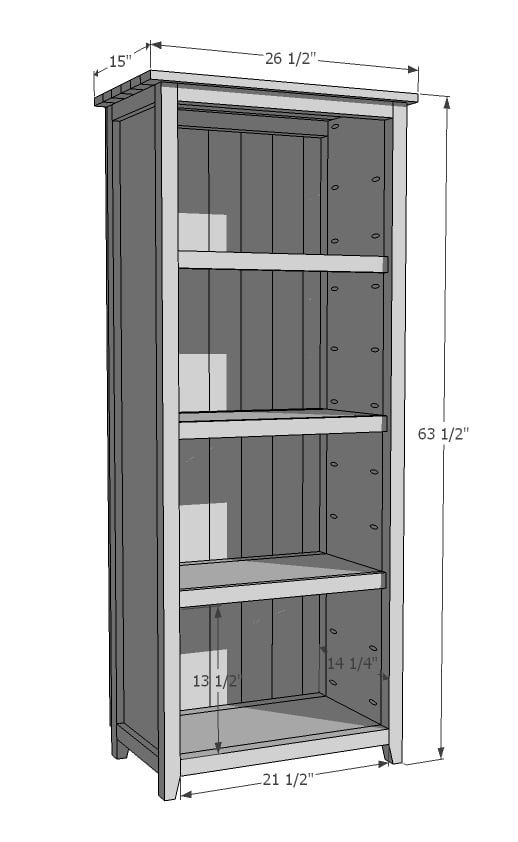

Rustic Bookshelf Plans with 2x2 Face Frames dimension diagram 1

Shopping List

  • 1 - 4 feet long 1x12
  • 2 - 8 feet long 1x12
  • 2 - 8 feet long 1x2
  • 2 - 8 feet long 1x3
  • 4 - 8 feet long 2x2
  • planking for back (can use 1/4" panel or 1x boards or tongue and grove boards)

Cut List

  • 2 - 1x12 @ 60 3/4" (sides)
  • 4 - 1x2 @ 11 1/4" (side trim)
  • 4 - 2x2 @ 62 3/4" (legs)
  • 4 - 2x2 @ 21 1/2" (top supports and bottom shelf trim)
  • 4 - 1x12 @ 21 1/2" (shelves)
  • 6 - 1x2 @ 21 1/2" (shelf trim)
  • 6 - 1x3 @ 26" (top)
  • 7 - 3 1/2" wide planking or 1x4s @ 60" long (back)

Tools

  • measuring tape
  • square
  • pencil
  • safety glasses
  • hearing protection
  • kreg-jig
  • drill
  • nailer
  • sander

Step-by-step Instructions

1

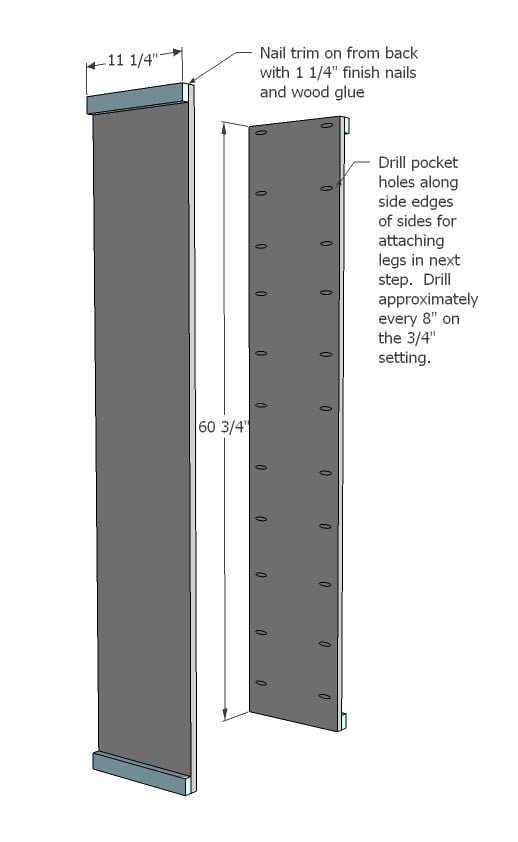

Step 1

Start by drilling 3/4" pocket holes along side edges of the sides. You may also wish to drill holes along top edge for attaching top. Then add the side trim to the outsides. NOTE: If you don't have a pocket hole jig, you can still build this plan. You will need to carefully predrill holes and use 2 3/4" trim screws to attach legs in next step.

Rustic Bookshelf Plans with 2x2 Face Frames — step 1
2

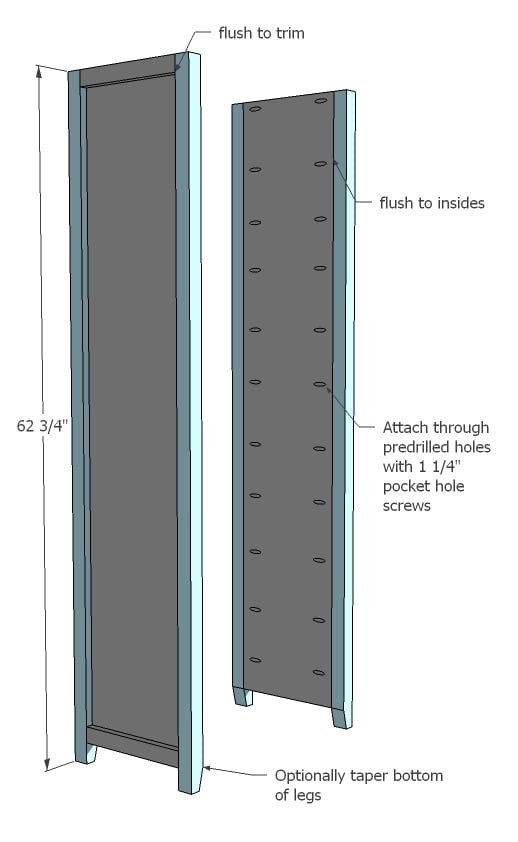

Step 2

Add the legs...

Rustic Bookshelf Plans with 2x2 Face Frames — step 2
3

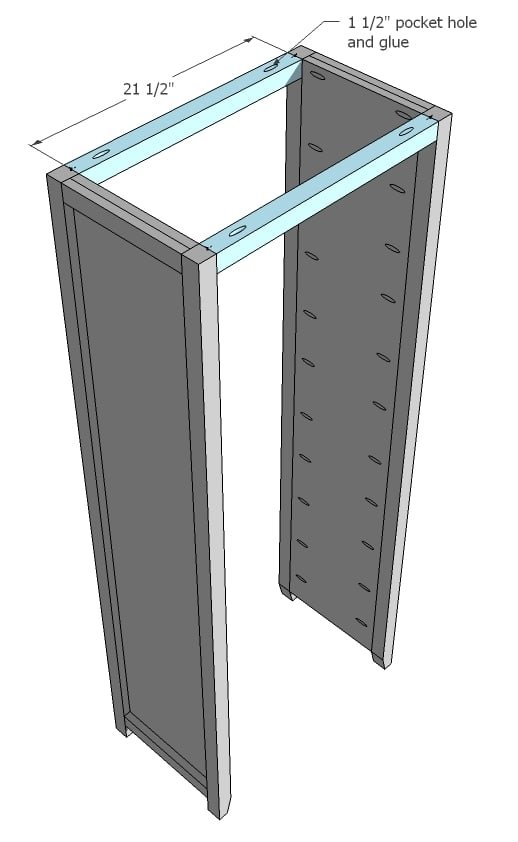

Step 3

And the top supports.

Rustic Bookshelf Plans with 2x2 Face Frames — step 3
4

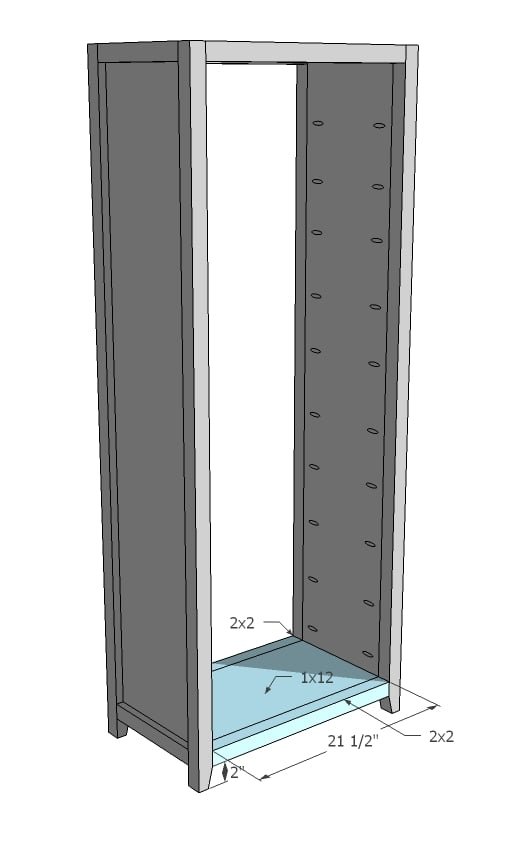

Step 4

Build your bottom shelf first (see next step) and then attach to bottom.

Rustic Bookshelf Plans with 2x2 Face Frames — step 4
5

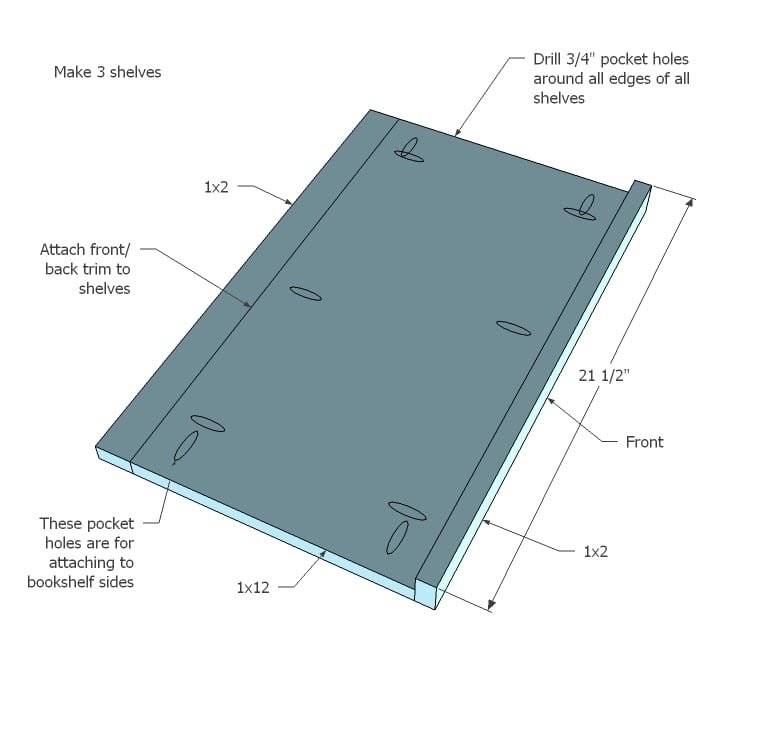

Step 5

Rustic Bookshelf Plans with 2x2 Face Frames — step 5
6

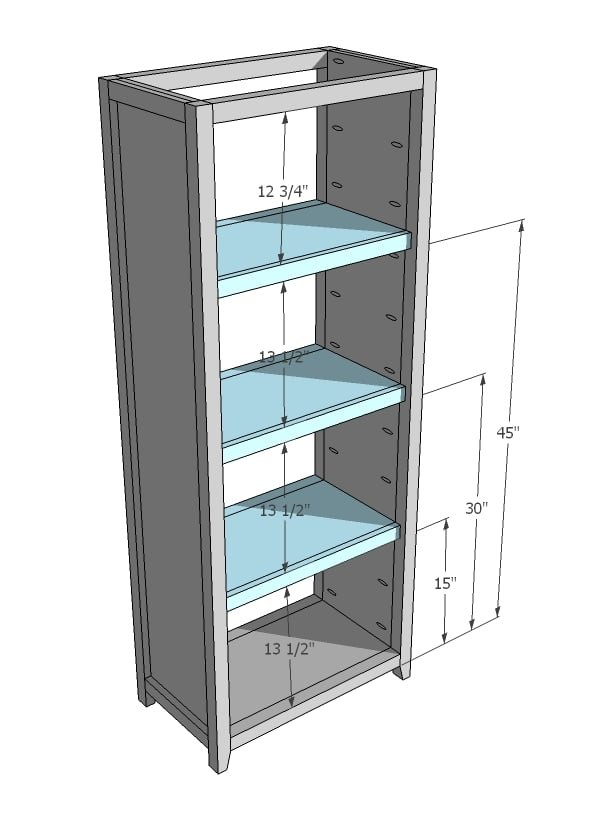

Step 6

And insert into the bookshelf. I recommend having fixed shelves in this project to give you something to attach the back planking to.

Rustic Bookshelf Plans with 2x2 Face Frames — step 6
7

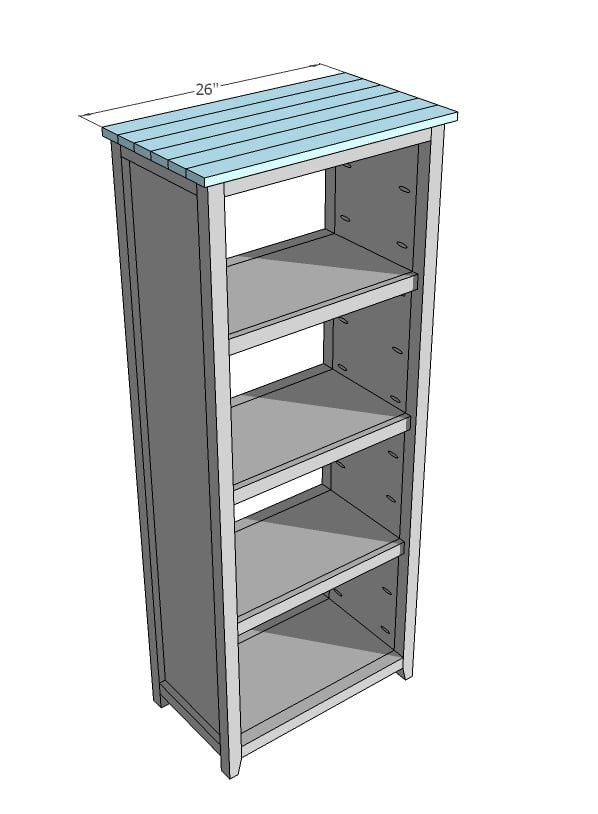

Build top first with 3/4" pocket holes and attach to top.

NOTE: If you do not have a pocket hole jig, cut 3 2x2s 11 1/4" long and screw between top supports. Then use these supports to attach top planking to.

Rustic Bookshelf Plans with 2x2 Face Frames — step 7
8

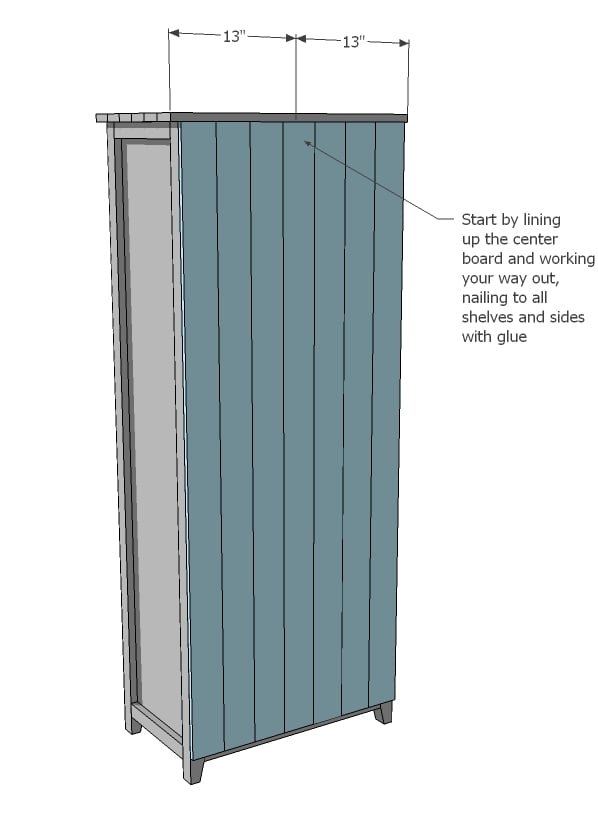

Step 8

Finally add the back. To conserve costs, try adding planking or tongue and groove to back, but you can always use 1x4s.

Rustic Bookshelf Plans with 2x2 Face Frames — step 8
9

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
