Rustic X Coffee Table
You can build a beautiful coffee table out of lumber! For about $50 in materials, this solid wood coffee table with it's X detailing could be yours. include step by step diagrams, shopping lists and cut list - everything you need to get started. Also in this collection: Rustic X Console Table, Rustic X End Table, and Rustic X Bench Plans
Specifications
| Project type | Coffee Tables |
|---|---|
| Room | living room |
| Style | Farmhouse Furniture |
| Difficulty | Intermediate |

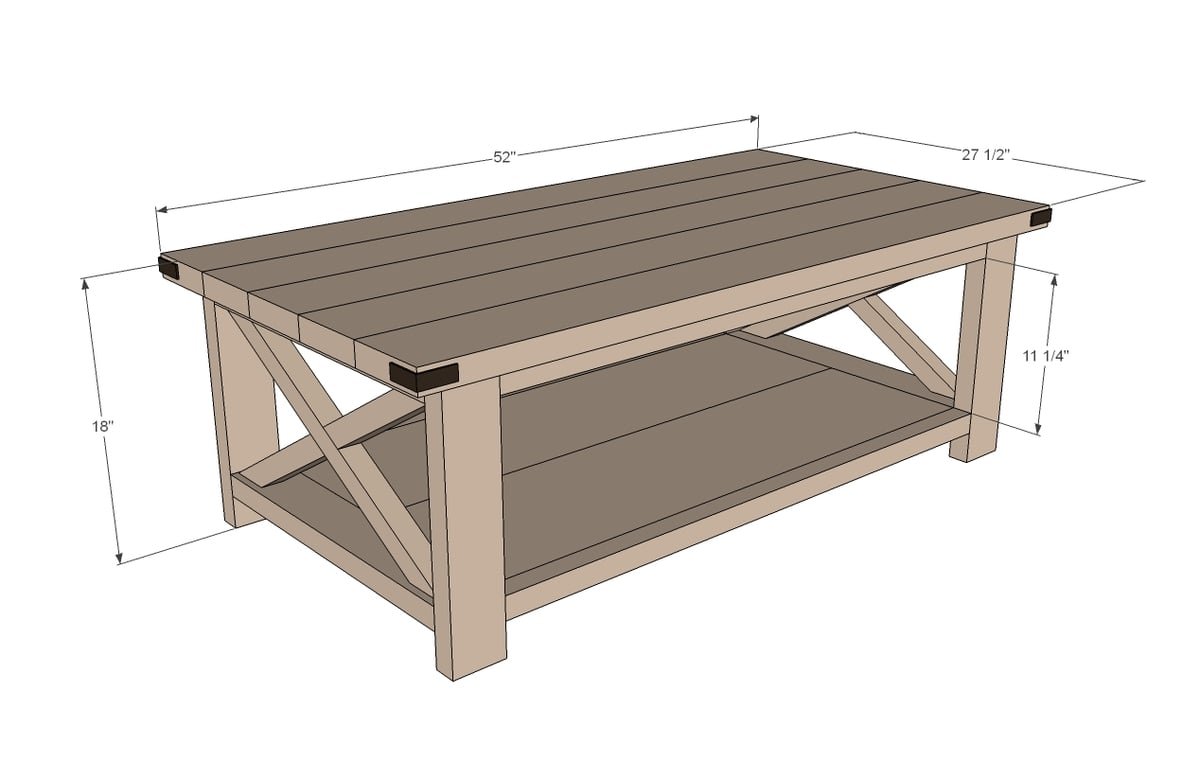

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
- 2 – 2x4 – 8 feet or stud length
- 4 – 2x2 – 8 feet
- 1 – 1x12 – 8 feet long
- 5 – 2x6 – stud length
- 1 ¼” and 2 ½” Pocket Hole screws
Cut List
- 4 – 2x4 @ 16 ½” (legs)
- 4 – 2x2 @ 41” (side trim)
- 4 – 2x4 @ 22 ½” (end trim)
- 2 – 1x12 @ 41” (bottom shelf)
- 2 – 2x2 @ 22 ½” (both ends cut at 60 degrees off square, long point to short point, ends are parallel)
- 4 – 2x2 @ 11 ¼” (long point to short point, one end cut at 60 degrees off square, other end cut at 30 degrees off square, ends are not parallel but are cut in same direction)
- 5 – 2x6 @ 52” (tabletop boards)
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- kreg-jig
- drill
- compound miter saw
- nailer
- sander
- countersink drill bit
Step-by-step Instructions

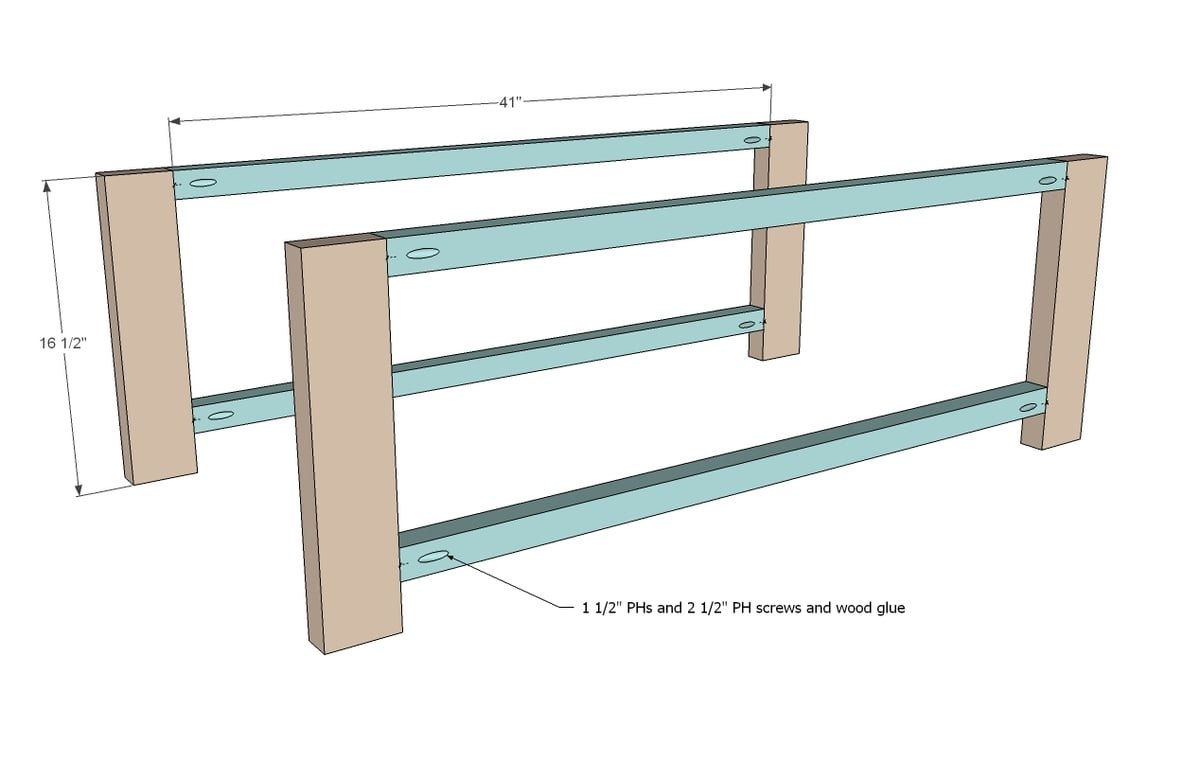

Step 1
First build the two side trim pieces.

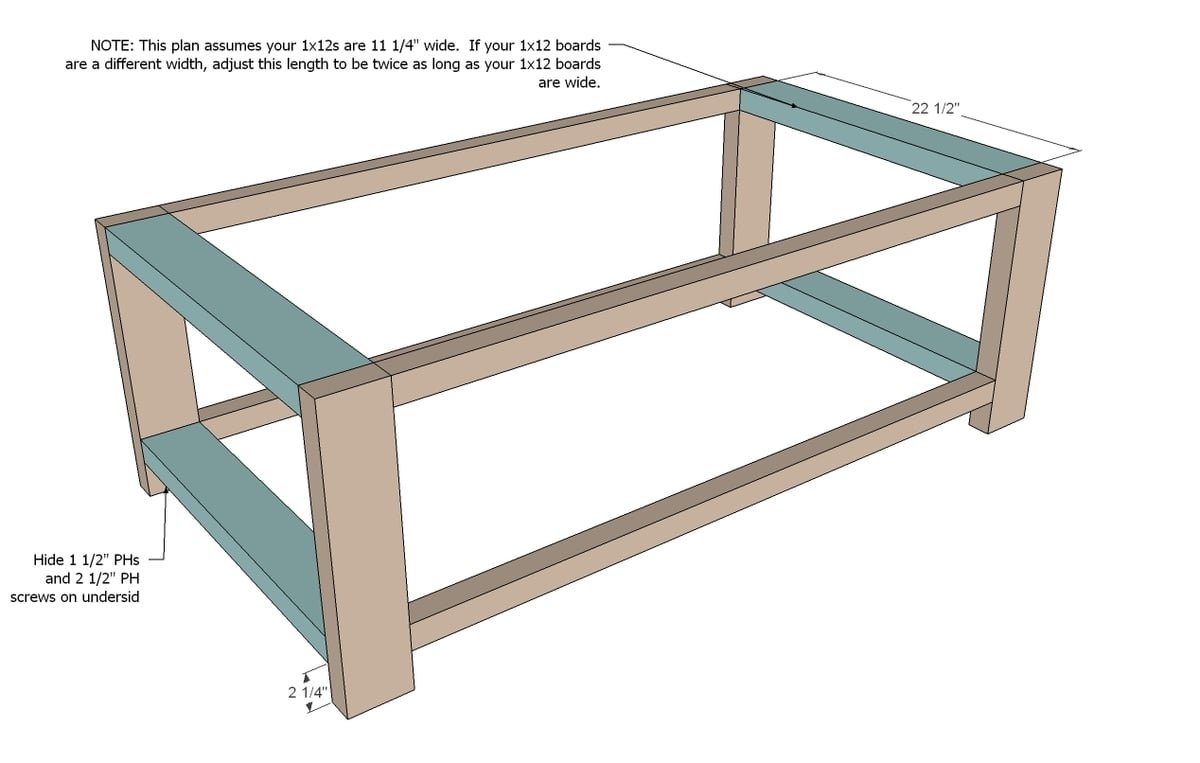

Step 2
Then connect together. Hide top pocket holes on top, bottom pocket holes on bottom. NOTE: This plan is sized for 1x12 boards measuring 11 1/4" wide - measure your 1x12 boards, double that number, and cut your side trim to fit - see next step.

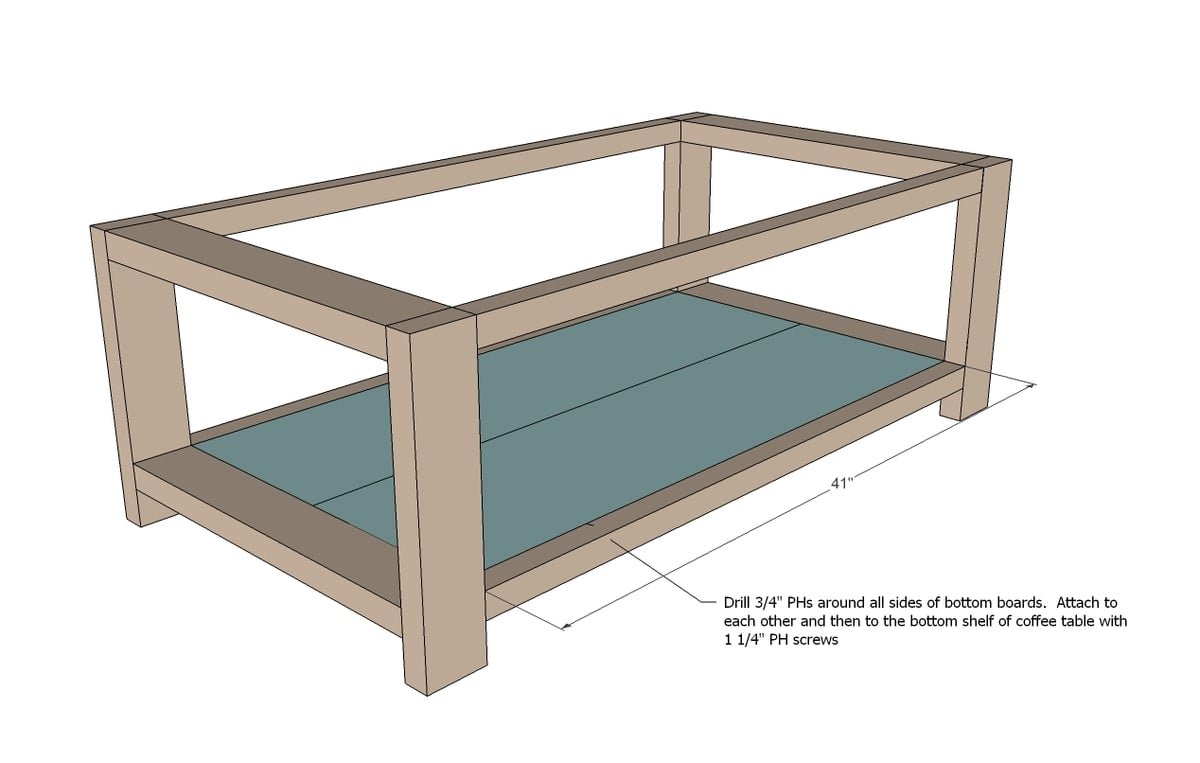

Step 3
Build your bottom shelf with 3/4" PHs/1 1/4" PH screws down center. Then drill 3/4" PHs around all outside edges and attach to the bottom shelf.

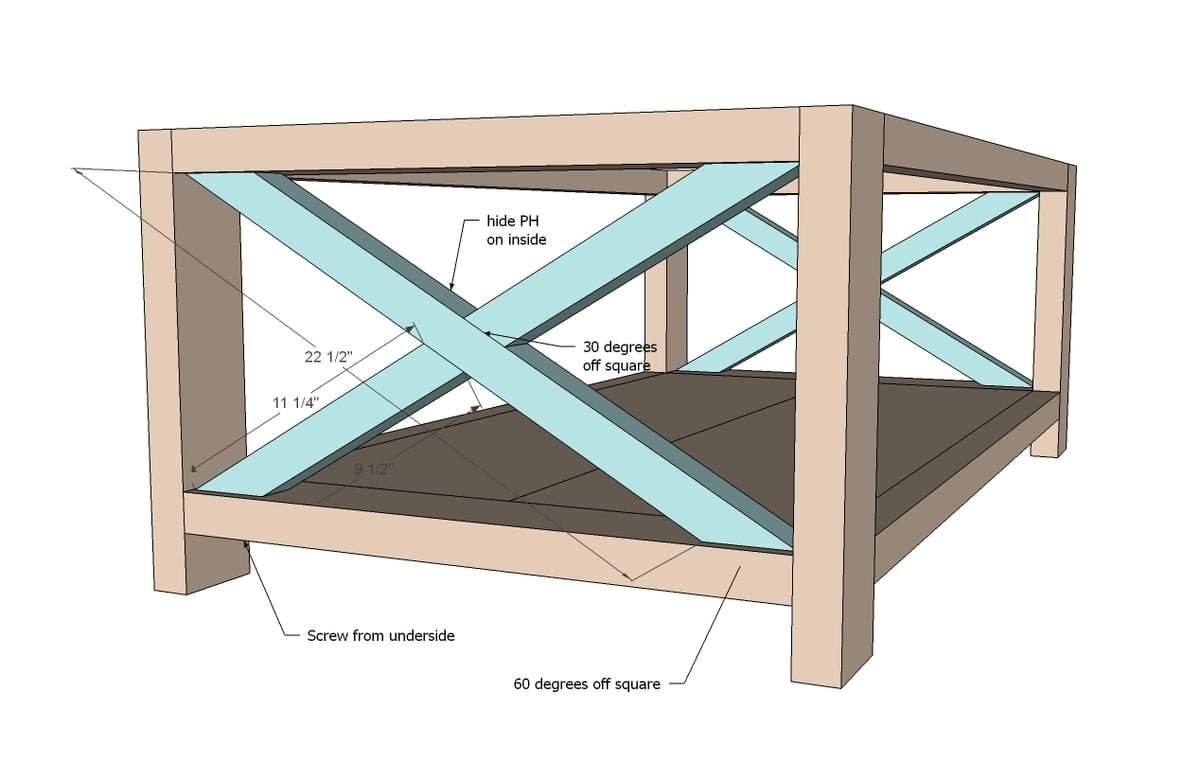

Step 4
Now attach cut and build the X braces. Attach in place. These are mostly decorative, so don't stress about getting them super screwed in place. Some good glue and screws will do the trick.

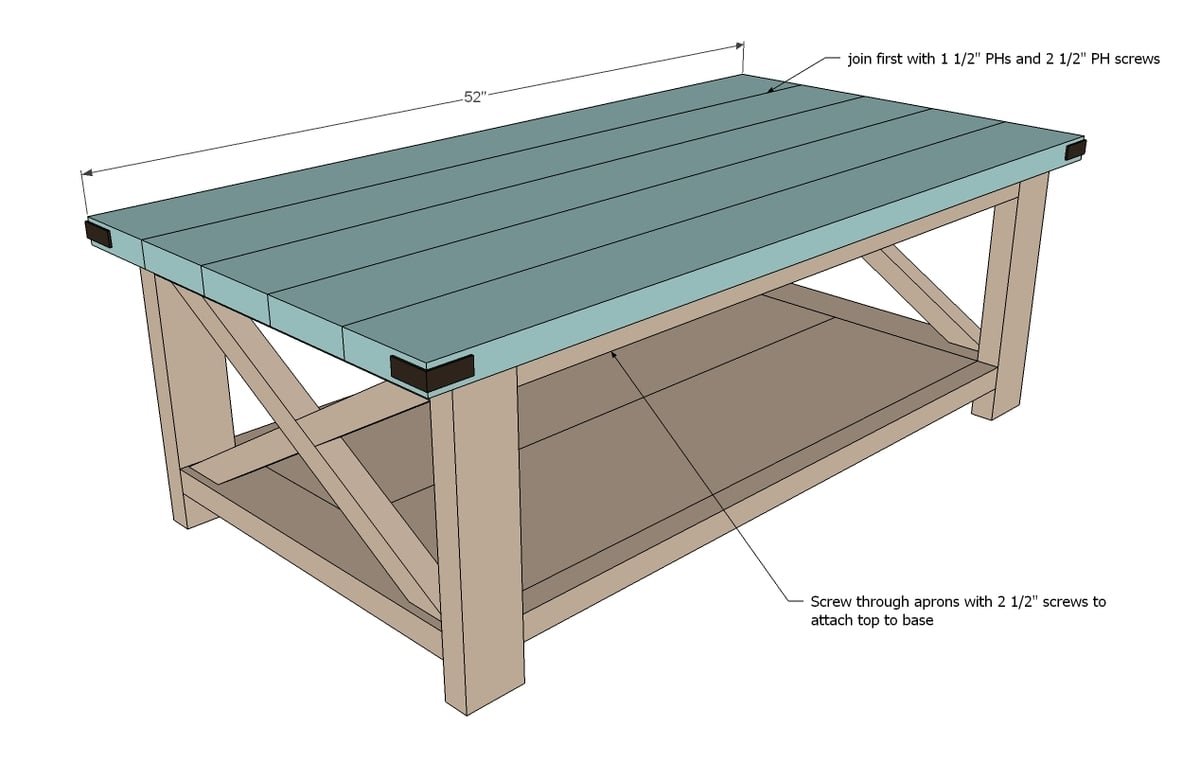

Step 5
For the top, we recommend building the entire top with 1-1/2" pocket holes and 2-1/2" pocket hole screws on a flat level surface. Then attached the completed top to the base.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
