Schoolhouse Wall Hutch
Build this wall hutch from

Specifications
| Project type | Hutch Plans |
|---|---|
| Room | Storage Solutions |
| Style | Cottage Style Furniture Plans |
| Difficulty | Intermediate |
| Estimated cost | $50 - $100 |

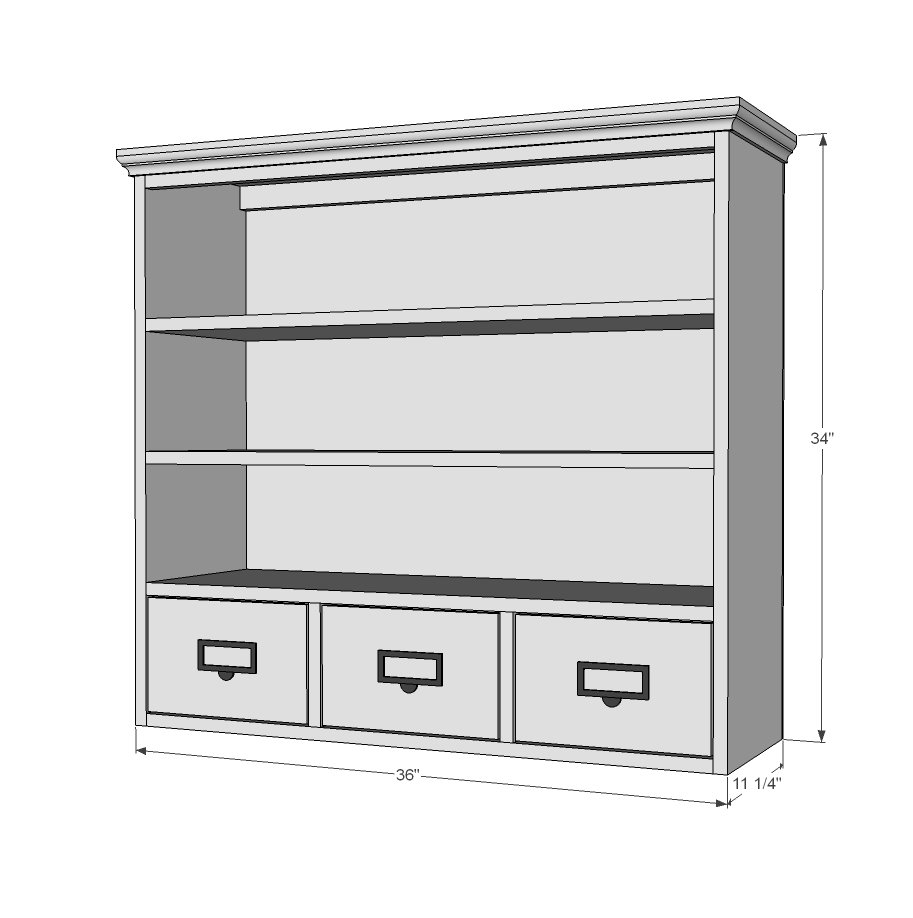

Dimensions
Use the size-specific shopping and cut lists below.

Shopping List
4 - 1x12 @ 6 feet long
1 - 1x2 @ 8 feet long
1/4” plywood 36” x 34” (try beadboard wainscoting panel or 1/2 sheet of beadboard)
1 - 1/2 sheet of 1/2” thick plywood for boxes
3 handles/knobs
Optional: Approximately 6 feet of small crown moulding
Cut List
5 - 1x12 @ 34 1/2”
2 - 1x12 @ 7”
2 - 1x12 @ 34”
2 - 1x2 @ 34 1/2”
2 - 1/4” plywood @36” x 34”
BOXES
6 - 1/2” plywood @ 6 3/4” x 10 3/4”
6 - 1/2” plywood @ 6 3/4” x 10 1/4”
3 - 1/2” plywood @ 9 3/4” x 10 1/4”
Tools
- measuring tape
- square
- pencil
- hammer
- safety glasses
- hearing protection
- kreg-jig
- drill
- circular saw
- compound miter saw
- nailer
- sander
- level
Step-by-step Instructions

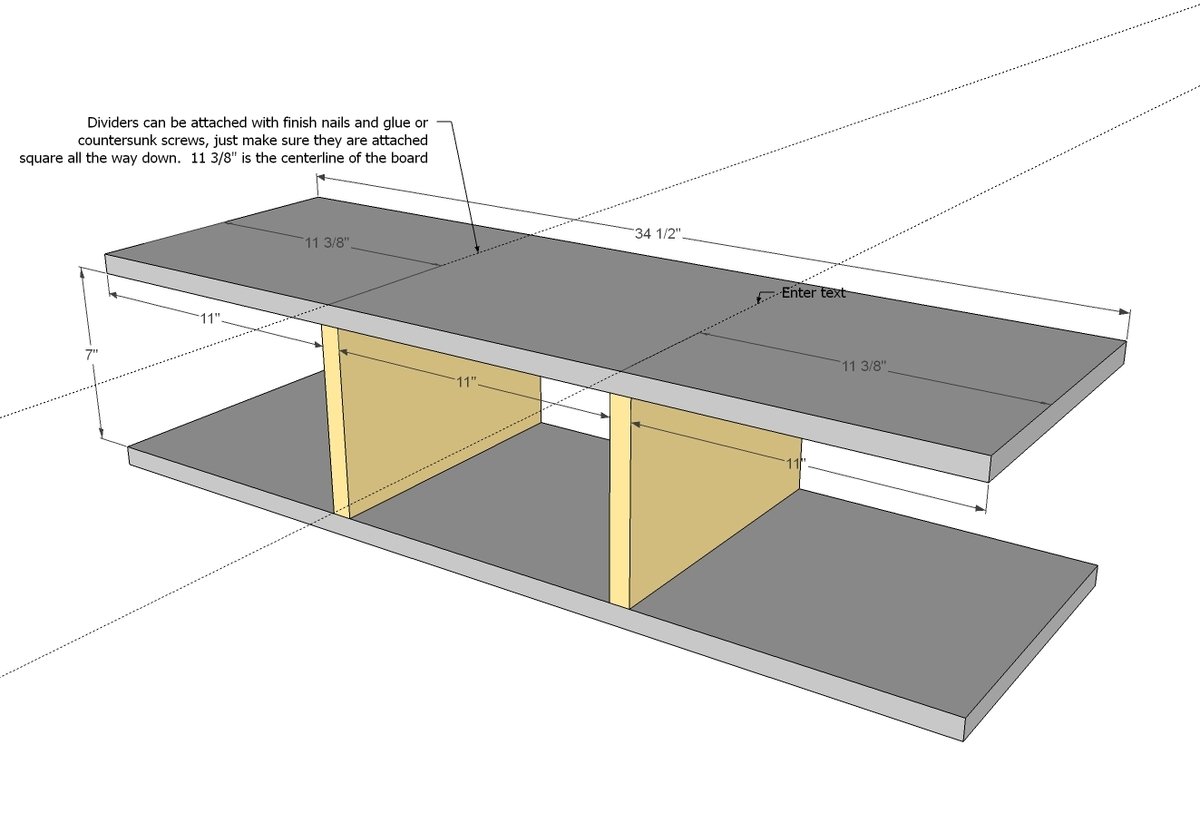

Step 1
Let's start by building the cubby portion. Alternatively, you could add the cubby dividers at the end too. I'd just use nails and glue here. Make sure you draw lines to line the dividers up all the way down or your cubbies won't be square and then your drawers will be cockeyed and won't work. TIP: If you are using a Kreg Jig, make sure you drill 3/4" pocket holes on each end of the two shelves for attaching the sides in the next step.

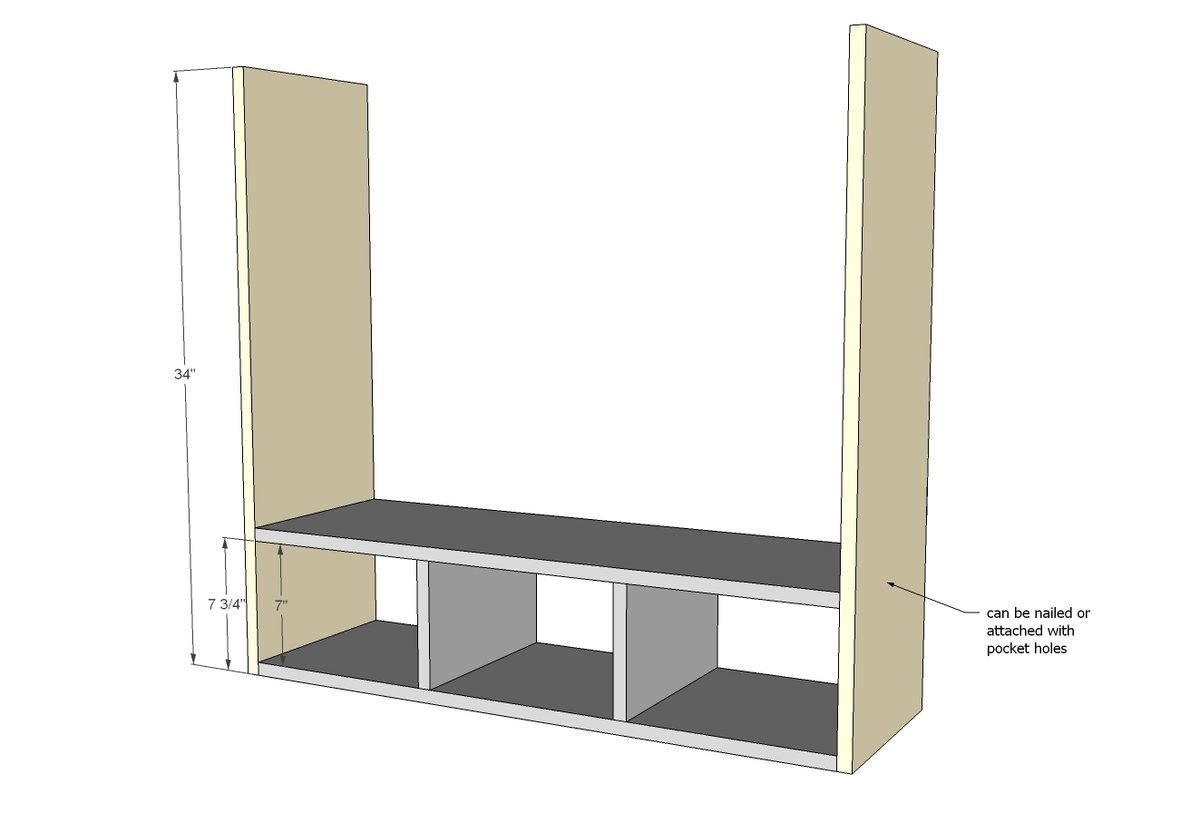

Step 2
Then attach sides to the cubby shelf part.

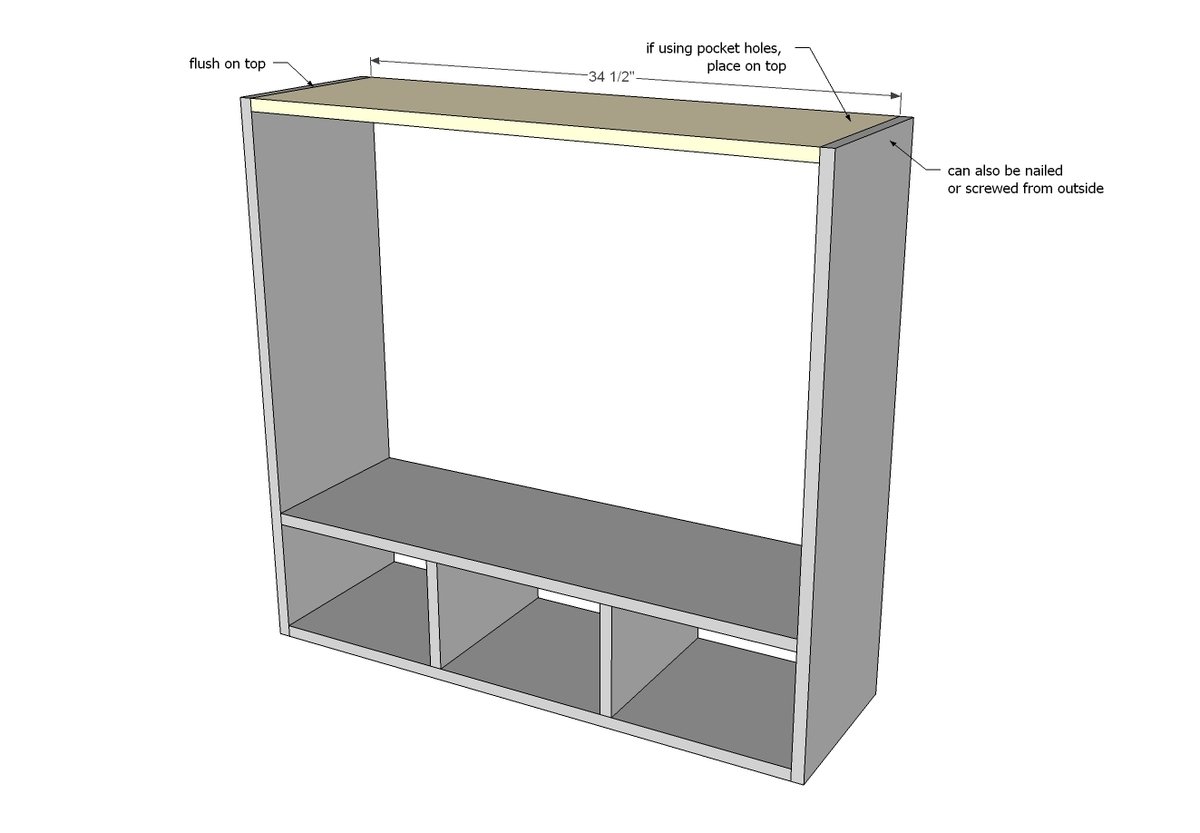

Step 3
And then finally attach the top shelf.

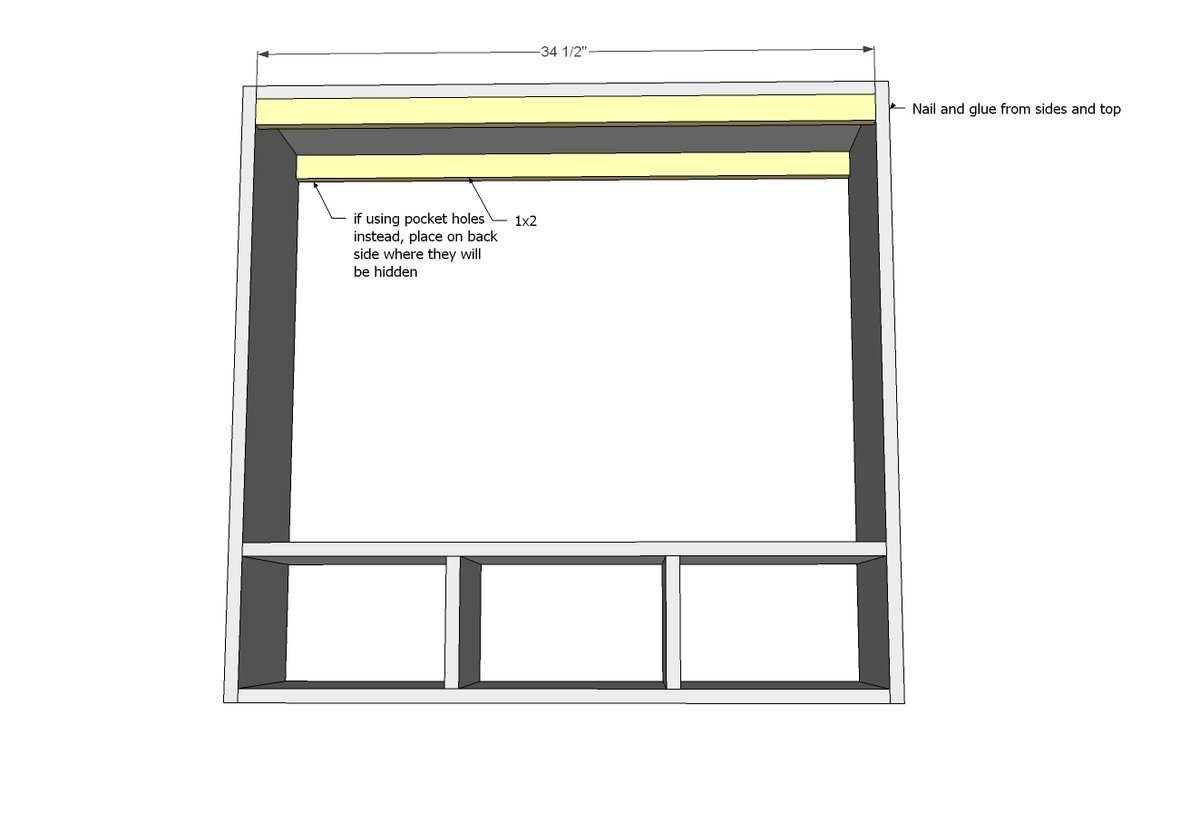

Step 4
Attach 1x2s to the tops of both back and front.

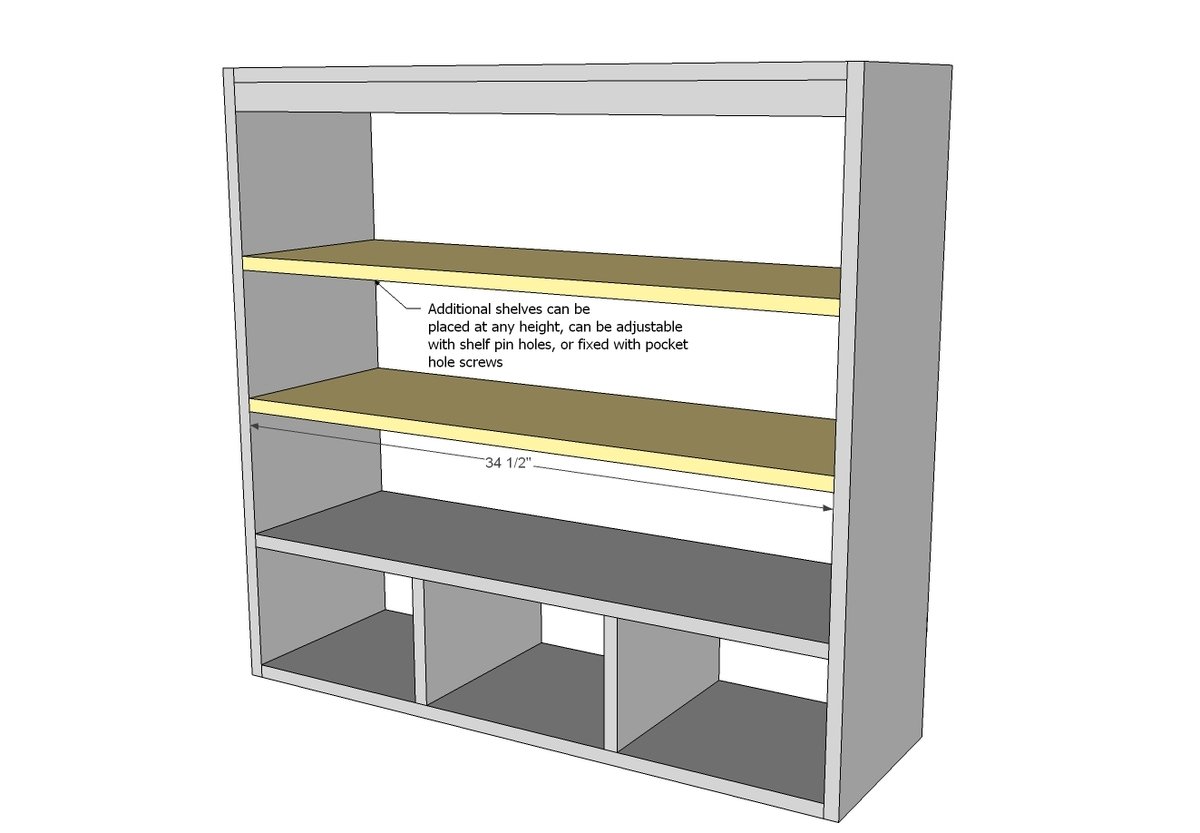

Step 5

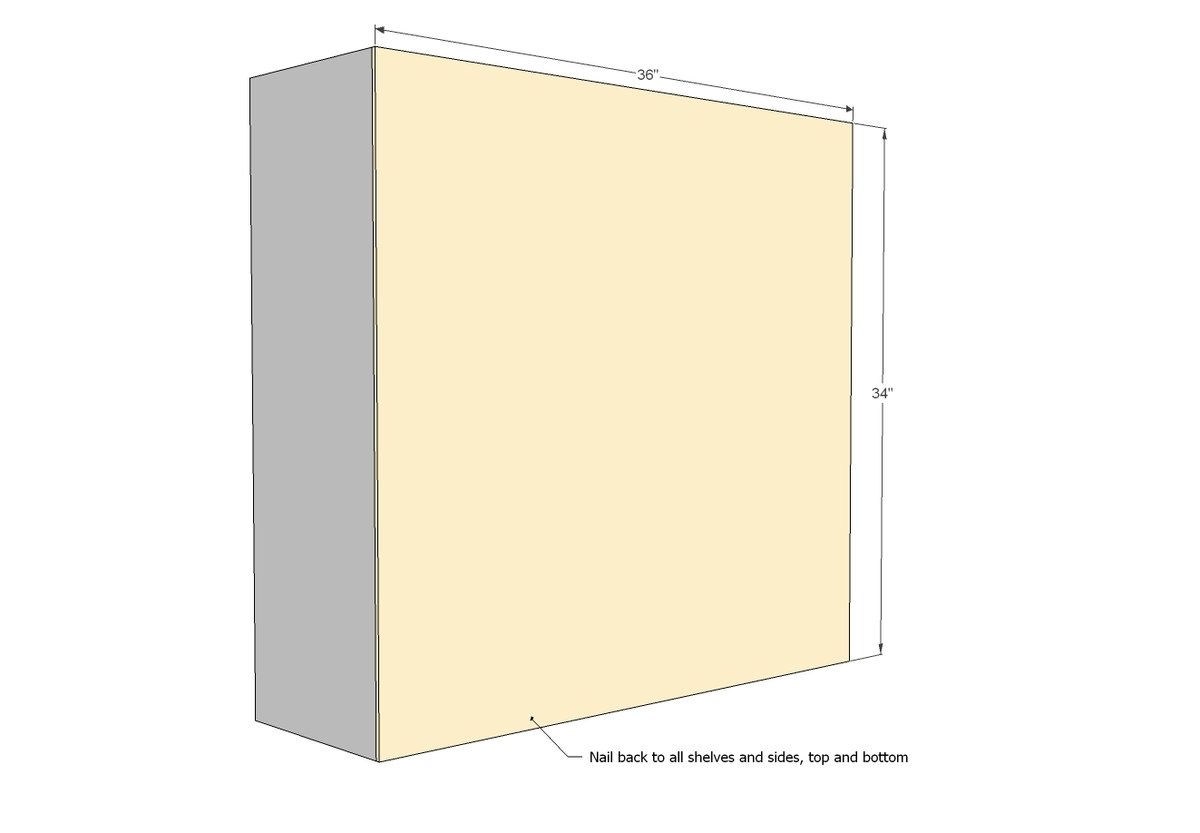

Step 6
Attach back to sides, top and bottom, dividers, and any other fixed shelves.

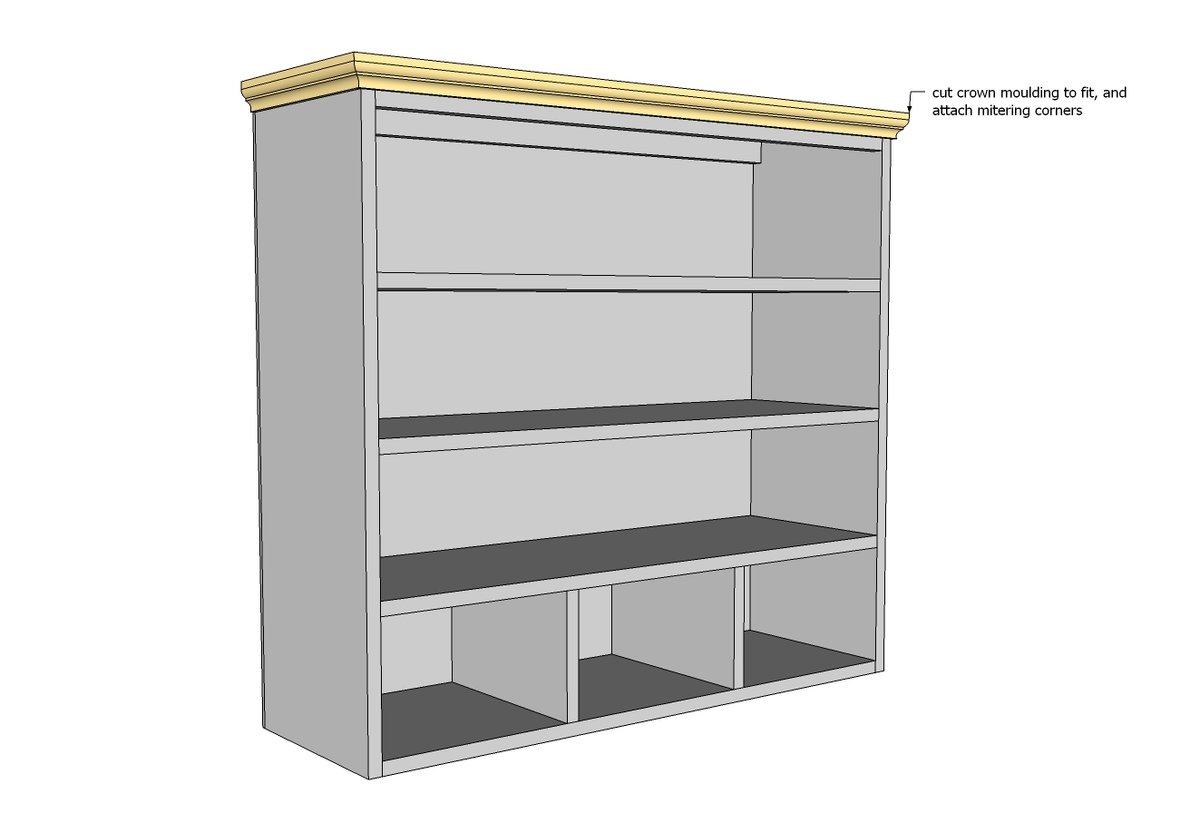

Step 7
Add crown moulding if desired to top to finish it out. Attach crown moulding with finish nails and glue

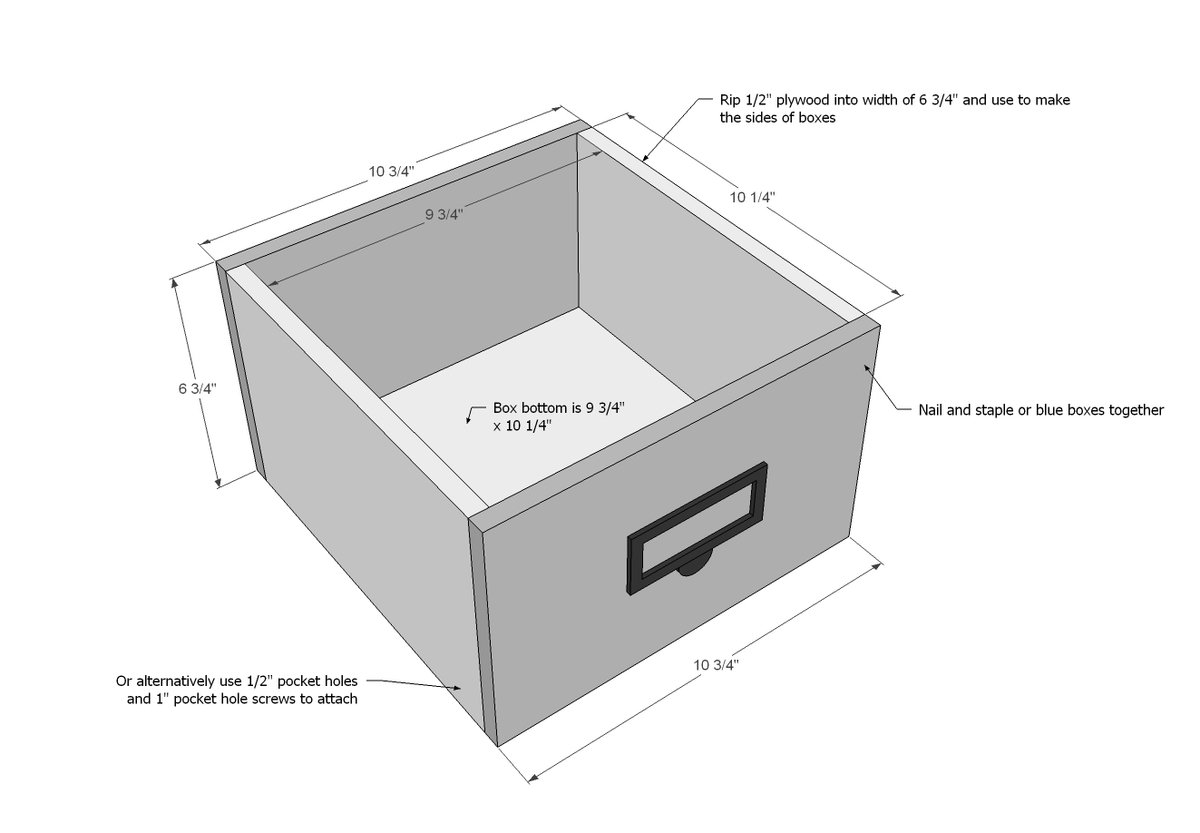

Step 8
Drawers should be built to fit the exact measurements of your dividers, leaving 1/8" gap on all sides. I opted for the drawers to be made of plywood just so they are lighter and easier to remove.

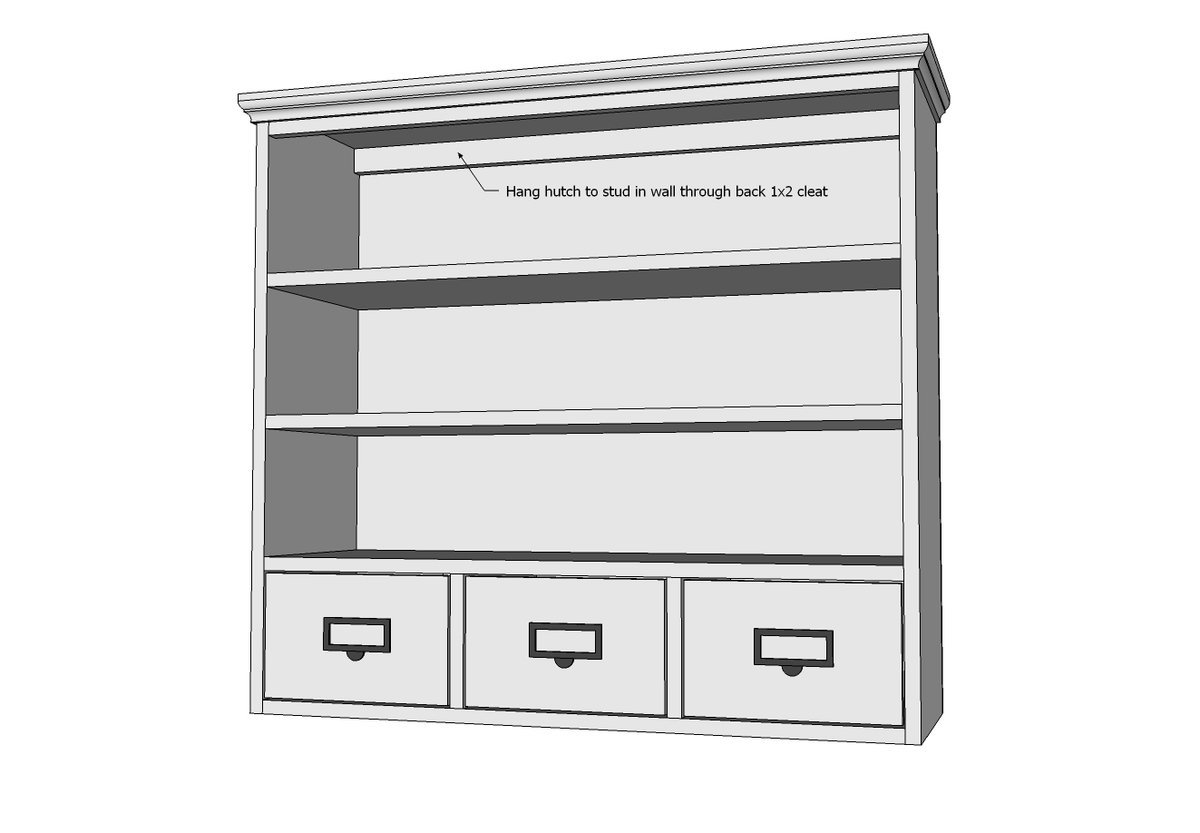

Step 9
Hang the wall hutch securely to a stud in the wall behind through the 1x2 top cleat.

Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
