Side Hutch (Rebecca Media Suite)

Build your own media wall. This collection of woodworking plans can help you create a custom built in media wall, without hiring a professional carpenter. are easy to follow and include diagrams, shopping and cut lists.

Side Hutch (Rebecca Media Suite)

Specifications

Project typeHutch Plans
RoomStorage Solutions
StyleCottage Style Furniture Plans
DifficultyAdvanced

Dimensions

Use the size-specific shopping and cut lists below.

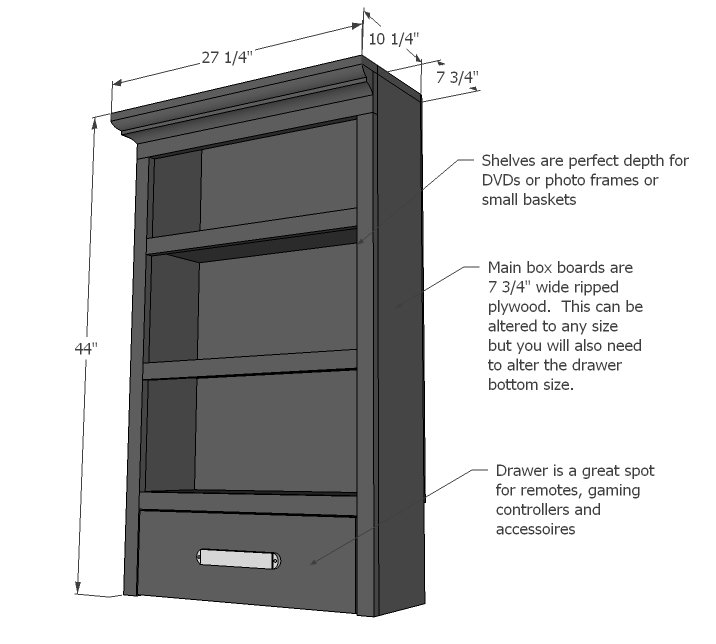

Side Hutch (Rebecca Media Suite) dimension diagram 1

Shopping List

  • 1- sheet 3/4" Plywood
  • 1- sheet 1/4" Plywood
  • 4- 8ft 1x2's
  • 1- 8ft 1x4 (or 54")

This is a shopping and cut list to build TWO of these.

Cut List

This is a shopping and cut list to build TWO of these.

3/4" Plywood

  • 2 @ 7 3/4" x 27 1/4"
  • 6 @ 7 3/4" x 24"
  • 4 @ 7 3/4" x 43 1/4"

1/4" Plywood

  • 2 @ 25 1/2" x 35 3/4"

1x2's

  • 4 @ 7 3/4"
  • 6 @ 22 1/2"
  • 4 @ 39 3/4"
  • 2 @ 27 1/4"

1x4's

  • 2 @ 25 1/2"

Molding for top

  • 2 @ 27 1/4" (cut on miter, take measurements!)
  • 4 @ 9 1/4" (cut on miter, take measurements!)

Tools

  • measuring tape
  • square
  • pencil
  • hammer
  • safety glasses
  • hearing protection
  • kreg-jig
  • drill
  • compound miter saw
  • table saw
  • nailer
  • sander
  • level

Step-by-step Instructions

1

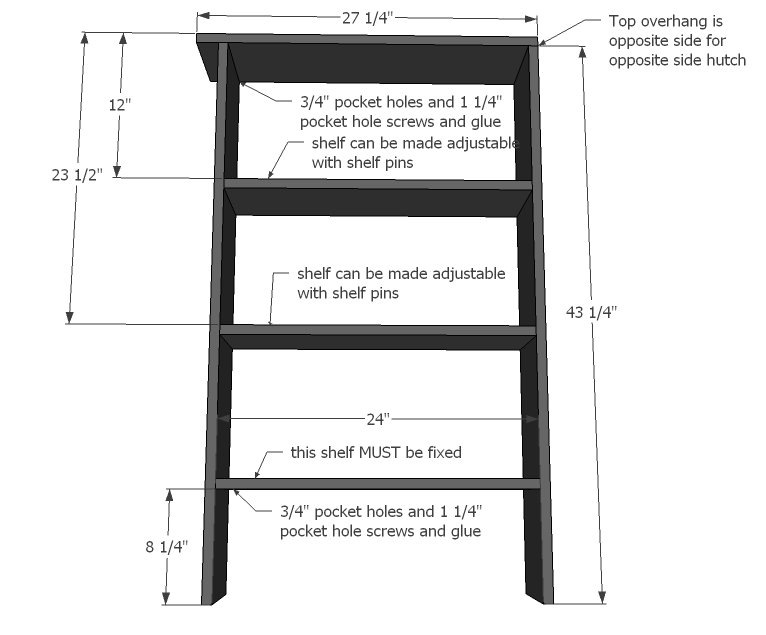

Step 1

Start by building the box. You can use either 11/4 ph screws or 2" countersunk screws and glue.

Side Hutch (Rebecca Media Suite) — step 1
2

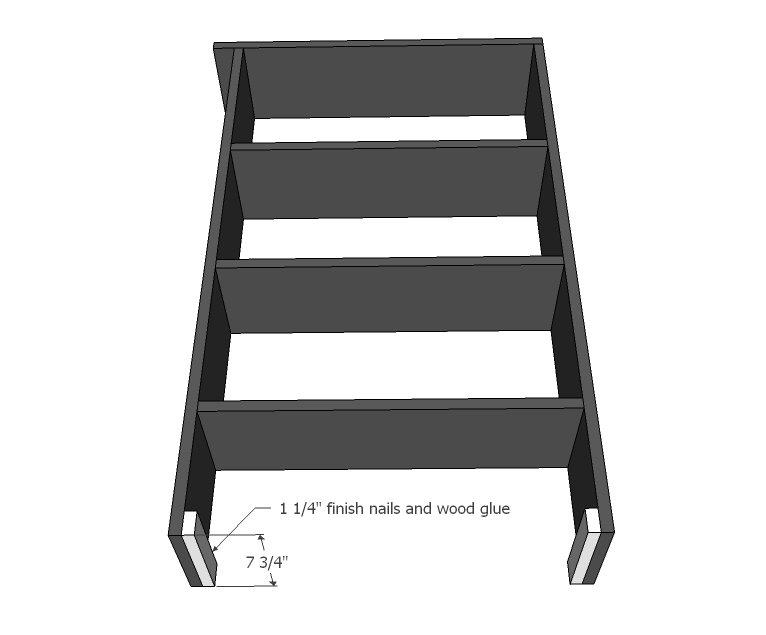

Step 2

These are for support and also act as drawer guides if you use drawers.

Side Hutch (Rebecca Media Suite) — step 2
3

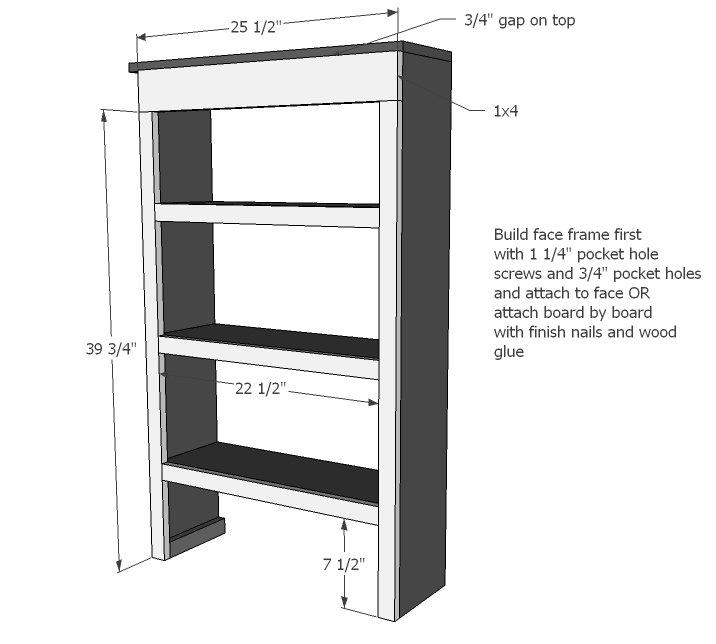

Step 3

Build the face frame first if you have a pocket hole jig. Otherwise attach with 2" finish nails and glue. Note to attach face frame to side overhangs are in opposite so you end up with a left and right hutch.

Side Hutch (Rebecca Media Suite) — step 3
4

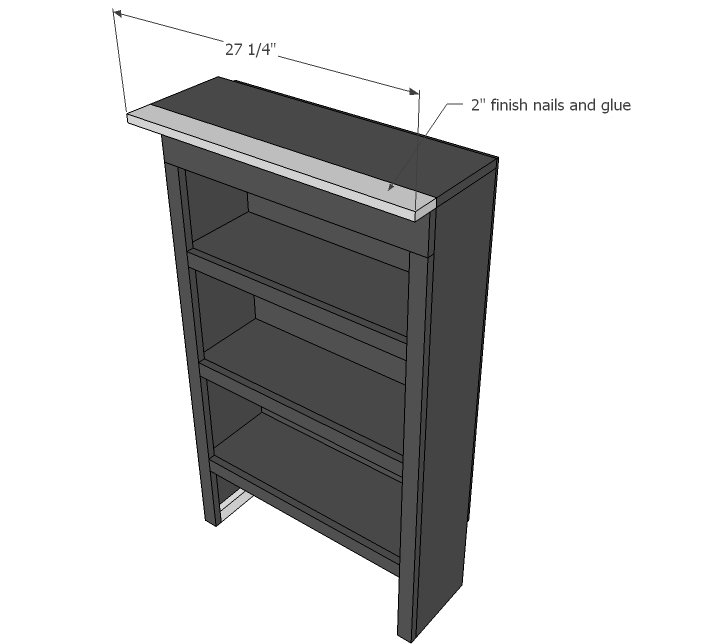

Step 4

Now add the top. Easy step.:)

Side Hutch (Rebecca Media Suite) — step 4
5

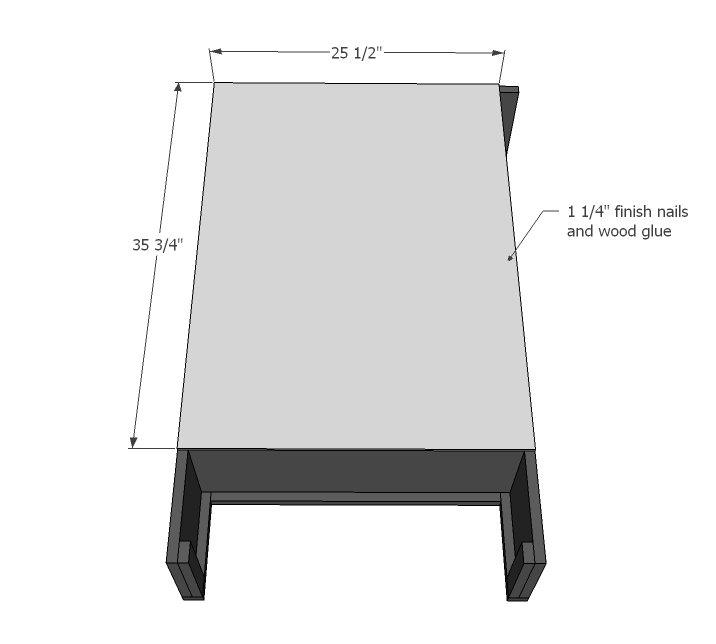

Step 5

Side Hutch (Rebecca Media Suite) — step 5
6

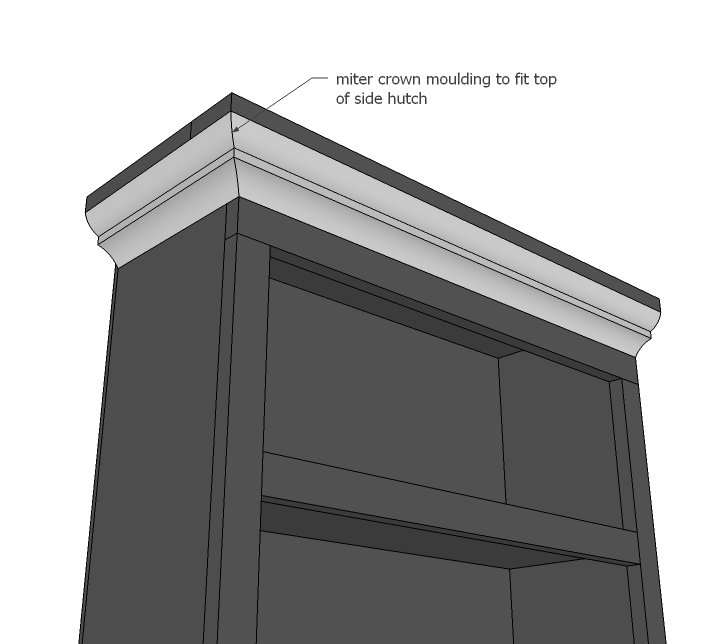

Step 6

Now crown... Cut to fit, mirroring corners.

Side Hutch (Rebecca Media Suite) — step 6
7

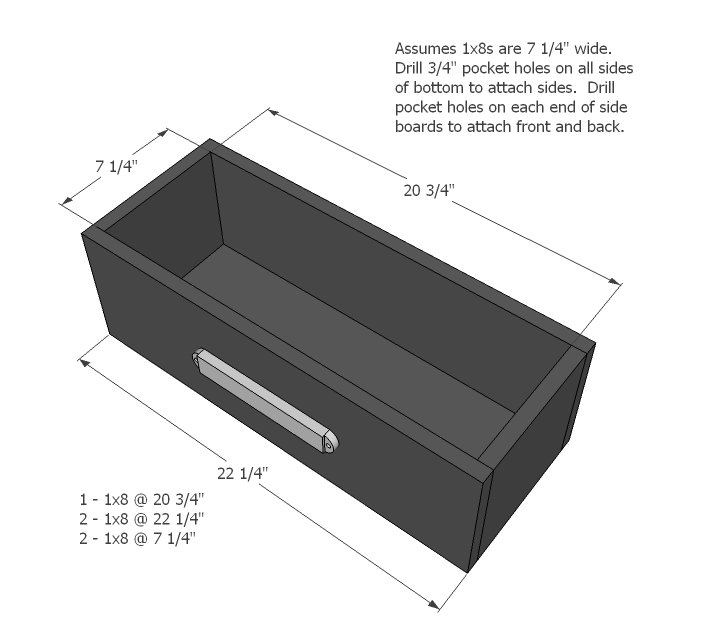

Step 7

And the drawer...

Side Hutch (Rebecca Media Suite) — step 7
8

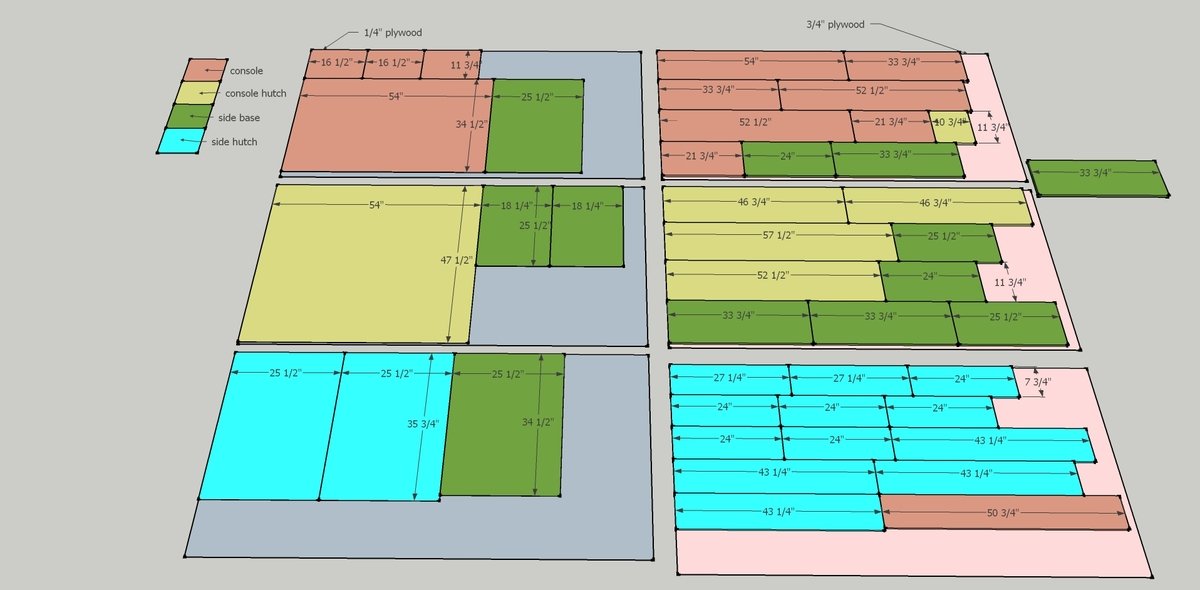

Step 8

Bless Rebecca for putting together these layouts. She is too kind and helpful.

Side Hutch (Rebecca Media Suite) — step 8
9

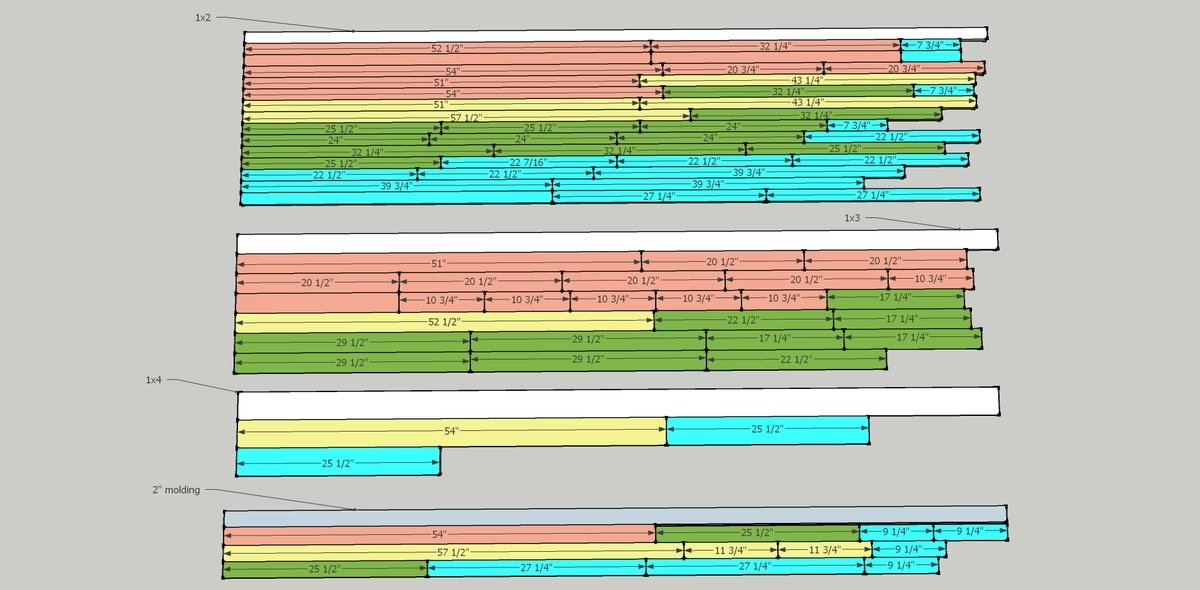

Step 9

Side Hutch (Rebecca Media Suite) — step 9
10

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
