Simple 2x2 Framed Outdoor Coffee Table

to build your own outdoor coffee table using inexpensive furring strip lumber. This lightweight coffee table features hidden joinery for a more polished look! Paint or stain any color. with diagrams, instructions and shopping and cut lists from.

Simple 2x2 Framed Outdoor Coffee Table

Specifications

Project typeOutdoor Seating, Lounging and Accents
RoomOutdoor
StyleCottage Style Furniture Plans
DifficultyBeginner Projects
Estimated costUnder $20

Dimensions

Use the size-specific shopping and cut lists below.

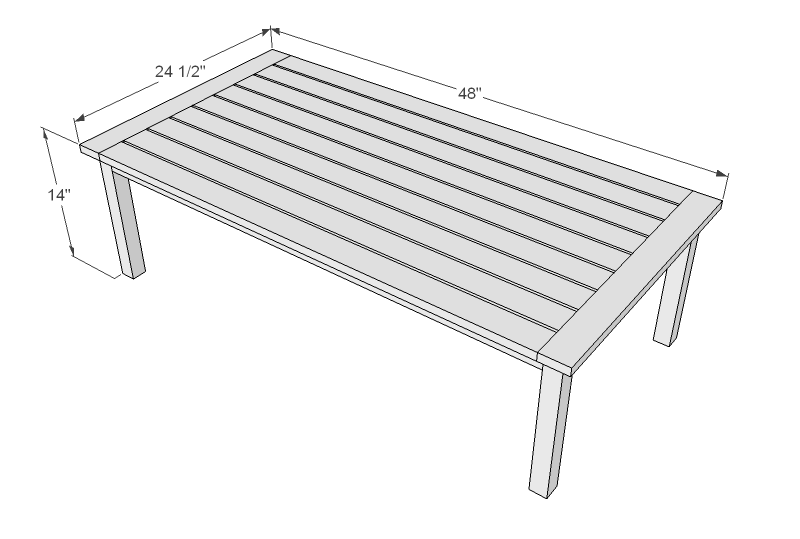

Simple 2x2 Framed Outdoor Coffee Table dimension diagram 1

Shopping List

  • 5 - 1x3 @ 8 feet long
  • 3 - 2x2 @ 8 feet long

Cut List

  • 9 - 1x3 @ 43" (Tabletop Boards)
  • 2 - 1x3 @ 24 1/2" (Breadboard Ends)
  • 2 - 2x2 @ 43" (Side Aprons)
  • 5 - 2x2 @ 19 1/2" (Supports)
  • 4 - 2x2 @ 13 1/4" (Legs)

Tools

  • measuring tape
  • square
  • pencil
  • safety glasses
  • hearing protection
  • kreg-jig
  • drill
  • circular saw
  • nailer
  • sander
  • countersink drill bit

Step-by-step Instructions

1

Step 1

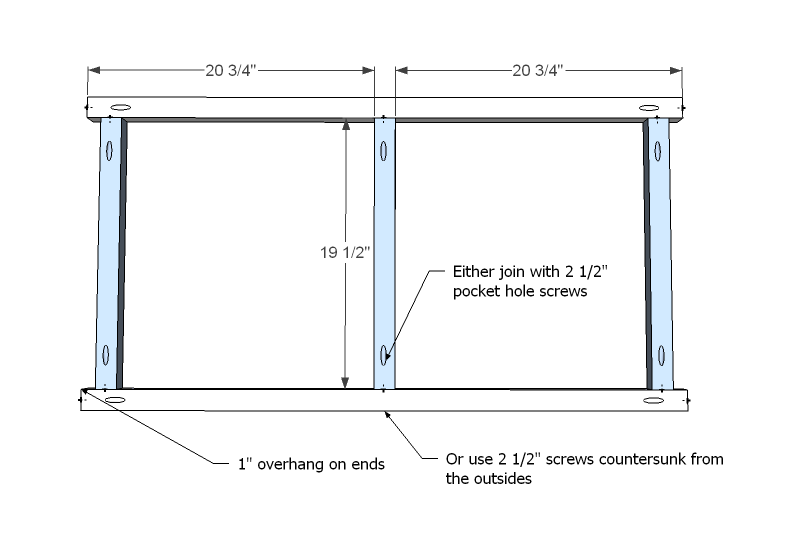

This project can be built with either countersunk screws or the Kreg Jig. I give directions for both in the diagrams. You can click on any diagram for an expanded view. If you are using the Kreg Jig, go ahead and mark all pocket holes and predrill, with your jig set for 1 1/2" stock, as shown above. Otherwise, predrill holes with a countersink bit and fasten with 2 1/2" wood screws and glue.

Simple 2x2 Framed Outdoor Coffee Table — step 1
2

Step 2

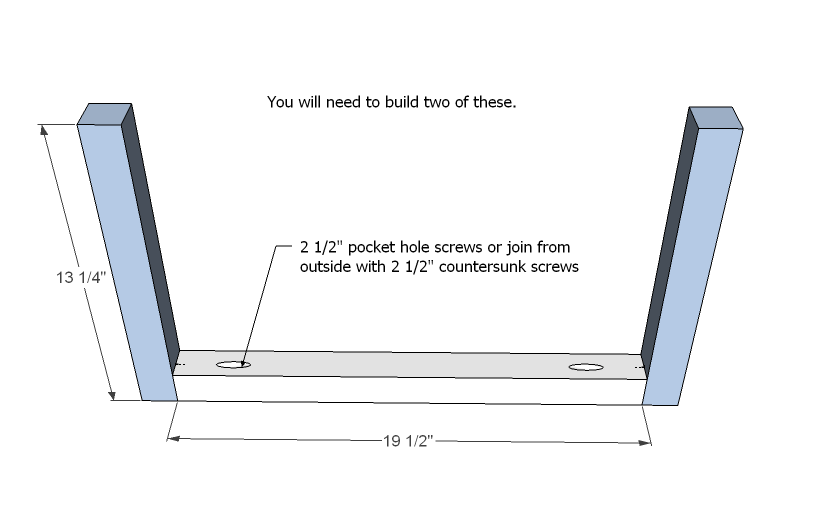

You will need to build two legs as shown above. 2 1/2" screws and wood glue.

Simple 2x2 Framed Outdoor Coffee Table — step 2
3

Step 3

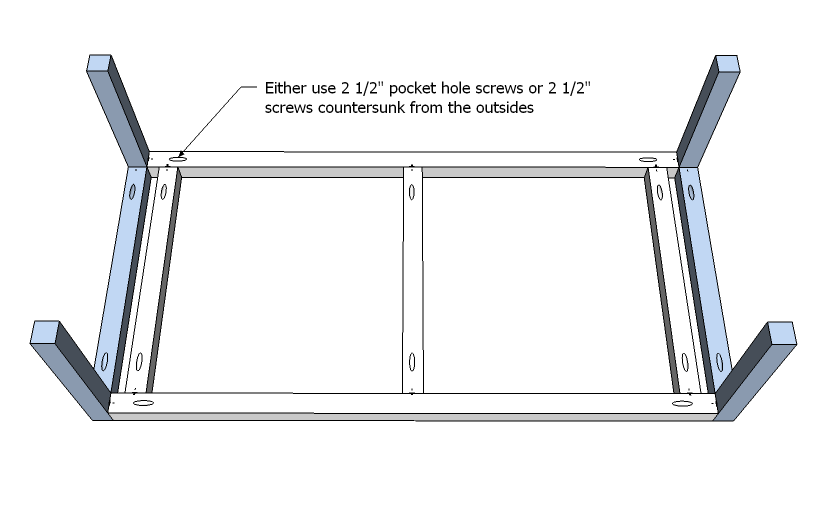

Attach leg sections to tabletop section as shown in diagram. Adjust for square.

Simple 2x2 Framed Outdoor Coffee Table — step 3
4

If you have a Kreg Jig, please skip to Step 6.

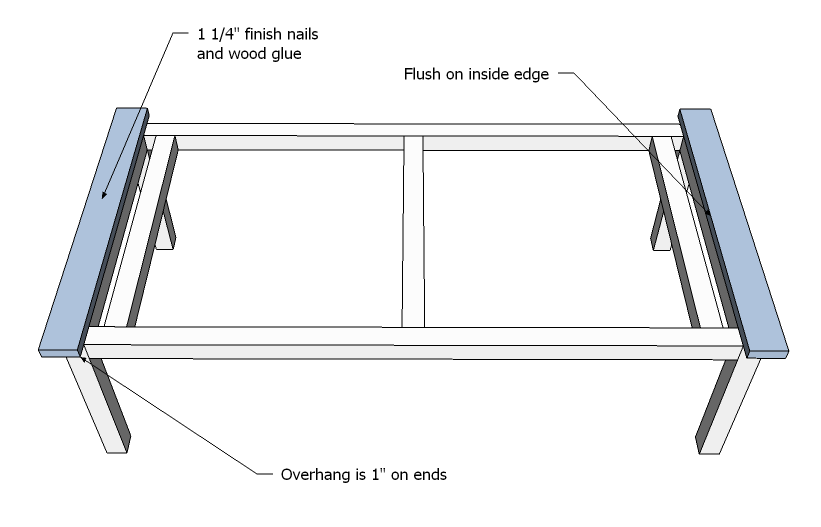

I used 2" finish nails and glue to attach the breadboard ends first. Ends overhang an inch, inside is flush to leg section inside.

Simple 2x2 Framed Outdoor Coffee Table — step 4
5

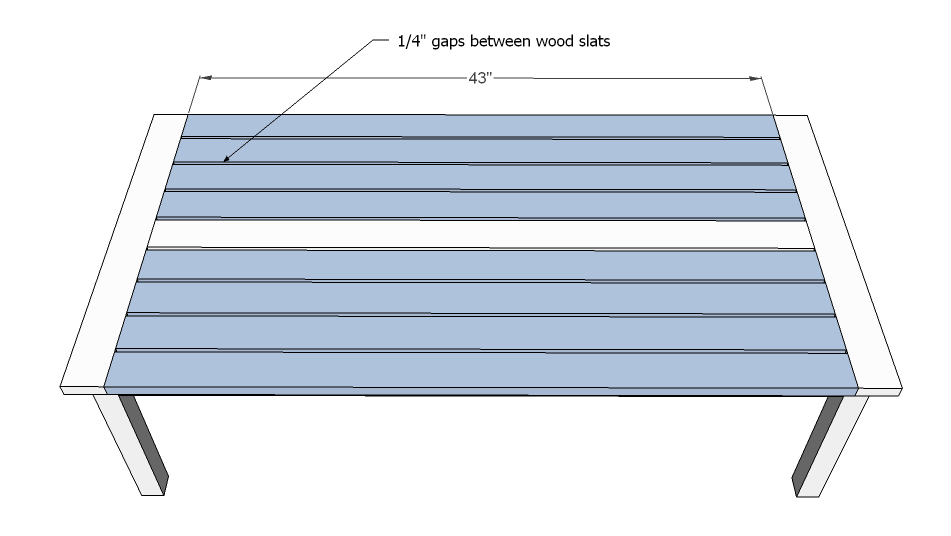

Step 5

Simple 2x2 Framed Outdoor Coffee Table — step 5
6

Step 6

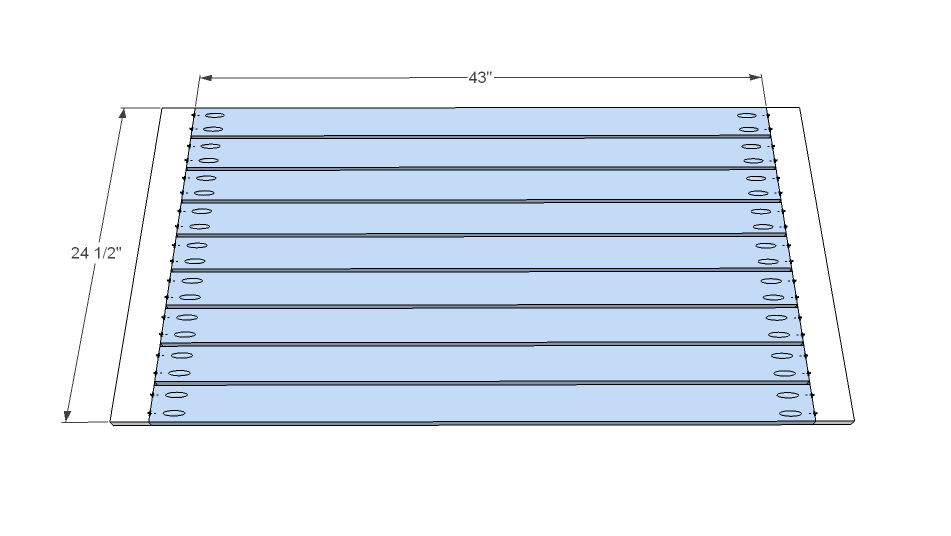

For Kreg Jig users... drill pocket holes in all tabletop boards as shown above, set for 3/4" stock. Use 1 1/4" pocket hole screws and wood glue to fasten tabletop boards to breadboard ends. Make sure the tops are nice and flush.

Simple 2x2 Framed Outdoor Coffee Table — step 6
7

Step 7

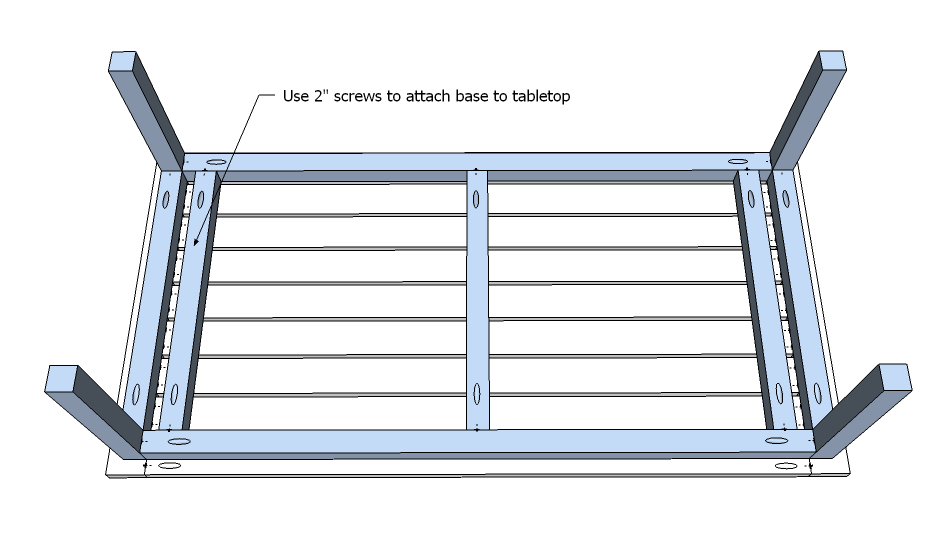

Once your tabletop is built, position the base centered on table, with 1" gap around all sides. Screw base to tabletop with 2" screws and glue.

Simple 2x2 Framed Outdoor Coffee Table — step 7
8

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
