Simple to Build Porch Swing

Very simple to build porch swing from This plan uses only basic tools and off the shelf lumber, a perfect beginner porch swing project you can tackle in an afternoon.

Simple to Build Porch Swing

Specifications

Project typeBench
RoomOutdoor
StyleCottage Style Furniture Plans
DifficultyIntermediate
Estimated cost$50 - $100

Dimensions

Use the size-specific shopping and cut lists below.

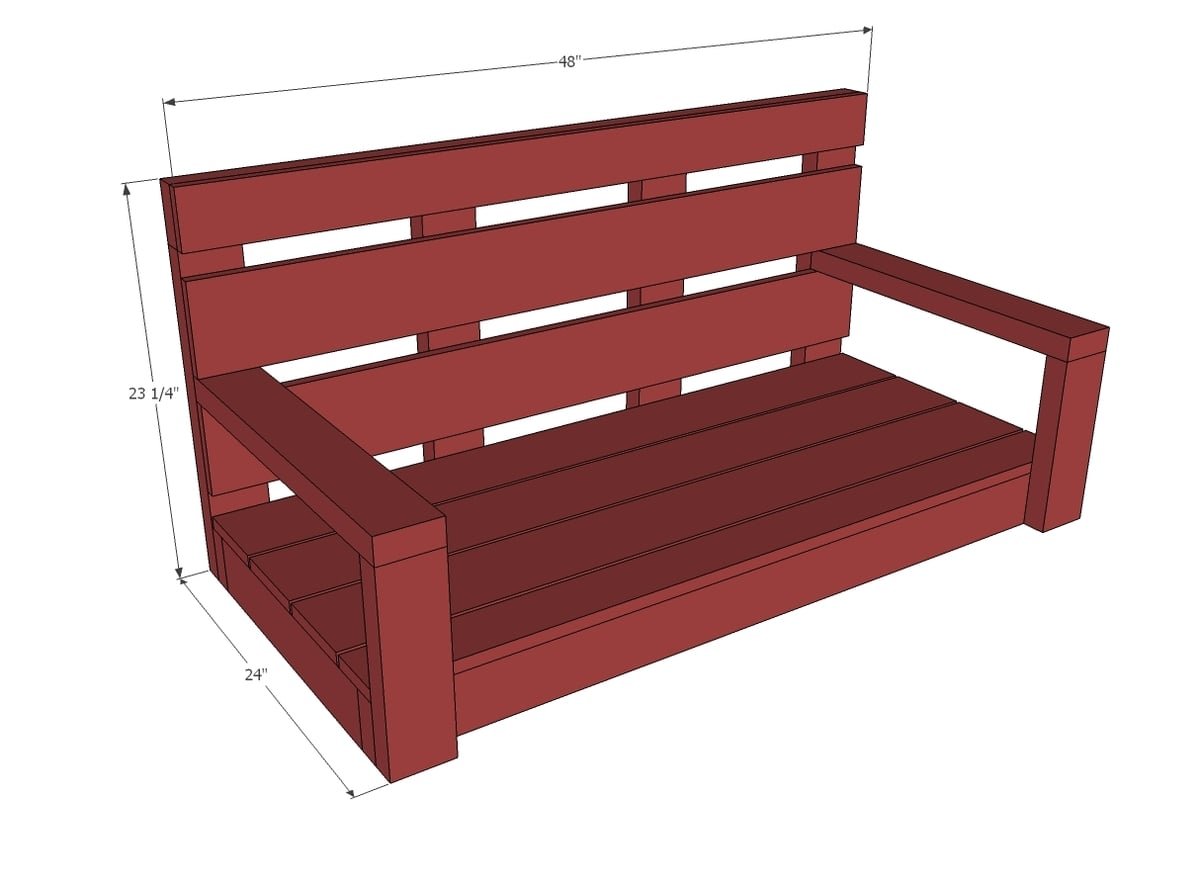

Simple to Build Porch Swing dimension diagram 1

Shopping List

5 - 2x4 @ 8 feet long

2 - 1x6 @ 8 feet long

1 - 1x6 @ 4 feet long

1 - 1x4 @ 8 feet long

Pocket holes are not necessary for this plan, but if you do have a Kreg Jig, you'll want to use the 2 1/2" exterior pocket hole screws. 2 1/2" exterior self-tapping screws for building the frame (unless you assemble with pocket holes) 1 1/2" exterior self tapping screws for attaching seat and back slats Hardware for hanging

Cut List

2 - 2x4 @ 48"

4 - 2x4 @ 18"

4 - 2x4 @ 19 3/4"

1 - 2x4 @ 48"

2 - 2x4 @ 11 1/4"

2 - 2x4 @ 22 1/2"

5 - 1x6 @ 48"

2 - 1x4 @ 48"

Tools

  • measuring tape
  • square
  • pencil
  • safety glasses
  • hearing protection
  • drill
  • circular saw
  • sander
  • countersink drill bit

Step-by-step Instructions

1

Step 1

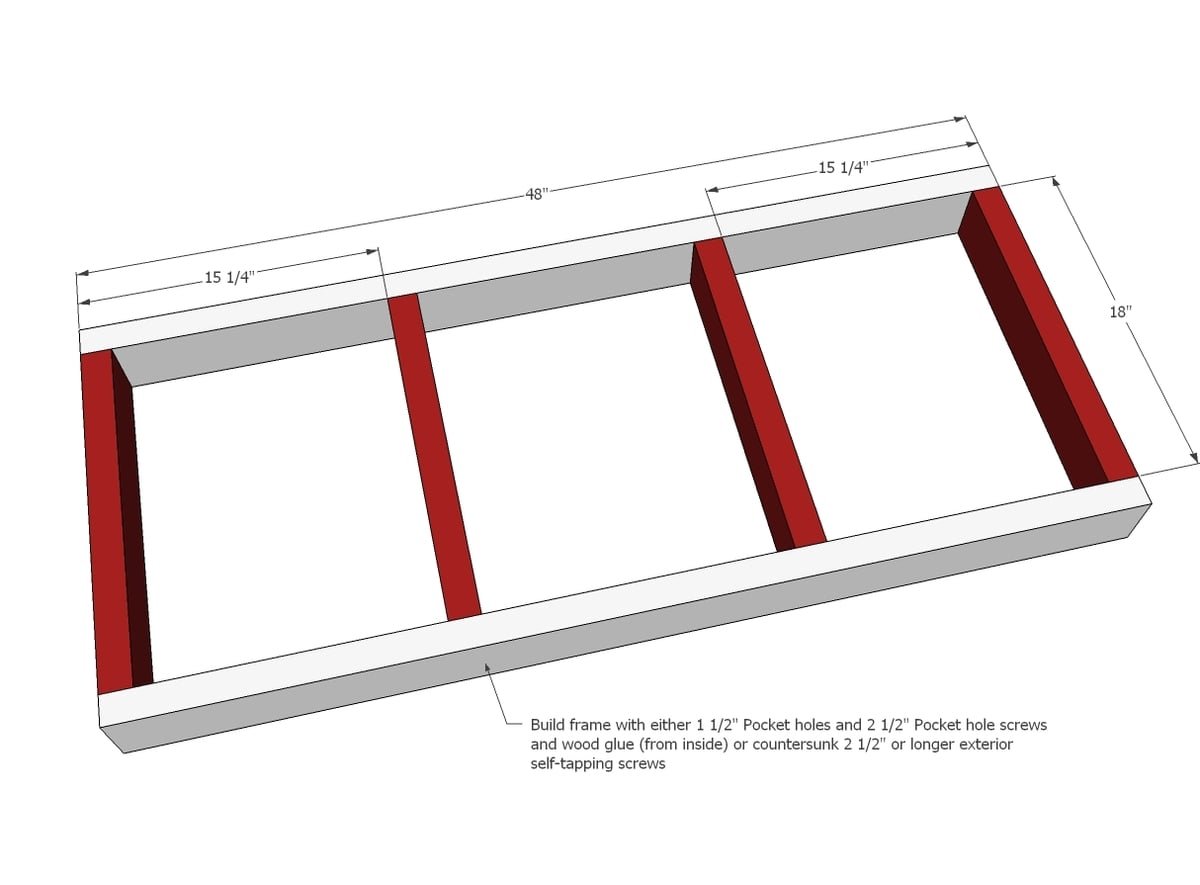

First, build a basic 2x4 frame.

Simple to Build Porch Swing — step 1
2

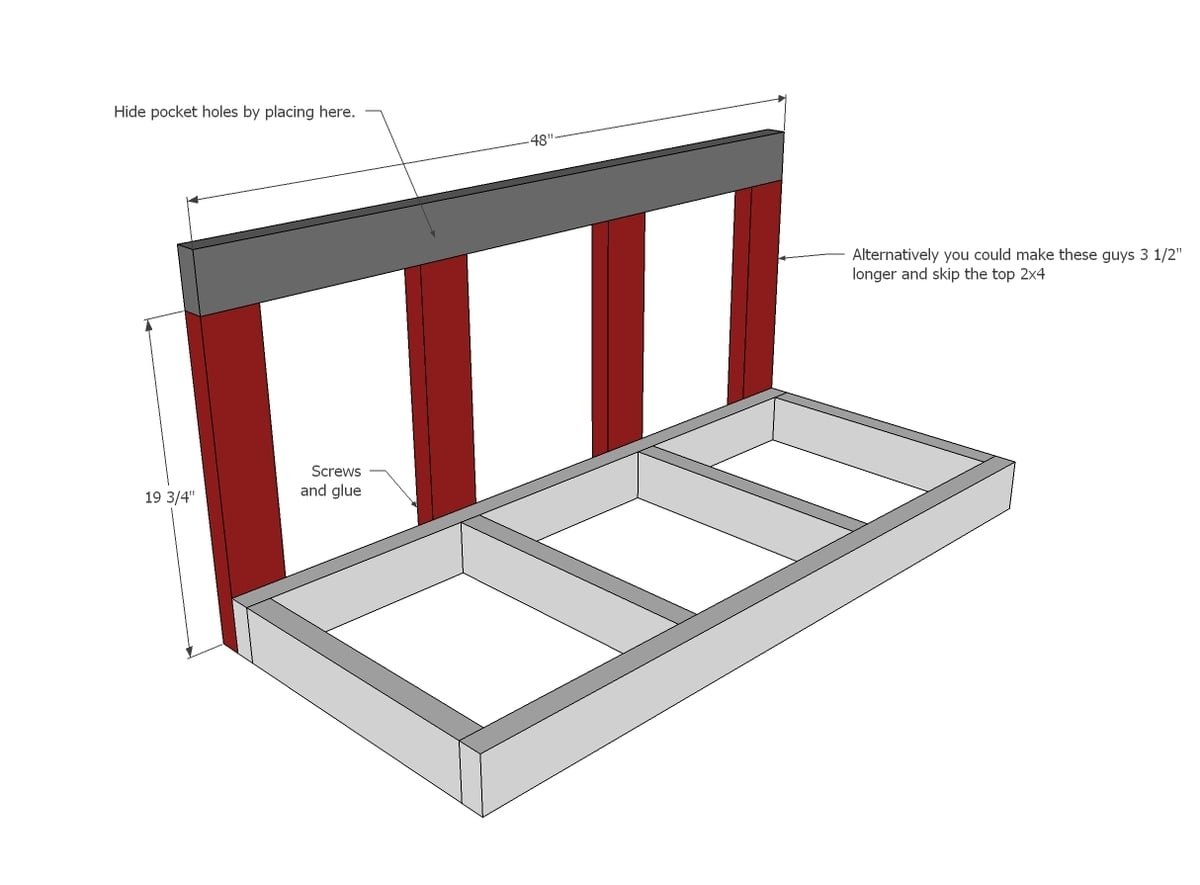

And then attach back supports and top 2x4.

NOTE: If you don't have a pocket hole jig, an alternative is to cut your back boards 3 1/2" longer and omit the top back board.

Simple to Build Porch Swing — step 2
3

Step 3

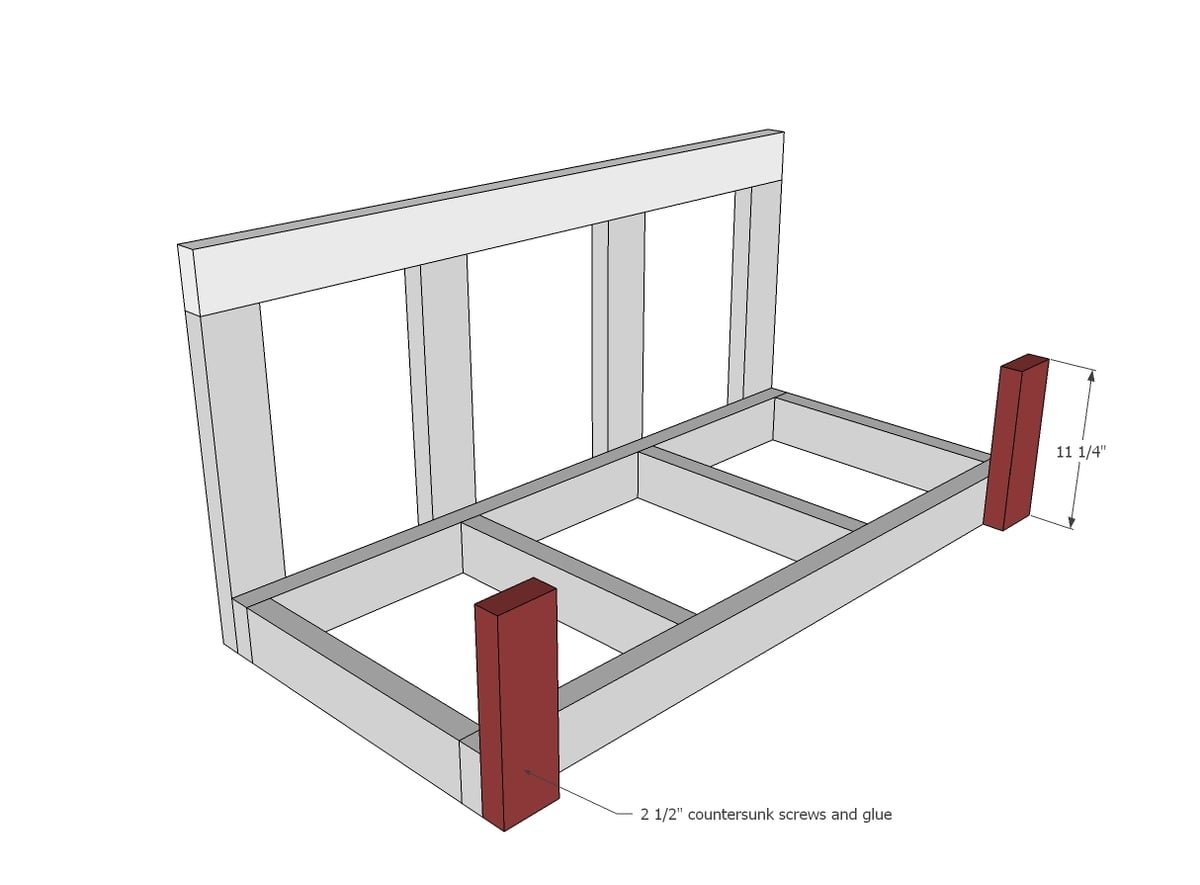

Then attach the front arm supports.

Simple to Build Porch Swing — step 3
4

Step 4

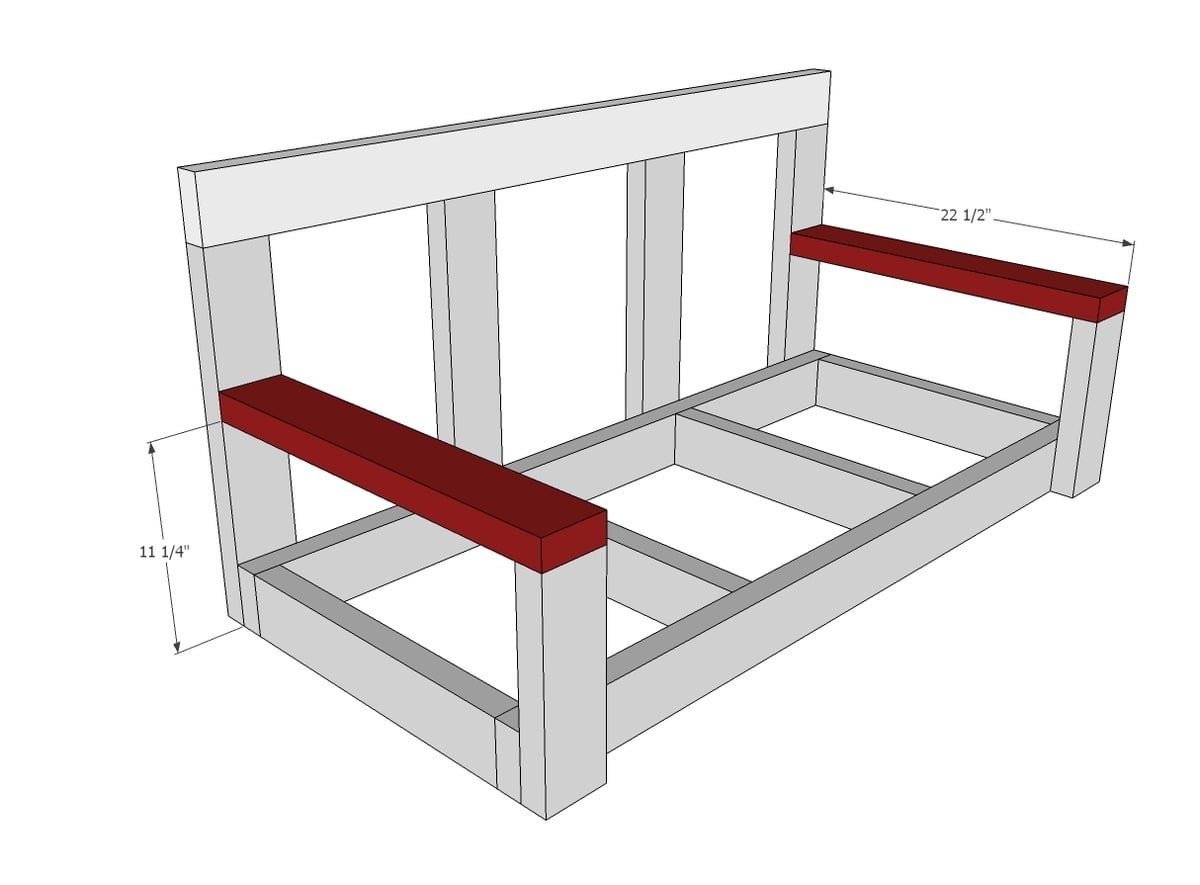

And then the arm supports on top.

Simple to Build Porch Swing — step 4
5

Step 5

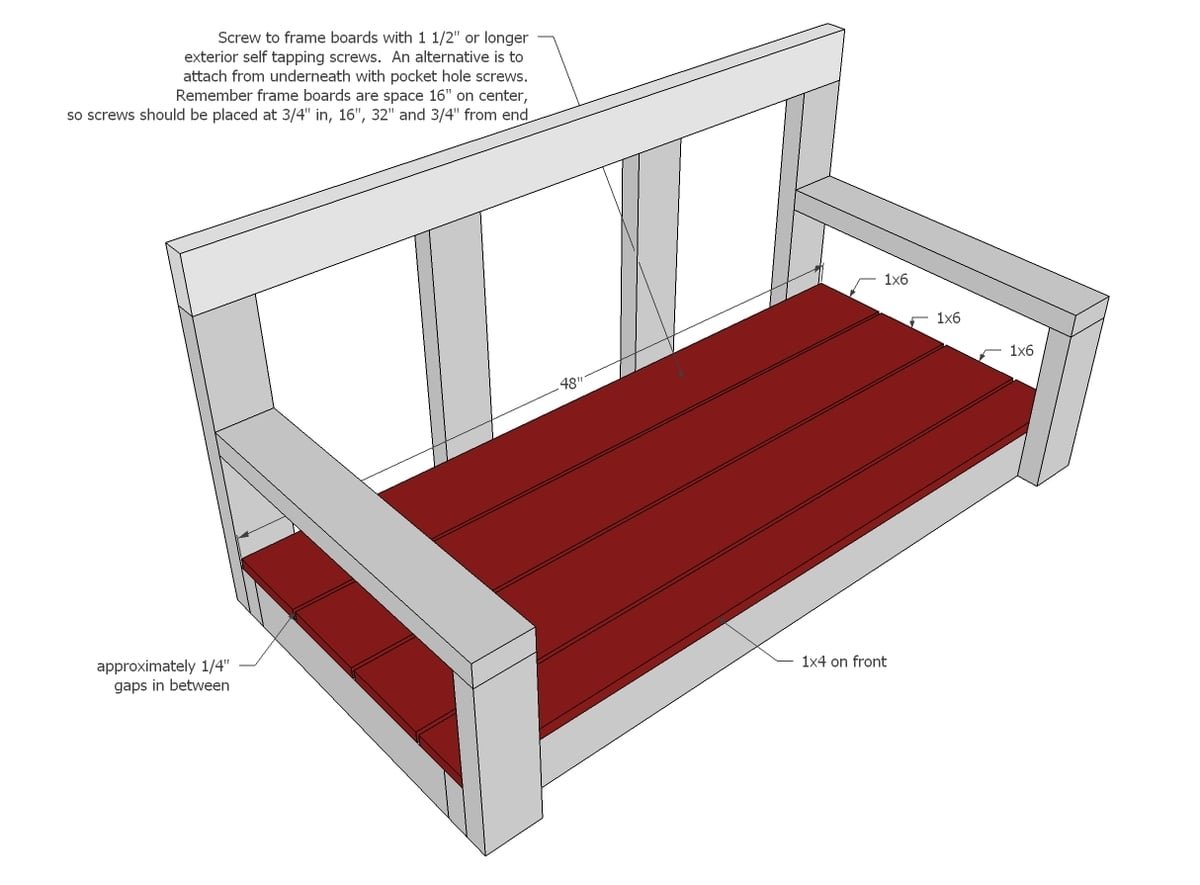

Simple to Build Porch Swing — step 5
6

Step 6

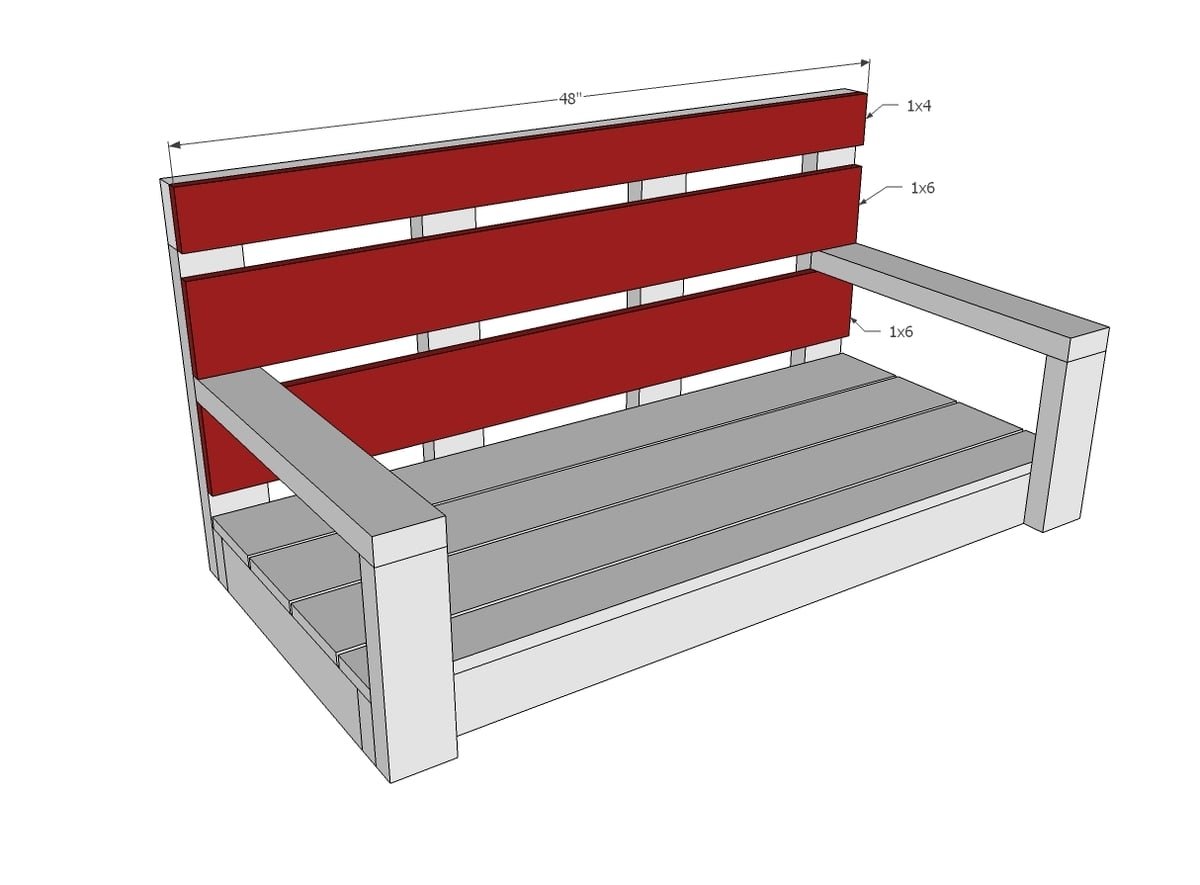

And then attach the back seat boards to the back supports.

Simple to Build Porch Swing — step 6
7

Step 7

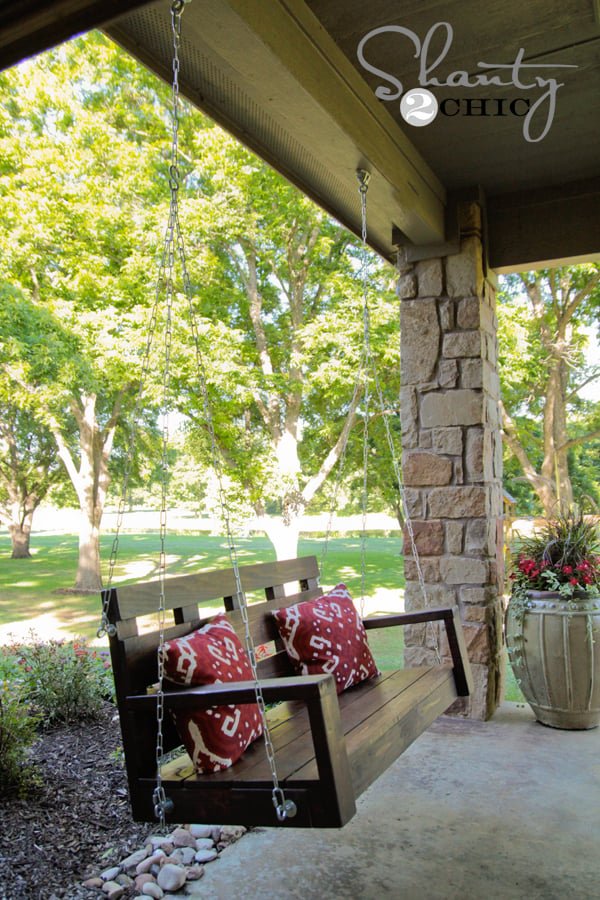

For more details on hanging the swing - please visit Shanty2Chic here.

Simple to Build Porch Swing — step 7
8

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
