Simple Bunk Bed Plans (Twin over Full)
Build your own twin over full bunk beds! Ladder plans included. include step by step diagrams, cut list and shopping list. We also have a twin over twin bunk bed version of this plan.
Specifications
| Project type | Bunk Bed |
|---|---|
| Room | Kids and Toys |
| Style | Farmhouse Furniture |
| Difficulty | Beginner Projects |
| Estimated cost | $100-$150 |

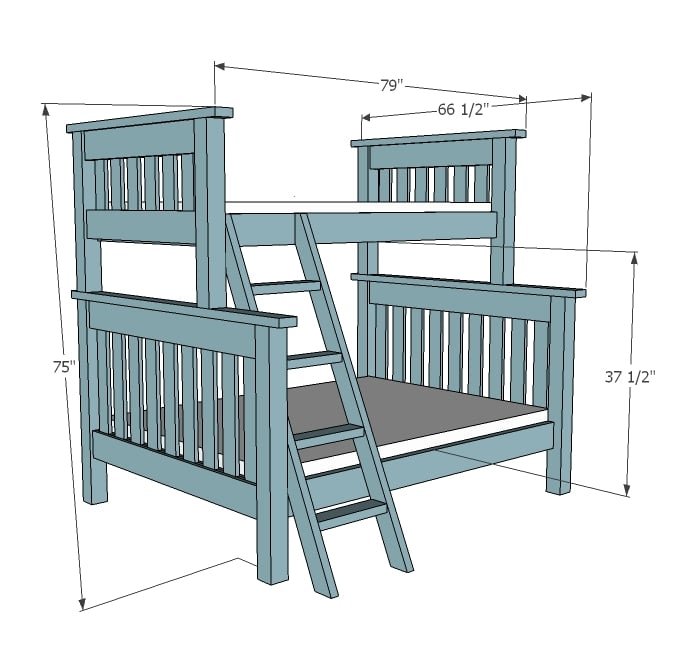

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
See Simple Bed Twin Plans and Simple Bed Full Plans
Cut List
See Simple Bed Plans
Step-by-step Instructions

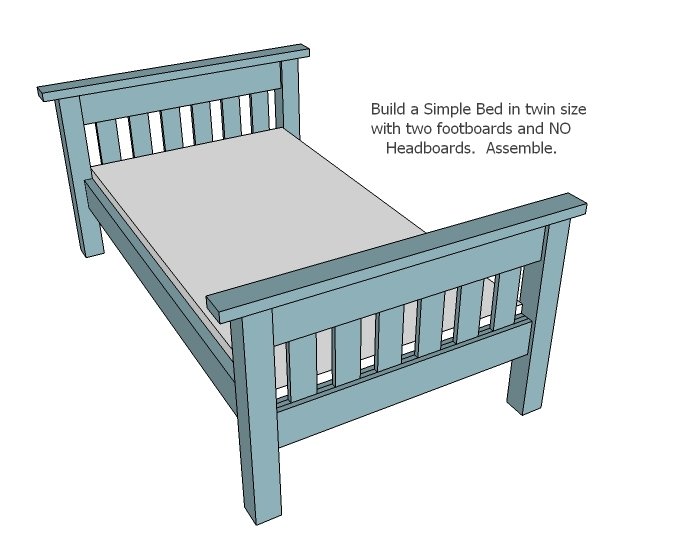

Build the Top Bunk
You will need to build a top bunk made up of two footboards. Simple twin size bunk plans are here. When you add the slats to the headers, start in the center and work your way out. If the spacers do not fit tight at the end spacers, don’t despair. Simpy cut a piece of 1×6 leftover from the header to the exact dimension and use it as the spacer instead of the 1×3 spacer.
Step 2

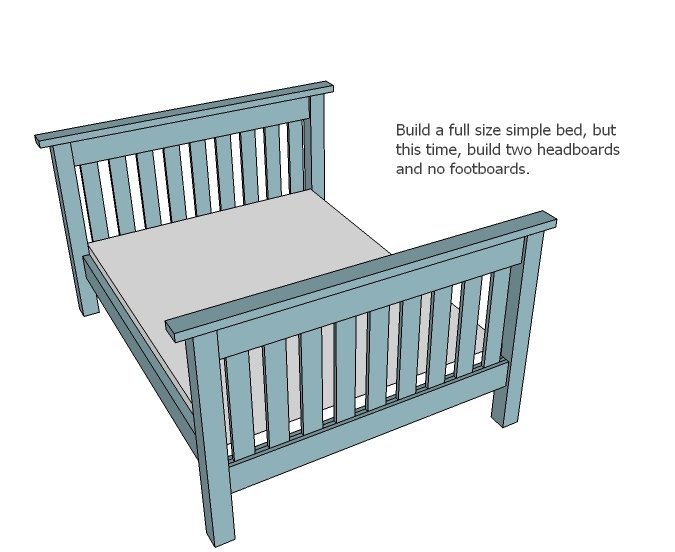

Build the Bottom Bunk For the bottom bunk, you will need to build the Full Size Simple bed, but this time, build two headboards and no footboards.
Step 3

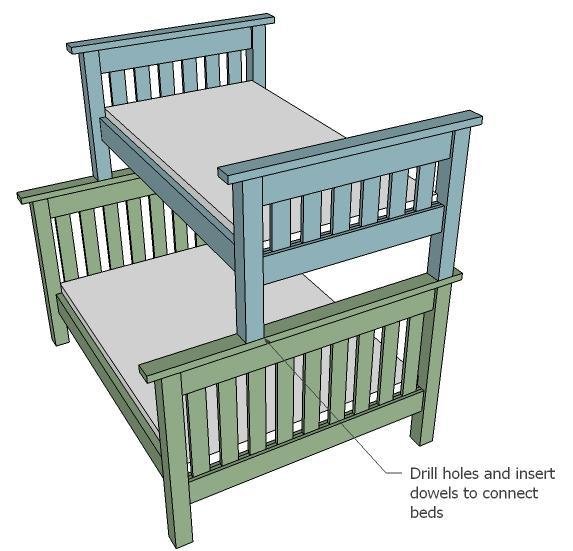

Assembly Measure the location of the top bunk and mark it on the headers for the bottom bunk. Find the center of the marks and drill a 1″ hole, 3″ deep. Then find the center of the bottom of the legs on the top bunk and drill a 1″ hole, 3″ deep. Use 6″ metal headless bolts or hardwood dowels to hold the bunks together through the drilled holes.
Step 4

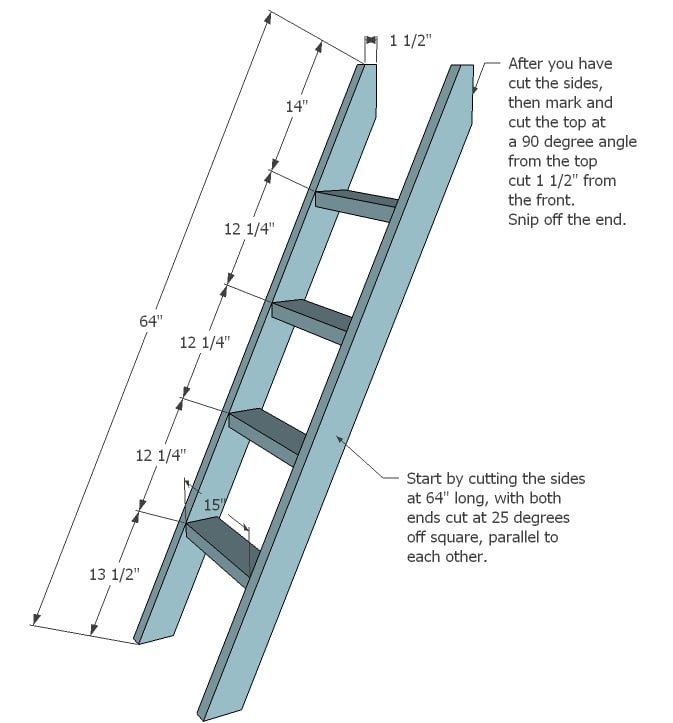

Ladder For the ladder, cut two 2x4s 64″ long, with both ends cut at 25 degrees off square parallel to each other. Then on the top edge, mark the top edge in 1 1/2″ from the front top corner. Use a square to mark a line perpendicular to the top cut downward. Cut this line off. These are your ladder sides. Measure and mark the ladder sides and screw the rungs to the ladder sides with 2″ screws and glue. The ladder can be attached with metal brackets or by screwing from the inside of the side rails of the top bunk. Guardrail plans area also available in the Twin Simple Bunk Plans.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
