Simple End of Bed Storage Bench

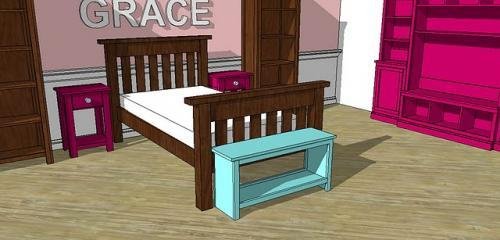

We designed this bench to fit at the end of a bed, but this super simple bench can find uses anywhere in your home. This is a to help you build your own bench. This bench is built using 1x12 and 1x10 boards, with 1x2 trim to add strength and finish edges.
Specifications
| Project type | Bench |
|---|---|
| Room | Storage Solutions |
| Style | Cottage Style Furniture Plans |
| Difficulty | Beginner Projects |
| Estimated cost | Under $20 |
Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
- 1 - 1x10 - length 10'
- 4 - 1x2 - length 8'
- 1 - 1x12 - length 4'
Cut List
A) 2 - 1x10 @ 17 1/4"
B) 2 - 1x10 @ 34 1/2"
C) 4 - 1x2 @ 17 1/4"
D) 4 - 1x2 @ 33"
E) 1 - 1x12 @ 38"
Tools
- measuring tape
- square
- safety glasses
- hearing protection
- circular saw
- nailer
- sander
Step-by-step Instructions

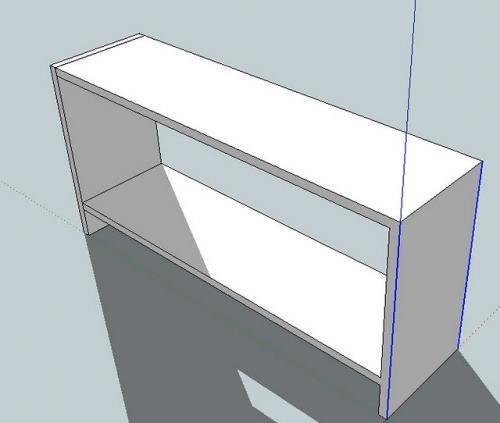

Step 1
"Build the box" as shown above. I left a 3" clearance under the bottom shelf. Use 2" nails and glue. Nail through the sides of A into the edges of B, as illustrated in the above diagram.

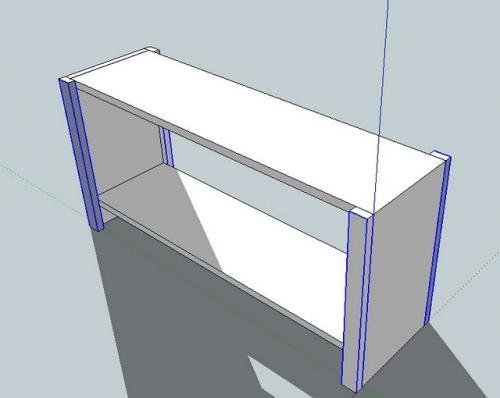

Step 2
Nail the 4 leg trim pieces, C, in place as shown above. Keep the outside edges flush with the bench side. Nail through C into the edges of A and B.

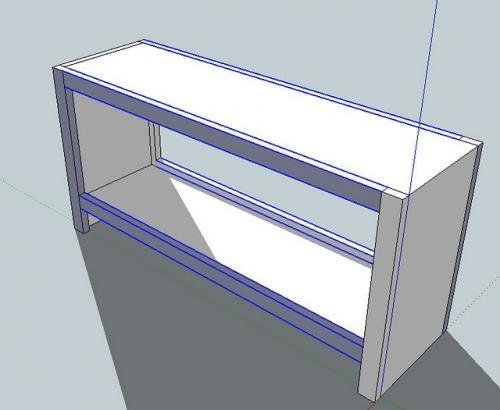

Step 3
Nail the pieces D in place as shown above. Keep the top edge of the bench flush. You can add a lip to the bottom shelf if you desire (to keep things from sliding off the shelf. This is shown above.

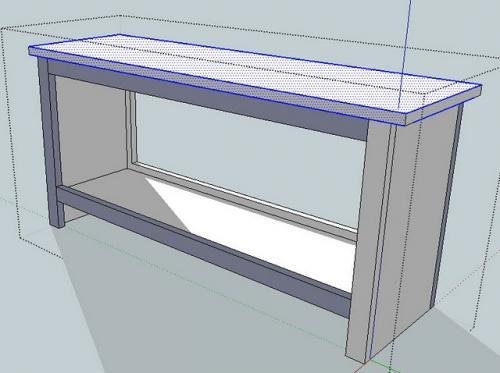

Step 4
Glue and nail the top piece on, centering the top on the bench. Use 1 1/4" nails.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
