Simple Leaning Easel
How to build a simple leaning easel. from
Specifications
| Project type | Toys |
|---|---|
| Room | Craftroom |
| Style | Children's and Kid's Room Furniture and Toy Plans |
| Difficulty | Starter Projects |

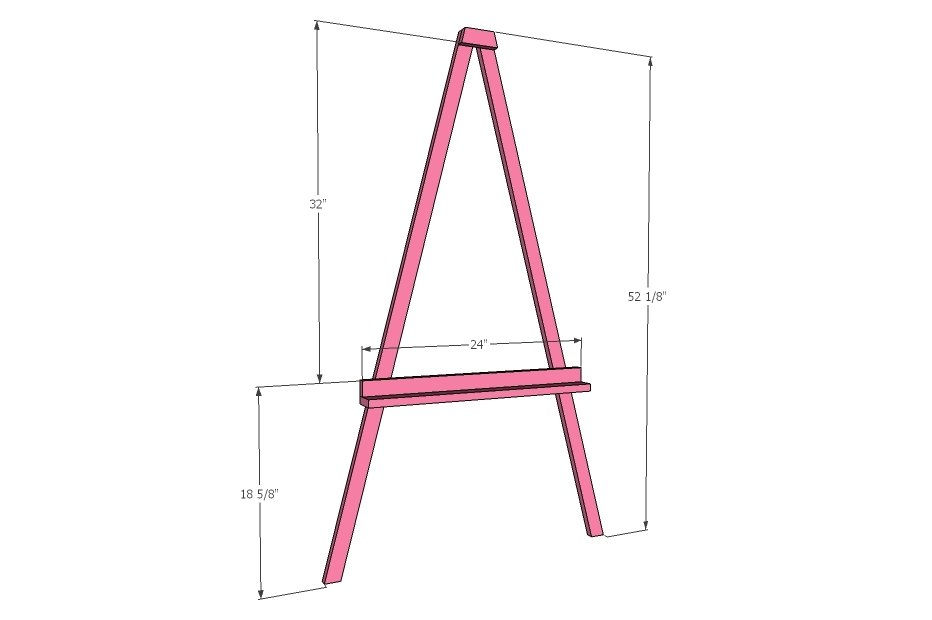

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
- 2 – 1x2 boards, 8 feet long
- 1 – 1x3 board, 2 feet long
- Wood Glue
- 1-1/4” Brad Nails
- Nailer
- Wood Cutting Saw
- Paint
Cut List
- 2 – 1x2 @ 54” long, both ends cut at 15 degrees off square, parallel to each other (note in video this piece is 48" but I lengthened to get tray height of 18" in this plan)
- 1 – 1x2 @ 4” long, longest point measurement, both ends cut at 15 degrees off square, ends NOT parallel
- 1 – 1x2 @ 24”
- 1 – 1x3 @ 24”
Tools
- measuring tape
- safety glasses
- compound miter saw
- nailer
Step-by-step Instructions

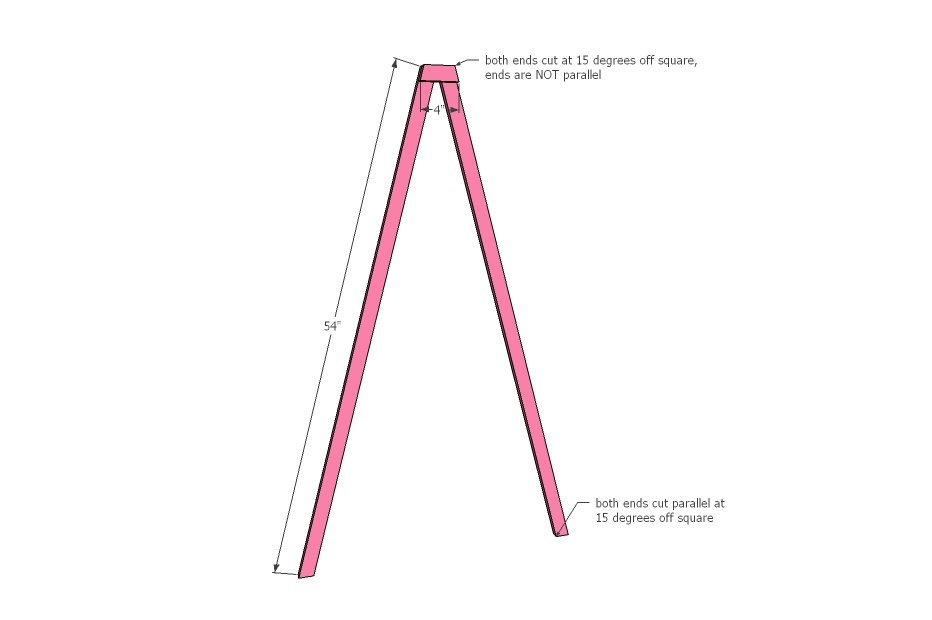

Step 1
Attach top to legs, outside edges flush, with 1-1/4" brad nails and glue.

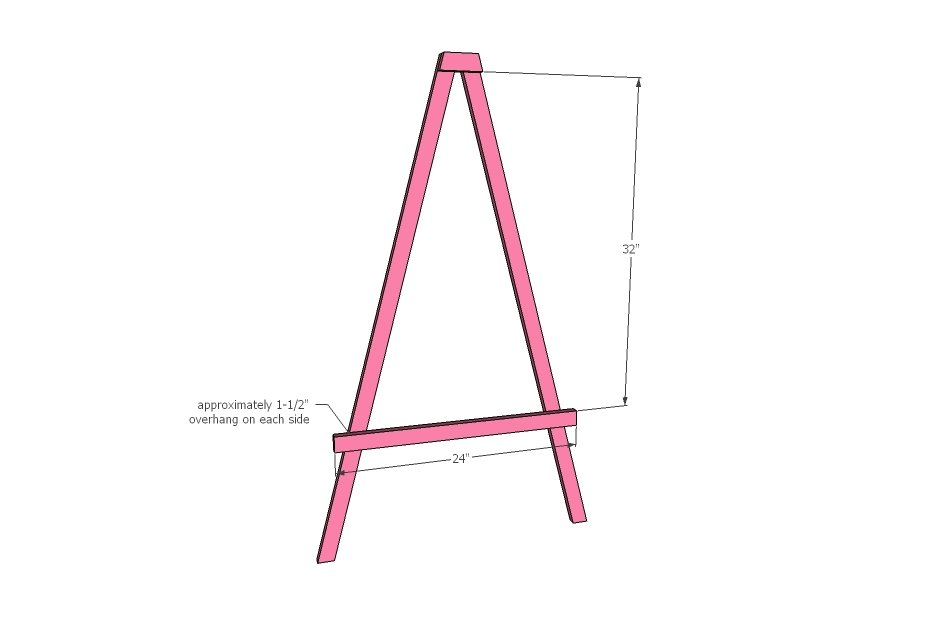

Step 2
Attach bottom 1x2 so the whiteboard fits in the space between the top and bottom. Use 1-1/4" brad nails and glue.

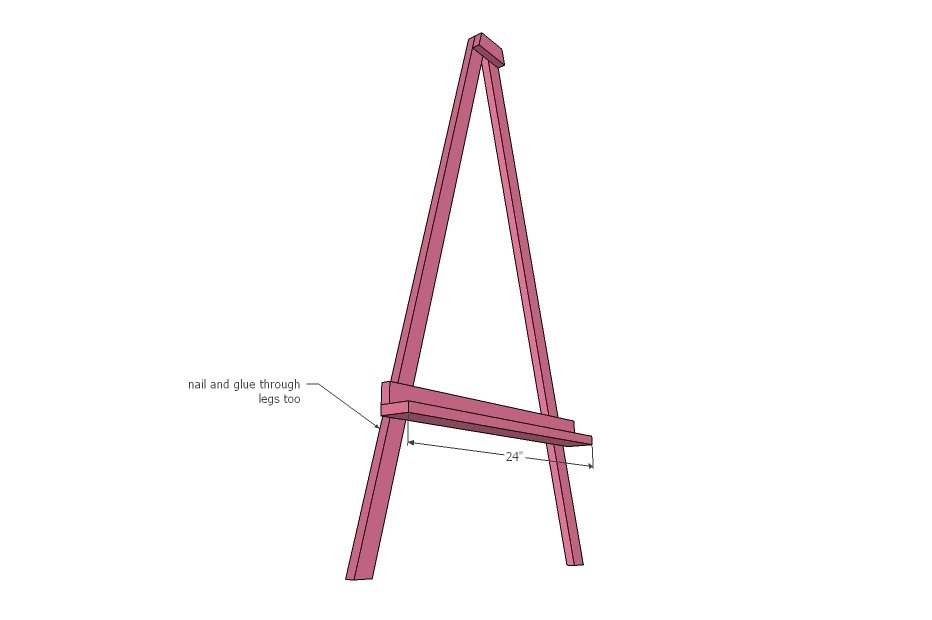

Step 3
Attach tray to bottom of 1x2 and through back of legs with 1-1/4" brad nails and glue.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
