Simple Modern Bar Table
A modern style bar height table to match the modern bar stools.
Specifications
| Project type | Dining Table Plans |
|---|---|
| Room | dining room |
| Style | Modern Style Furniture Plans |
| Difficulty | Intermediate |
| Estimated cost | $20 - $50 |

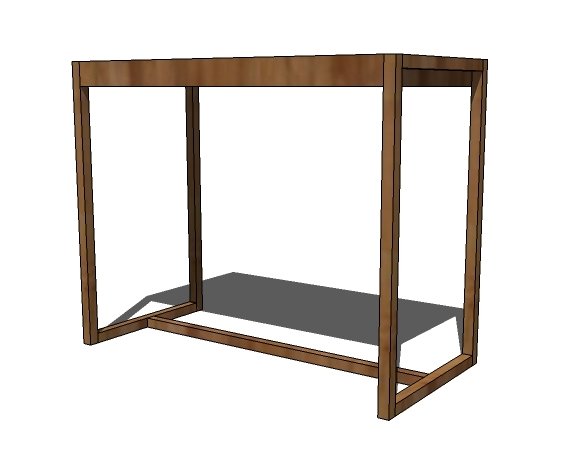

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
1 – 24″ x 48″ Edge Glued Pine Project Board or 3/4″ Hardwood Plywood OR (for painting) MDF panel
4 – 2×2 Boards, 8′ Long
1 – 1×4 Board, 10′ Long
2″ Screws and 2 1/2″ Screws (OR 1 1/4″ and 2″ Pocket Hole Screws)
Wood Glue
Cut List
24″ x 48″ Project Panel (or plywood or MDF)
2 – 1×4 @ 24″ (End Aprons)
2 – 1×4 @ 49 1/2″ (Side Aprons)
4 – 2×2 @ 22 1/2″ (Leg Ends)
4 – 2×2 @ 42″ (Leg Sides)
1 – 2×2 @ 49 1/2″ (Bottom Support)
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- kreg-jig
- drill
- circular saw
- sander
- level
- countersink drill bit
Step-by-step Instructions

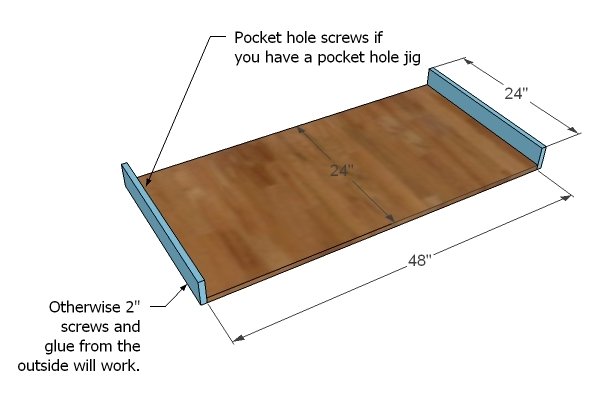

End Aprons
Attach the end aprons to the tabletop. Keep the top flush.

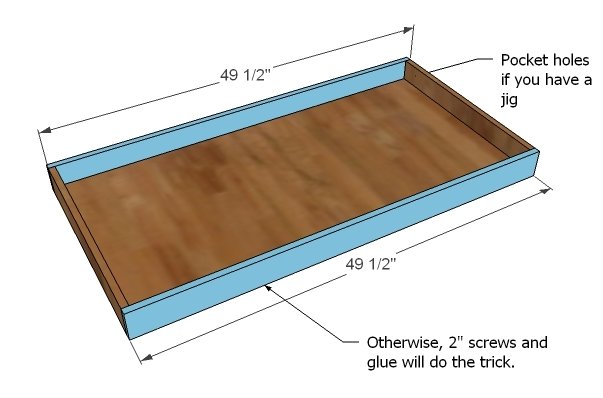

Side Aprons
Attach the side aprons to the tabletop and the end aprons.

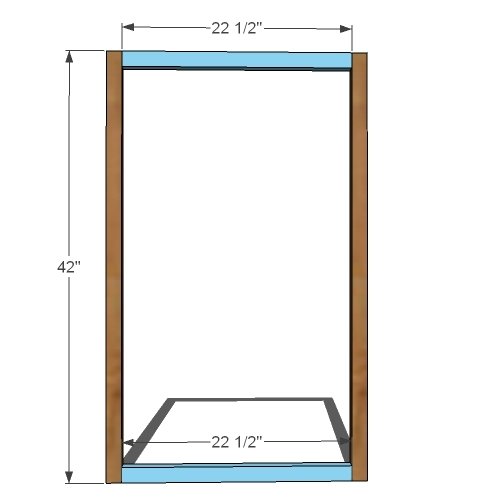

Legs
Build the legs as shown above, either with 2 1/2″ wood screws and glue or 2″ pocket hole screws. Adjust for square.

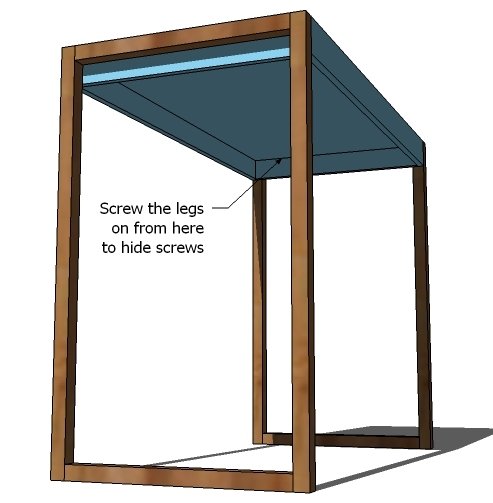

Assembly
Flip the photo above over. Then attach the legs to the frame as shown above.

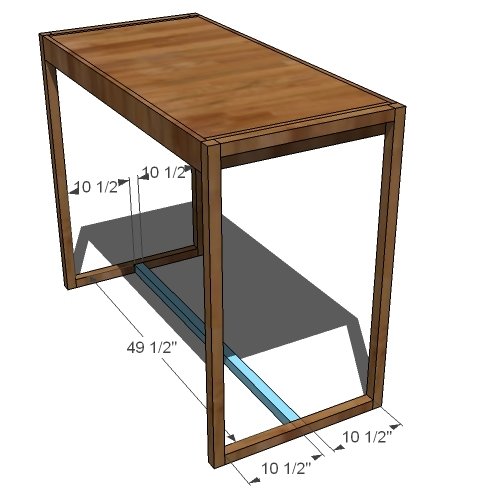

Step 5
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
