Simple Outdoor Dining Bench

Simple Outdoor Bench – Build this easy, modern outdoor bench using basic tools and dimensional lumber. Designed to match the table, this sturdy bench features a slatted top, chunky legs, and a clean, timeless look that works in any outdoor space. Perfect for beginners, this project comes together quickly with straightforward cuts and simple assembly. The slatted design allows for drainage, making it ideal for patios, decks, or garden seating. Features: • Beginner-friendly build • Standard lumber, no fancy materials • Durable, sturdy construction • Matches the full table set or works great on its own • Comfortable seating for 2–3 people available on RELATED PLANS Build your own dining bench - matches the Simple Modern Outdoor Table

Simple Outdoor Dining Bench

Specifications

Project typeBench
RoomOutdoor
StyleGreen or Eco-Friendly Style Furniture
DifficultyBeginner Projects
Estimated cost$20 - $50

Dimensions

Use the size-specific shopping and cut lists below.

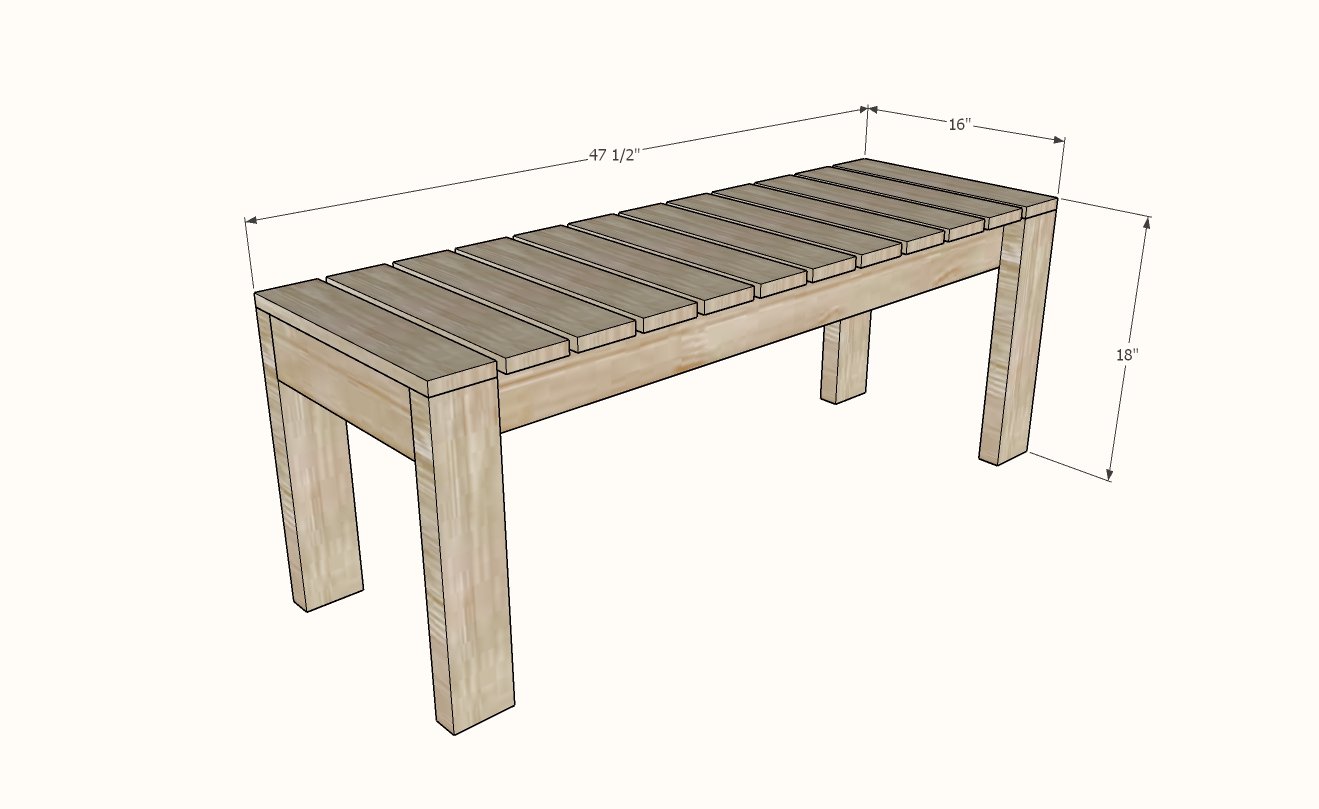

Simple Outdoor Dining Bench dimension diagram 1

Shopping List

Shopping List is Per 1 Bench

  • 2 - 2x4 @ 8 feet long
  • 2 - 1x4 @ 8 feet long
  • 20 - 2-1/2" long exterior screws (look for the star bit ones)
  • 50 - 1-1/2" long exterior screws (look for the star bit ones)

Cut List

  • 2 - 2x4 @ 12-7/8" - Frame ends
  • 2 - 2x4 @ 44-1/2" - Frame sides
  • 4 - 2x4 @ 17-1/4" - Legs
  • 12 - 1x4 @ 15-7/8" - Bench Slats

Tools

  • measuring tape
  • square
  • pencil
  • safety glasses
  • hearing protection
  • drill
  • circular saw
  • sander

Step-by-step Instructions

1

Step 1

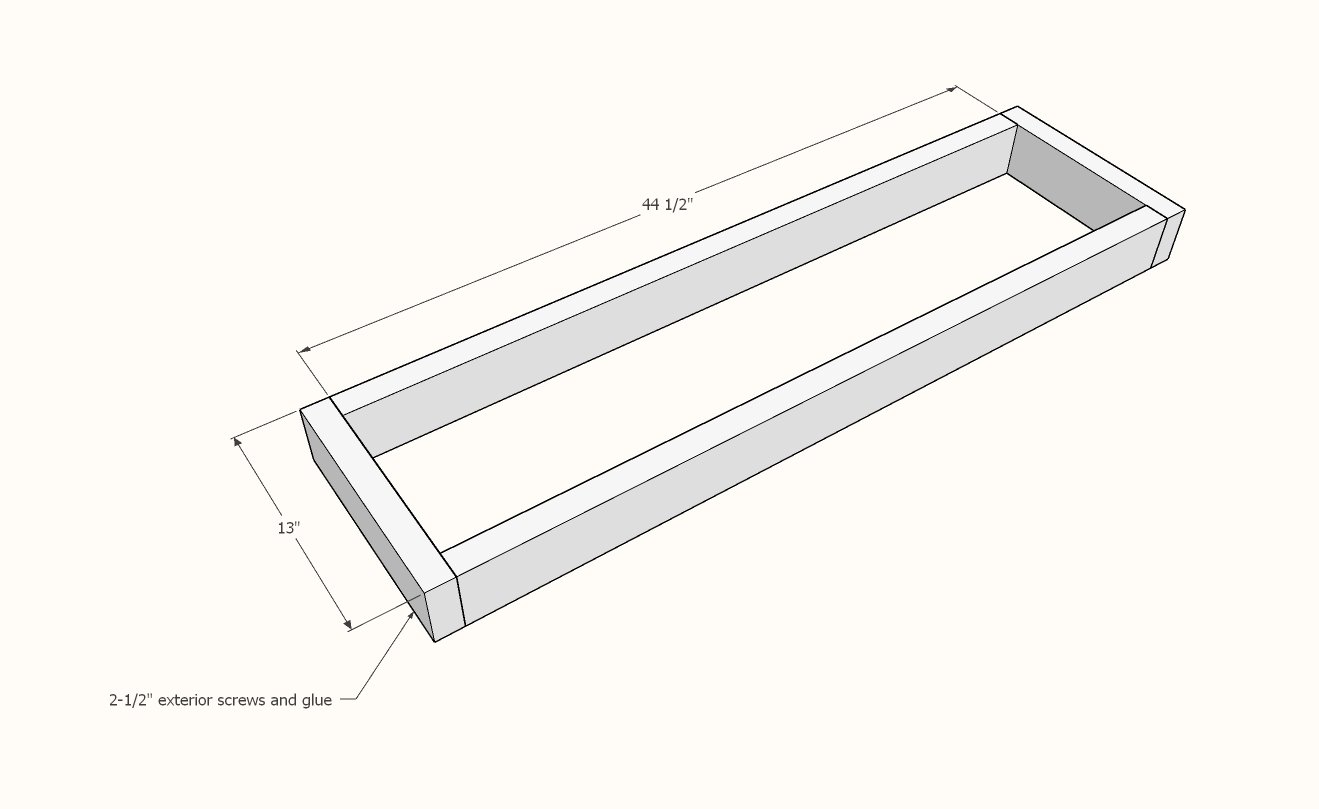

Build the basic frame for the bench with the longer screws. The cut list is correct with the ends at 12-7/8". Adjust the frame for square by taking opposite diagonal measurements and making sure the two opposite diagonals match.

Simple Outdoor Dining Bench — step 1
2

Step 2

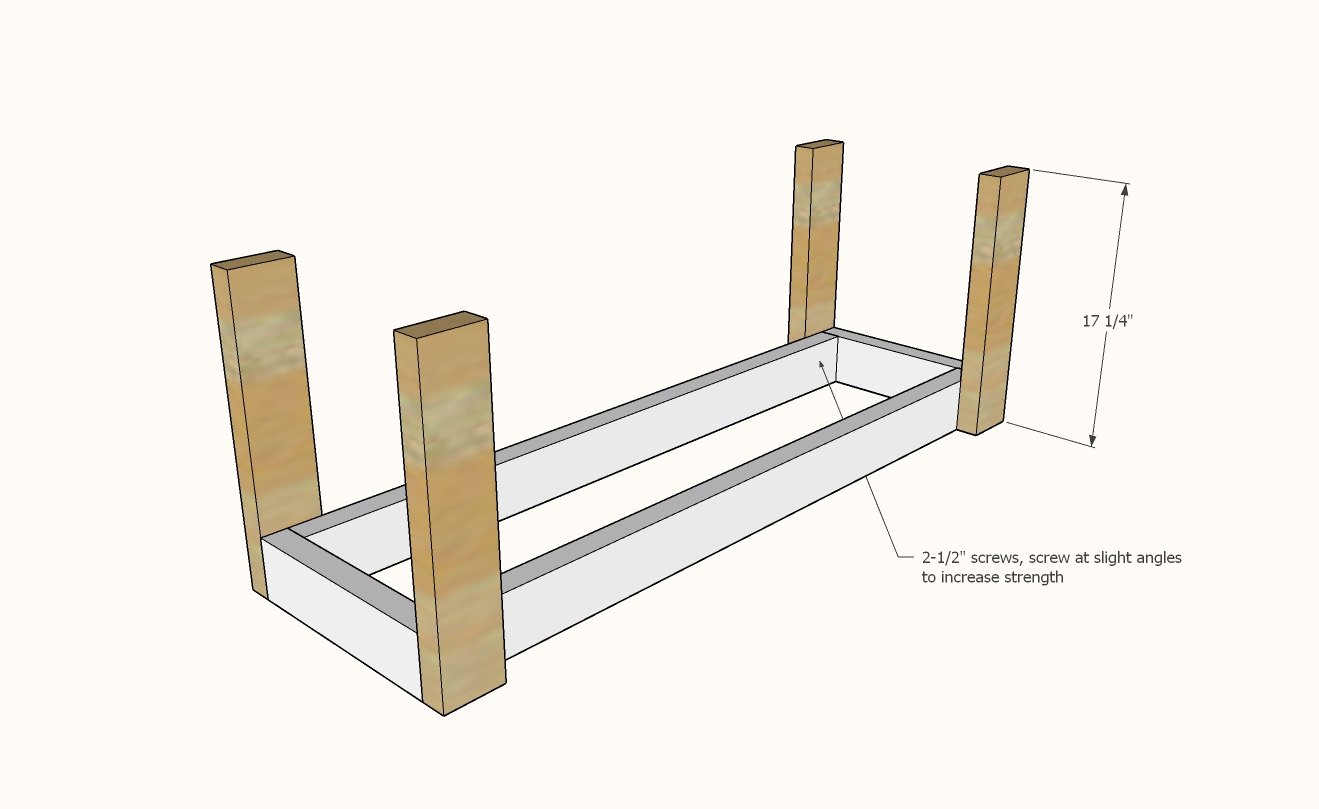

Screw the legs to the frame with the longer screws.

Simple Outdoor Dining Bench — step 2
3

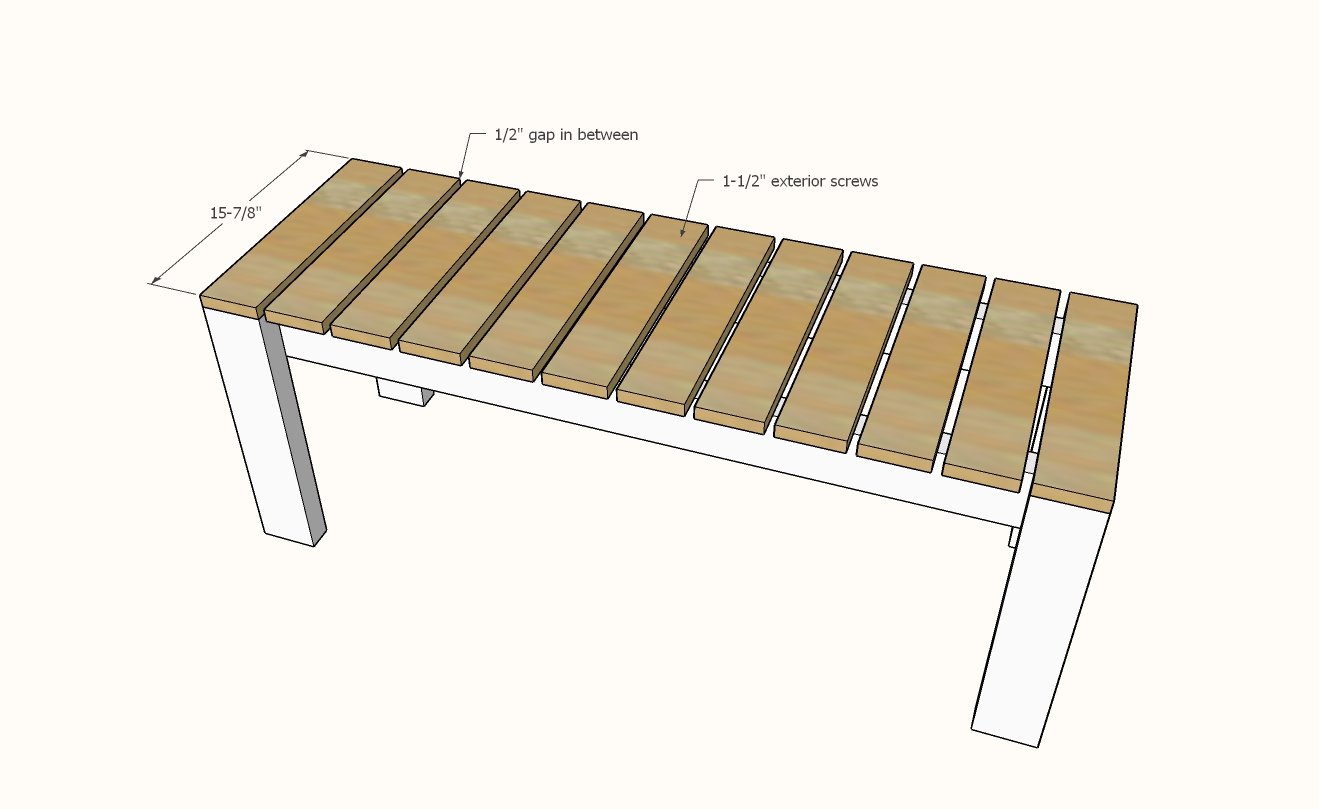

Lay the slats out on top with a 1/2" gap in between.

Screw down with the shorter screws.

Simple Outdoor Dining Bench — step 3
4

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
