Simple Outdoor Dining Table
Build this modern outdoor dining table with clean lines, sturdy construction, and an easy-to-follow design. Made from standard dimensional lumber, this table features a slatted top for drainage and a timeless style that fits any patio or backyard. Designed with beginners in mind, the build uses straightforward cuts and simple assembly—no complicated joinery required. The result is a solid, durable table perfect for everyday outdoor use. Features: • Beginner-friendly build • Made with standard lumber • Slatted top for outdoor durability • Strong, sturdy frame • Pairs perfectly with matching benches This table is the centerpiece of the set but also works great on its own for outdoor dining, entertaining, or everyday use. available on
Specifications
| Project type | Dining Table Plans |
|---|---|
| Room | dining room |
| Style | Modern Style Furniture Plans |
| Difficulty | Beginner Projects |
| Estimated cost | $50 - $100 |

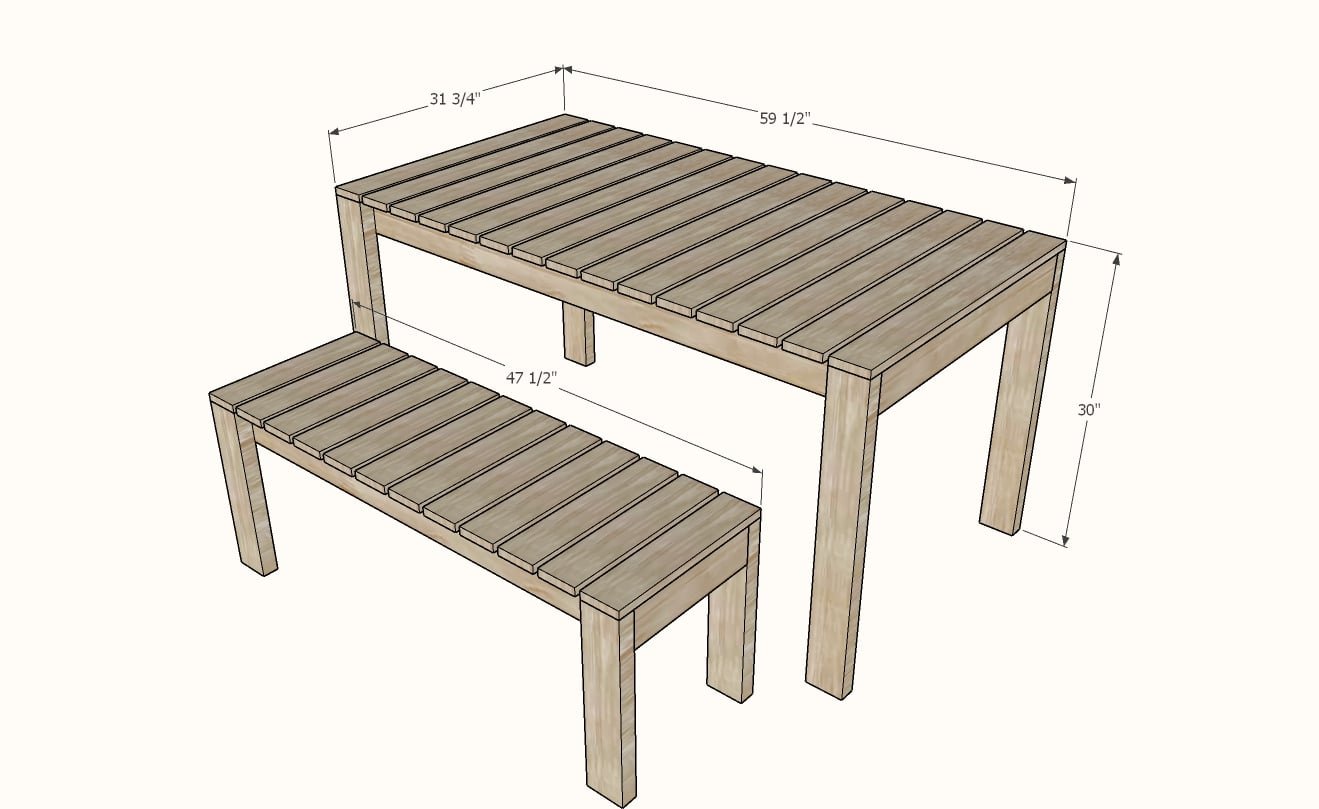

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
- 4 - 2x4 @ 8 feet long (cut longest boards first)
- 5 - 1x4 @ 8 feet long
- 100 - 1-1/4" to 2" long - self tapping exterior screws (look for star bit ones)
- 25 - 2-1/2" long self tapping exterior screws
Cut List
3 - 2x4 @ 56-1/2" - frame
2 - 2x4 @ 28-3/4" - frame ends
4 - 2x4 @ 29-1/4" - legs
15 - 1x4 @ 31-3/4" - tabletop boards
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- drill
- compound miter saw
- sander
Step-by-step Instructions

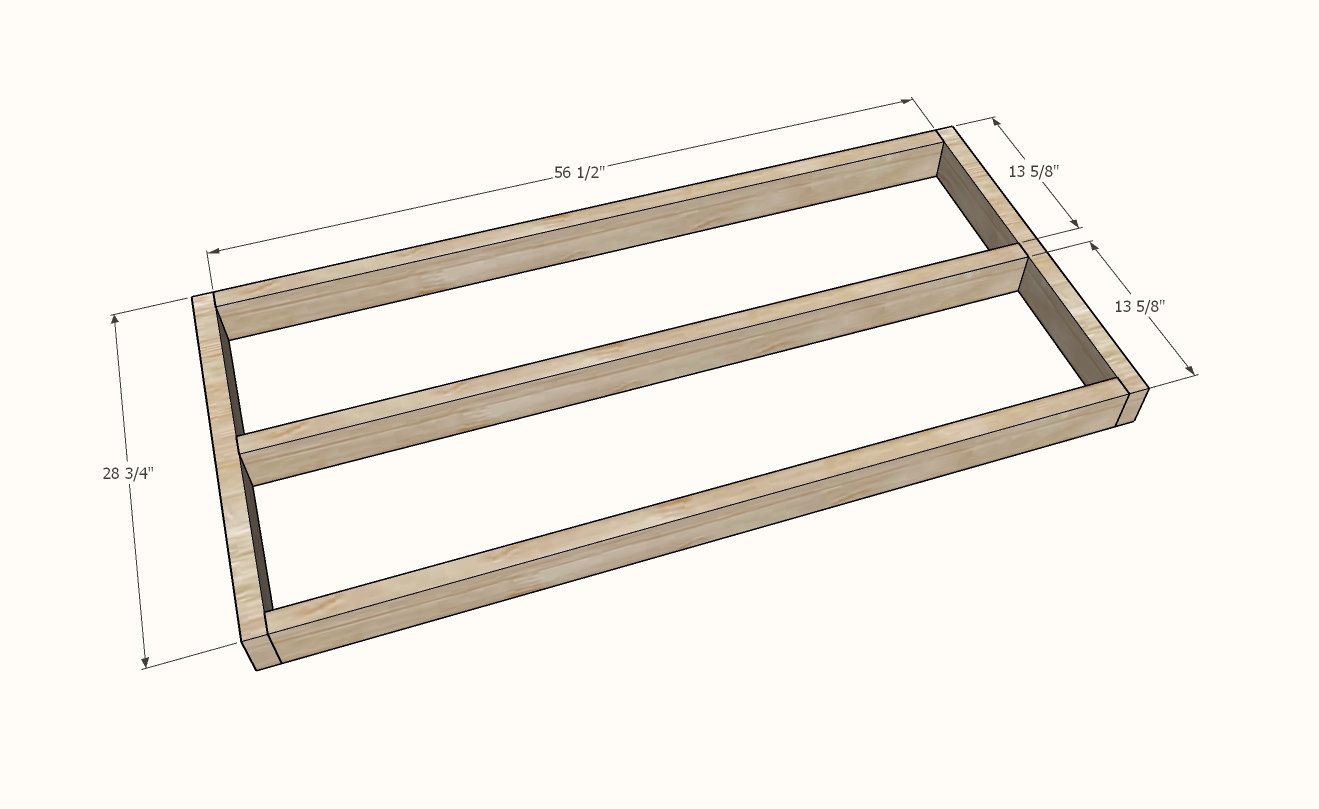

Build the frame of the table with the longer screws, two screws per joint.
Adjust for square by taking opposite diagonal measurements and adjusting until the opposite diagonals match.
Step 2

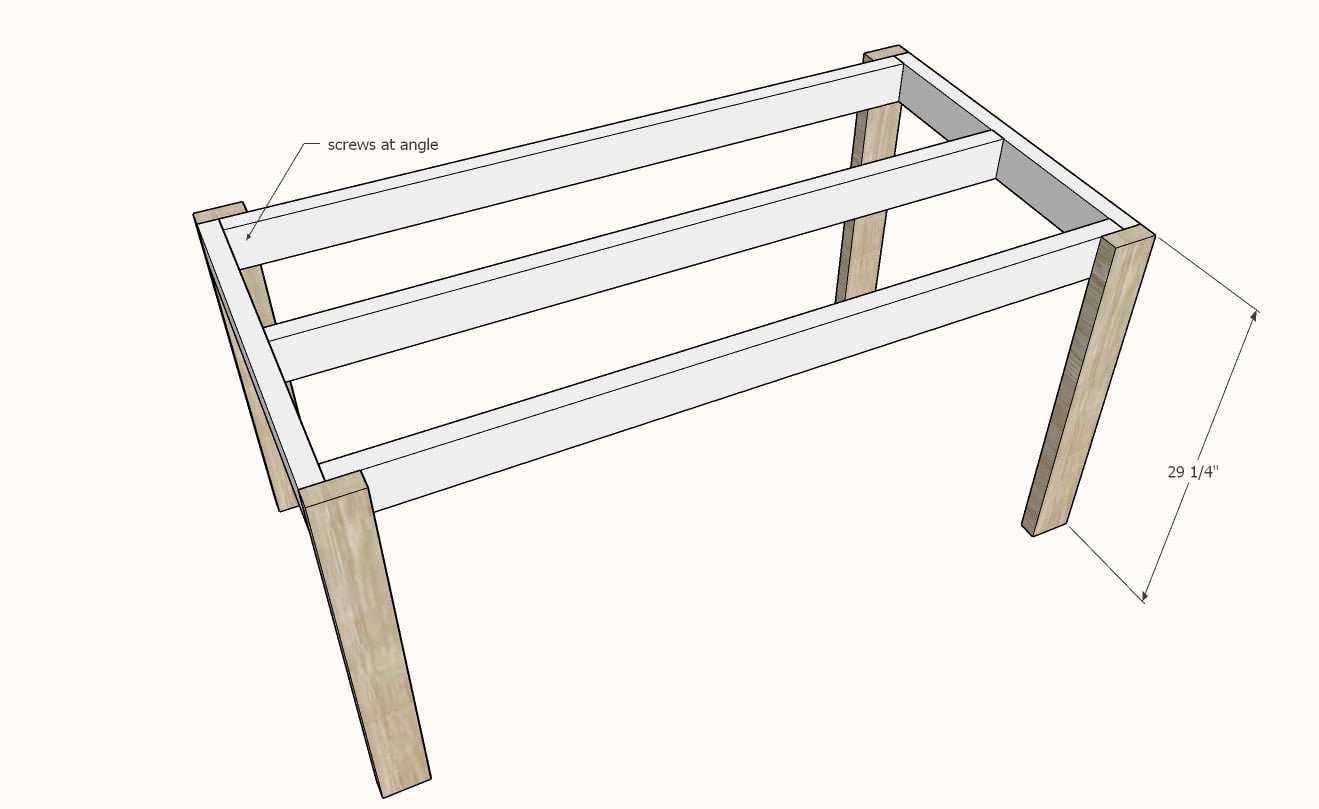

Attach legs to the frame (will be easiest upside down). Multiple screws at an angle into the legs will be stronger than screws straight on.
Step 3

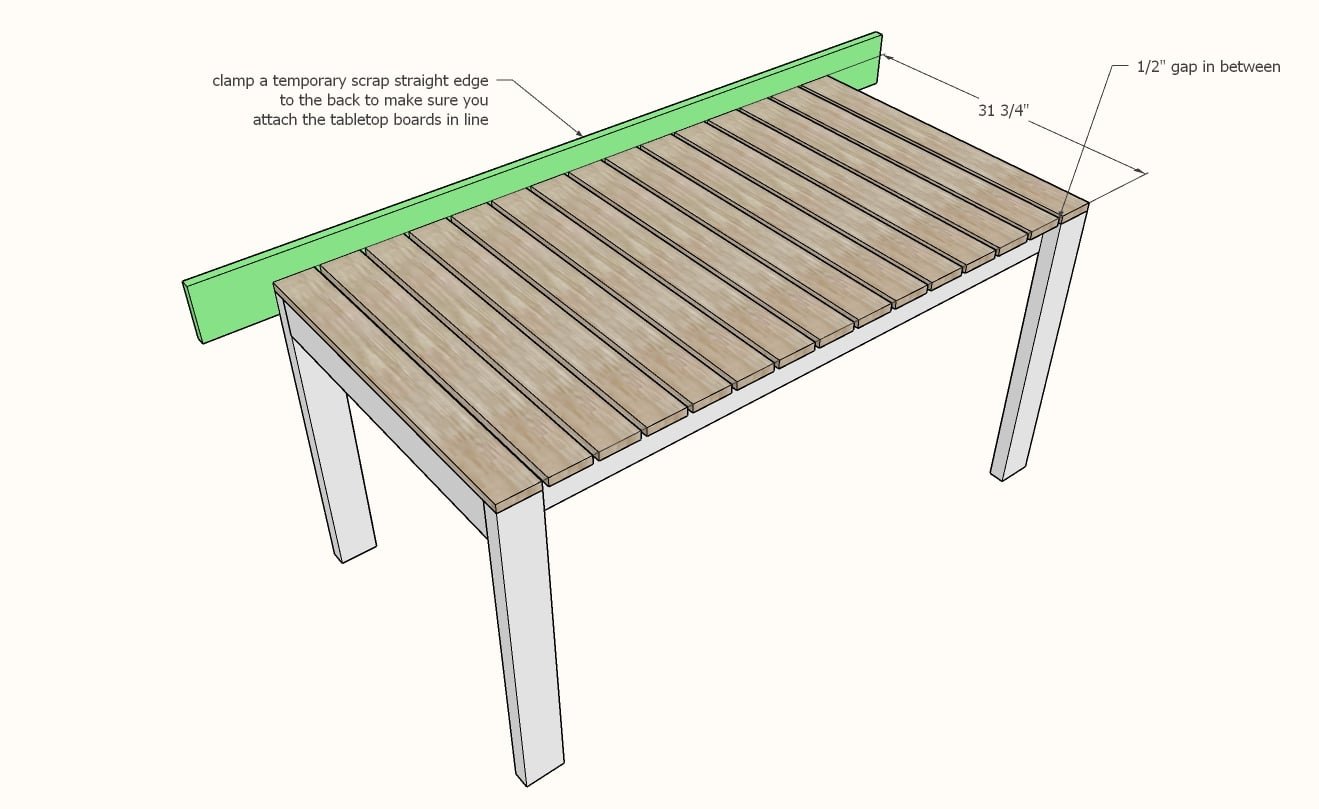

Clamp a straight edge to the outside of the table and lay out the tabletop boards with a 1/2" gap in between. Screw down with the shorter screws. For the end boards, screw to the end of the frame too - this will add considerable strength to your table.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
