Simple Step Stool

Here's a super easy and quick simple step stool build plan! If you need a step stool for the bathroom or anywhere in the home - especially with young kids trying to reach the sink or the toilet, this is a great, simple to build plan. If you are wanting more of a challenge, also check out my Simple Step Stool Plans with Splayed Legs here.

Specifications

Project type	Bench
Room	Bathroom
Difficulty	Starter Projects
Estimated cost	scraps

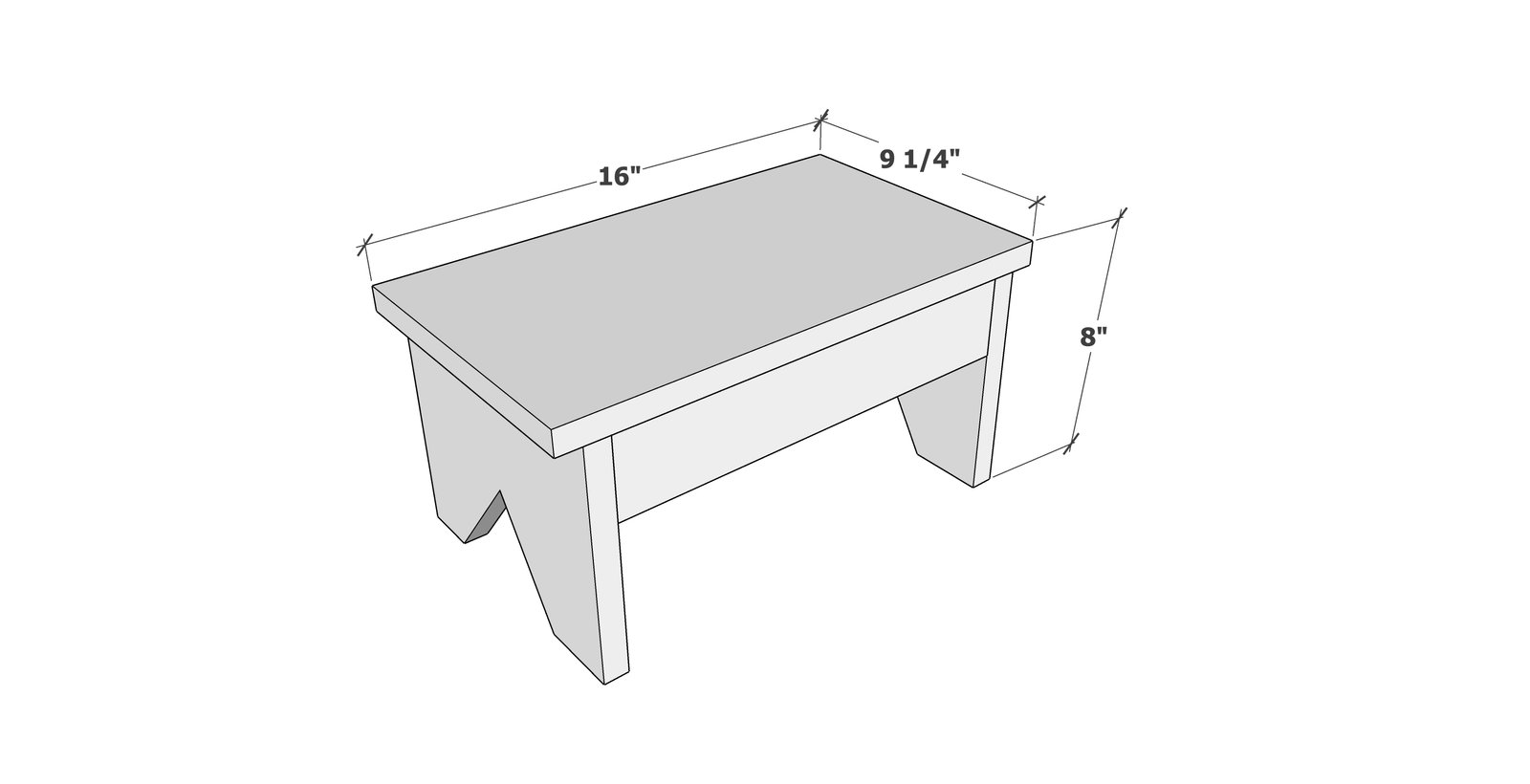

Dimensions

Use the size-specific shopping and cut lists below.

Shopping List

27" of 1x3 boards
32" of 1x10 boards
2" self tapping wood screws or 1-1/4" pocket hole screws
wood glue

Cut List

2 - 1x10 @ 7-1/4" - legs
2 - 1x3 @ 13" supports
1 - 1x10 @ 16" - top

Tools

measuring tape
pencil
safety glasses
drill
jigsaw
sander

Step-by-step Instructions

Step 1

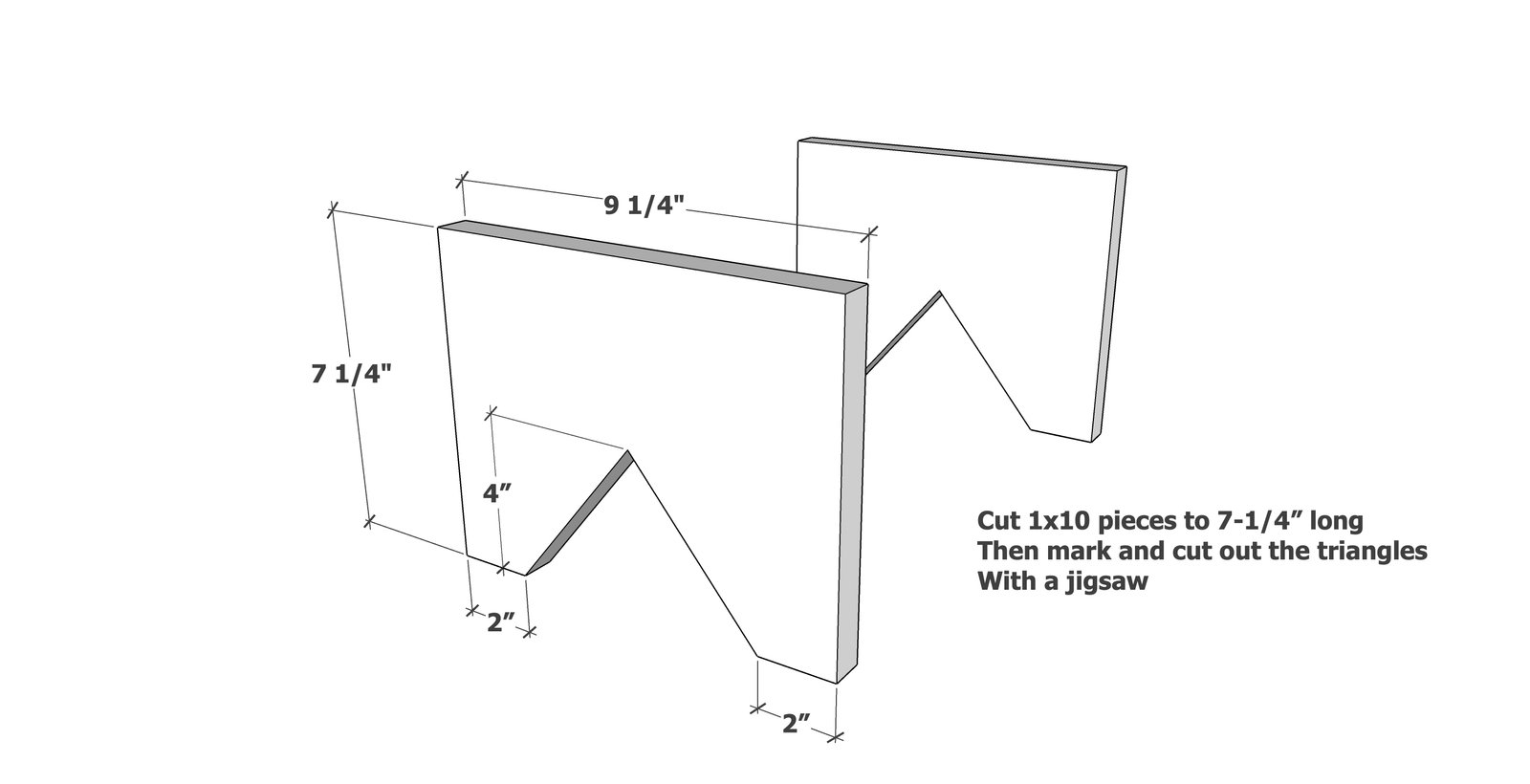

Cut the boards according to the cut list. The easiest method is using a miter saw, but you can also use a jigsaw to make the cuts. Then cut the triangle shapes out of the legs with the jigsaw.

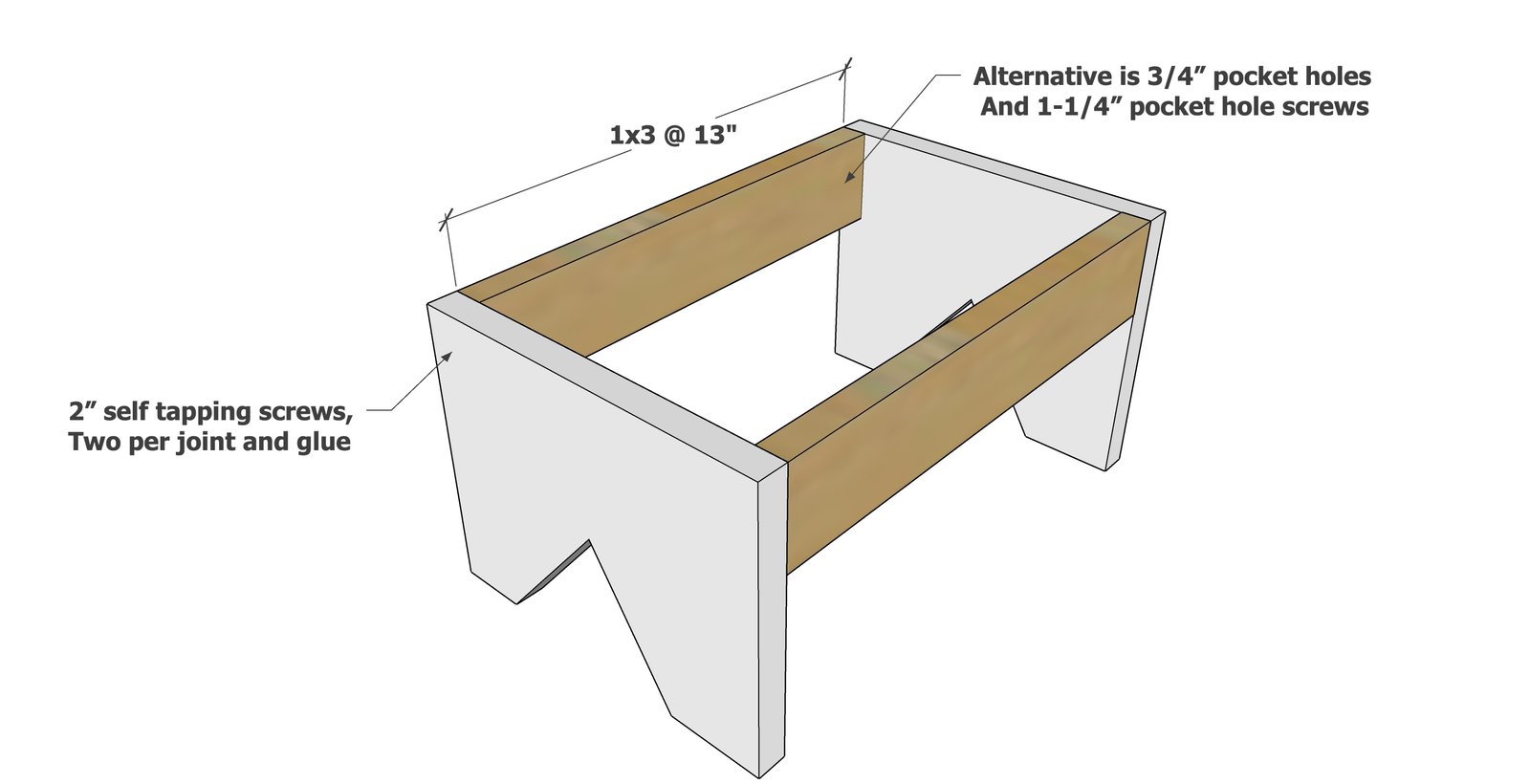

Attach the 1x3 pieces to the legs with screws.

Pocket hole method: Drill 3/4" pocket holes facing upward for attaching the top in later steps on the insides of the legs and the insides of the 1x3s. Then drill 3/4" pocket holes on the ends of the 1x3s. Attach the 1x3s to the legs with 1-1/4" pocket hole screws.

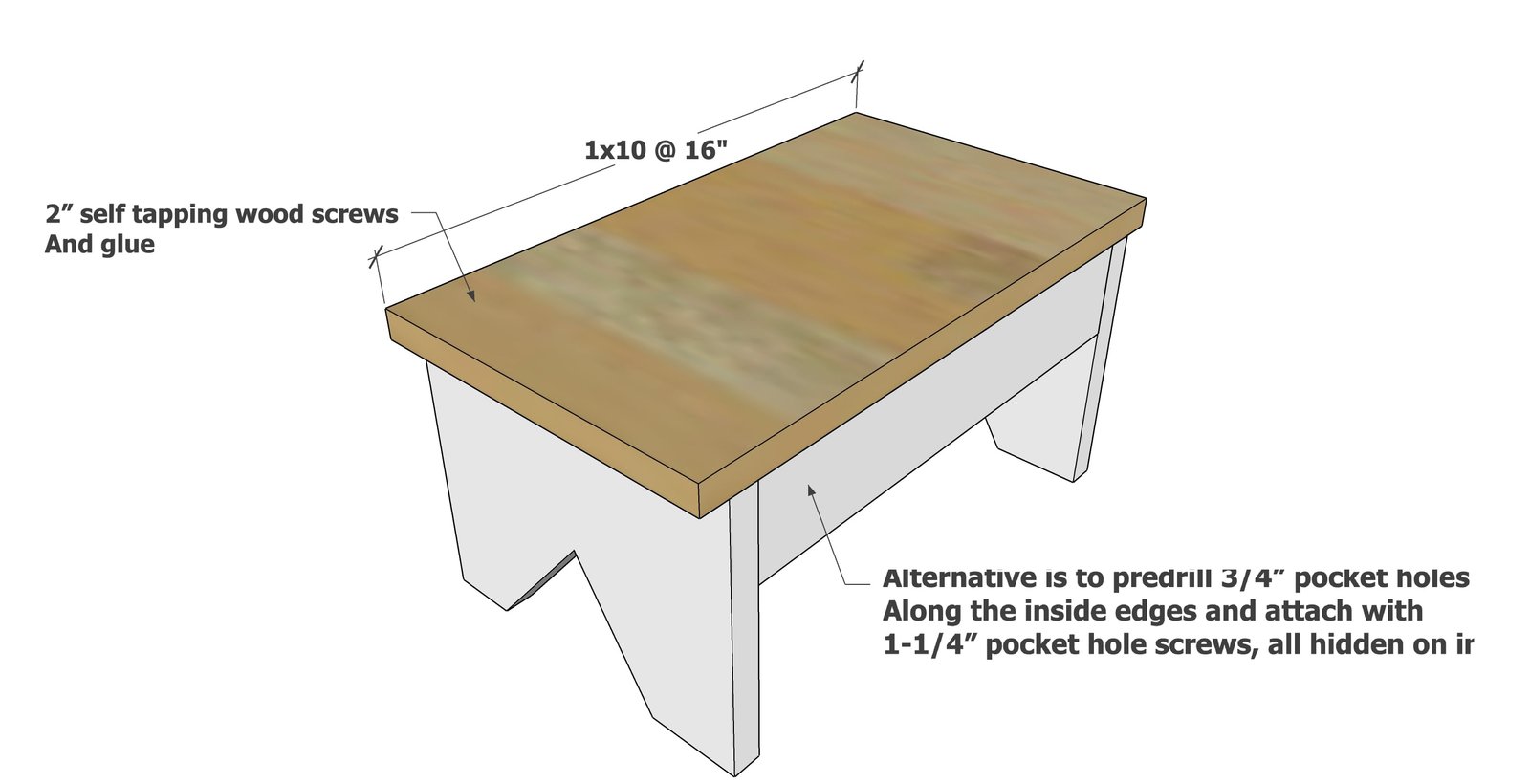

Attach the top to the base with the 2" screws.

Pocket hole users - Attach the base with the predrilled pocket holes to the underside of the top with 1-1/4" pocket hole screws.

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
