Simple Vanity with Shelves and Light Up Mirror
This is a free project plan to build a simple vanity with shelves and a light up mirror. This vanity is narrow in profile, so perfect for small spaces.
Specifications
| Project type | Desk, Desk Systems and Project Table Plans |
|---|---|
| Room | Bedroom |
| Difficulty | Beginner Projects |

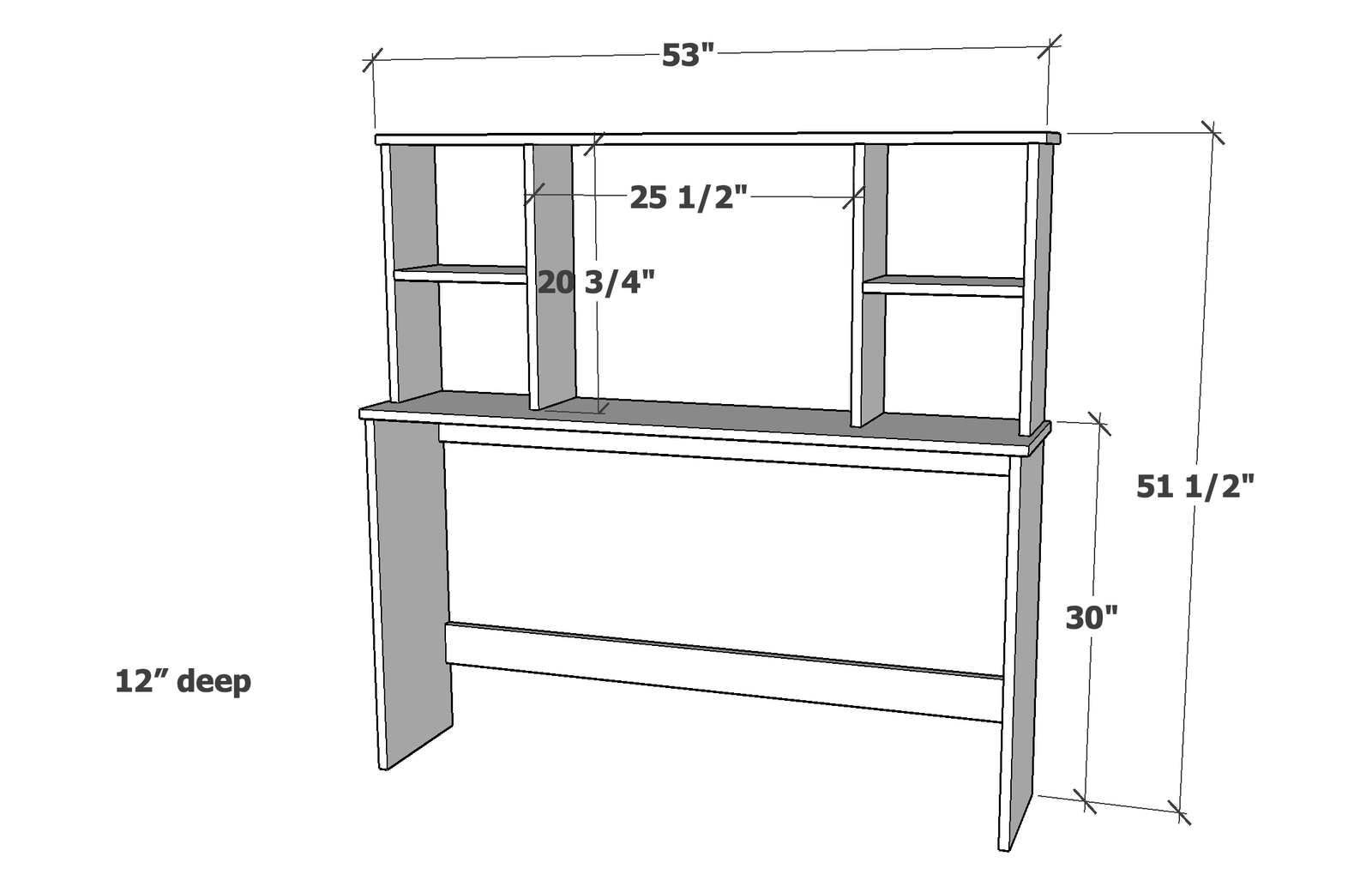

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
- 1 - 1x12 @ 10 feet long
- 1 - 1x4 @ 10 feet long
- 2 - 1x8 @ 8 feet long
- 1-1/4" pocket hole screws (about 20)
- 1-1/4" brad nails
Cut List
Base
- 2 - 1x12 @ 29-1/4"
- 1 - 1x12 @ 53"
- 2 - 1x4 @ 50-1/2"
Hutch
- 1 - 1x8 @ 53"
- 4 - 1x8 @ 20-3/4"
- 2 - 1x8 @ 11-3/4"
Tools
- measuring tape
- square
- pencil
- safety glasses
- kreg-jig
- drill
- circular saw
- nailer
- sander
Step-by-step Instructions

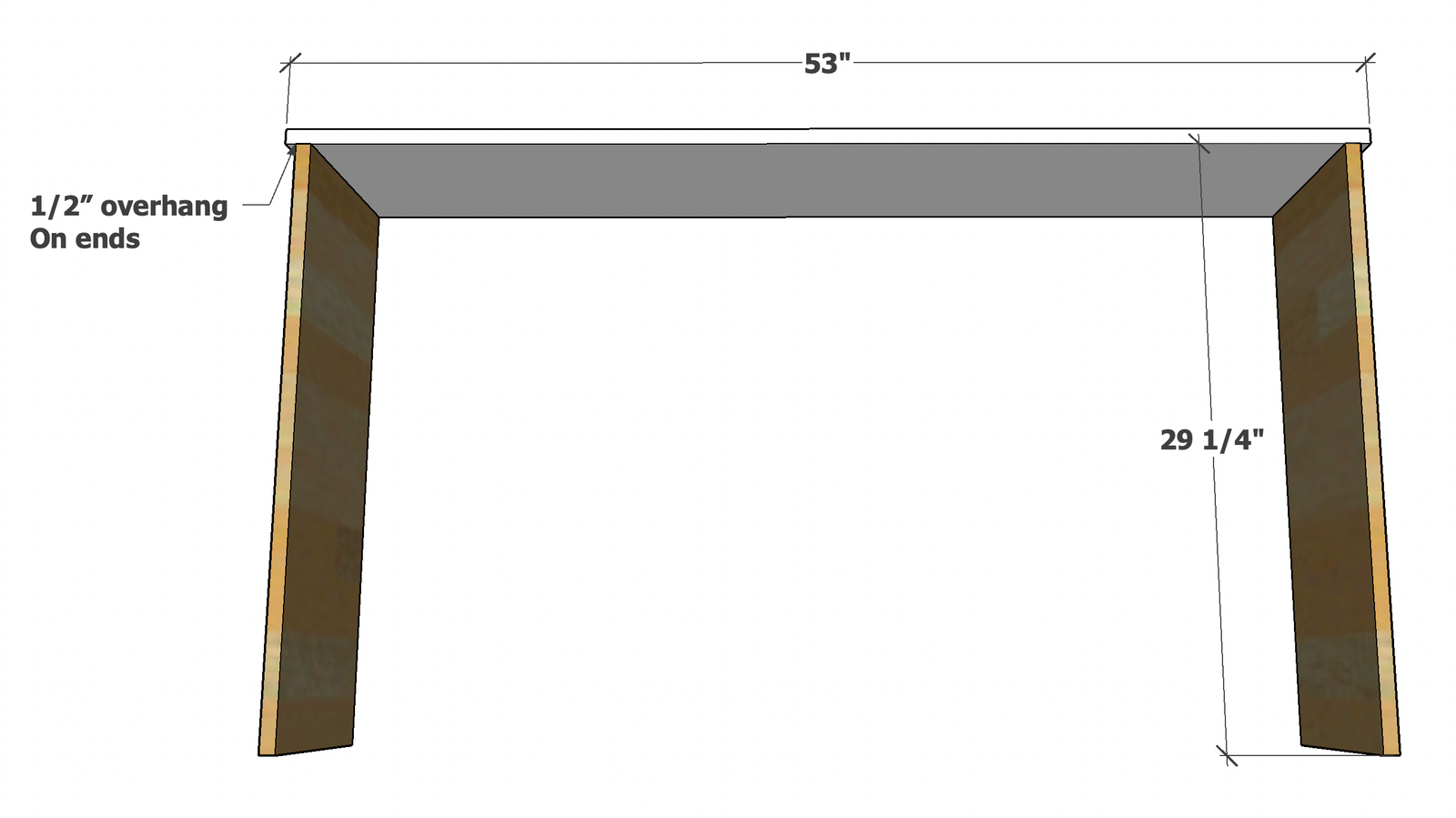

Drill three pocket holes on one end of each of the 1x12 leg boards.
Attach to the underside of the tabletop board with 1-1/4" pocket hole screws with a 1/2" overhang on each end.

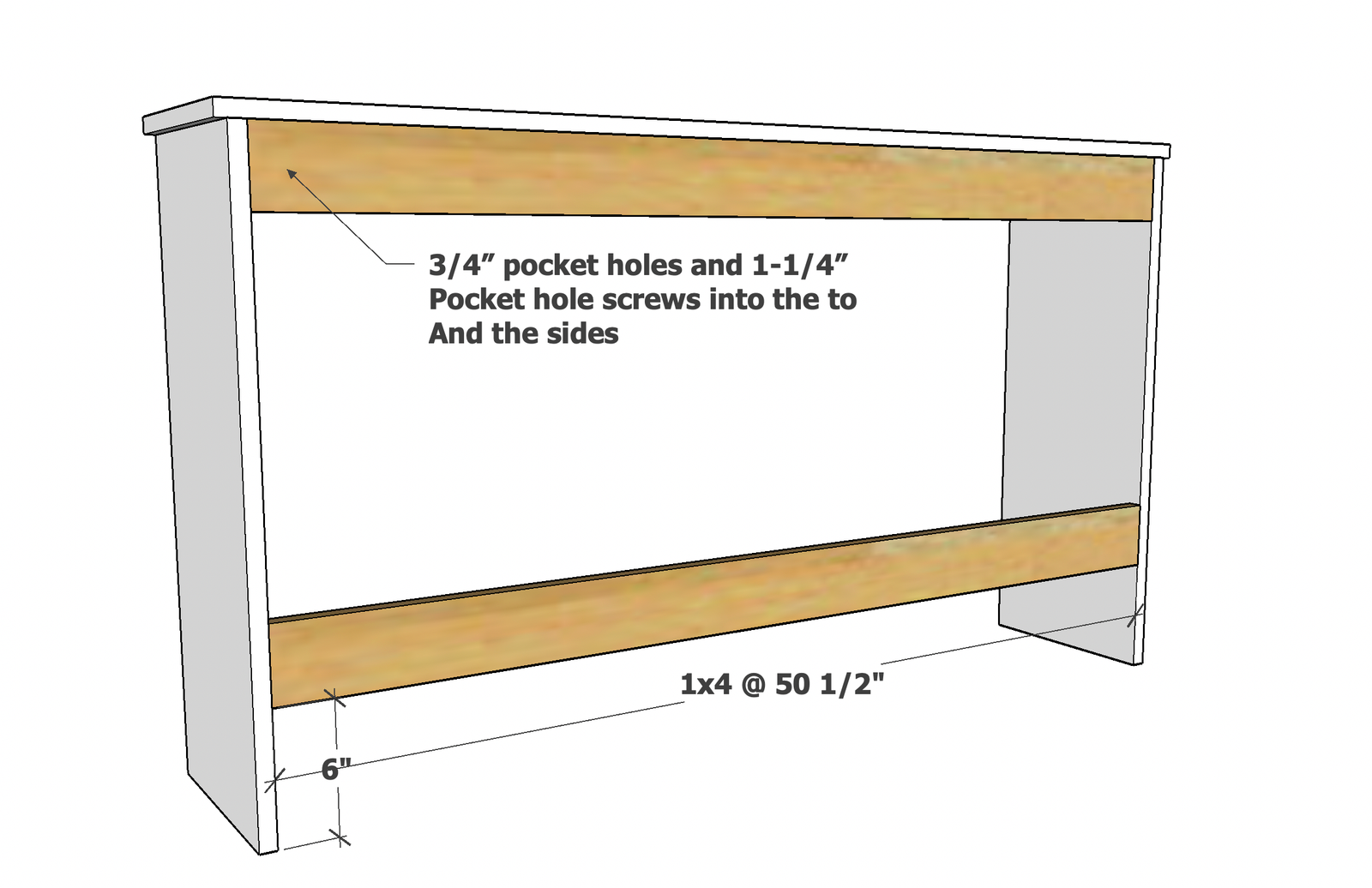

Step 2
Measure the distance between the two 1x12 legs, measure at the tabletop for the most accurate measurement. Cut two 1x4s to this measurement and drill two 3/4" pocket holes on each end. Also drill 3/4" pocket holes facing upward along one edge of one board for attaching to the tabletop. Attach with 1-1/4" pocket hole screws.
Step 3
The hutch can be put together with pocket holes but I recommend brad nails as they are easier to hide and the hutch is not structural, so no need for the strength of pocket holes. With nails, use glue. Build the two shelf sections first, then attach the top. The hutch can be connected to the base with screws.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
