Simplest Wood Chaise Lounge Chairs
Make your own wood outdoor chaise lounge for a fraction of the cost to buy! from
Specifications
| Project type | Outdoor Seating, Lounging and Accents |
|---|---|
| Room | Outdoor |
| Style | Cottage Style Furniture Plans |
| Difficulty | Intermediate |
| Estimated cost | $20 - $50 |

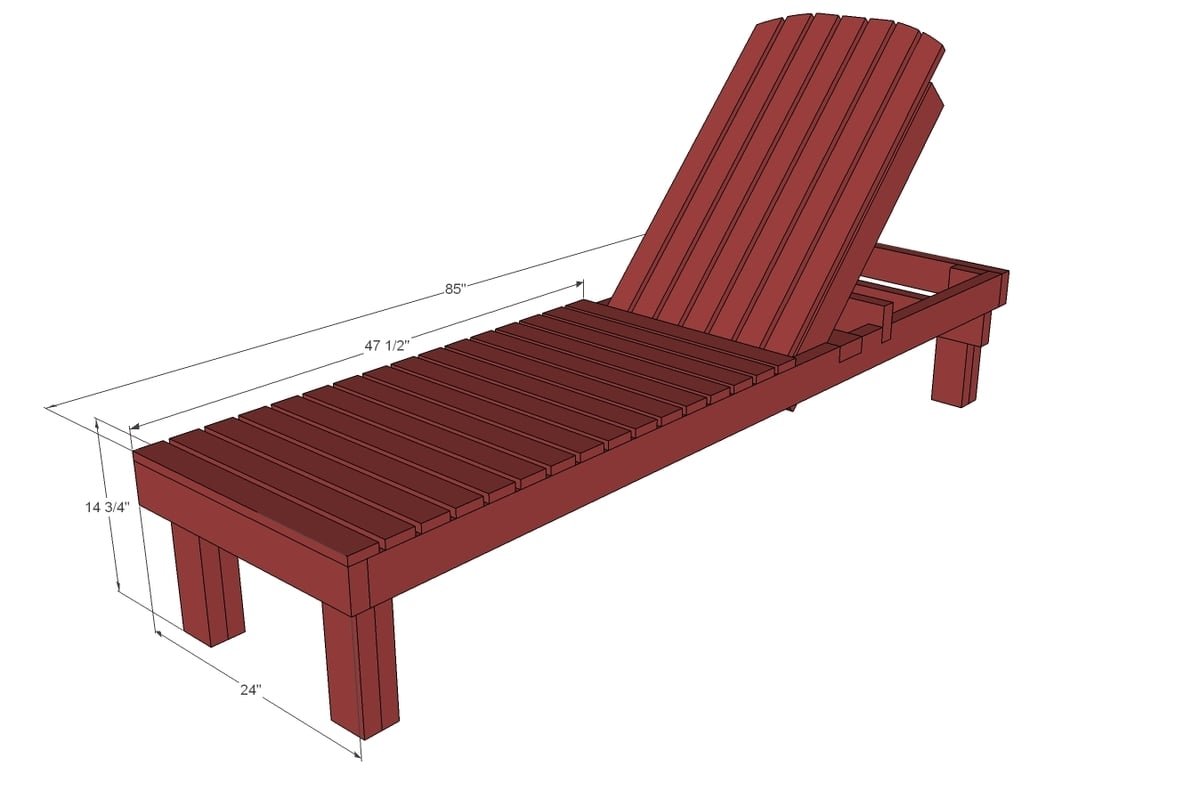

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
2 - 2x6 @ 9 feet long (can be 9 foot studs)
3 – 2x4 @ 8 feet long
8 – 1x3 @ 8 feet long
2 – ¼” bolts 4” long with nuts and 6 washers
2-3/4” self tapping exterior wood screws
2” exterior screws or galvanized brad nails and glue to nail slats down with
Cut List
BASE
2 – 2x6 @ 85” - main frame sides
2 – 2x6 @ 21” - main frame front/back
16 – 1x3 @ 24” - seat slats
6 – 2x4 @ 14” - legs
2 – 2x4 @ 7” - legs
BACK
2 – 2x4 @ 32” - back frame
3 – 2x4 @ 17 ½” - back frame
7 – 1x3 @ 37 ½” - back slats
1 – 2x4 @ 24” (stop block)
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- drill
- jigsaw
- nailer
- sander
Step-by-step Instructions

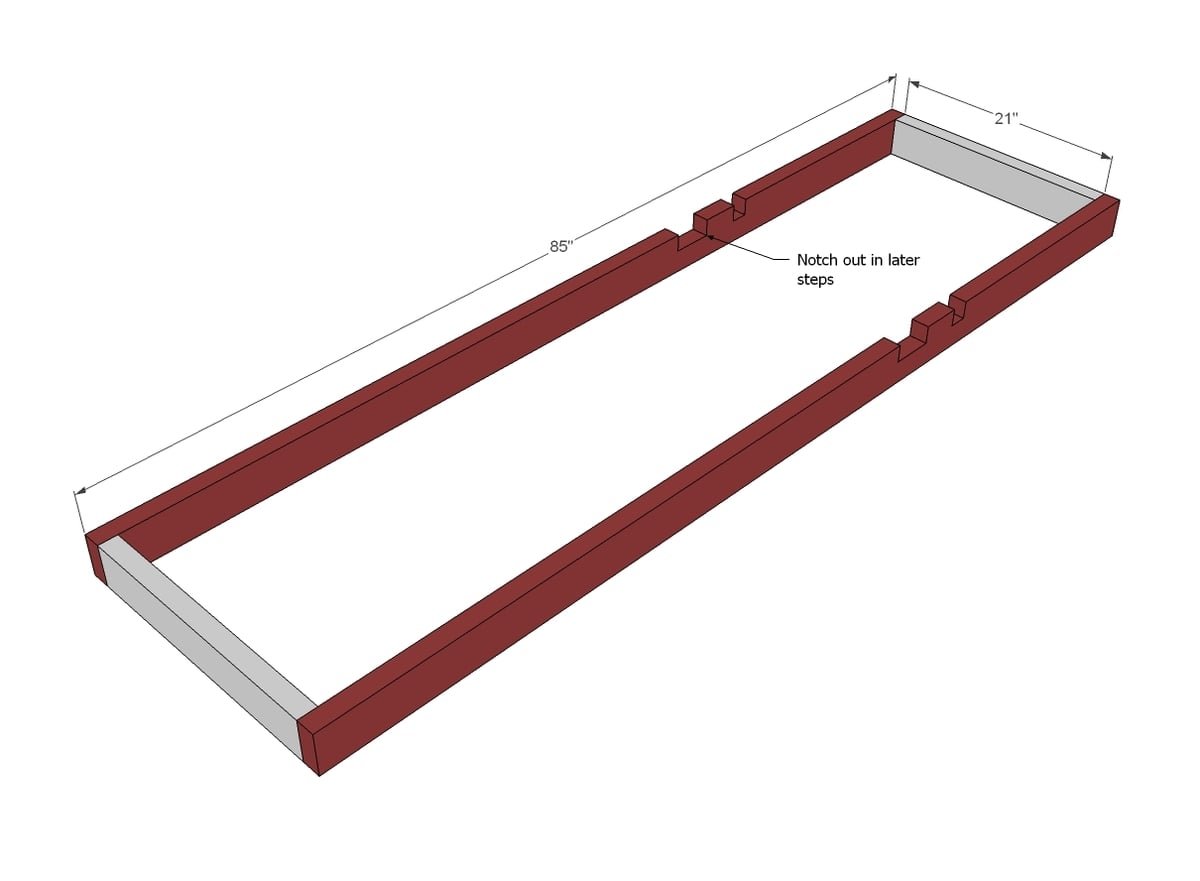

Build your frames first. You can use 1 1/2" PHs and 2 1/2" PH screws OR 2-3/4" countersunk screws.
I do recommend the PHs because it will hide your screws holes, making it easier to paint the pieces, and then attach later through the PHs. NOTE: The diagrams show 2x4s. We have updated this plan per user recommendations to use 2x6s for the frame. Notch out for the back support with a jigsaw.

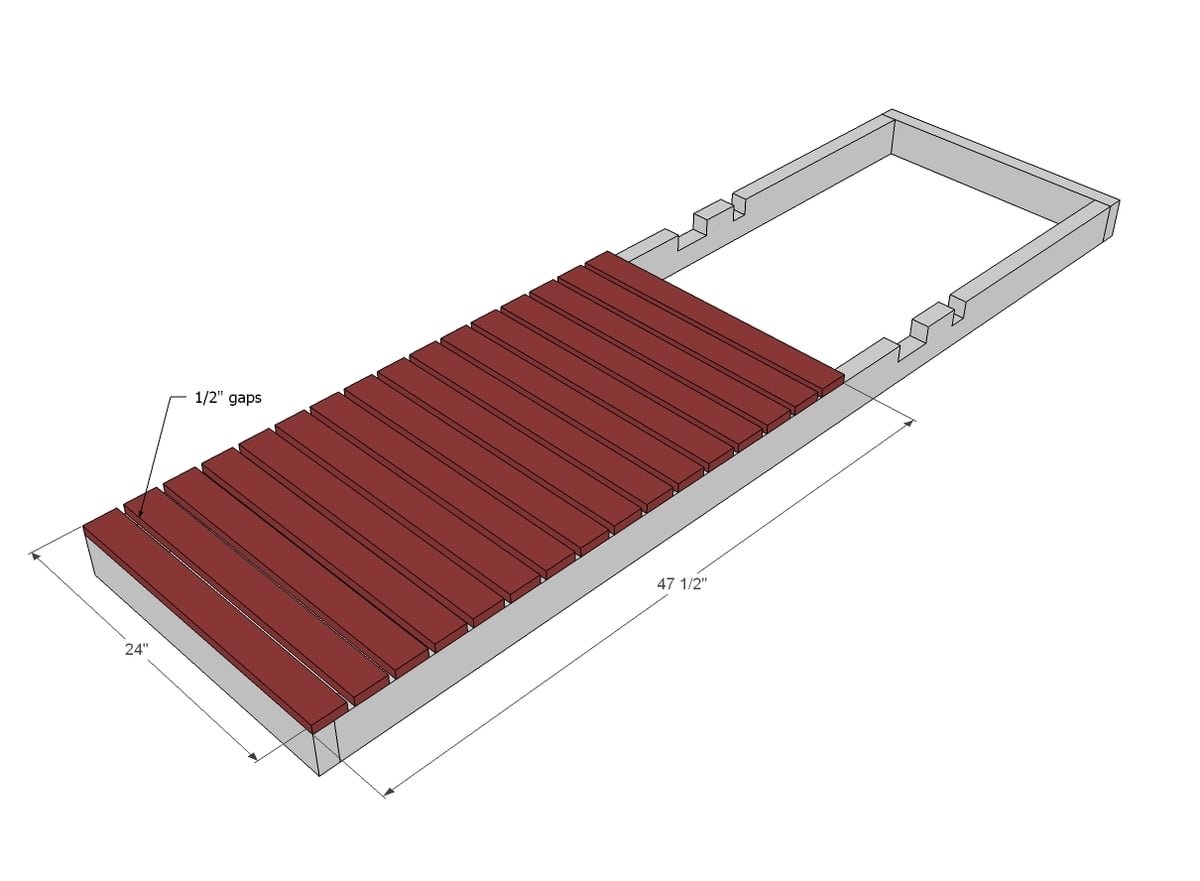

Step 2
Next add your slats. You can also attach slats from underneath with PHs if desired.

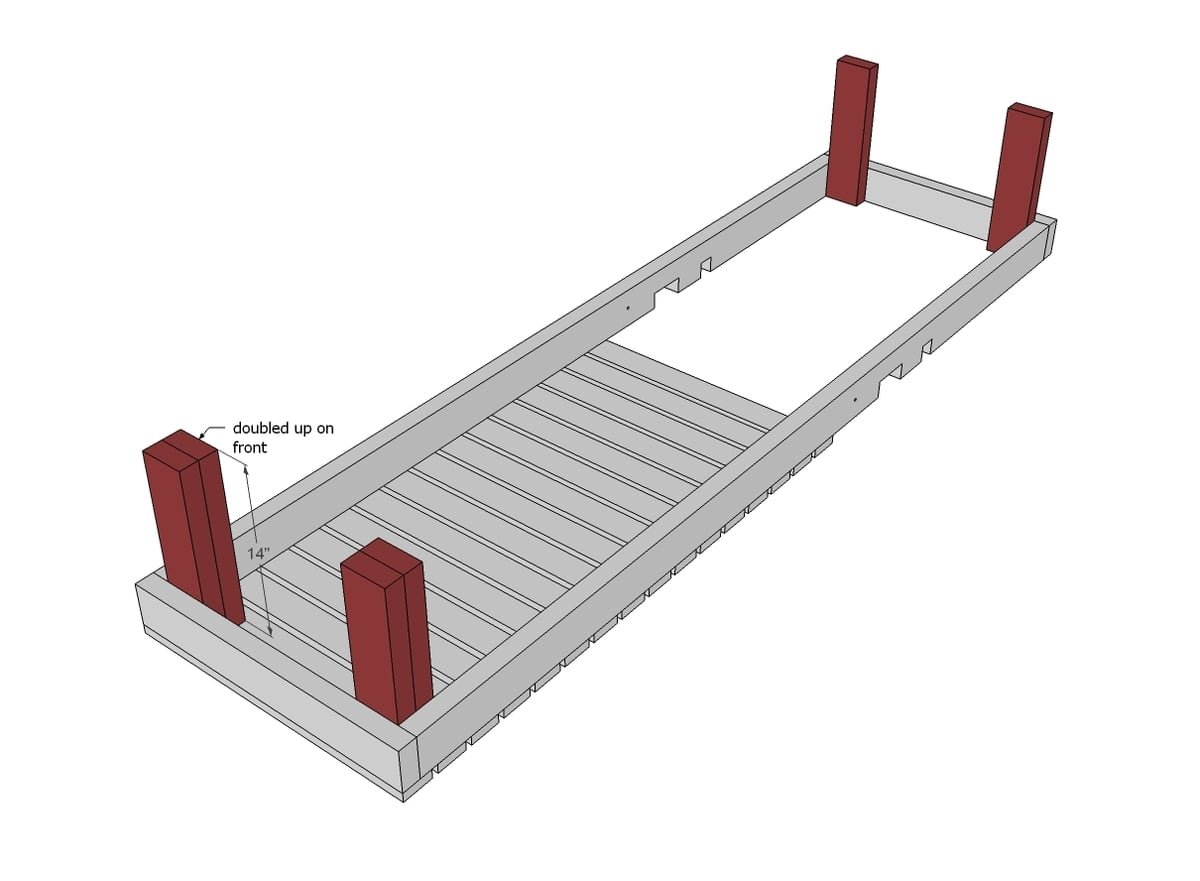

Step 3
Attach legs, and then to front, attach second row of legs. Use 2 3/4" self tapping screws and glue here. Multiple screws are recommended to keep the leg joints solid.

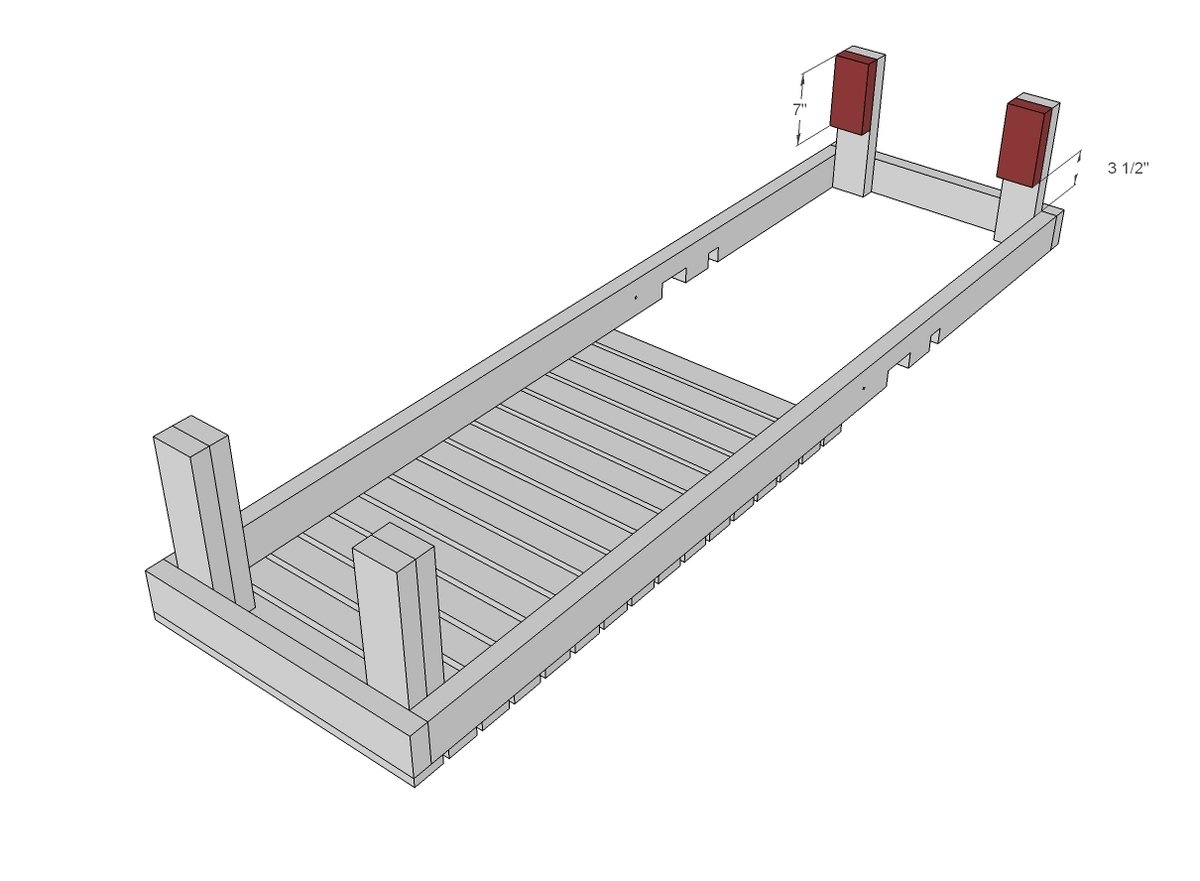

Step 4
These legs are just long enough to provide you a spot to put the stop block when chaise is fully reclined.

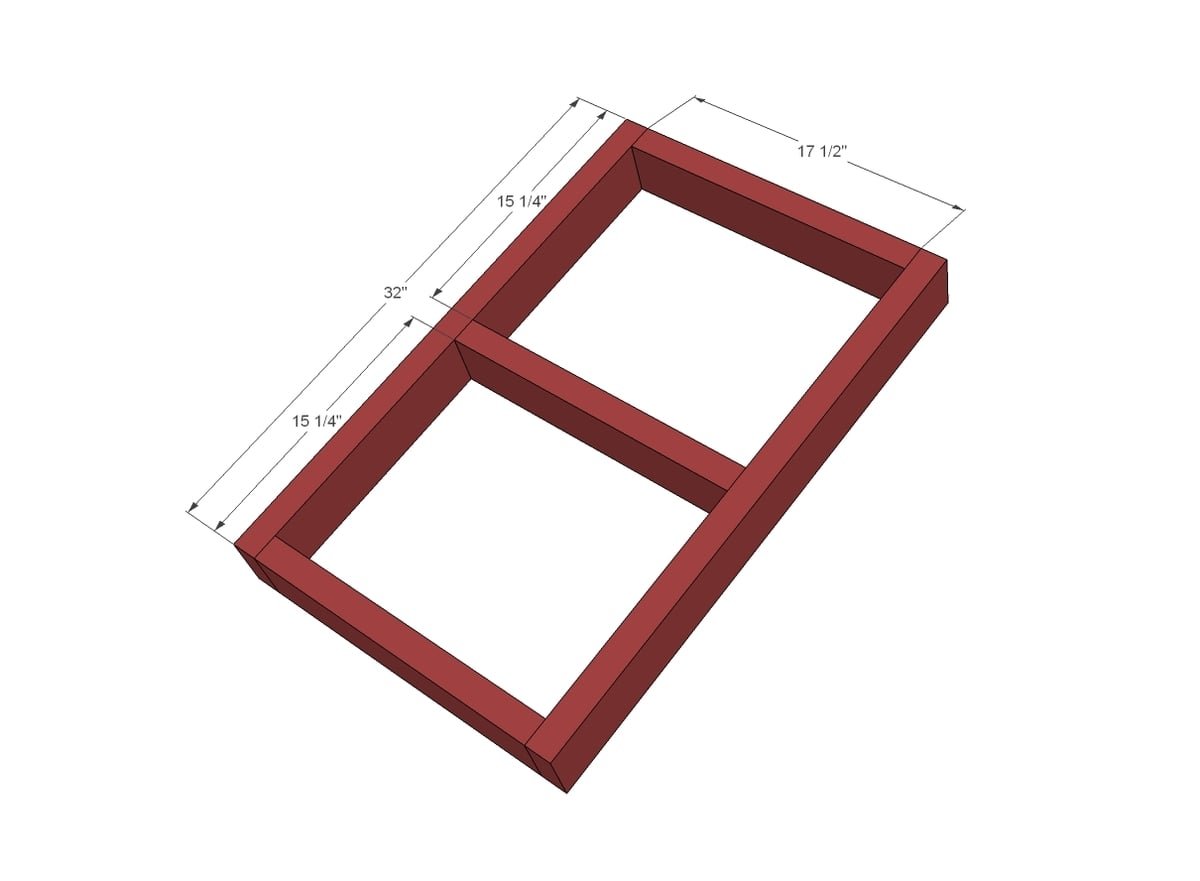

Step 5
Build the frame for the seat back as you did the main frame.

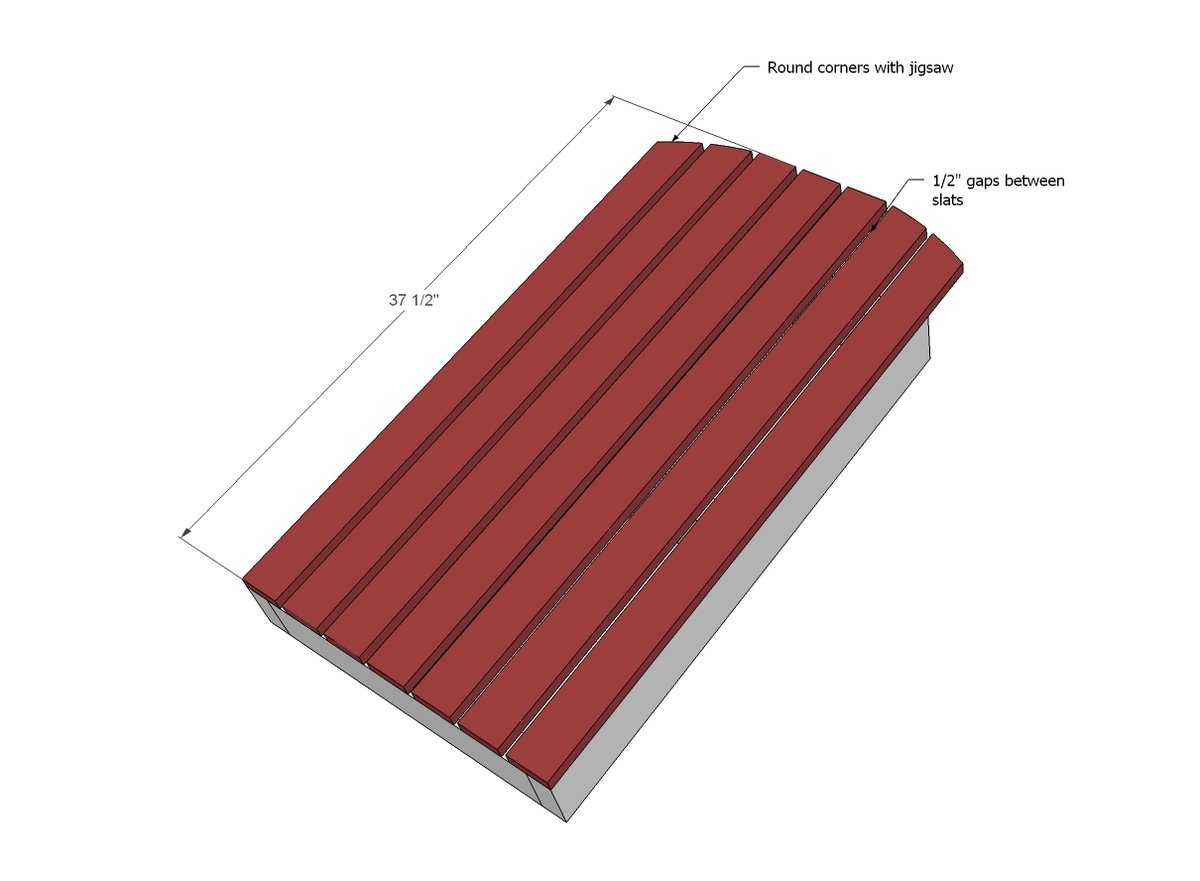

Attach back slats to the frame.
TIP: Users have commented that it is easier to install the seat frame on the pivot bolt first, then add the slats later.
Step 7

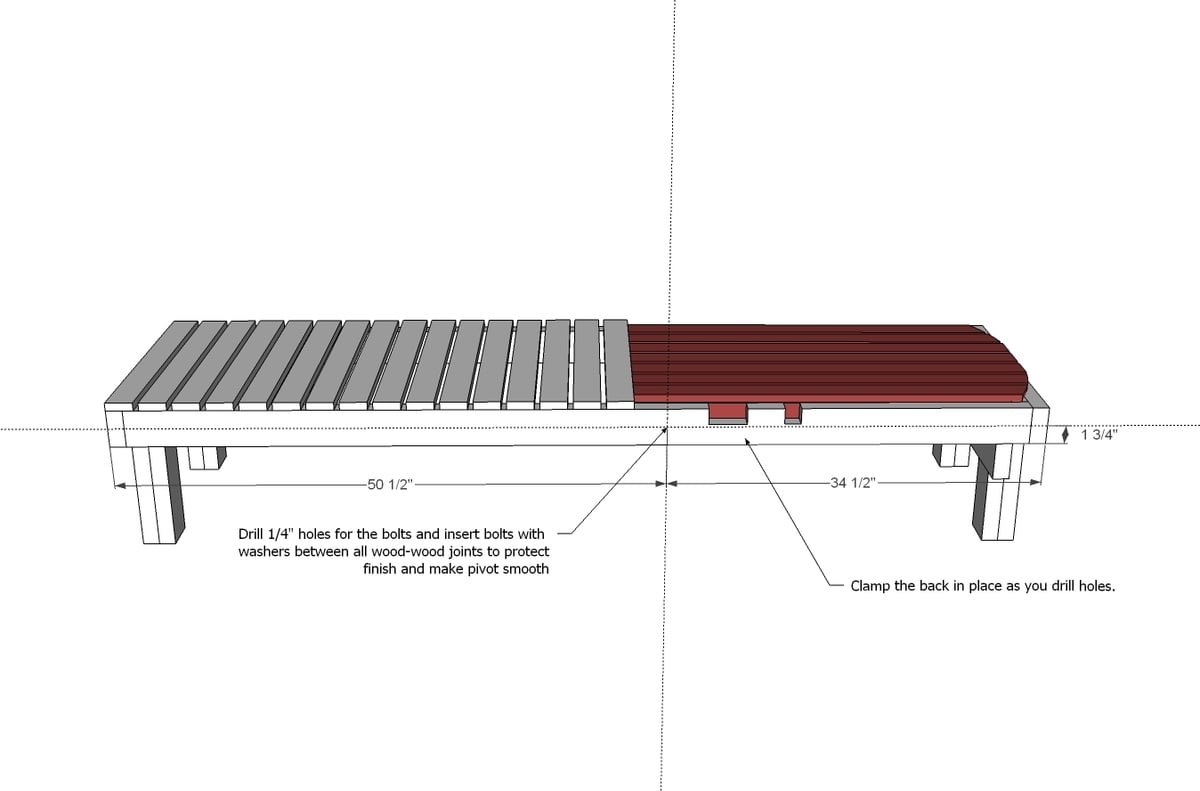

Now we attach back to chaise with the pivot bolt. The easiest way to do this for me was to clamp the pieces in place and drill through both the main frame and the seat frame. NOTE: The diagram shows a 2x4 - we have upgraded this plan to recommend using a 2x6 instead.

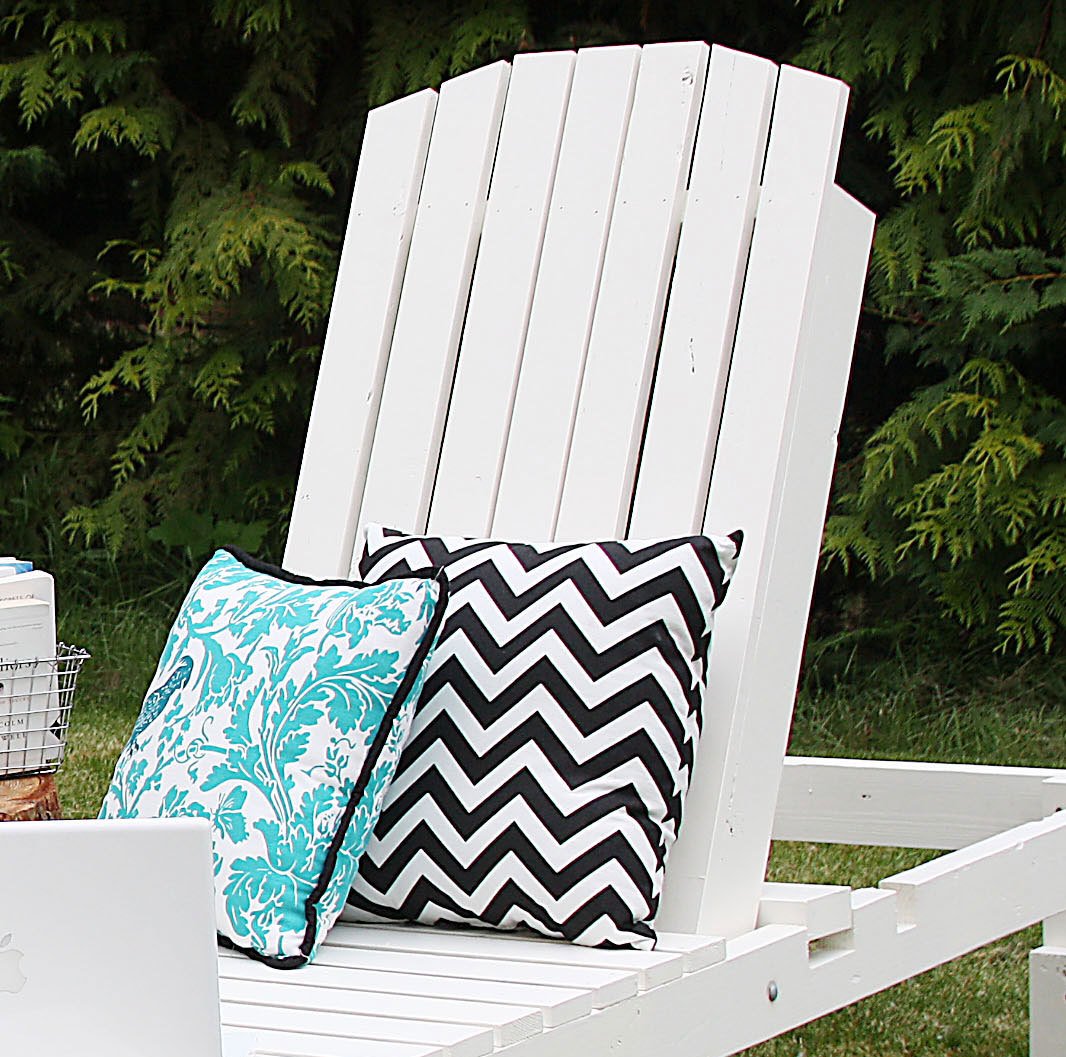

Step 8
Brook is also sharing with us her step by step finishing tutorial here to get this amazing finish!
Step 9

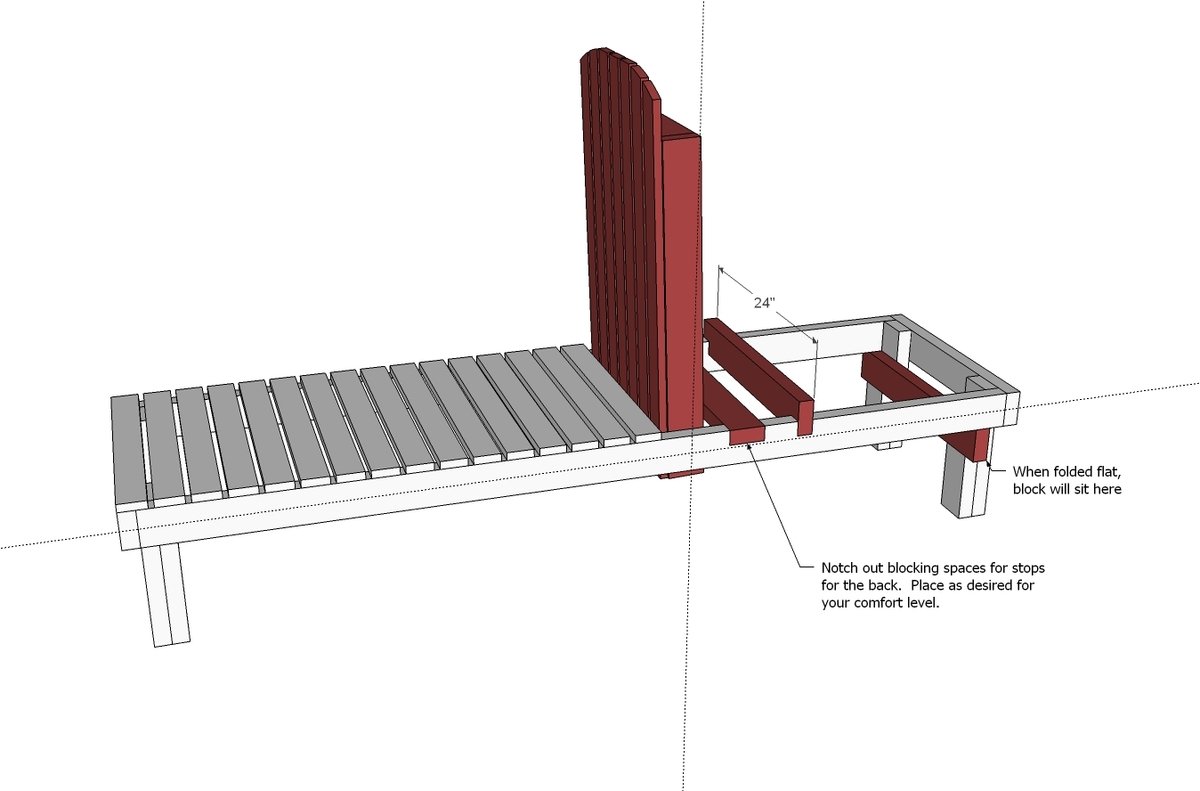

Here is the diagram for the stop block.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
