Smith Media Wall: Center Console
to build a media wall. Simple instructions, step by step diagrams. This is the center console plan from
Specifications
| Project type | Media and Entertainment Centers |
|---|---|
| Room | living room |
| Style | Farmhouse Furniture |
| Difficulty | Intermediate |

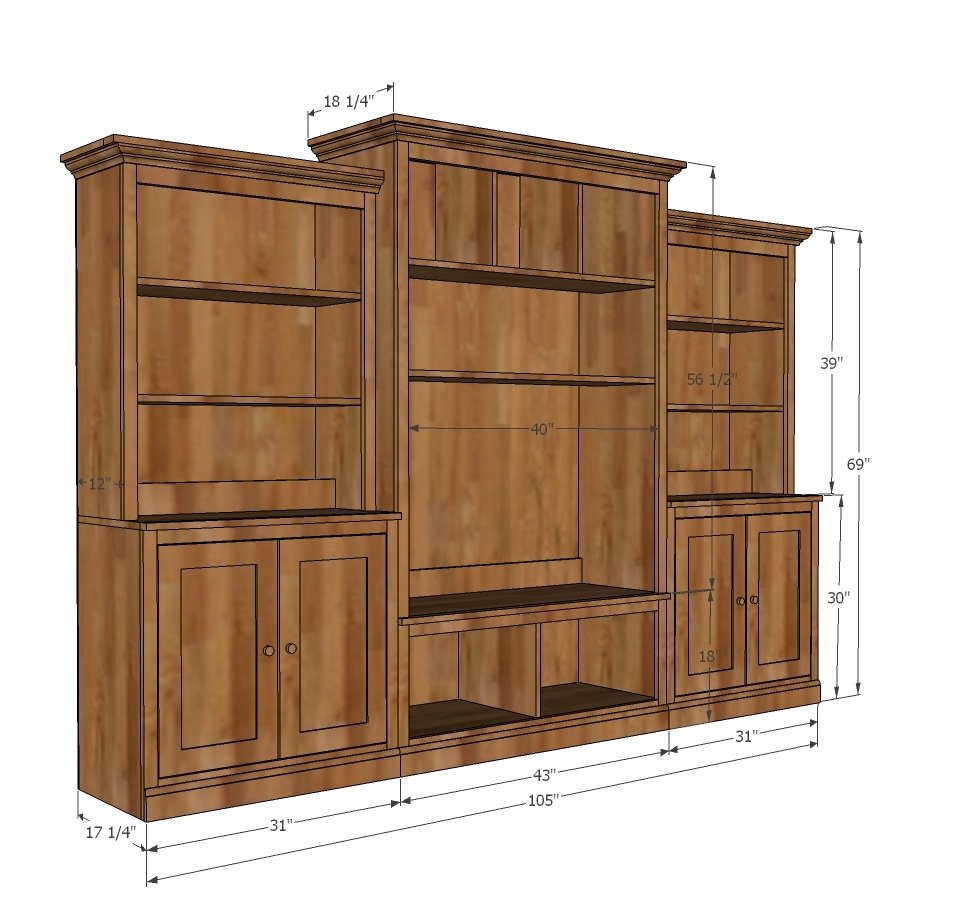

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
1/2 sheet of 3/4” plywood ripped into strips 15 3/4” wide (referred to as 1x16 in this plan)
1/4 sheet of 1/4” plywood
2 - 1x2 @ 8 feet long
Recommend 1 1/4" pocket hole screws and 1 1/4" finish nails
Cut List
1 - 1x16 @ 43” (Top)
2 - 1X16 @ 17 1/4” (Sides)
1 - 1X16 @ 13 1/4” (Divider)
1 - 1X16 @ 41 1/2” (Bottom Shelf)
1/4” PLYWOOD 18” x 43” (Back)
FACE FRAME
1 - 1x2 @ 43”
2 - 1x2 @ 40”
2 - 1x2 @ 17 1/4”
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- kreg-jig
- drill
- circular saw
- table saw
- nailer
- sander
- level
- countersink drill bit
Step-by-step Instructions

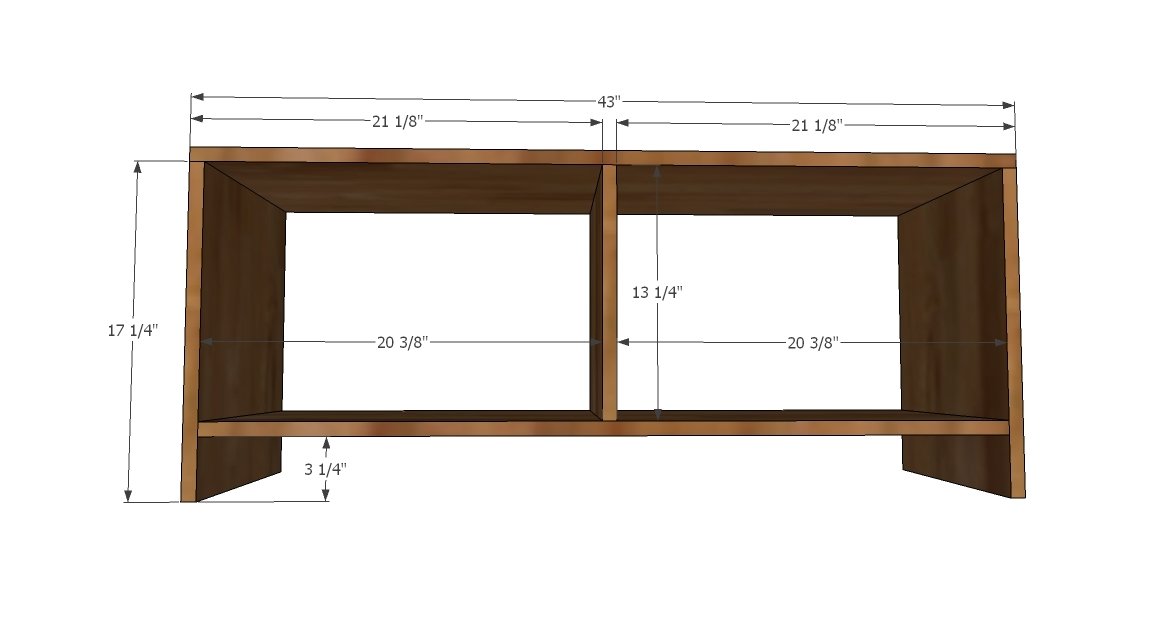

Step 1
First, build your box as shown above. 3/4" pocket holes and 1 1/4" pocket hole screws were used to attach the shelf and sides to top. The center section can be nailed in place to hide pocket holes.

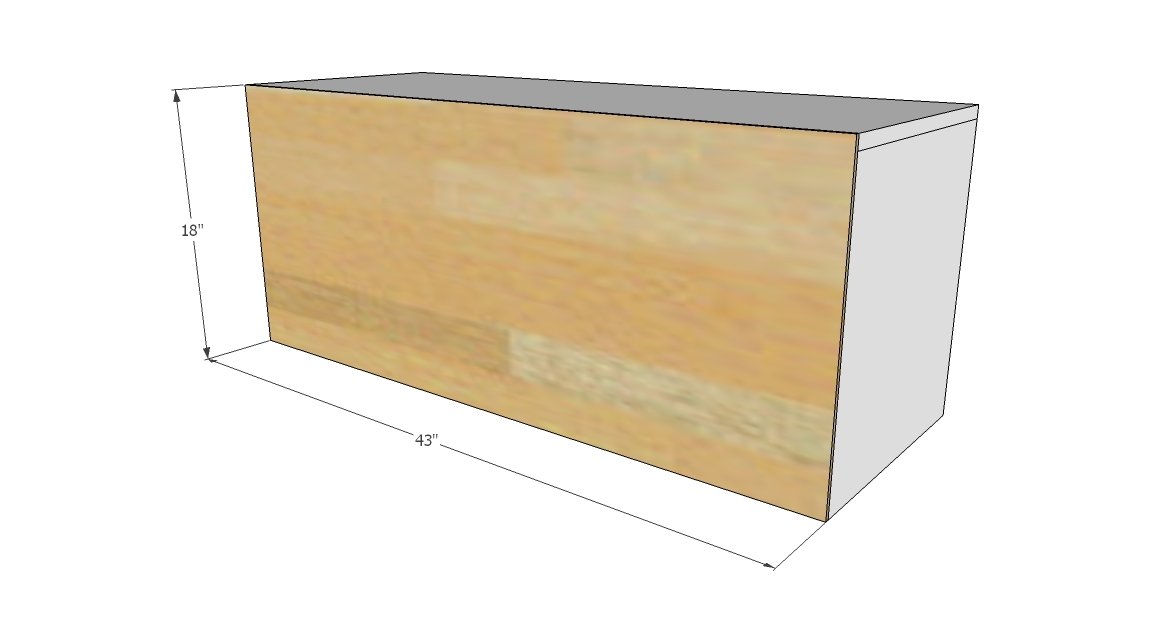

Step 2
Add the back to the console. This will help square things up. I recommend here just wood glue and 1 1/4" finish nails. If you are planning to stain, be careful not to let glue dry on project as that area will not accept stain.

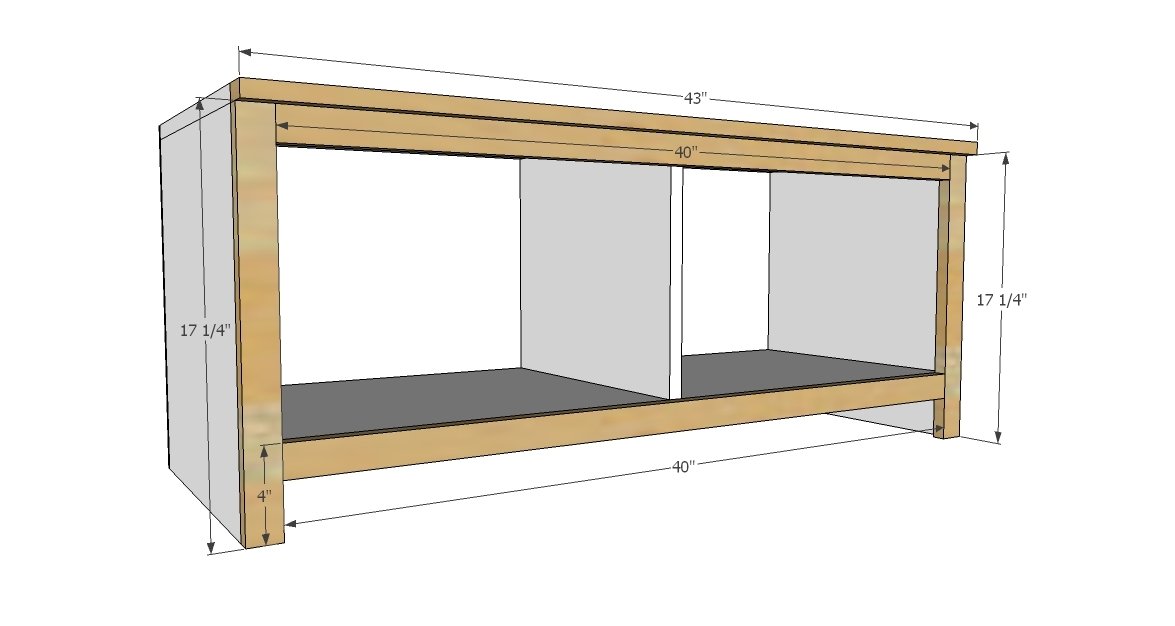

Step 3
Build your face frame with 3/4" pocket holes and 1 1/4" pocket hole screws. Then glue and nail face frame to project.

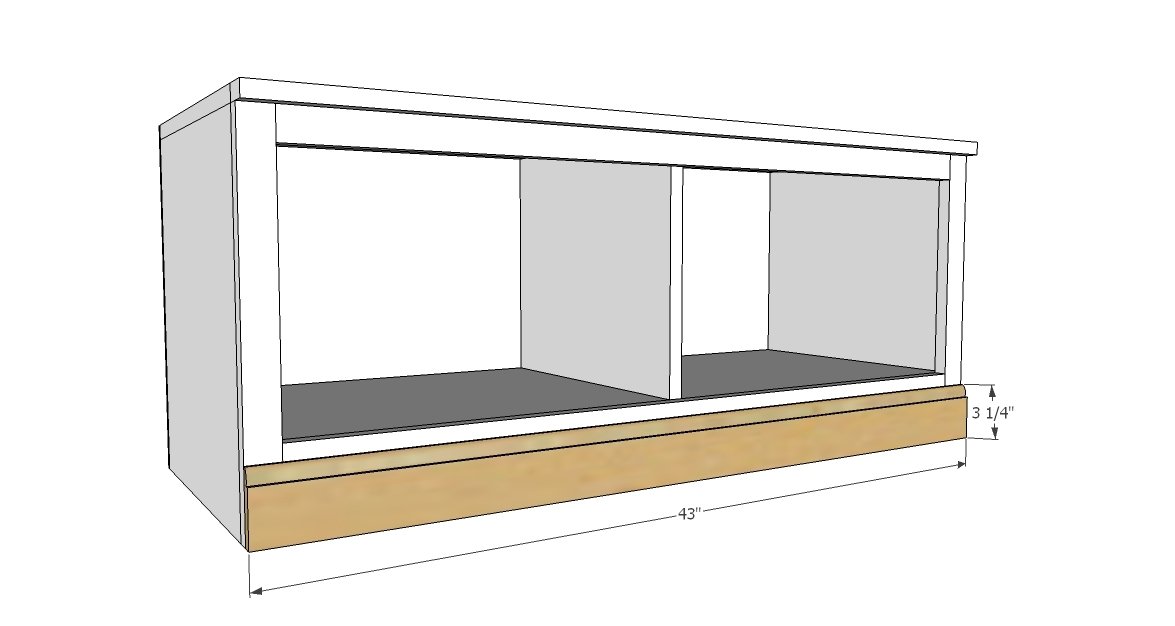

Step 4
Attach base moulding to front with finish nails and glue.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
