Smith Media Wall: Side Hutch
from to build a side hutch for a full media wall. Matching base plan s, center console and center hutch plans are available too.
Specifications
| Project type | Media and Entertainment Centers |
|---|---|
| Room | living room |
| Style | Farmhouse Furniture |
| Difficulty | Intermediate |

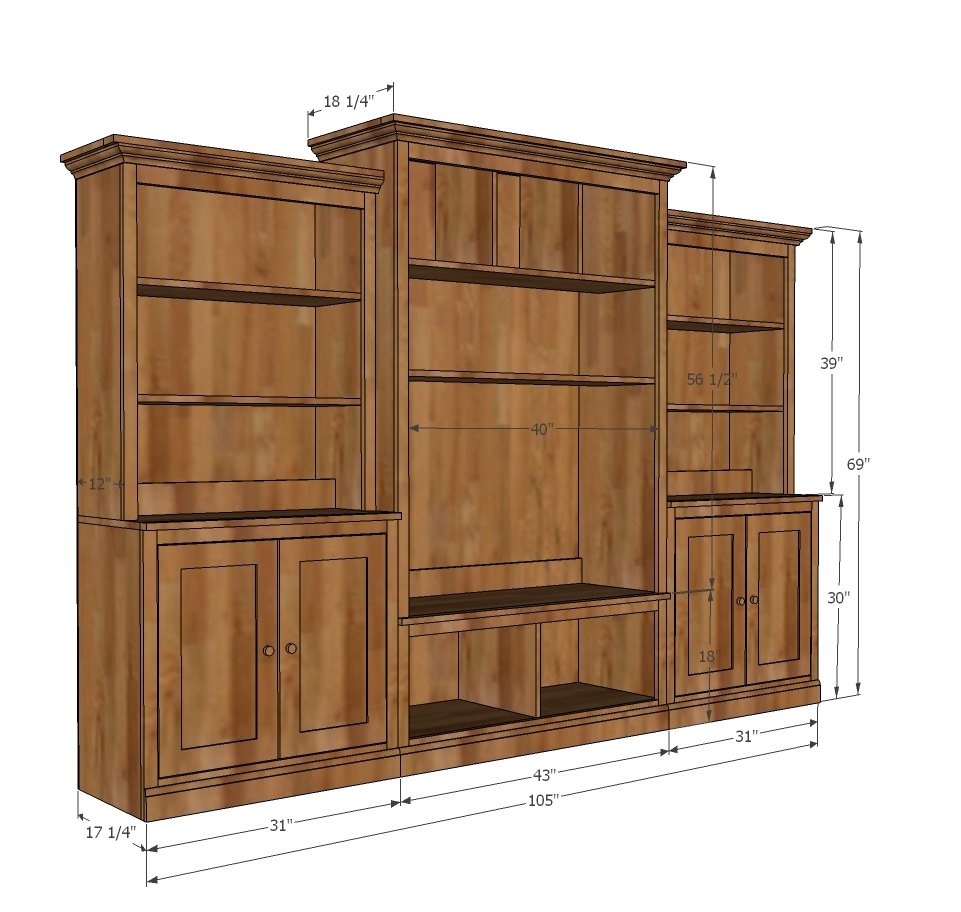

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
1/2 sheet of 3/4” plywood ripped into strips 15 3/4” wide (referred to as 1x16 in this plan)
1/2 sheet of 1/4” plywood
2 - 1x2 @ 8 feet long
12 feet of 1x3 boards for doors
31” of 3 1/4” base moulding
NOTE: If you are making multiple pieces in this collection, you may be able to use less plywood by using up scraps.
The pictured media center was put together with 1 1/4" pocket hole screws and face frames were nailed on with 1 1/4" finish nails.
Cut List
1 - 1x16 @ 32 3/4” (Top)
2 - 1X16 @ 38 1/4” (Sides)
2 - 1X16 @ 29 1/2” (Shelves)
1 - 1x4 @ 29 1/2”
1/4” PLYWOOD 31” x 39” (Back)
FACE FRAME
1 - 1x3 @ 32 3/4”
1 - 1x4 @ 28”
2 - 1x2 @ 38 1/4”
Crown moulding cut to fit
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- kreg-jig
- drill
- circular saw
- compound miter saw
- nailer
- sander
Step-by-step Instructions

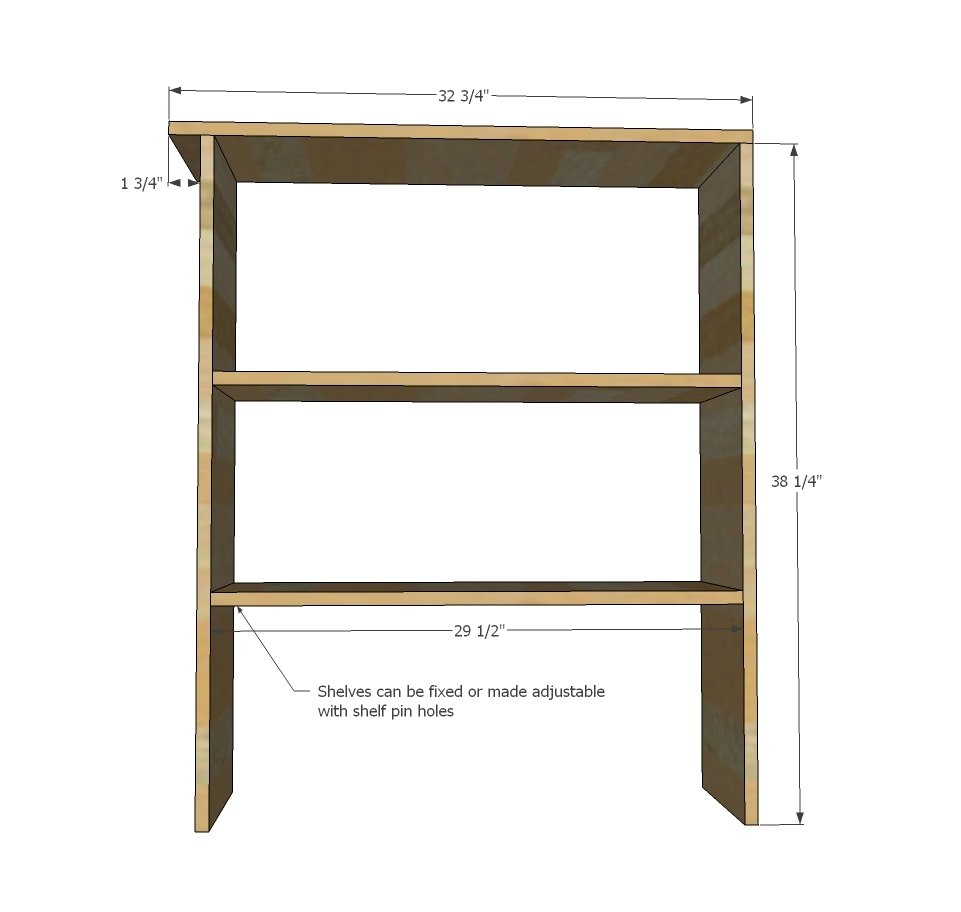

Step 1
Start by building the box. If you are doing adjustable shelves, drill shelf pin holes.

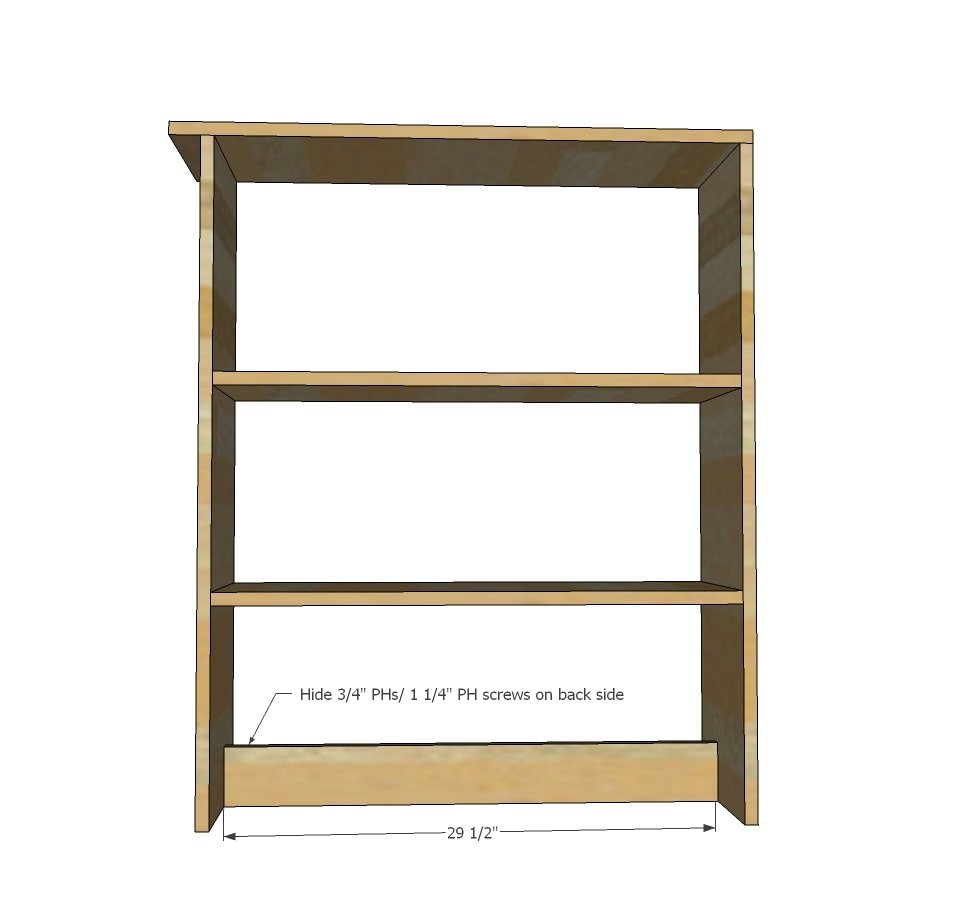

Step 2
Now if you are building two hutches for either side of the center console, the crown will need to extend on opposite sides for each base. In other words, you will need to make the hutches in mirror. So attach base supports so the top overhangs are in mirror.

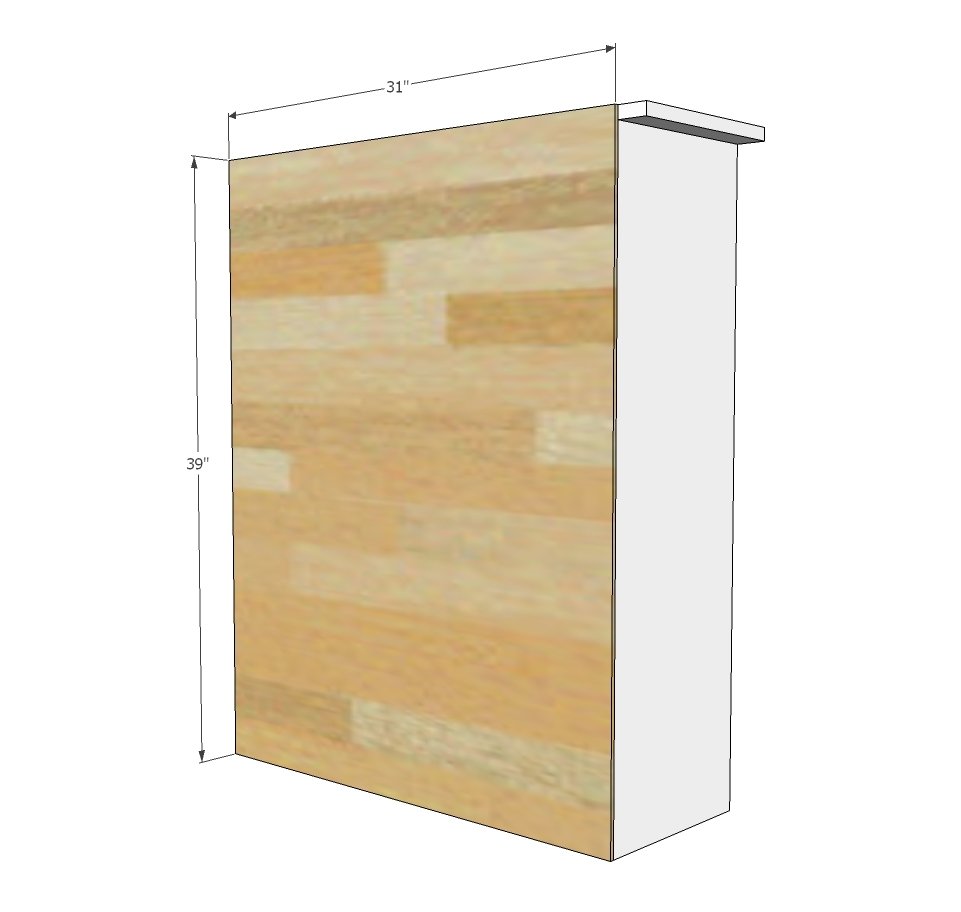

Step 3
Attach back with glue and 1 1/4" finish nails.

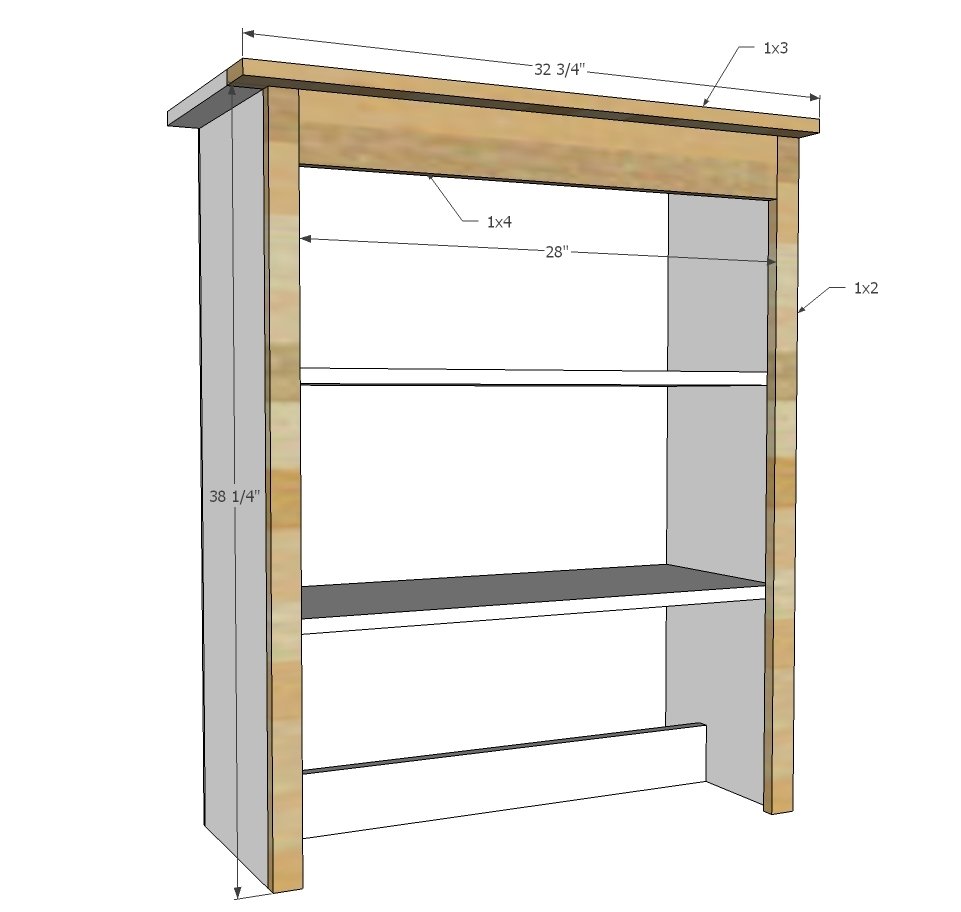

Step 4
Build face frames separately - again in mirror - and then attach to front of cabinet.

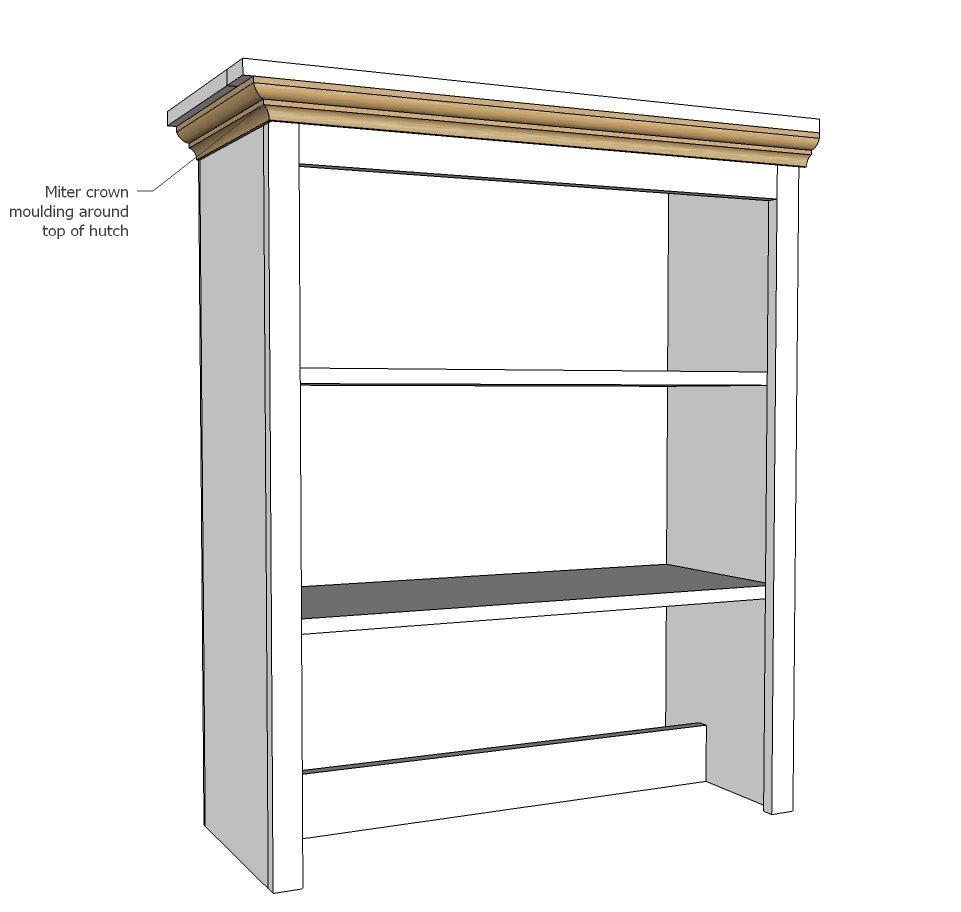

Step 5
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
