Star Doll Closet for American Girl or 18" Doll

For American Girl or 18" Doll, make a storage cabinet or armoire with star cutout..

Star Doll Closet for American Girl or 18" Doll

Specifications

Project typeDoll Furniture
RoomKids and Toys
StyleChildren's and Kid's Room Furniture and Toy Plans
DifficultyIntermediate

Dimensions

Use the size-specific shopping and cut lists below.

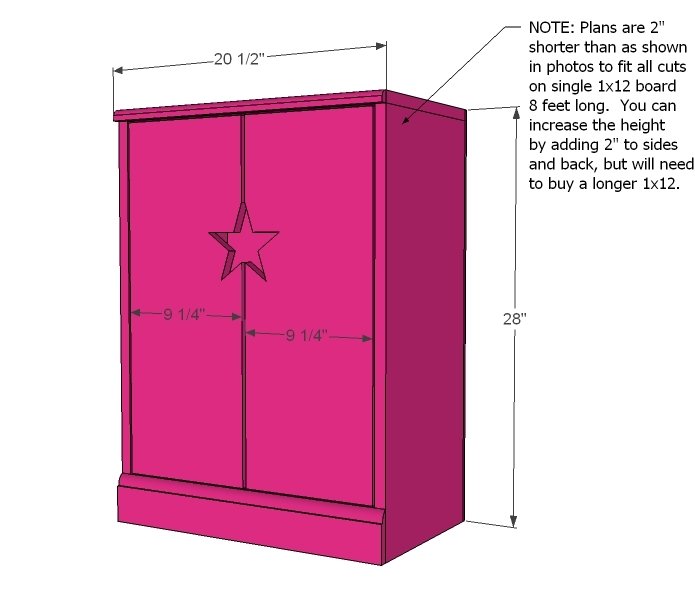

Star Doll Closet for American Girl or 18" Doll dimension diagram 1

Shopping List

1 - 1x12 @ 8 feet long

1 - 1x10 @ 6 feet long

3 1/4" base moulding or 1x3 for footer (20 1/2" long)

Top edge moulding (20 1/2" long)

wood dowel for closet rod

rod pockets

hinges for inset cabinets

You can use either 2" screws or 1 1/4" pocket hole screws

Cut List

2 - 1x12 @ 28"

1- 1x12 @ 20 1/2"

1 - 1x12 @ 19"

1 - 1x10 @ 19"

1/4" plywood or other backerboard 20 1/2" x 28 3/4"

Moulding @ 20 1/2" OR 1x3 @ 19"

2 - 1x10 @ 24 1/2"

Tools

  • measuring tape
  • square
  • pencil
  • safety glasses
  • hearing protection
  • drill
  • jigsaw
  • nailer
  • sander
  • countersink drill bit

Step-by-step Instructions

1

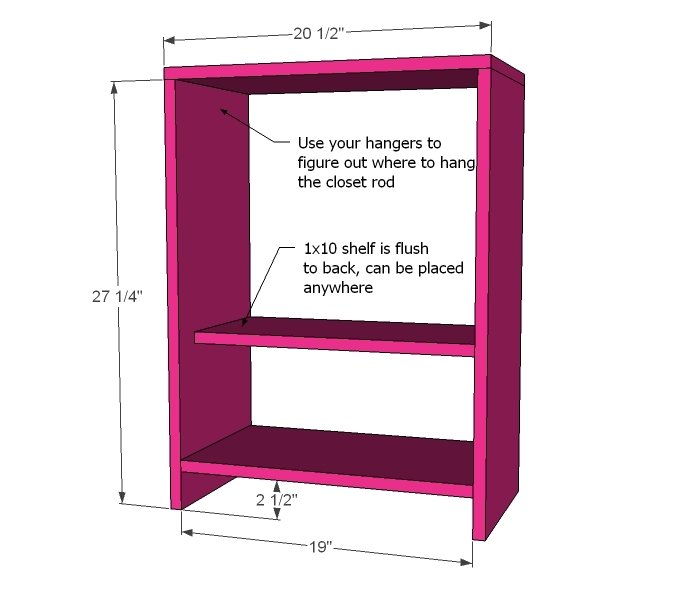

Step 1

Measure the width of your 1x10 boards. If they are 9 1/4" wide, you are good to go. Otherwise, you will need to adjust the width of this cabinet. Take the width of your 1x10 board and multiply by 2. Add a half inch. This is the width of your shelf. Add another 1 1/2" and this is the width of you top. Build the box as shown above. Shelf placement is up to you - I made mine adjustable with shelf pins, but you could also screw in place. Use either countersunk 2" screws and glue or pocket hole screws. Adjust for square.

Star Doll Closet for American Girl or 18" Doll — step 1
2

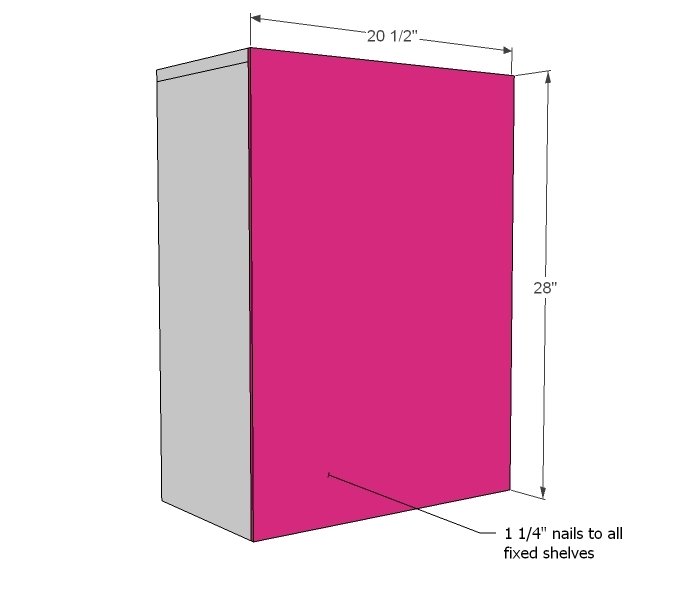

Step 2

Cut back to fit and attach, ensuring cabinet is square.

Star Doll Closet for American Girl or 18" Doll — step 2
3

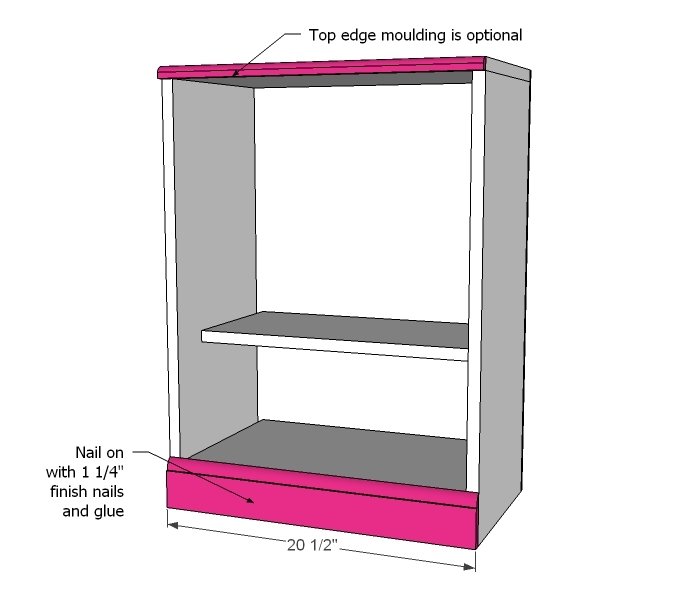

Step 3

If you choose to use moulding, add to top edge and bottom with 1 1/4" finish nails and wood glue.

Star Doll Closet for American Girl or 18" Doll — step 3
4

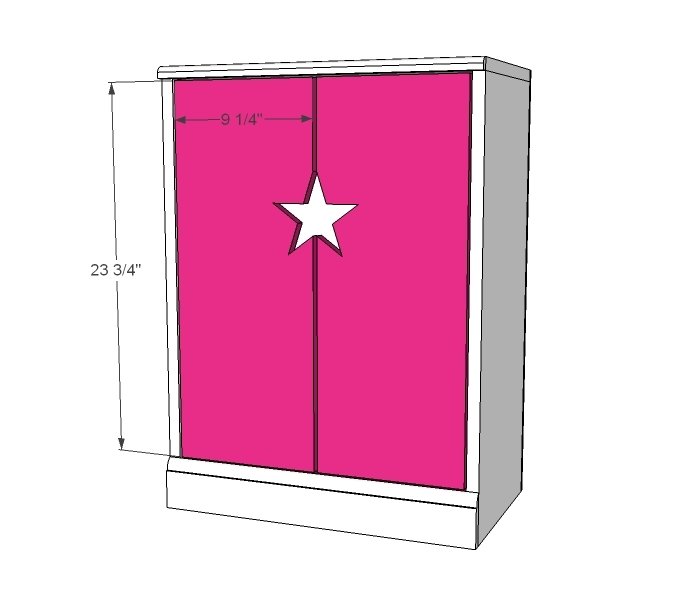

Step 4

Cut doors 1/4" less than overall height. Install, screwing in place. I used Euro Style Butt Non Mortise hinges for Full Overlay/Inset, but an alternative is to use standard hinges placed on the face of the cabinet. Clasp or hasp is recommended to keep door shut. If you are cutting the star from door fronts, see step 6.

Star Doll Closet for American Girl or 18" Doll — step 4
5

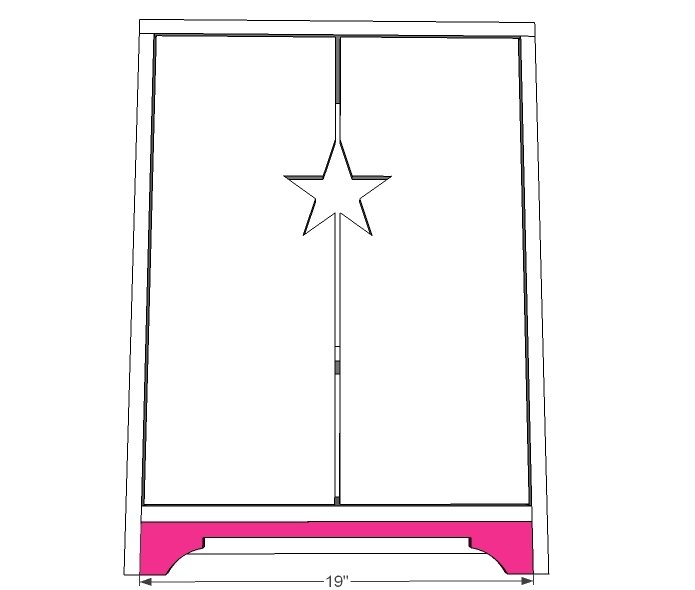

Step 5

Star Doll Closet for American Girl or 18" Doll — step 5
6

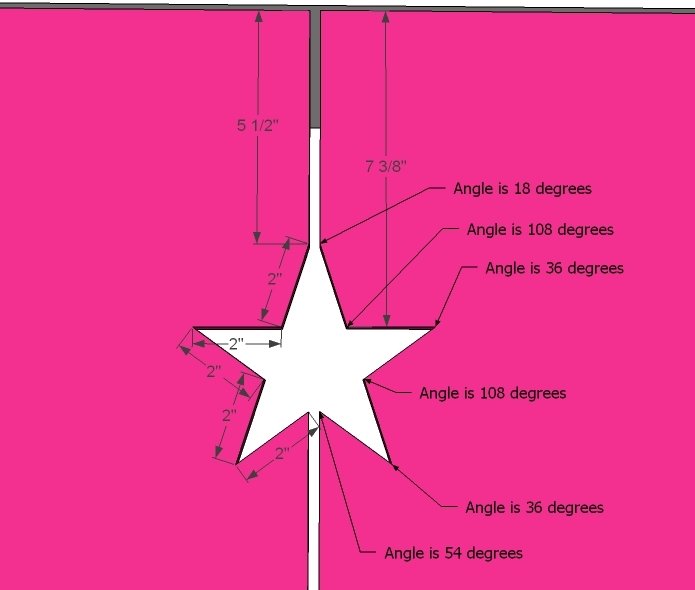

Step 6

The star was actually really easy to cut and so cute (and cheap!). Just practice first, use a compass to get the angles right, and cut out carefully with a jigsaw making straight cuts. I filed smooth with a file.

Star Doll Closet for American Girl or 18" Doll — step 6
7

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
