Stools for the Bar Table for the Simple Outdoor Collection

These simple modern outdoor bar stools look great on your patio or even indoors. Simple and inexpensive to build, flat legs add updated style.

Stools for the Bar Table for the Simple Outdoor Collection

Specifications

Project typeOutdoor Seating, Lounging and Accents
RoomOutdoor
StyleModern Style Furniture Plans
DifficultyBeginner Projects
Estimated costUnder $20

Dimensions

Use the size-specific shopping and cut lists below.

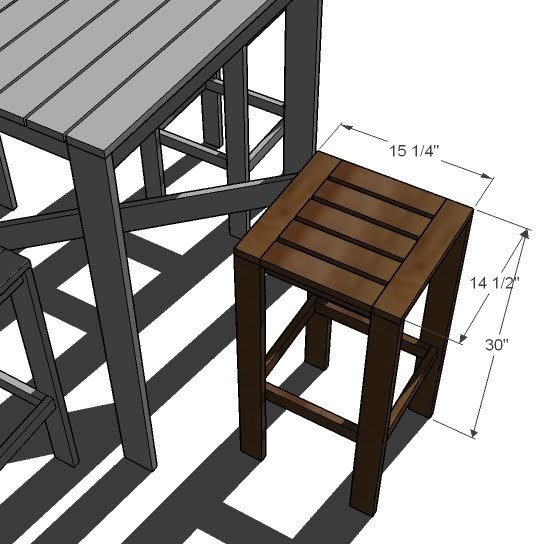

Stools for the Bar Table for the Simple Outdoor Collection dimension diagram 1

Shopping List

12′ of 1x2s

18′ of 1x3s

2″ Screws

1 1/4″ Screws

Cut List

CUT LIST

2 – 1×2 @ 13″ (Seat side aprons)

2 – 1×2 @ 12 3/4” (Seat end aprons)

2 – 1×2 @ 11 1/2″ (Seat supports)

2 – 1×3 @ 14 1/2″ (Breadboard Ends)

5 – 1×3 @ 10 3/4″ (Seat Slats)

4 – 1×3 @ 29 1/4″ (Legs)

2 – 1×2 @ 13″ (Bottom Supports)

2 – 1×2 @ 12 3/4″ (Bottom Supports)

Tools

  • measuring tape
  • square
  • pencil
  • hammer
  • safety glasses
  • hearing protection
  • kreg-jig
  • drill
  • sander

Step-by-step Instructions

1

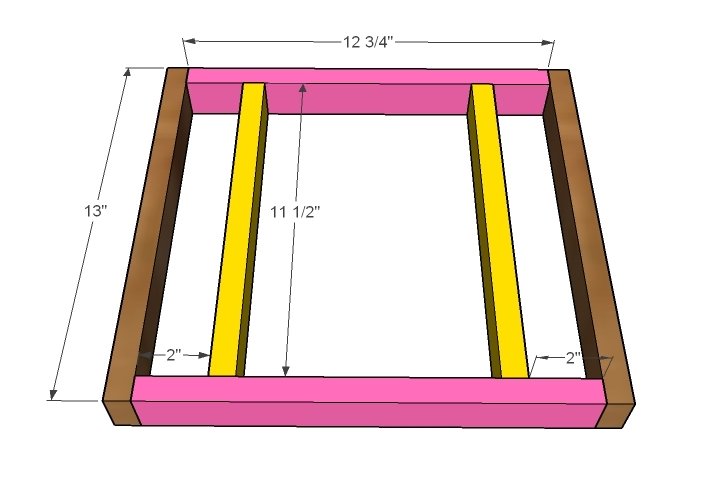

SEAT FRAME

Build your seat frame with glue and 2″ screws as shown above. Make sure the support is square at this step.

Stools for the Bar Table for the Simple Outdoor Collection — step 1
2

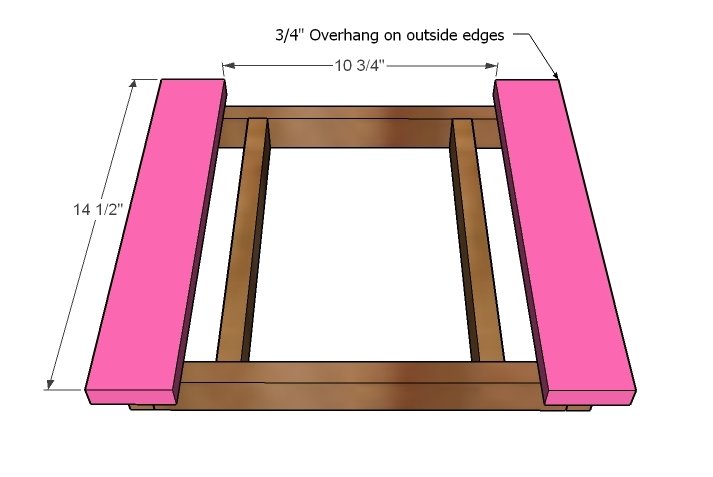

BREADBOARD ENDS

Attach the breadboard ends with the 1 1/4″ screws and glue. You can place a seat slat in between to help you line up your breadboard ends.

Stools for the Bar Table for the Simple Outdoor Collection — step 2
3

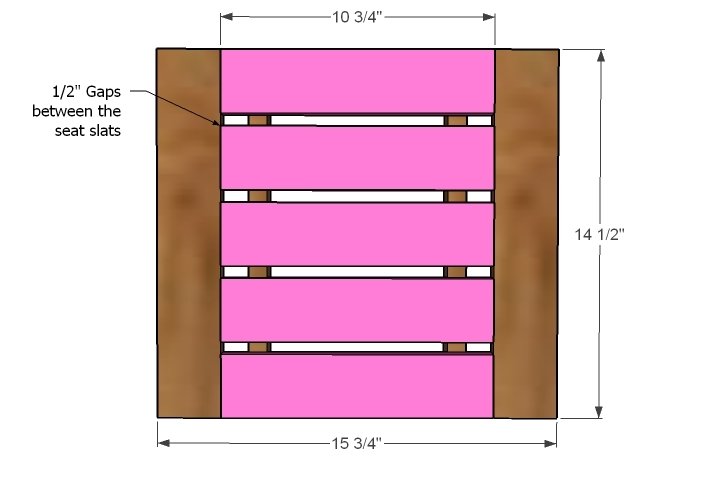

SEAT SLATS

Screw your seat slats to the supports as shown above. Use glue and 1 1/4″ screws.

Stools for the Bar Table for the Simple Outdoor Collection — step 3
4

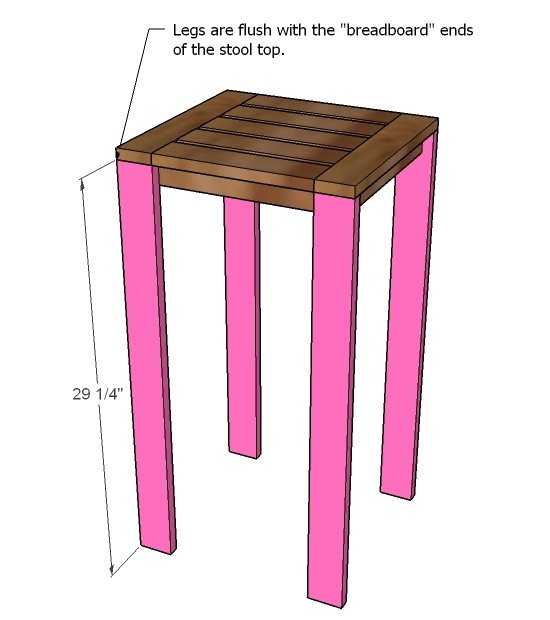

LEGS

Attach the legs with 1 1/4″ screws and glue to the seat aprons as shown above.

Stools for the Bar Table for the Simple Outdoor Collection — step 4
5

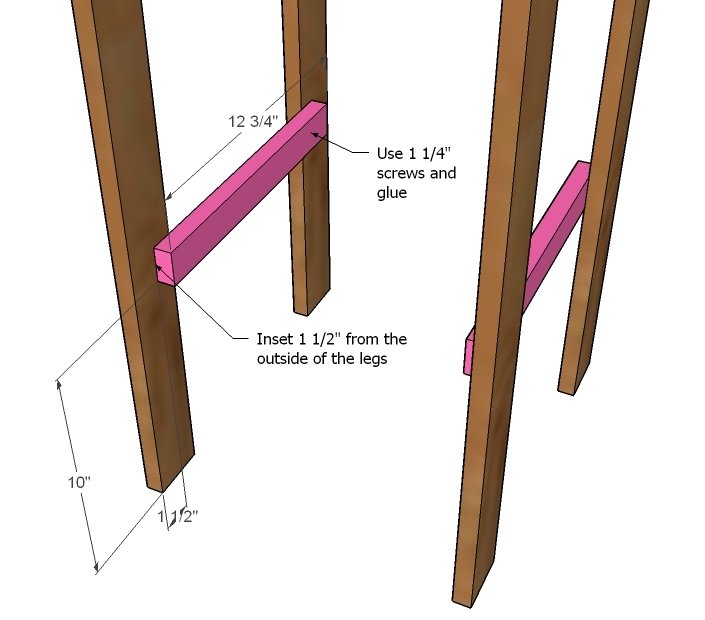

Step 5

Stools for the Bar Table for the Simple Outdoor Collection — step 5
6

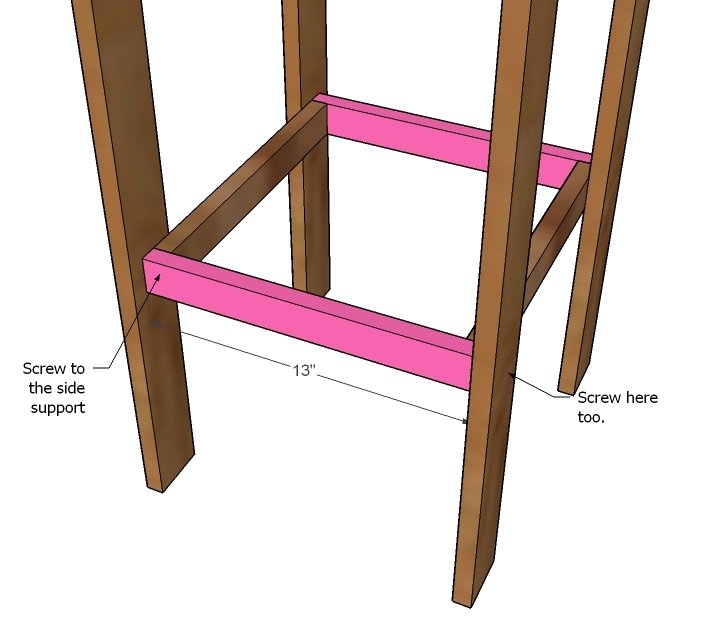

BOTTOM SUPPORTS

Attach the longer bottom supports to both the shorter supports and the legs using 1 1/4″ screws and glue.

Stools for the Bar Table for the Simple Outdoor Collection — step 6
7

FINISHING

Your stool should have at least a base finish layer. You can touch up screw holes with paintable silicone or wood filler, lightly sand even, and add a touch up coat of paint.

8

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
