Street Hockey Goal

Make your own street hockey, lacrosse or soccer goal! Heavier than PVC so won't blow away in the wind, but inexpensive and easy to make! Free

Street Hockey Goal

Specifications

Project typeToys
RoomOutdoor
StyleFarmhouse Furniture
DifficultyBeginner Projects
Estimated costUnder $20

Dimensions

Use the size-specific shopping and cut lists below.

Street Hockey Goal dimension diagram 1

Shopping List

INDOOR VERSION

1 - 1x4 @ 8 feet long

3 - 2x2 @ 8 feet long

1 - 1/4" and 2-1/2" pocket hole screws

Recommed Kreg Jig

OUTDOOR VERSION - Use outdoor appropriate materials

4 - 2x4 @ 8 feet or stud length

2-3/4" self tapping exterior screws

Does not need Kreg Jig

Cut List

Can be made as shown with 1x4 and 2x2 or can be made with all 2x4s for exterior use (heavier and more durable). If for exterior use use treated or cedar or other outdoor appropriate materials.

1 - 1x4 @ 52-1/2" OR 2x4 @ 54"

2 - 1x4 or 2x4 @ 18"

2 - 2x2 or 2x4 @ 36"

1 - 2x2 or 2x4 @ 51"

2 - 2x2 or 2x4 @ approx 48" - cross piece, will be cut shorter

Tools

  • measuring tape
  • square
  • pencil
  • safety glasses
  • hearing protection
  • drill
  • circular saw

Step-by-step Instructions

1

Build the base frame as shown.

If using 1x4s, use 3/4" pocket holes and 1-1/4" pocket hole screws. For the outdoor version (2x4s), use 2-3/4" screws.

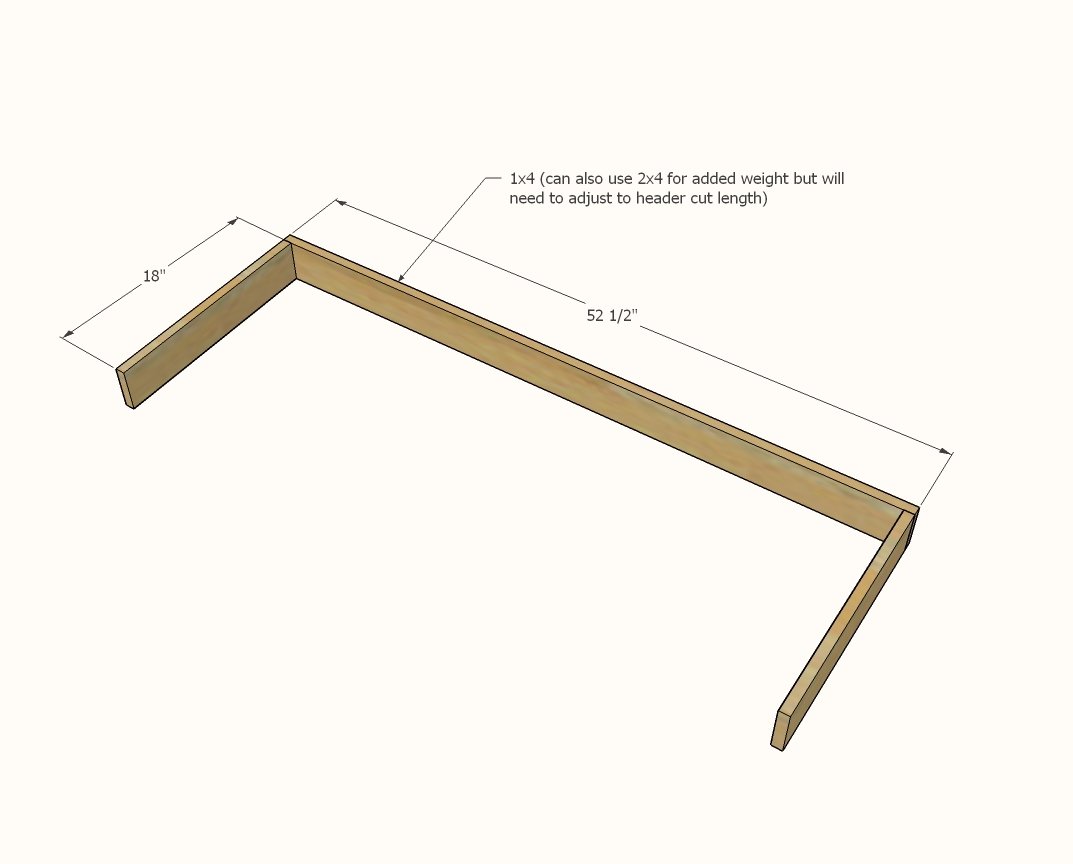

Street Hockey Goal — step 1
2

Step 2

INDOOR VERSION: Attach 2x2s together at top with 1-1/2" pocket holes and 2-1/2" pocket hole screws. Then attach 2x2 frame to 1x4 frame with 1-1/4" pocket hole screws, screwed through the 1x4s into the 2x2s from outside - 2 screws per joint. OUTDOOR VERSION: Build the upper frame exactly as you did the lower frame in step 1 (but legs will be longer) using the 2-3/4" self tapping screws. Then attach to the lower frame at the bottom corner.

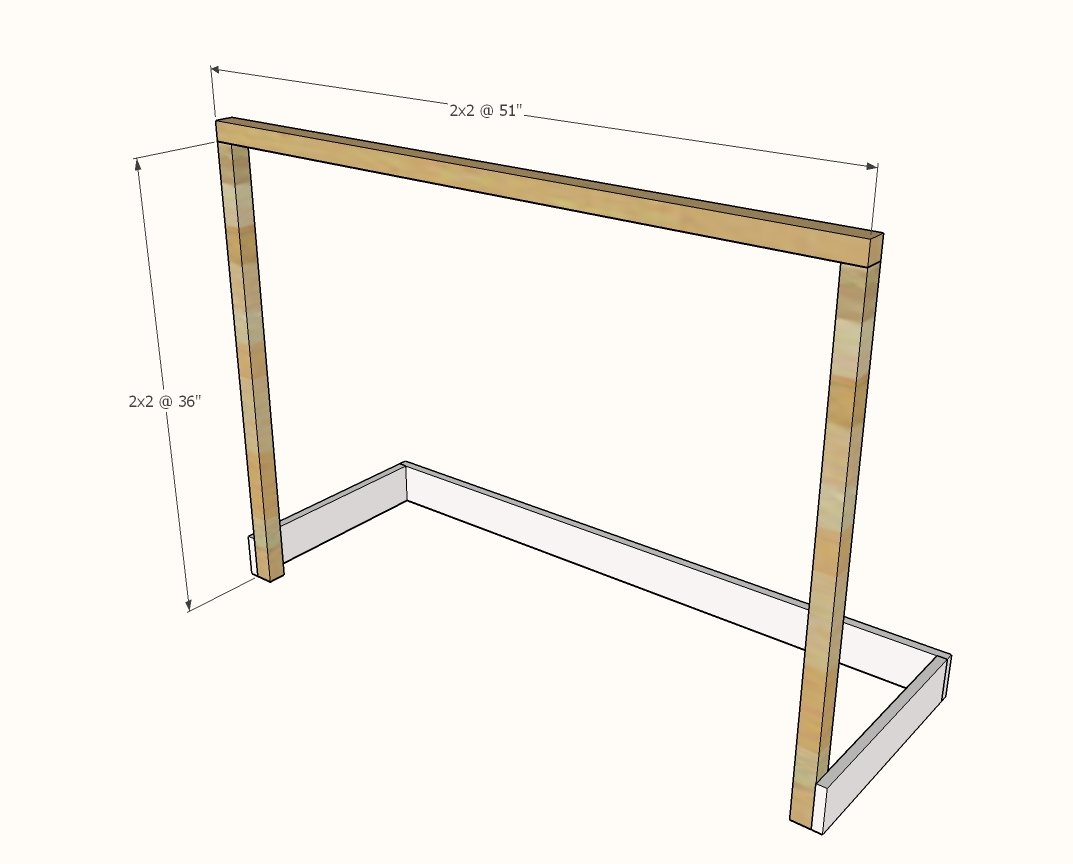

Street Hockey Goal — step 2
3

Step 3

BOTH VERSIONS: Position cross piece where it will be installed and mark the angles. Cut the angles with a circular saw or jigsaw.

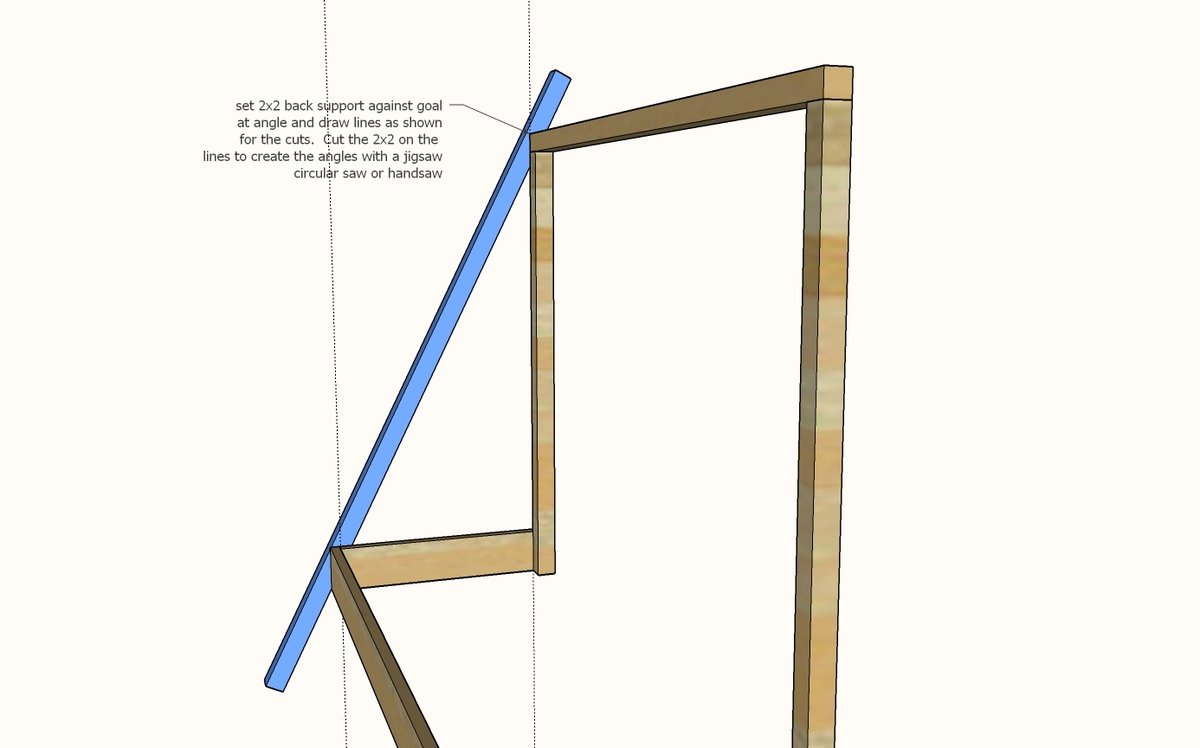

Street Hockey Goal — step 3
4

Step 4

BOTH VERSIONS: Attach in place with glue and wood screws. You can use pocket hole screws for indoor version, self tapping screws for outdoor version.

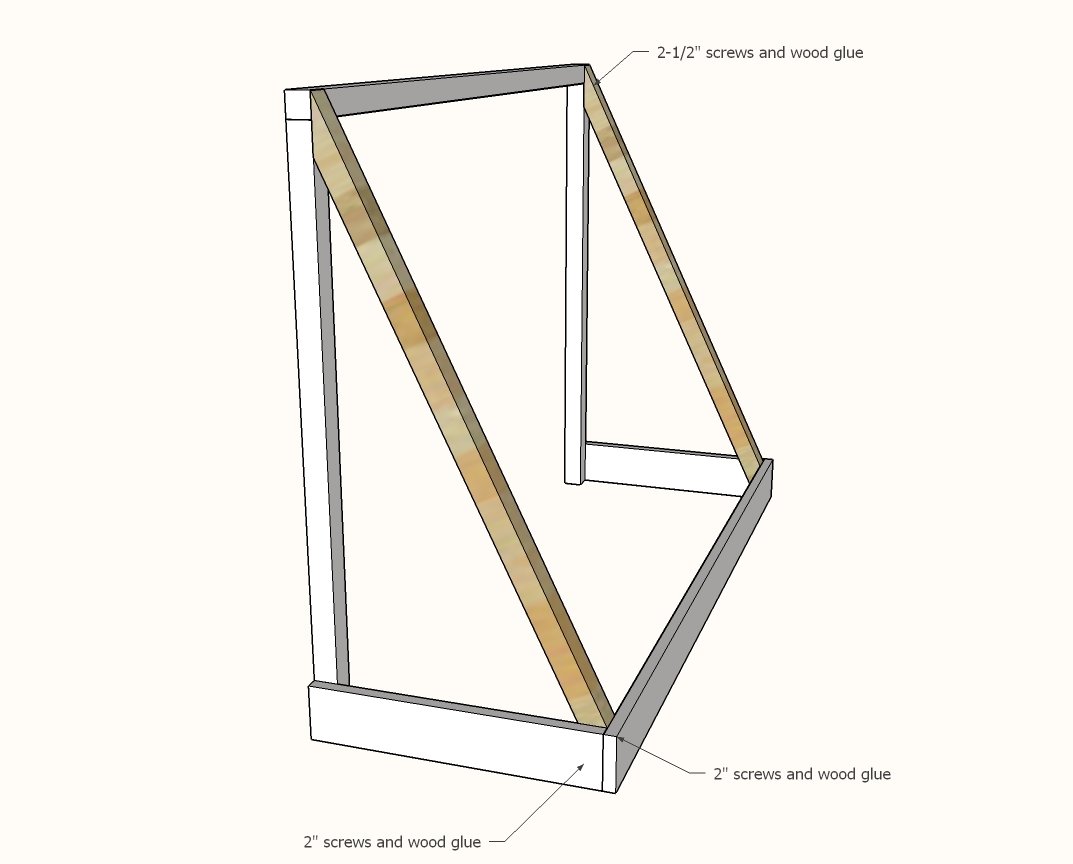

Street Hockey Goal — step 4
5

Step 5

Street Hockey Goal — step 5
6

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
