Subway Tile Bookcase
to make a subway tile bookshelf from #plans #diy #furniture #modern

Specifications
| Project type | Bookshelf and Bookcase Plans |
|---|---|
| Room | Storage Solutions |
| Style | Modern Style Furniture Plans |
| Difficulty | Intermediate |
| Estimated cost | $50 - $100 |

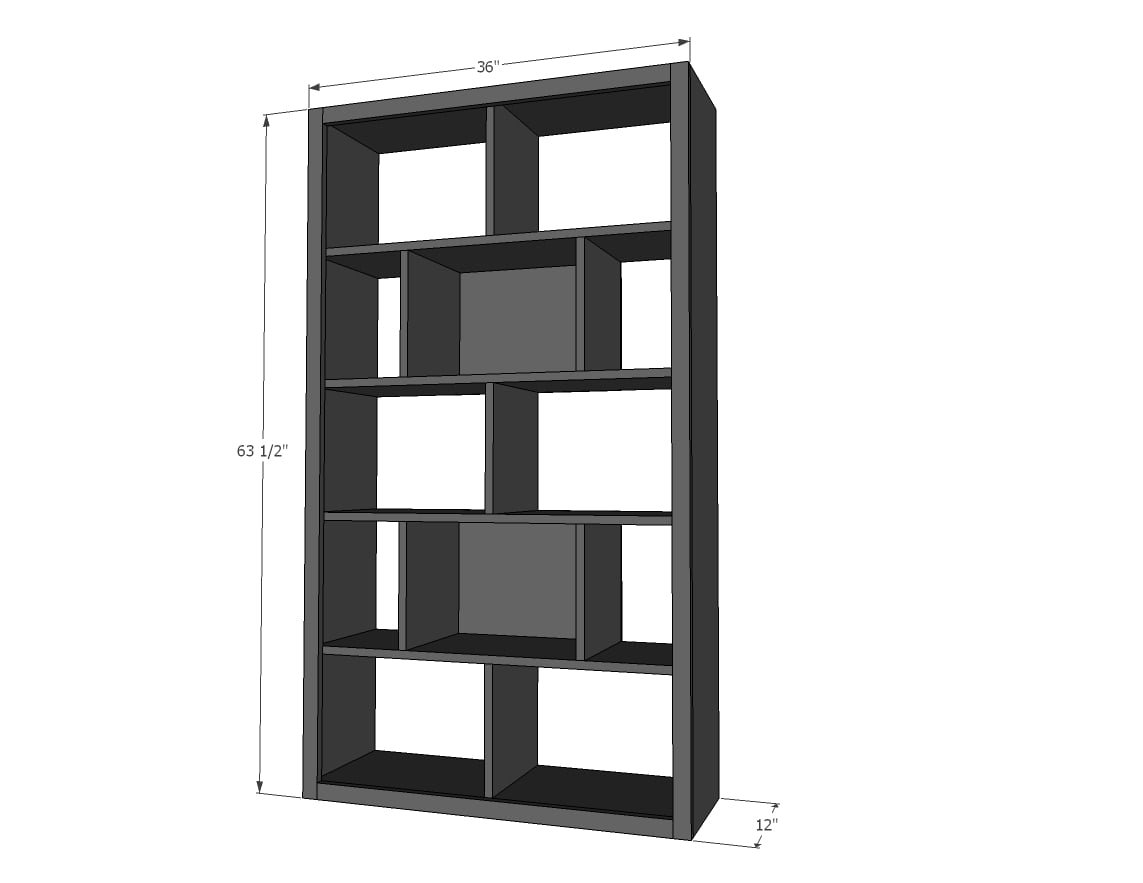

Dimensions
Use the size-specific shopping and cut lists below.

Shopping List
1/4" plywood (1/4 sheet or scraps)
4 - 1x12 @ 8 feet long
6 - 1x2 @ 8 feet long
Cut List
2 – 1/4" plywood @ 17 1/2″ x 12 1/2" (Back of the Cubbies)
6 – 1×12 @ 11 1/2″ (Vertical Dividers for all but top shelf)
6 – 1×12 @ 34 1/2″ (Shelves)
1 – 1×12 @ 12 1/4″ (Top Vertical Divider)
2 – 1×12 @ 63 1/2″ (Sides)
4 – 1×2 @ 63 1/2″ (Side Trim)
4 – 1×2 @ 33″ (Top and Bottom Trim)
Tools
- measuring tape
- square
- safety glasses
- hearing protection
- kreg-jig
- drill
- circular saw
- nailer
- sander
Step-by-step Instructions

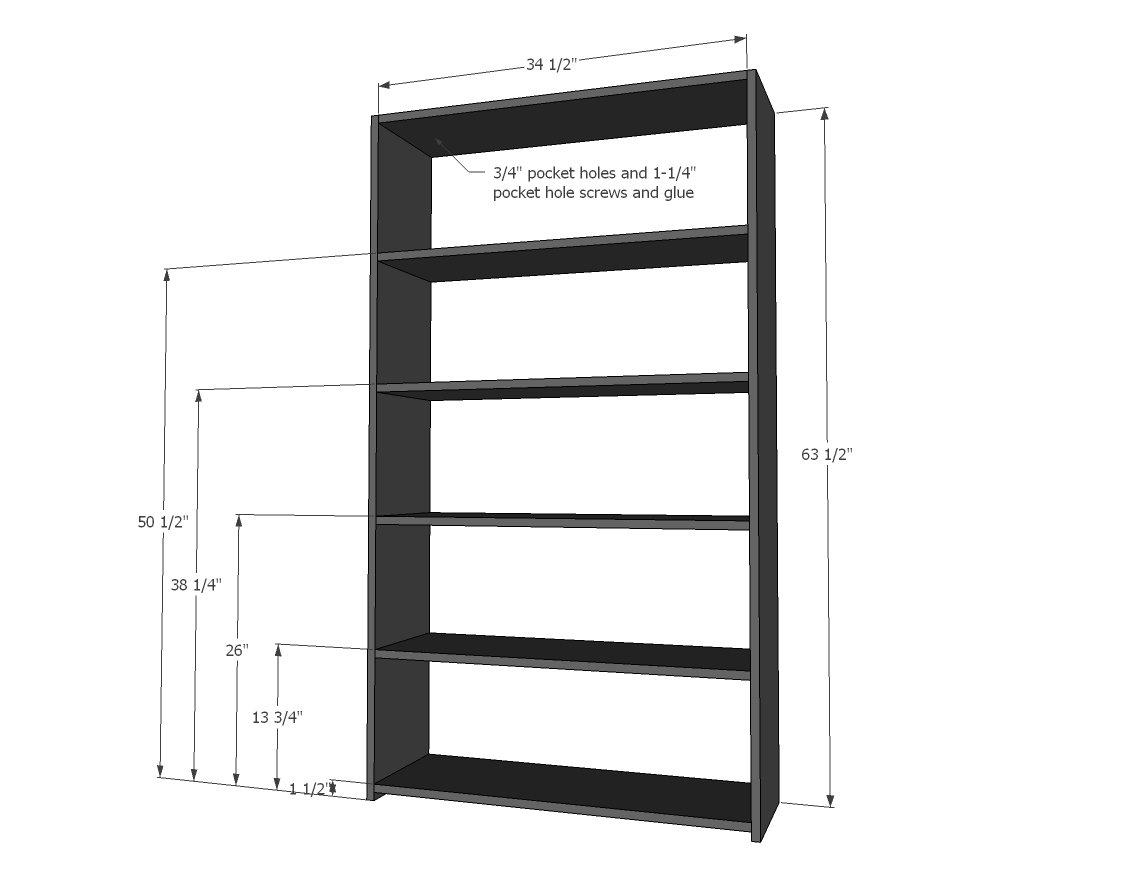

Step 1
Build a basic bookshelf by attaching shelves to the sides. I recommend pocket holes because the back isn't fully covered (to help prevent racking) but you could build with 2" countersunk screws and glue as well.

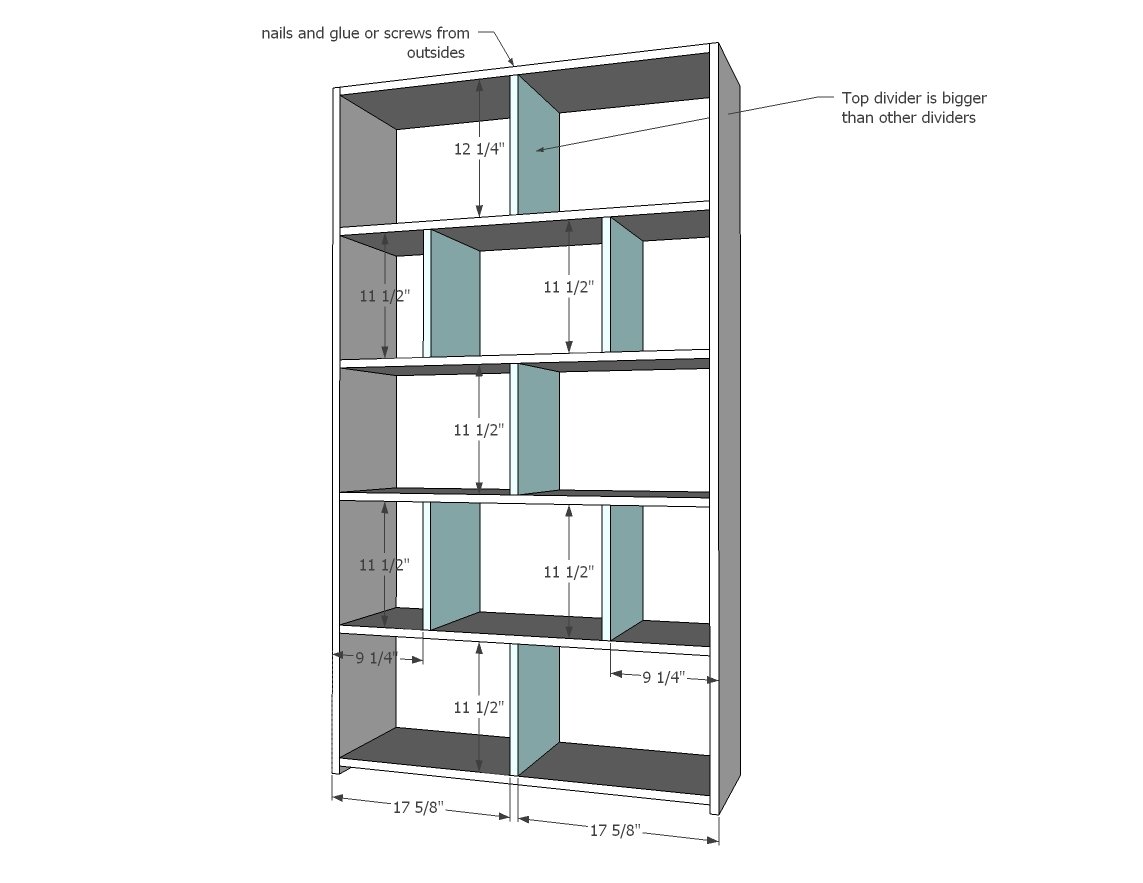

Step 2
Once the basic shape of the bookshelf is built, it's time to add the dividers. The top divider is larger than the others. These can be glued and nailed in place - they are not sturctural.

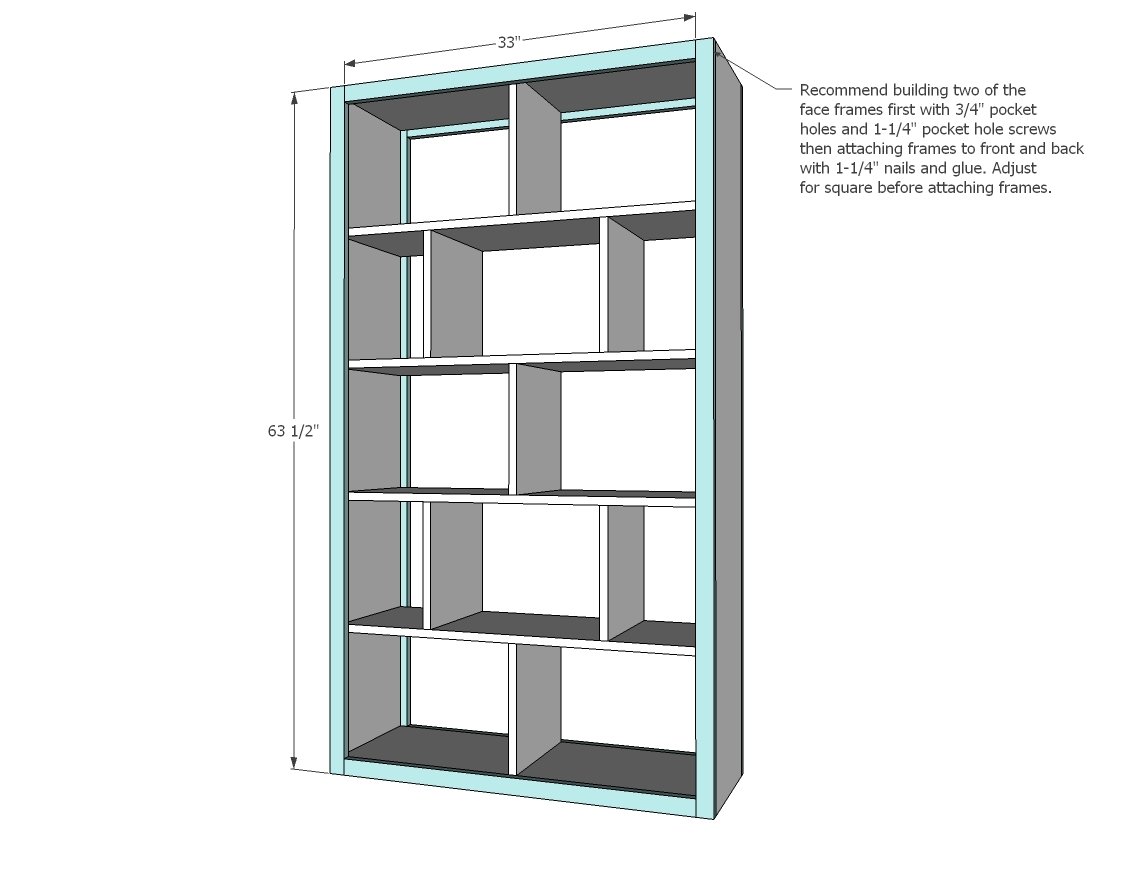

Step 3
Face frames on the front and back will help beef up this bookshelf. If you have a pocket hole jig, build your frames first, and then attach with glue and 1-1/4" nails. Otherwise, attach the longer frame pieces first, and then add the shorter ones. Nail and glue the face frames to all shelves and top divider too.

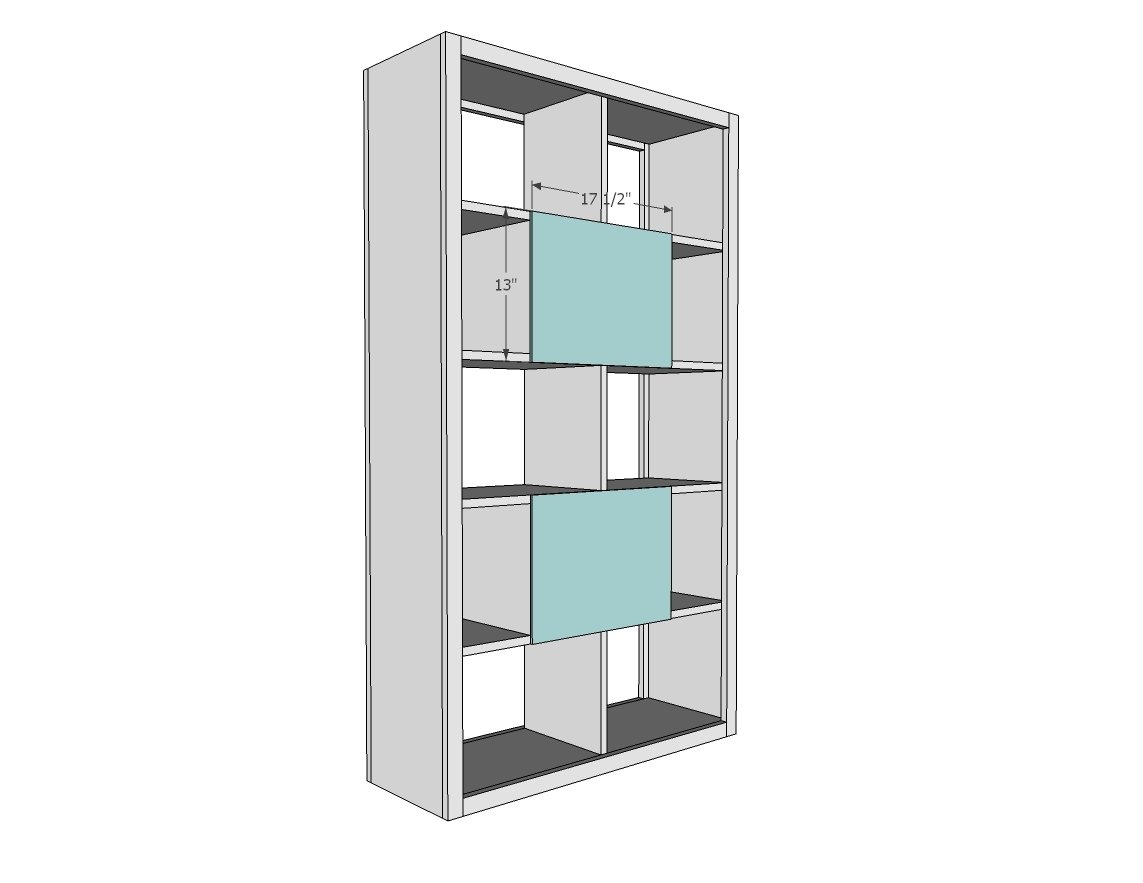

Step 4
Finally, add the back pieces to the middle cubbies with glue and nails (3/4" nails are ideal here).

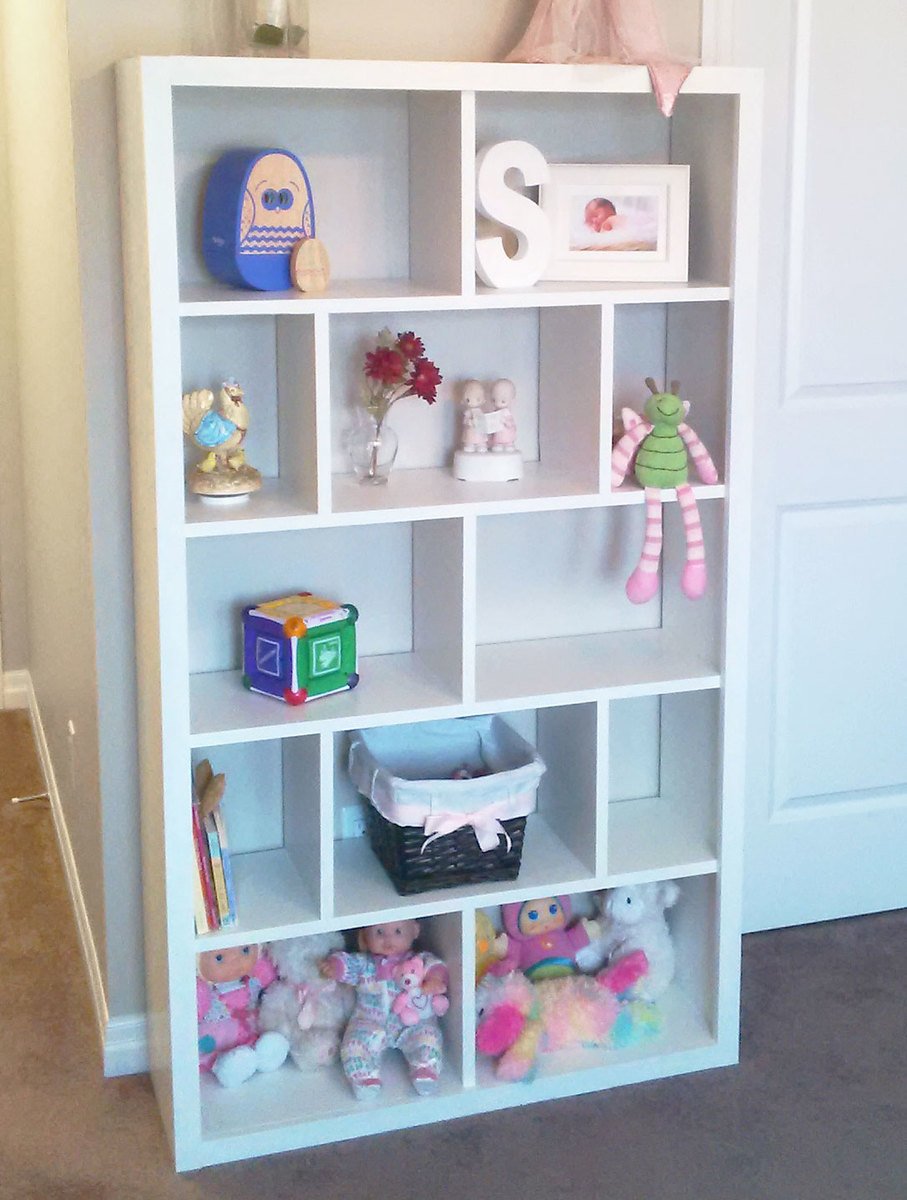

Step 5

Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
