Sweet Pea Garden Bunk Bed Storage Boxes
Build under bed storage box trundles for your Sweet Pea Garden Bed! Can also used as storage or toy boxes!
Specifications
| Project type | Toys |
|---|---|
| Room | Kids and Toys |
| Style | Children's and Kid's Room Furniture and Toy Plans |
| Difficulty | Intermediate |

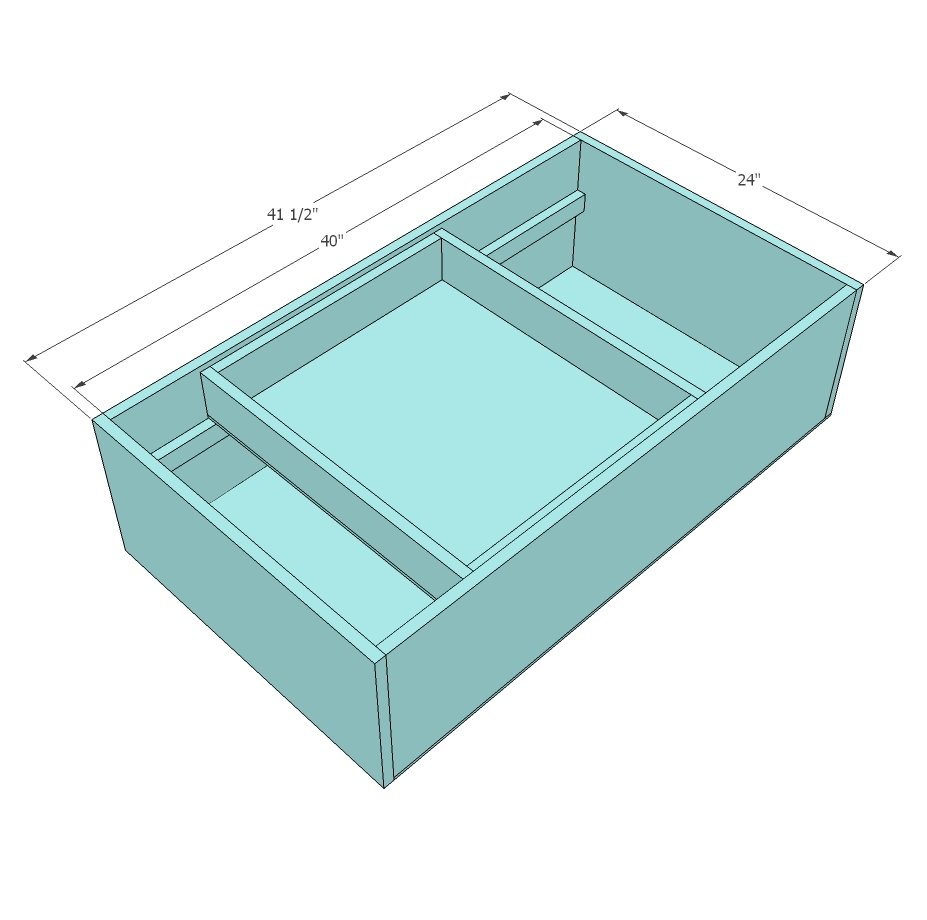

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
For Storage Boxes
(1) 1x12x12’s (have this cut into (6) 24” pieces at the store)
(2) 1x12x10’s (you can have these cut into (6) 40” pieces at the store)
(1) 4x8 sheet 1/4” plywood
(3) 1x2x8’s
(3)1x4x8’s
(4) 1" caster wheels PER EACH STORAGE BOX
Cut List
Storage Boxes
Outer Boxes
(6) 1x12’s @ 40” sides of boxes
(6) 1x2’s @ 40” rails for inside boxes
(6) 1x12’s @ 24” box fronts and backs
(3) ¼” plywood panels @ 41 ½”x 24” for box tottom
Inner Boxes (optional)
(6) 1x4’s @ 22 ¼” for inner drawer frames
(6) 1x4’s @ 18 ½” for inner drawer frames
(3) ¼” plywood panels @ 20 x 22 ¼” for drawer bottoms
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- drill
- circular saw
- nailer
- sander
- countersink drill bit
Step-by-step Instructions

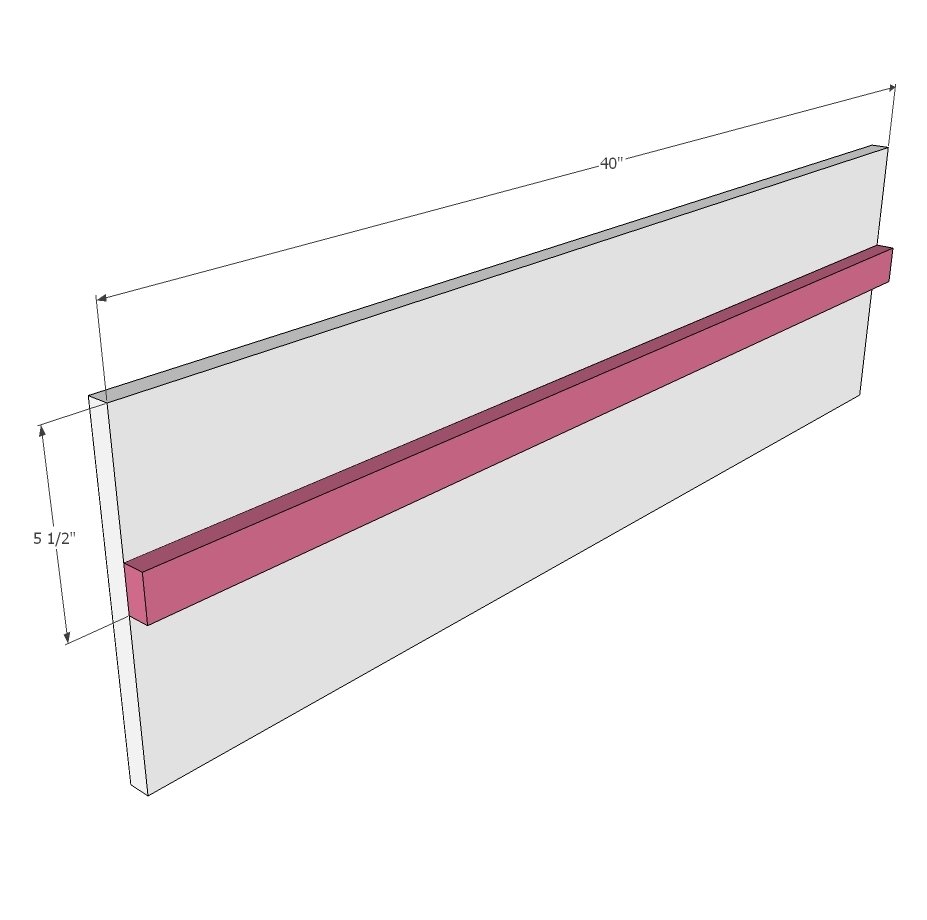

Step 1
Construct the first box attaching the 1x2x40” across the 1x12x40” boards. Glue and nail these cleats to the insides of the boards at 5 ½” down from the top of the board edge.

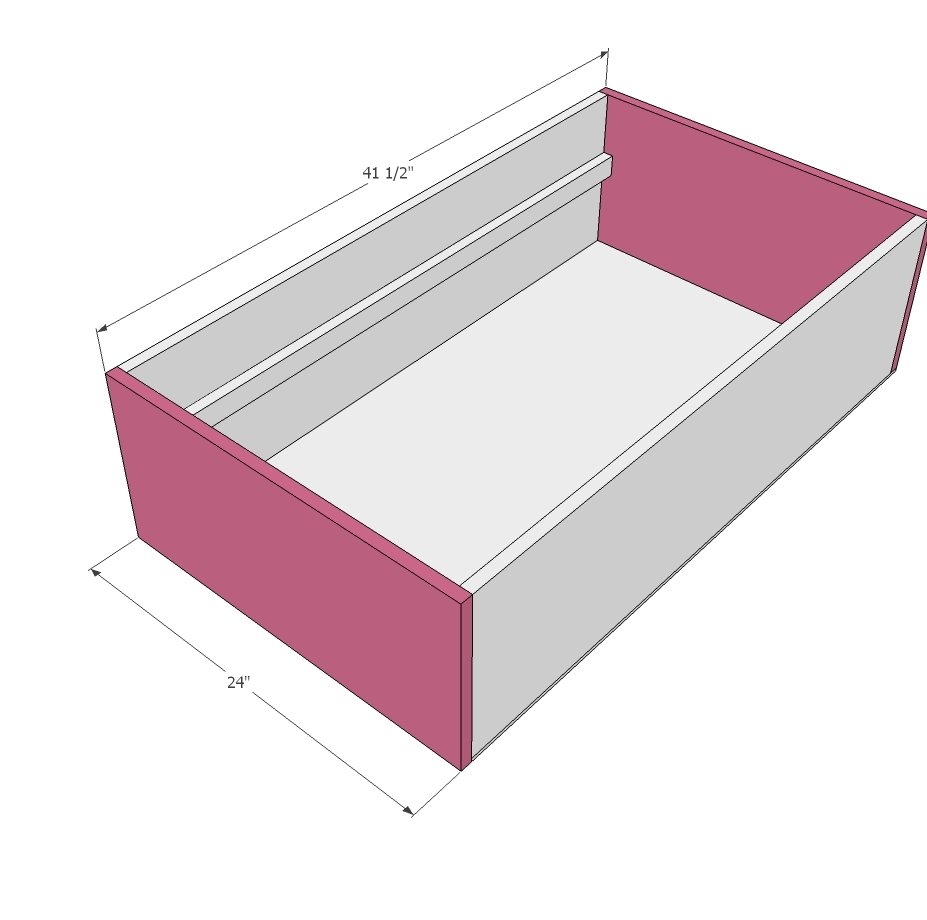

Step 2
Construct the box rectangles using wood glue and a nailer. Attach the 1x2x24” boards (these are optional if you would like to add a stacked drawer inside) to the ends of the 1x12x40” sides. Check for square, wipe any glue drips, and sand edges smooth.

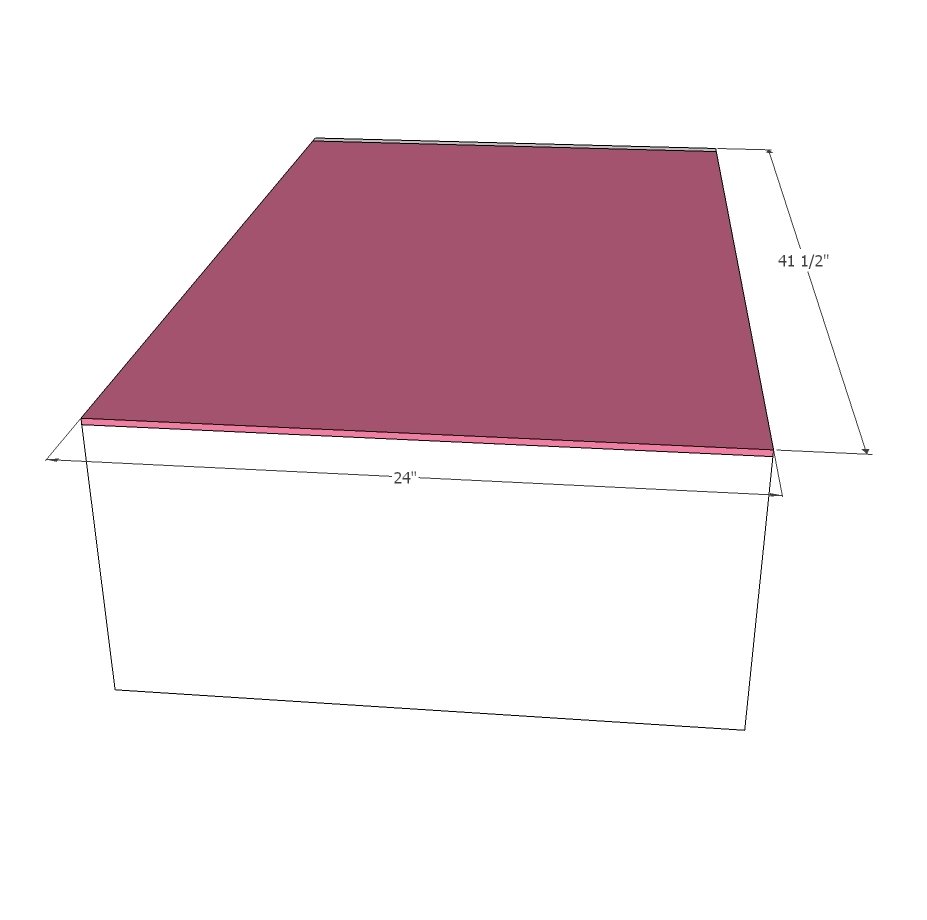

Step 3
Flip the box frame upside down and attach the 1/h4” thick plywood pieces to the bottom with wood glue and a nailer. You can also use a trim router to inset these panels even with the edges. (that’s what I did). Check for square, and wipe glue drips on the inside of the box for a clean finish. Attach a 1” caster wheel to each corner of the box using small nails for smooth gliding action.

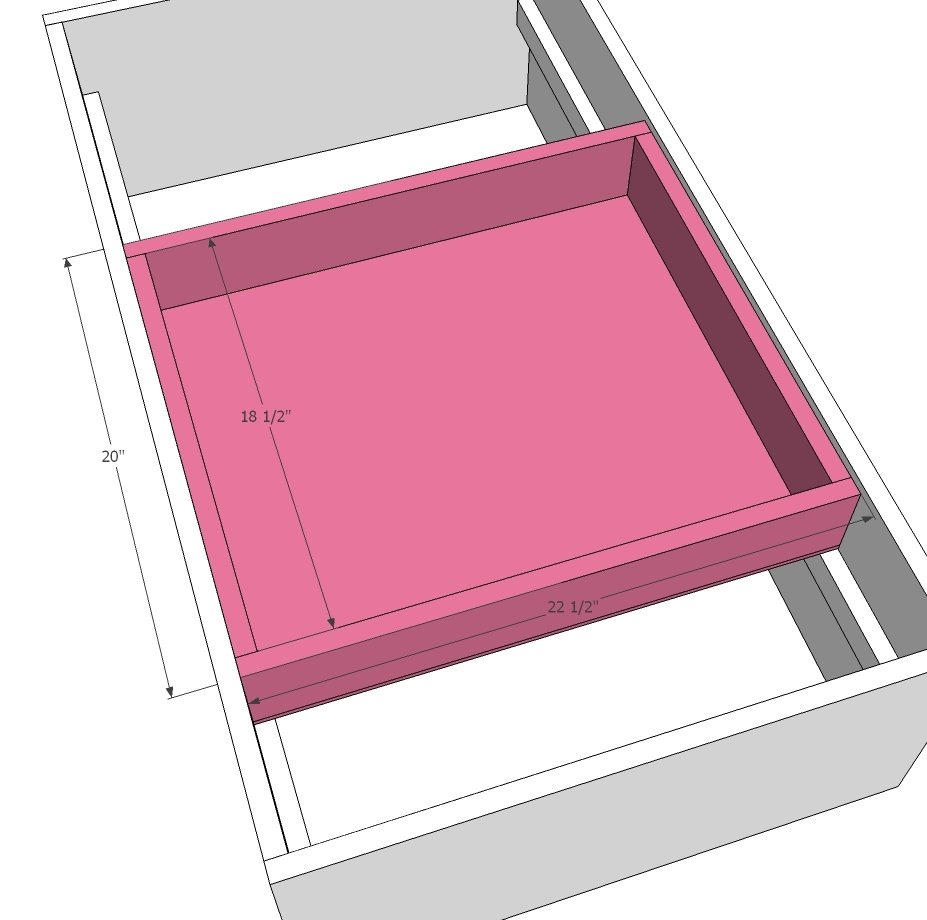

Step 4
The inside drawers are optional. If you are including them in your plan, construct them in the exact same way you did the large box frames and attach the bottom in the same manner as well. These will sit directly on the interior rails of the large box and will slide back and forth (that is, if your boxes are square!) Tip: soap up those rails! Rub a bar of soap (dry) to the tops of the rails for a smooth glide.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
