Tablet or iPad Holder Retro TV Style
Looks like a retro tv but holds your ipad! Easy to build from scrap wood. Free tutorial by
Specifications
| Project type | Toys |
|---|---|
| Room | Kids and Toys |
| Style | Children's and Kid's Room Furniture and Toy Plans |
| Difficulty | Beginner Projects |

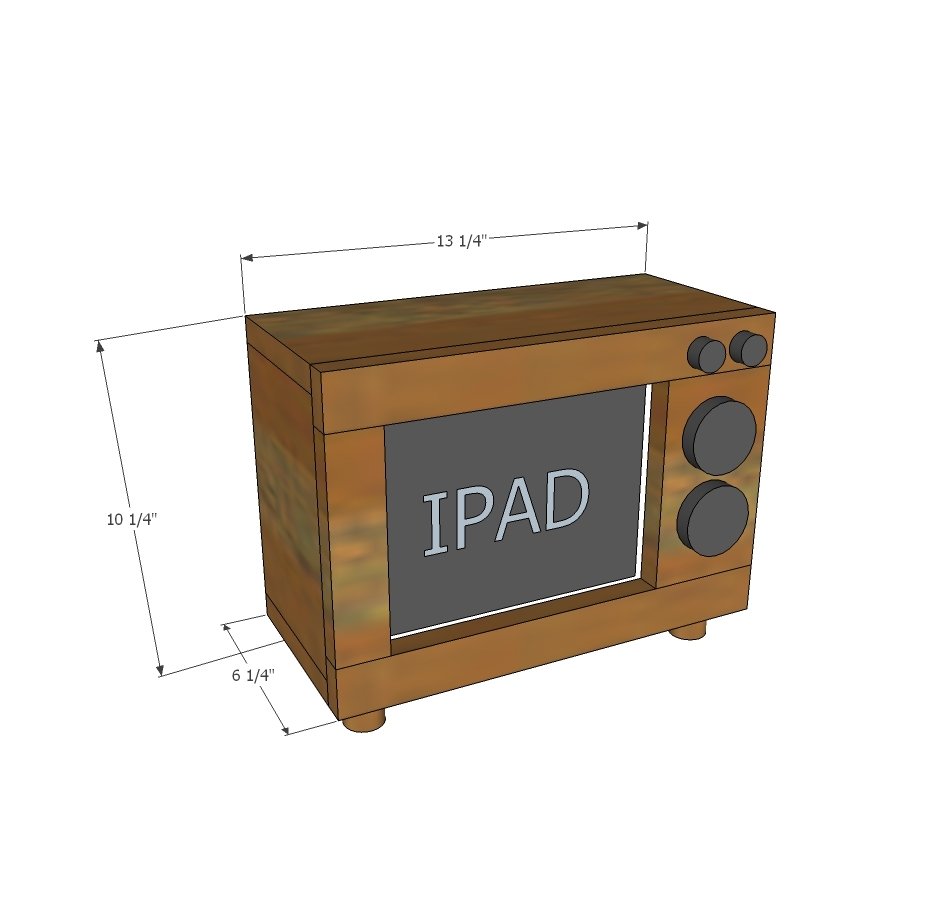

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
About 3 feet of 1x6 board (depending on tablet size)
About 5 feet of 1x2 board (depending on tablet size)
About 1-1/2 feet of 1x4 board (depending on tablet size)
Scrap dowel pieces for "feet"
Cut List
Measure tablet or iPad and add approx 1/4" to allow the ipad to slide in smoothly. Then figure measurements as shown below
2 - 1x6 @ tablet or iPad width + 3-1/2" (top and bottom)
2 - 1x2 @ tablet or iPad width + 2-3/4" (cleats)
1 - 1x6 @ tablet or iPad height
1 - 1x4 @ tablet or iPad height
2 - 1x2 @ tablet or iPad width + 3-1/2" (front frame top and bottom)
1 - 1x2 cut to fit @ tablet or Ipad height - 1-1/2"
1 - 1x4 cut to fit @ tablet or Ipad height - 1-1/2"
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- kreg-jig
- drill
- compound miter saw
- nailer
- sander
Step-by-step Instructions

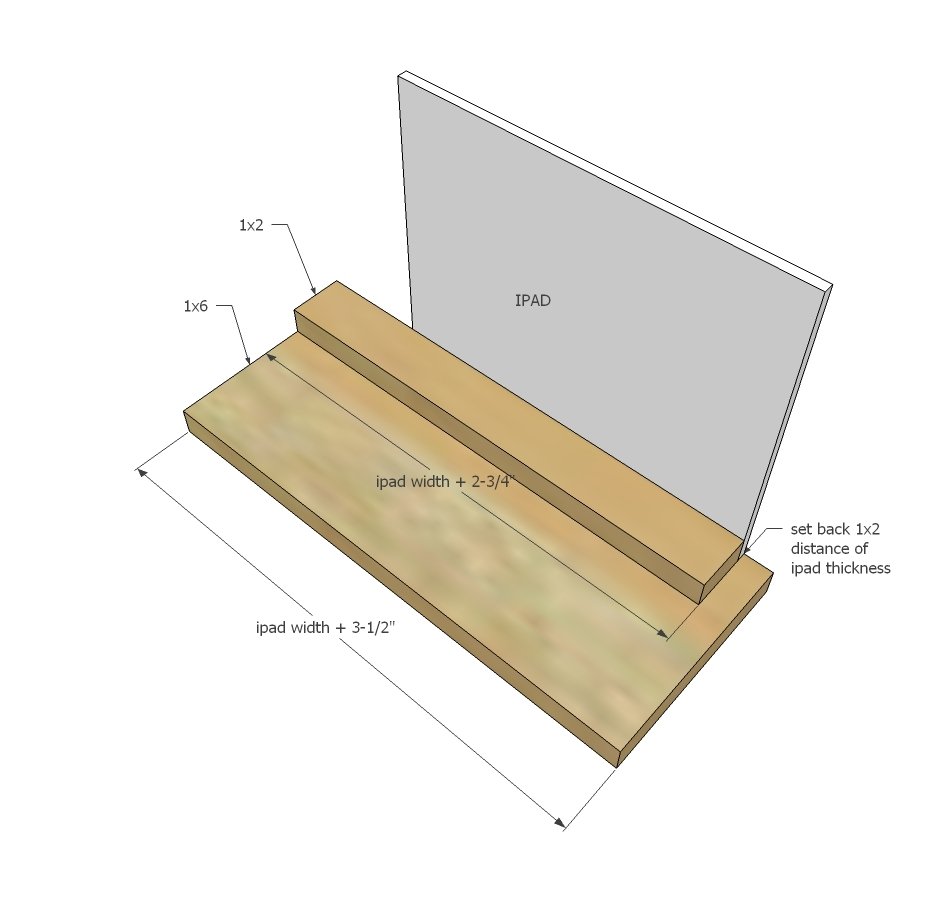

Step 1
Attach 1x2 to bottom 1x6 spacing so iPad or tablet can fit between 1x2 and edge. Also leave 3/4" gap on one side as shown. Attach with glue and 1-1/4" nails.

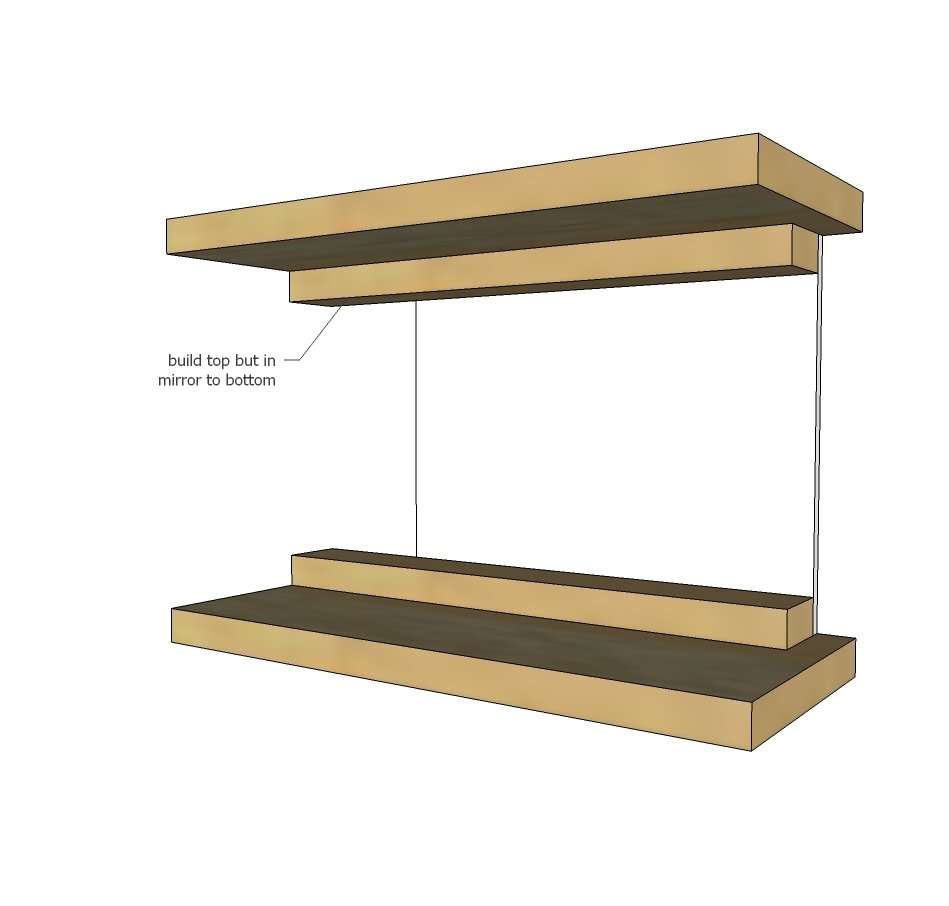

Step 2
Repeat steps for the top, but attach 1x2 in mirror as shown in diagram.

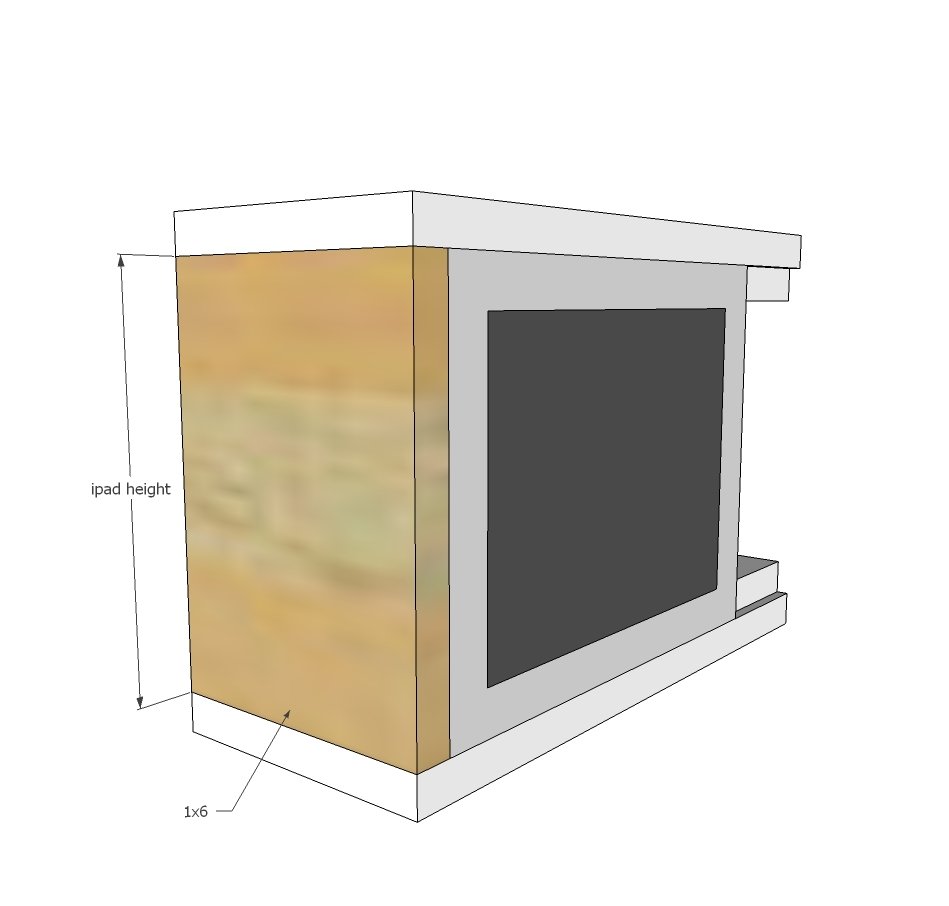

Step 3
Attach side to the top and bottom with 1-1/4" nails and wood glue.

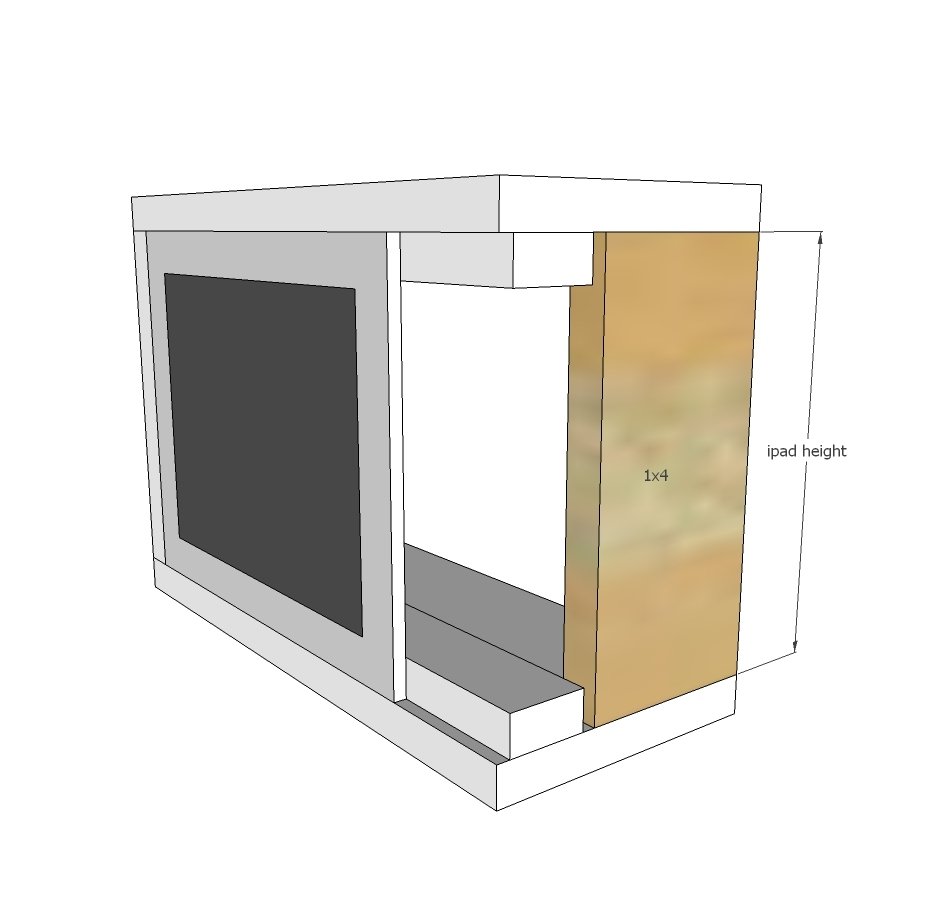

Step 4
Attach 1x4 to remaining side of ipad holder with 1-1/4" nails and wood glue.

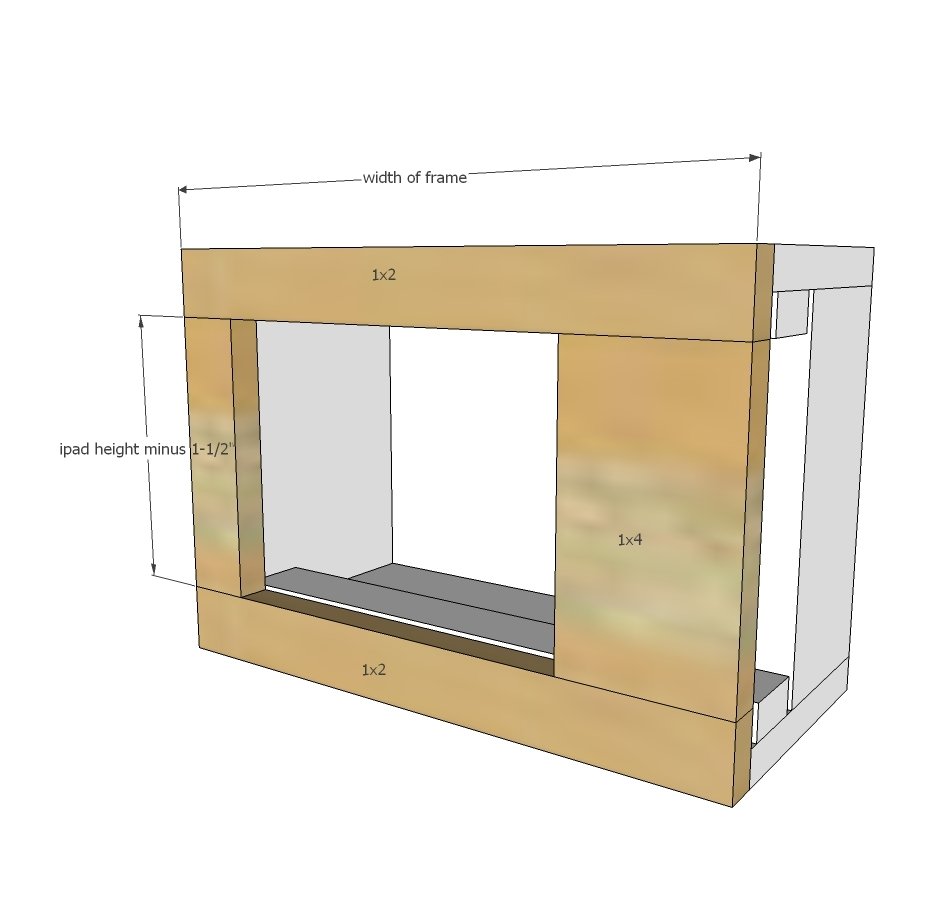

Step 5

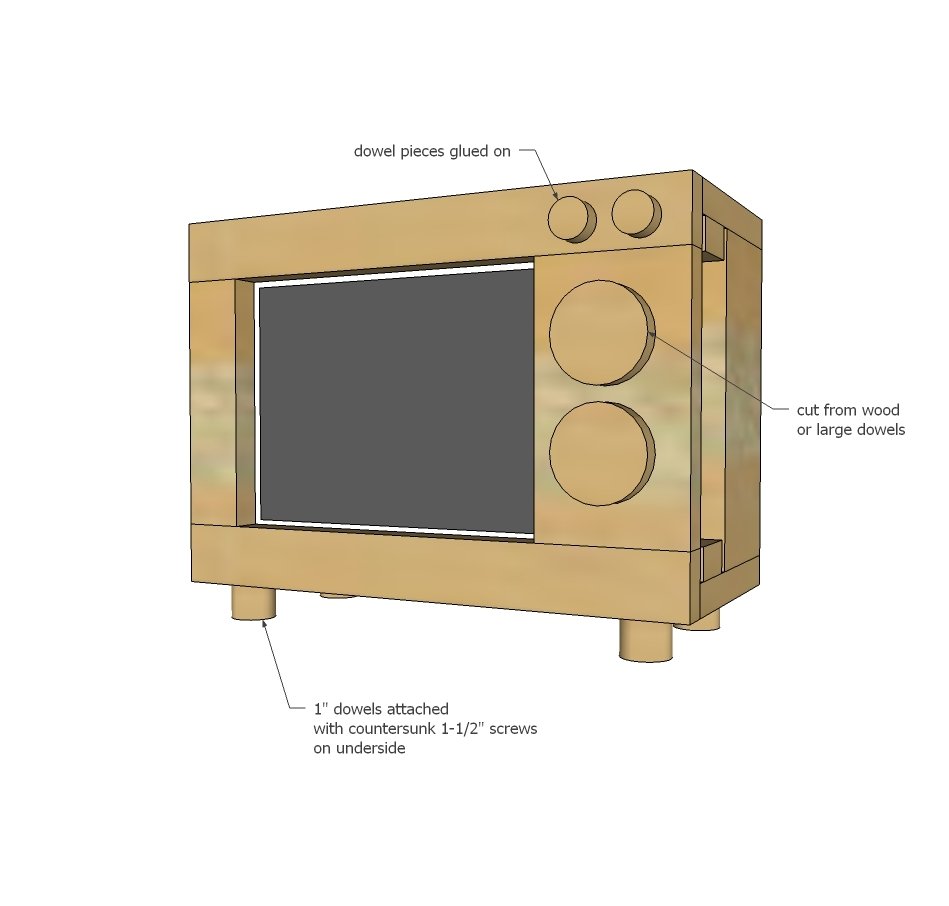

Step 6
I cut my dowel feet at 1-1/2" long and use 2" nails and glue to attach to the bottom of the ipad holder. I cut the nobs from scrap 1x material with a hole saw kit, sanded and attached with 1-1/4" nails and wood glue. The smaller knobs were dowel pieces.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
