Tabletop Lazy Susan

This gorgeous solid wood tabletop lazy susan in a modern octagon shape is perfect for serving. This is a DIY project with full instructions and shopping and cut lists. Built by Jaime Costiglio for Handbuilt Holiday

Tabletop Lazy Susan

Specifications

Project typeHome DIY
Roomdining room
DifficultyIntermediate

Dimensions

Use the size-specific shopping and cut lists below.

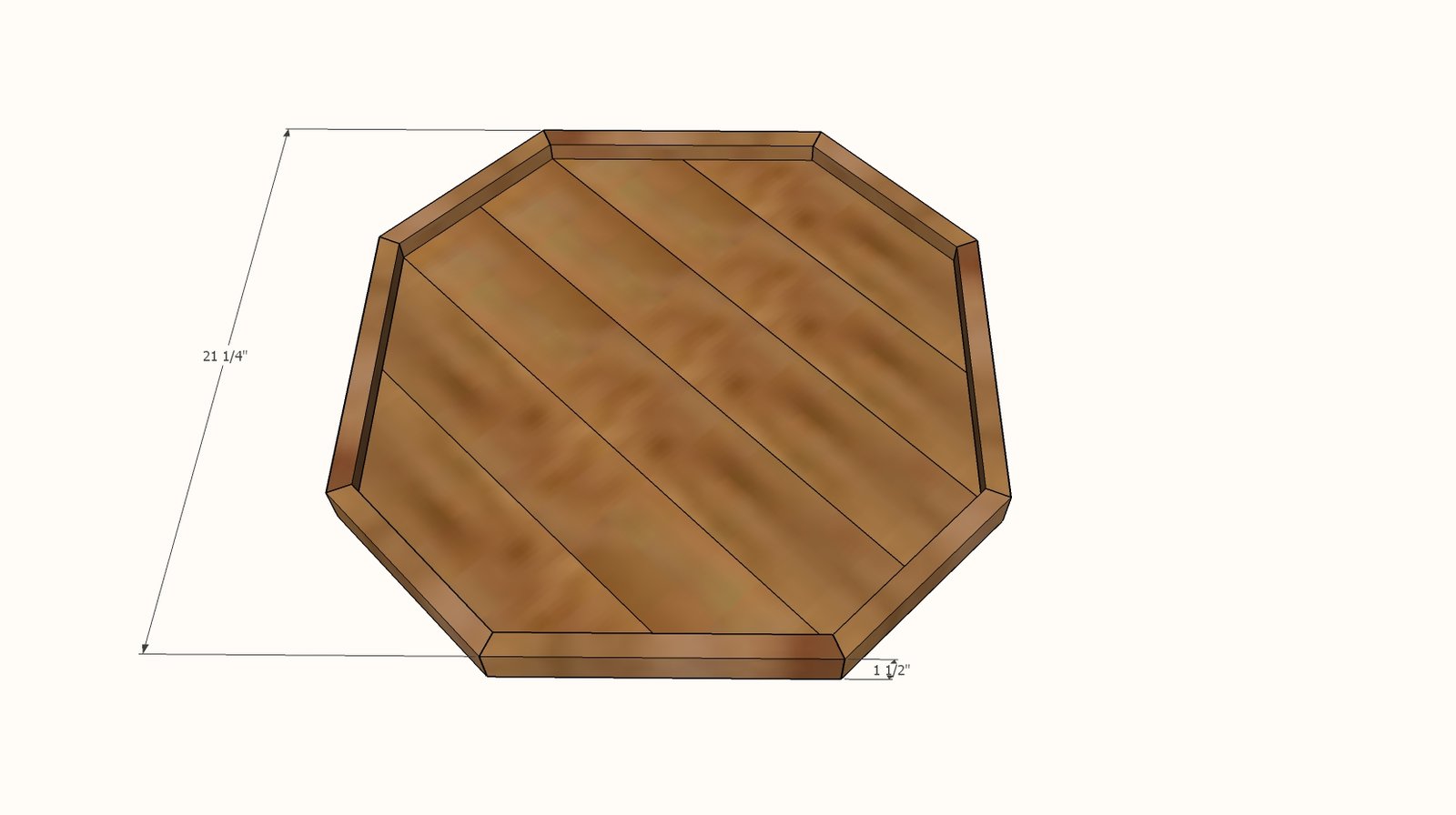

Tabletop Lazy Susan dimension diagram 1

Shopping List

  • 1 - 1x4 @ 10 feet long (can use scraps in smaller sections)
  • 1 - 1x2 @ 8 feet long (can use scraps in smaller sections)
  • 12" lazy susan turntable hardware ( see Jaime's post )
  • 1-1/4" brad nails
  • wood glue

Cut List

  • 2 - 1x4 @ 21"
  • 2 - 1x4 @ 21" - long point to long point measurement, both ends cut at 45 degree angle, ends NOT parallel
  • * 2 - 1x4 @ 14" - long point to long point measurement, both ends cut at 45 degree angle, ends NOT parallel
  • * 4 - 1x2 @ 7" - short point to short point measurement, both ends cut at 22-1/2 degree bevels, ends NOT parallel
  • * 4 - 1x2 @ 9-7/8" - short point to short point measurement, both ends cut at 22-1/2 degree bevels, ends NOT parallel

* Should be measured and cut to fit

Tools

  • measuring tape
  • pencil
  • safety glasses
  • hearing protection
  • drill
  • compound miter saw
  • nailer
  • sander

Step-by-step Instructions

1

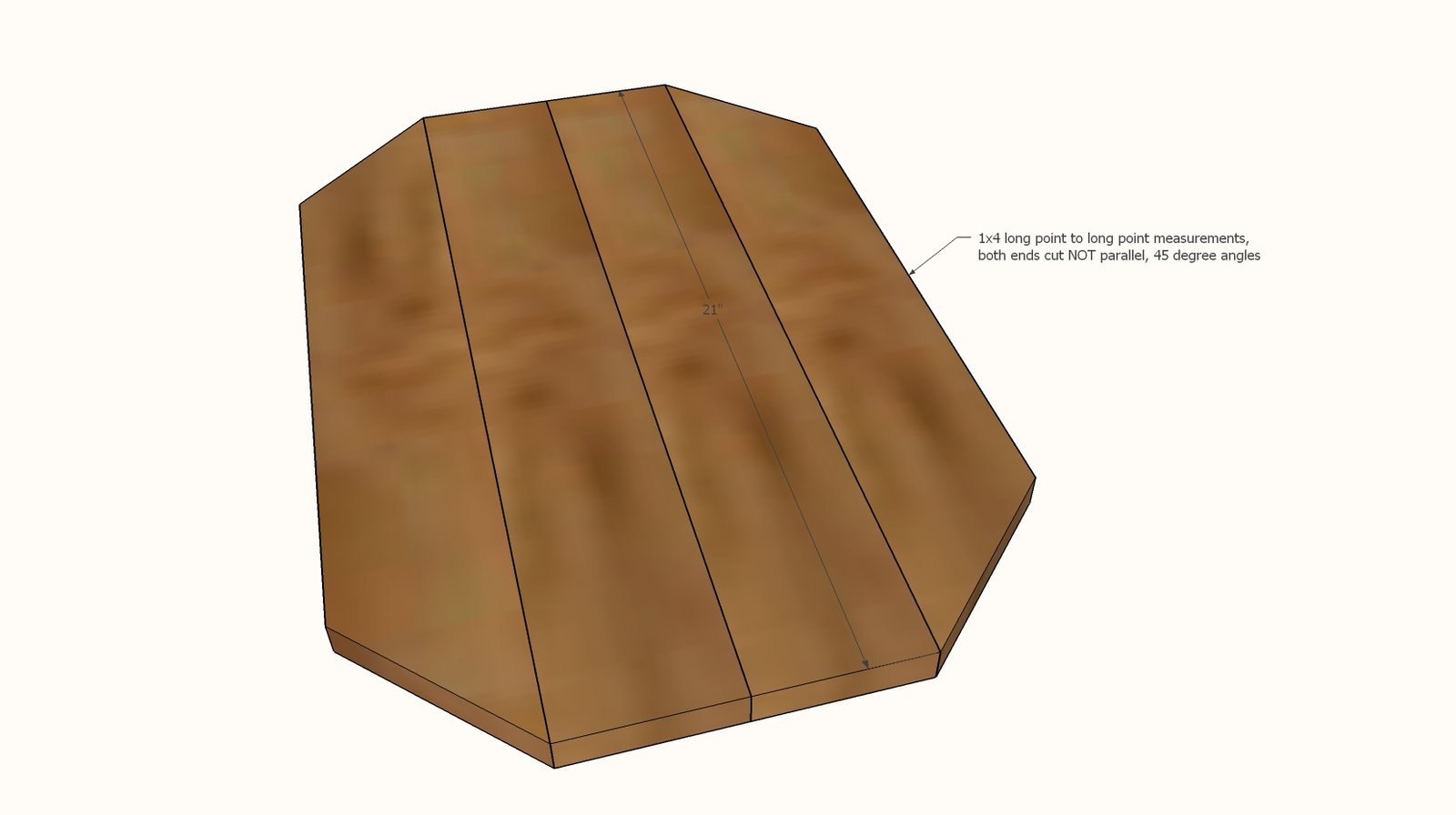

Cut two 1x4s with a miter saw to 21" length.

Set miter saw to a 45 degree angle. Cut two 1x4s 21" long, both ends cut at 45 degrees, long point to long point measurement, ends NOT parallel. Apply glue on edges to be joined. Clamp pieces together and allow glue to dry.

Tabletop Lazy Susan — step 1
2

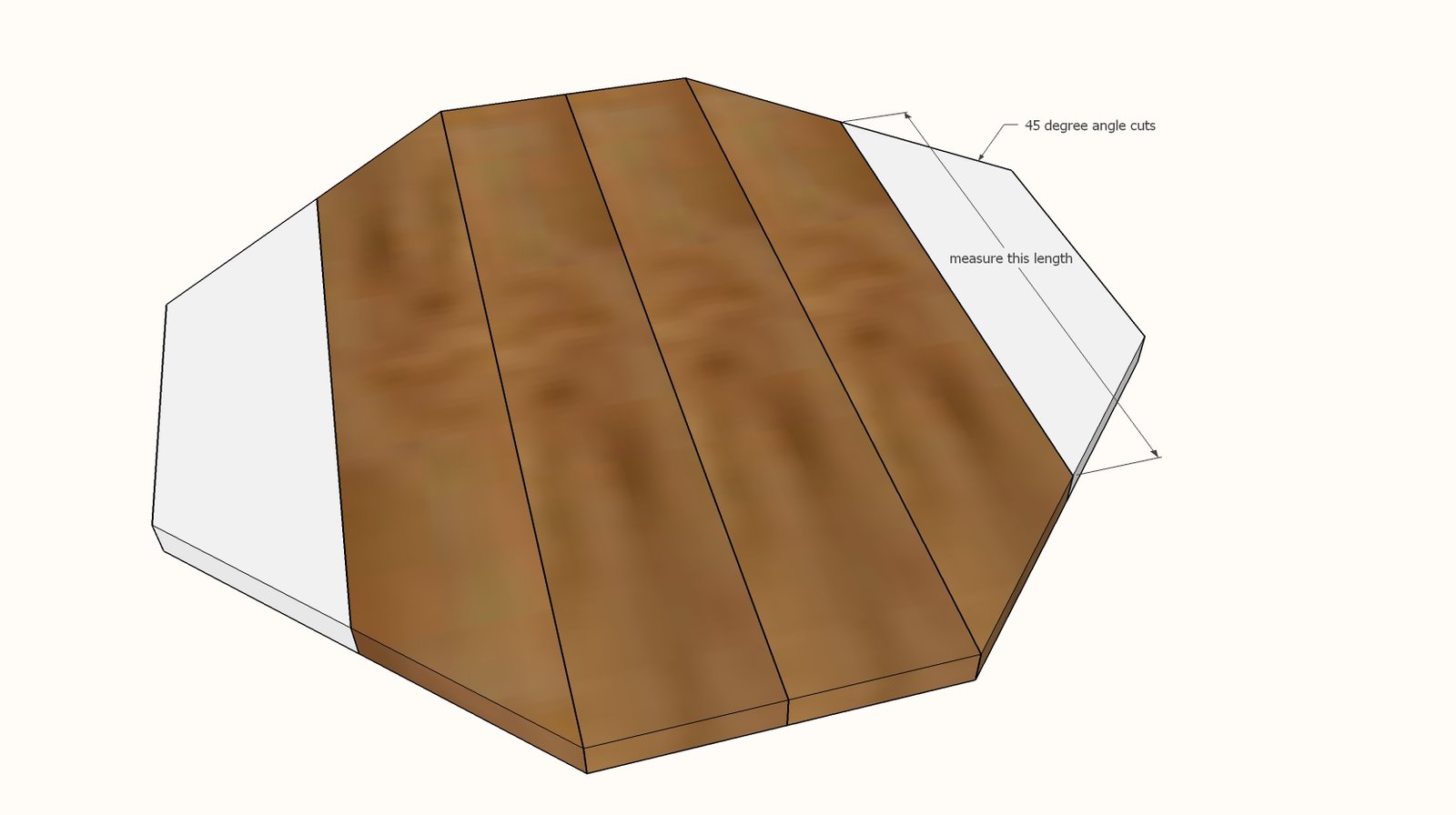

Step 2

While glue is drying from step 1, measure the short point to short point of the outermost pieces on the project, as shown in diagram. Use the miter saw to cut two 1x4s to this length, long point to long point measurement, both ends cut at 45 degrees, ends NOT parallel. Apply glue and clamp to the project and let dry.

Tabletop Lazy Susan — step 2
3

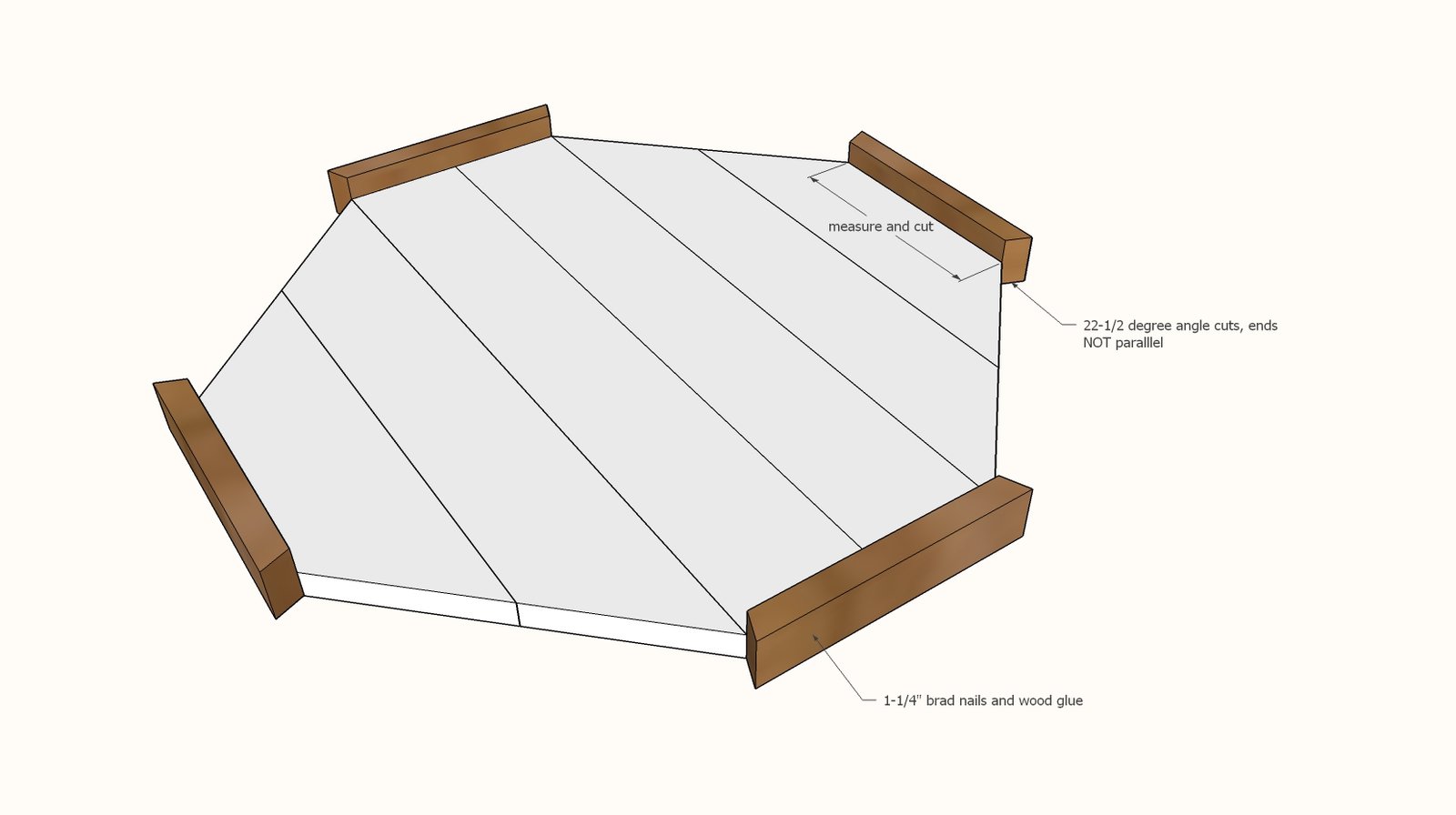

While glue is drying, cut out the 1x2 trim pieces.

Start by taking a measurement of the four shorter edges. This will be your short point to short point measurement for the trim pieces. Set the miter saw to a 22-1/2 degree bevel. Cut the 1x2 pieces and and glue and use 1-1/4" brad nails to attach.

Tabletop Lazy Susan — step 3
4

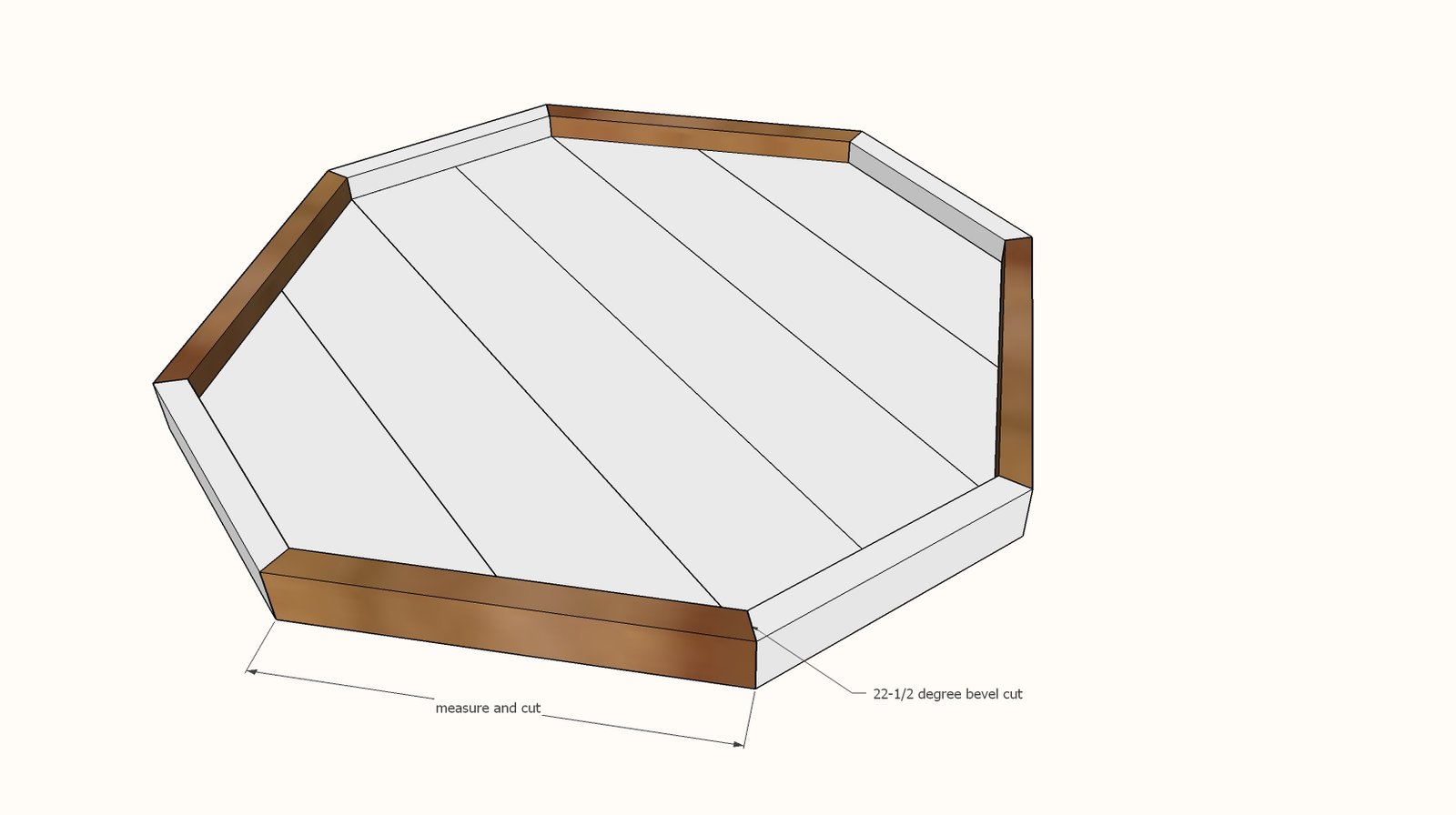

Step 4

Now measure the final pieces and cut to fit. Note that each piece will most likely be slightly different from the others, so measure and fit each pieces. Nail and glue to the project.

Tabletop Lazy Susan — step 4
5

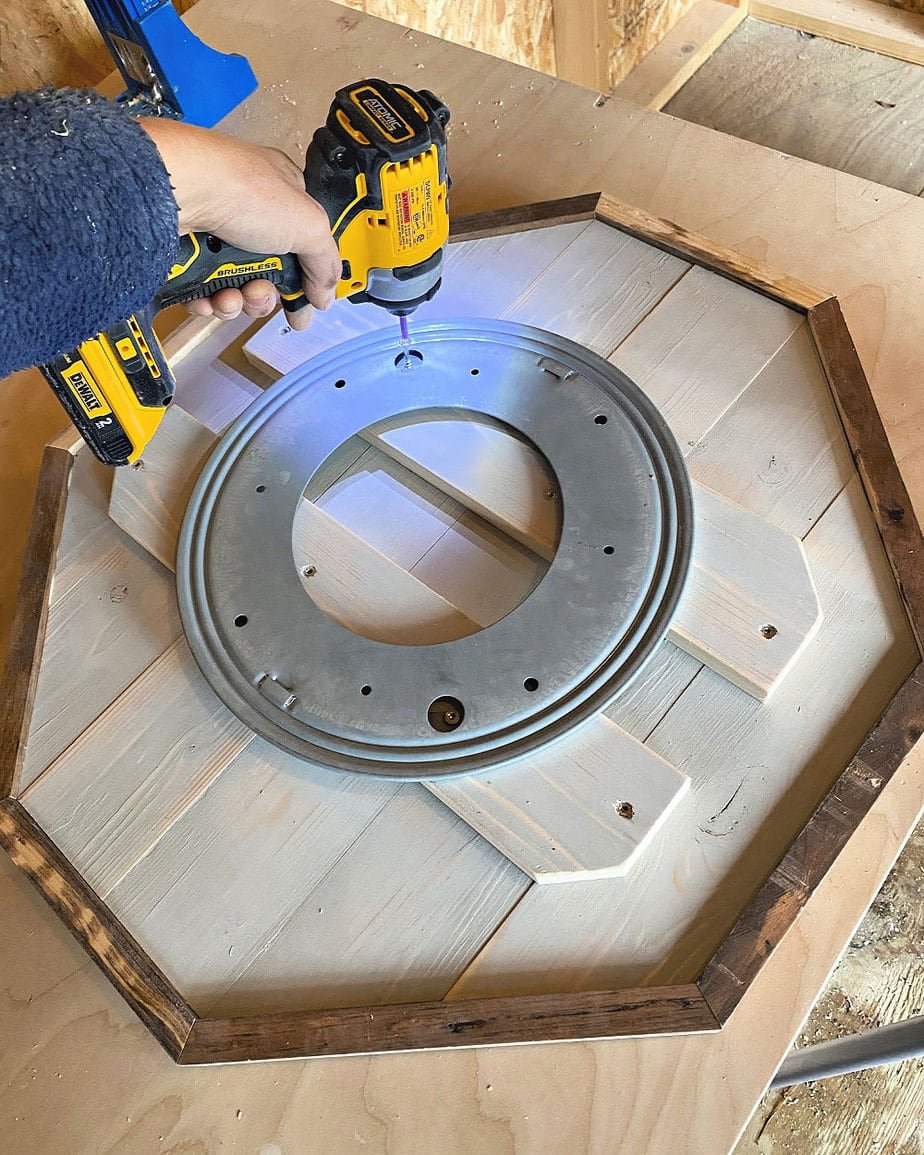

Jaime also added additional 1x4 supports underneath.

Then attached the lazy susan turntable to the bottom. You can read more about how she did this here.

Tabletop Lazy Susan — step 5
6

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
