"Tidy Up" End Table

to build a tidy up side table!

"Tidy Up" End Table

Specifications

Project typeSide and End Table Plans
Roomliving room
StyleCottage Style Furniture Plans
DifficultyBeginner Projects
Estimated cost$20 - $50

Dimensions

Use the size-specific shopping and cut lists below.

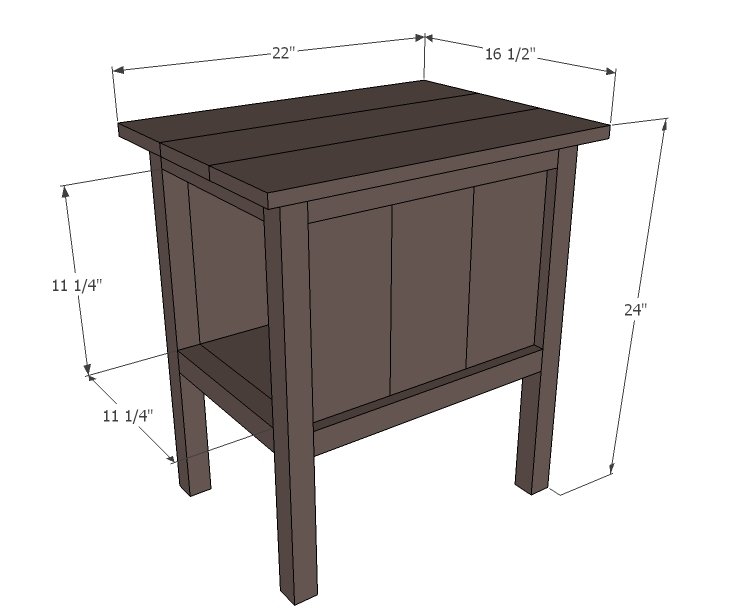

"Tidy Up" End Table dimension diagram 1

Shopping List

2 - 2x2 @ 8 feet long

1 - 1x6 @ 8 feet long

1 - 1x6 @ 10 feet long

1 - 1x2 @ 8 feet long

Cut List

  • 4 - 2x2 @ 23 1/4 (legs)
  • 5 - 2x2 @ 11 1/4" (front and back trim/support)
  • 6 - 1x6 @ 14 1/4" (sides)

3 - 1x6 @ 11 1/4" (bottom shelf)

  • 4 - 1x2 @ 16 1/2" (side trim)
  • 3 - 1x6 @ 22" (top)

Tools

  • measuring tape
  • square
  • pencil
  • safety glasses
  • hearing protection
  • kreg-jig
  • drill
  • circular saw
  • nailer
  • sander
  • countersink drill bit

Step-by-step Instructions

1

Step 1

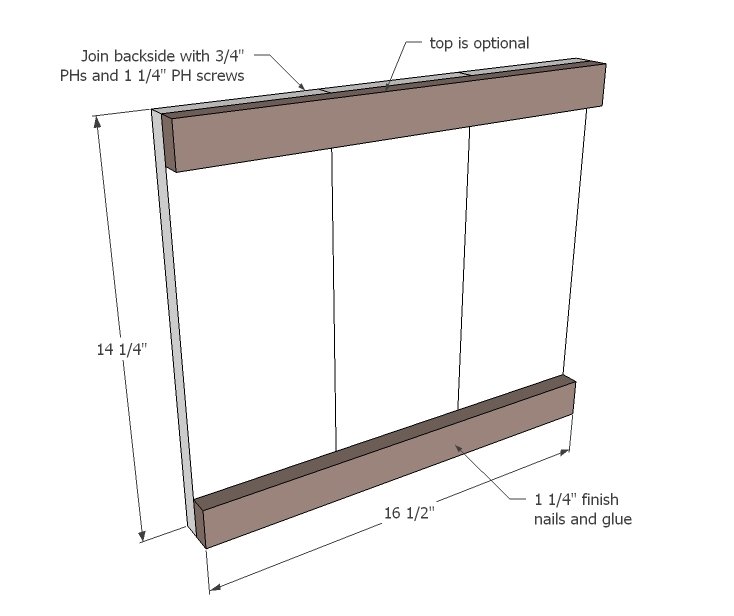

Start by building the two sides by attaching with 3/4" PHs and 1 1/4" PH screws and glue. Then add the bottom trim. You can also add top trim too. TIP: Drill 3/4" PHs along sides for attaching legs in next step before nailing on trim to make drilling easier.

"Tidy Up" End Table — step 1
2

Step 2

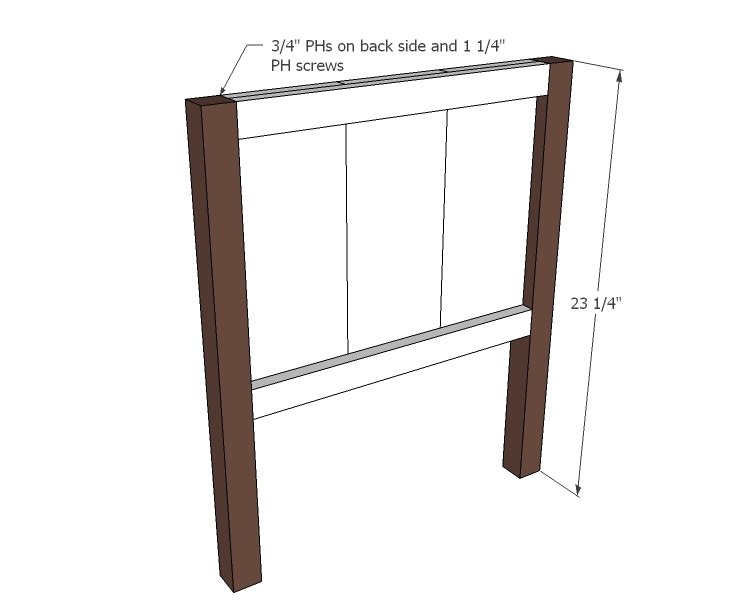

Now attach legs flush to top.

"Tidy Up" End Table — step 2
3

Step 3

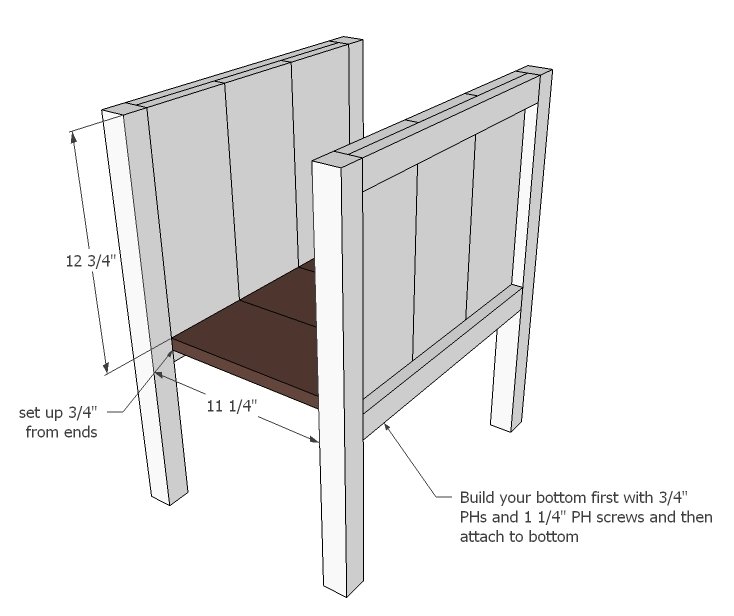

Build bottom shelf as you did the sides. Drill 3/4" PHs around all sides of the bottom shelf. Attach to sides.

"Tidy Up" End Table — step 3
4

Step 4

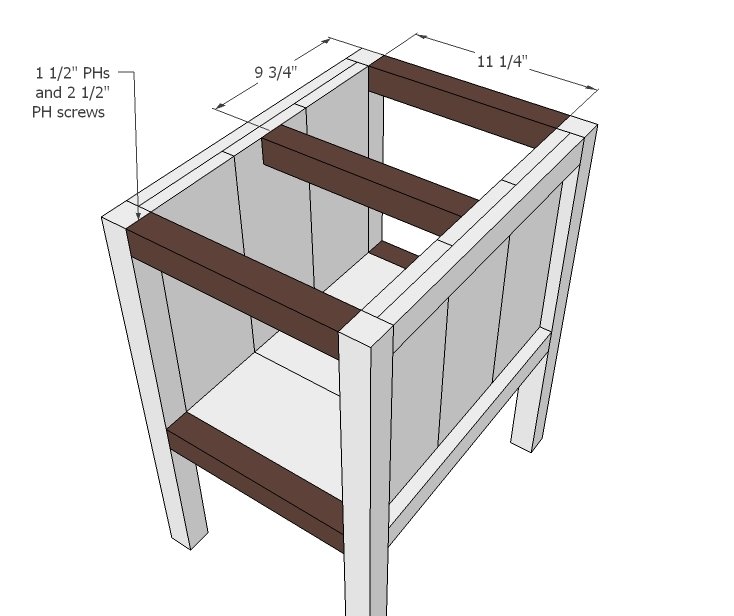

Attach the 2x2 supports as shown above. Use 1 1/4" PH screws to attach bottom shelf to the end trim through holes you predrilled in step 3.

"Tidy Up" End Table — step 4
5

Step 5

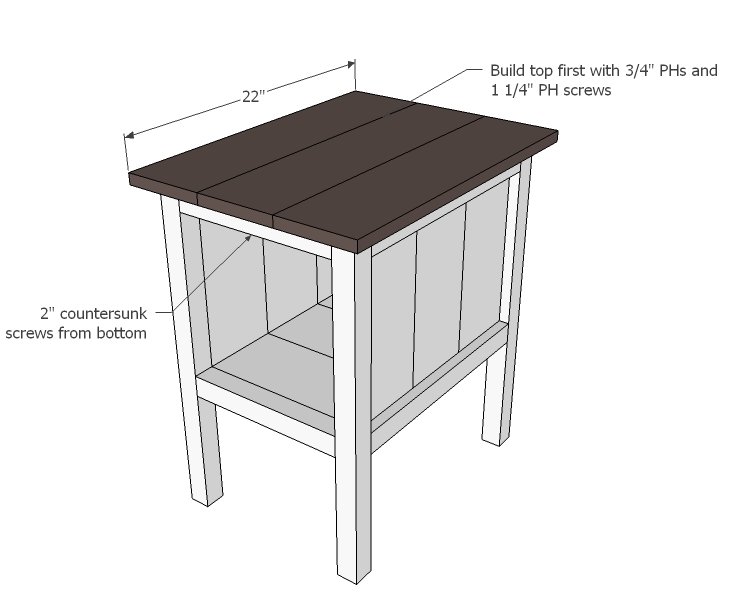

"Tidy Up" End Table — step 5
6

Step 6

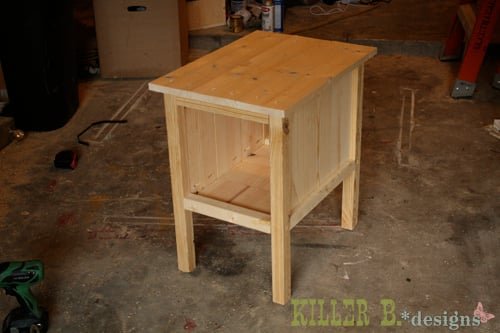

"Tidy Up" End Table — step 6
7

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
