Toddler Bunk Beds
DIY Toddler Bunk Beds Build toddler-sized bunk beds with these easy-to-follow, beginner-friendly plans — no fancy tools or workshop required! Designed with safety, simplicity, and style in mind, this project uses standard 2x lumber, straightforward cuts, and a no-pocket-hole assembly method. Perfect for shared rooms, sleepovers, or growing families, these sturdy bunk beds fit standard crib mattresses and feature low heights for little climbers. • Beginner Friendly • Simple Tools • Standard Lumber (2x2s and 2x4s) • Cut + Assembly Diagrams Included • Modern Farmhouse Aesthetic • Built for under $150 in materials • No Pocket Holes Needed Download the now and build with confidence.
Specifications
| Project type | Bunk Bed |
|---|---|
| Room | Kids and Toys |
| Difficulty | Intermediate |

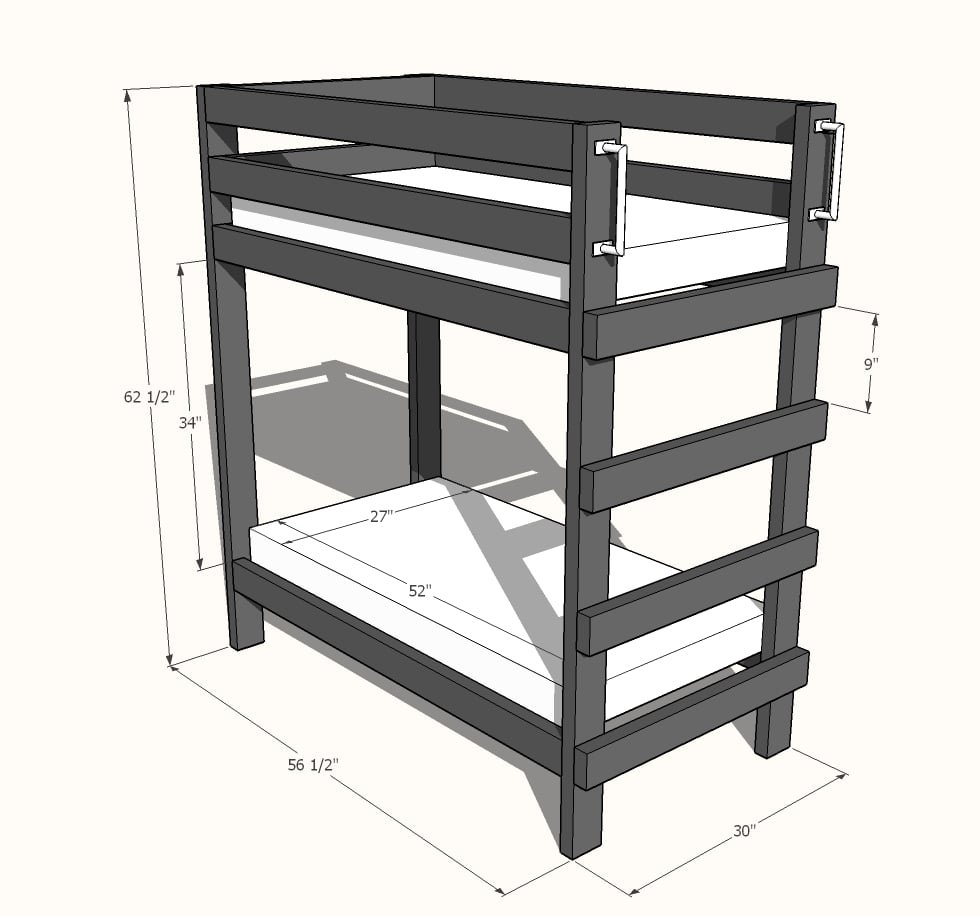

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
8 - 2x2 @ 10 feet long
4 - 2x2 @ 52" - 8 foot sticks are most likely cheapest
6 - 1x3 @ 8 feet long
Cut List
4 - 2x4 @ 62-1/2" - legs
8 - 2x4 @ 53-1/2" - rails
4 - 2x4 @ 27" - end rails
4 - 2x4 @ 30" - ladder rungs
4 - 2x2 @ 52" - mattress support cleats
18 - 1x3 @ 27" - mattress slats or can use plywood
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- drill
- circular saw
- sander
Step-by-step Instructions

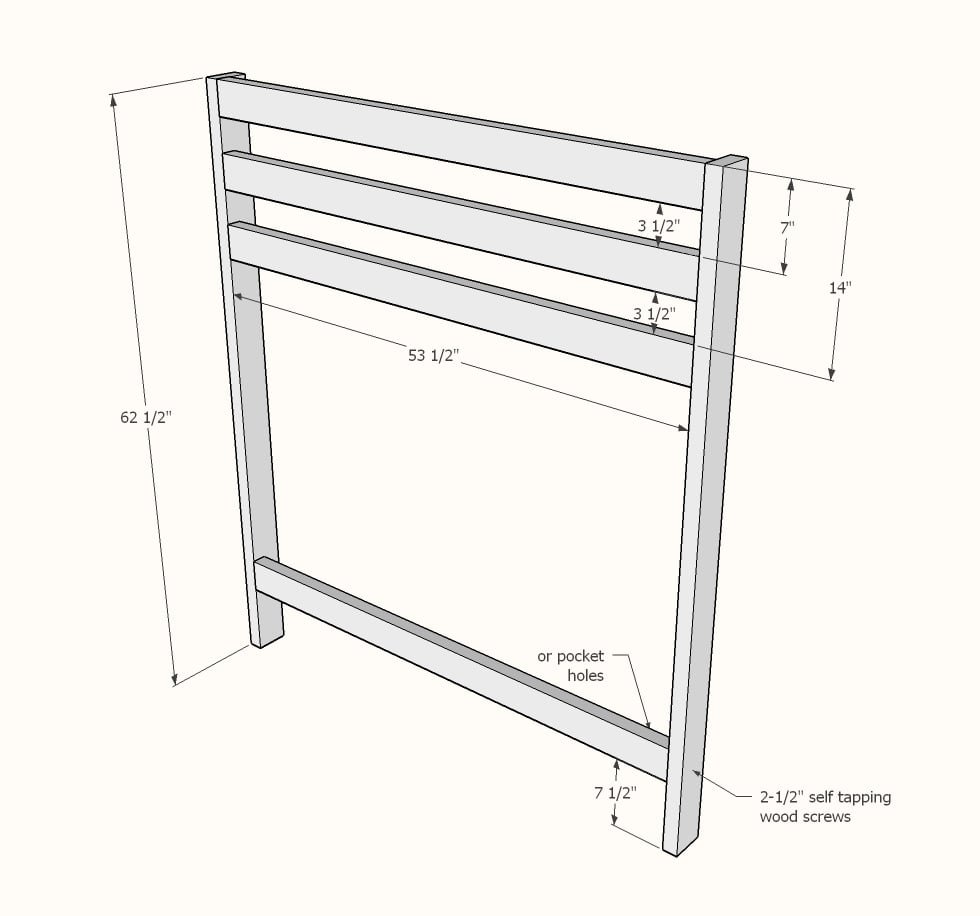

Step 1
Build two legs sets by screwing the rails to the legs with 2 screws per joint. Use glue at joints.

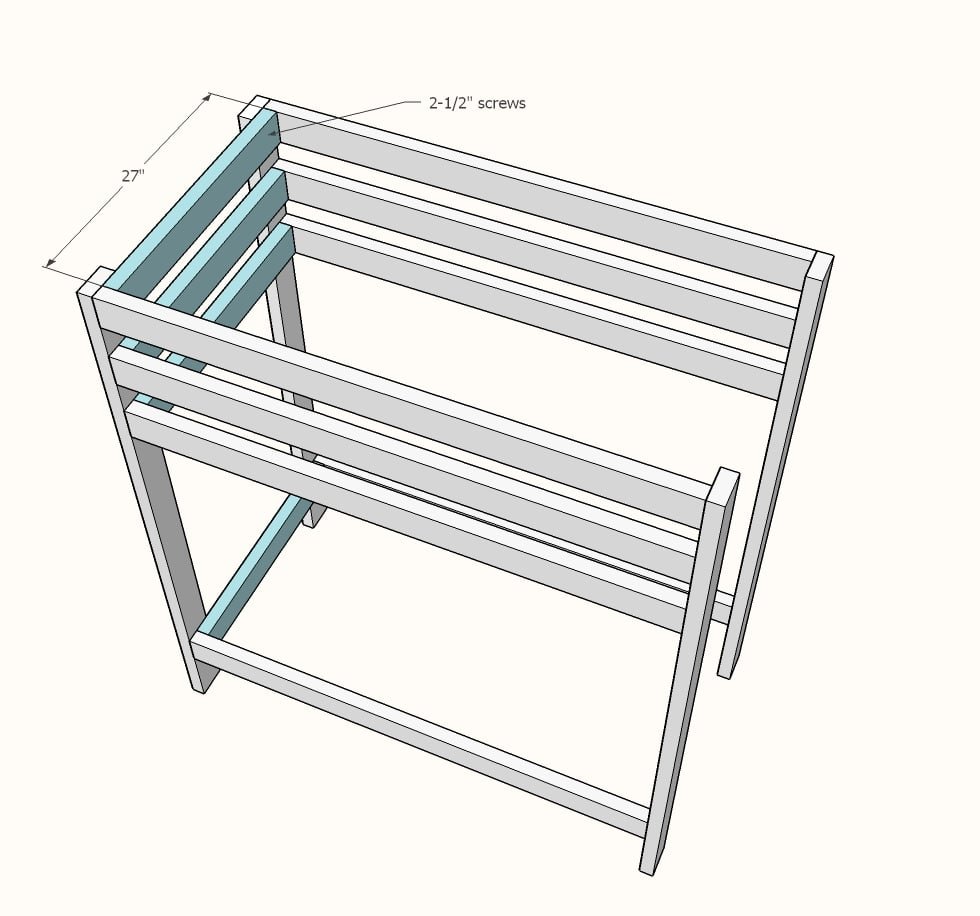

Step 2
Because of the finished size of this project, you may wish to finish assembly in the room it will be used in. Attach end rails with 2 screws per joint and glue.

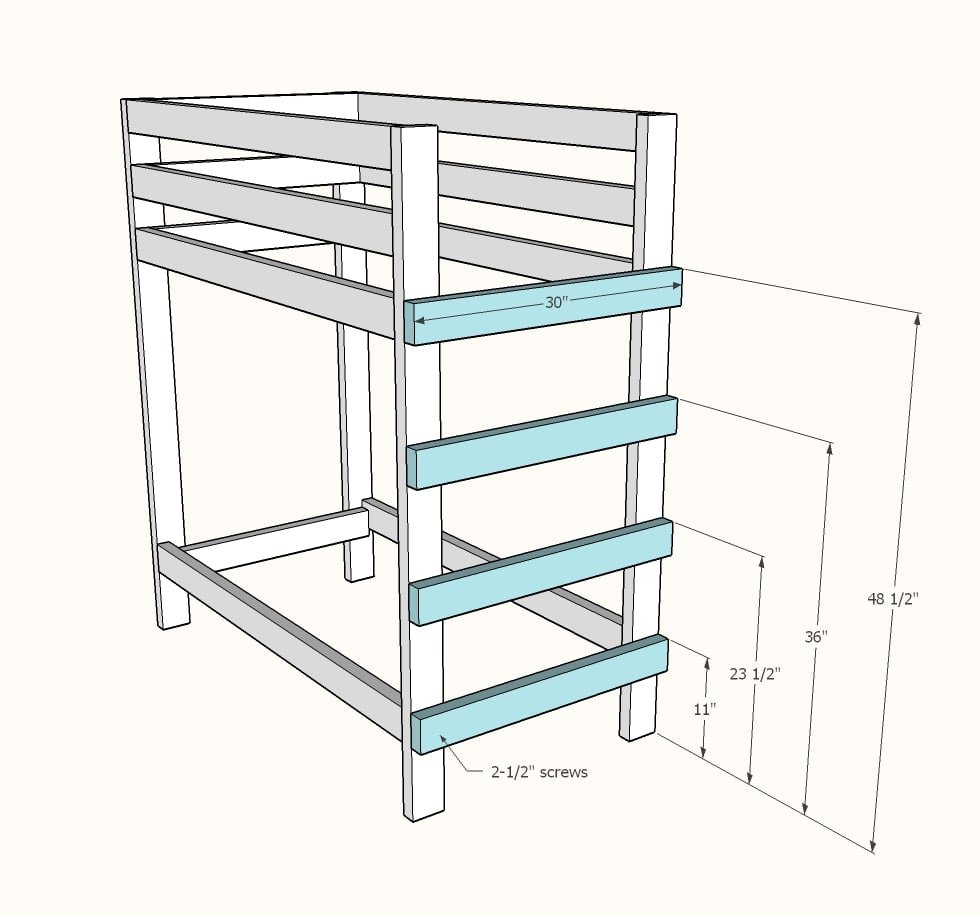

Attach ladder rungs with 2 screws per joint as shown.
Do not leave less than 9" spacing in between ladder rungs (neck entrapment safety)

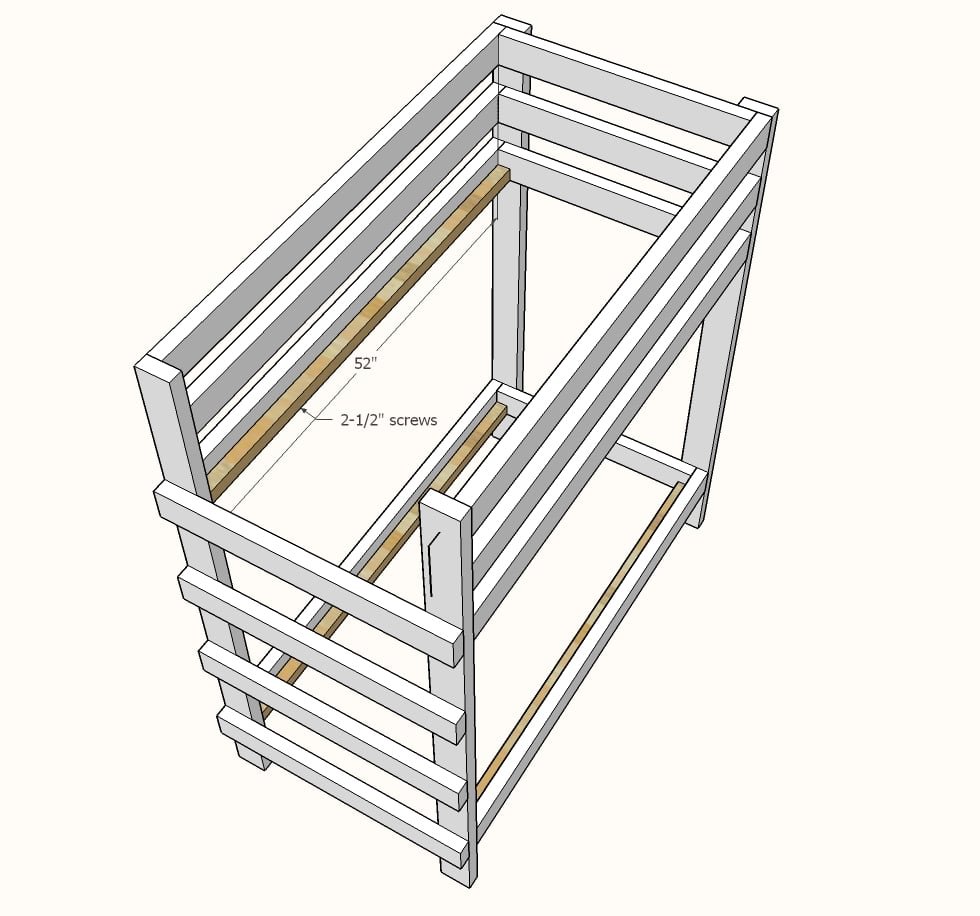

Step 4
Attach cleats to inside of bed rails with screws every 8" and glue.

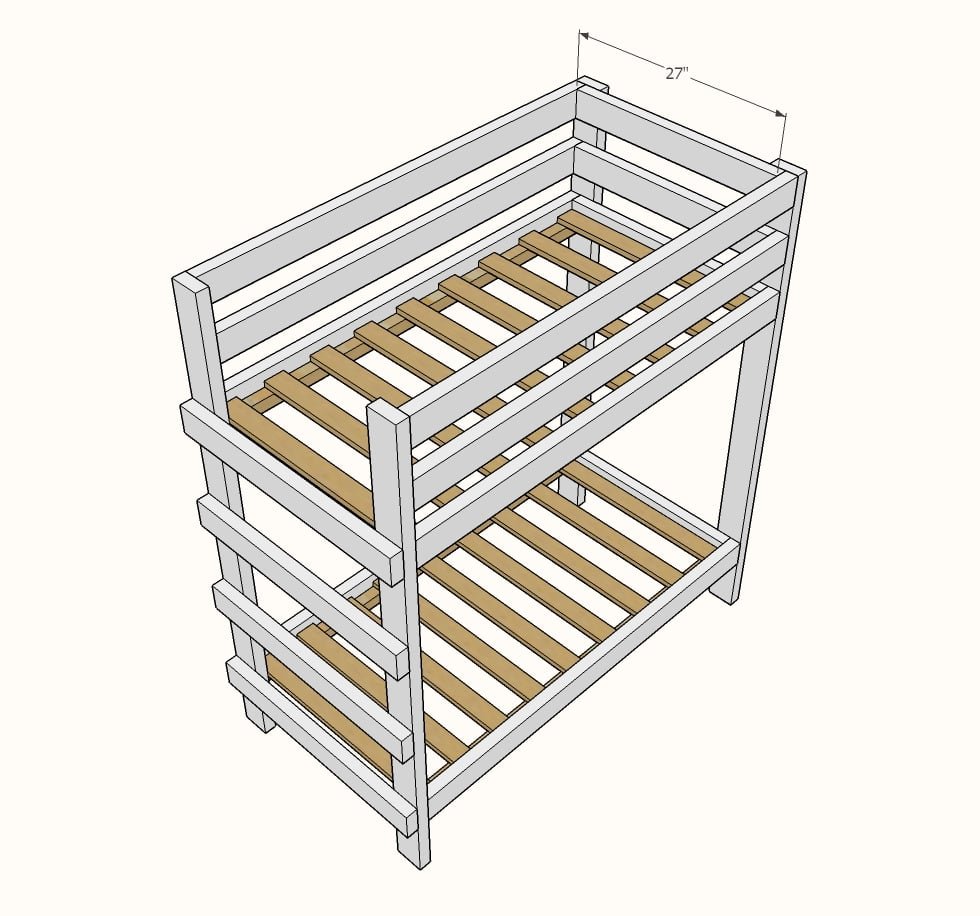

Step 5
Lay slats out about 3-1/2" appart and screw down with 2" screws.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
