Tongue and Groove Ottoman Tray

Build your own ottoman tray from This beautiful ottoman tray is solid wood and can be painted or stained any color. This project cost less than $20 to build. This is a gorgeous and functional addition to ottomans or as a serving tray. Free tutorial includes step by step plans, diagrams, shopping and cut list and video tutorial.

Tongue and Groove Ottoman Tray

Specifications

Project typeHome DIY
RoomBedroom
StyleFarmhouse Furniture
DifficultyStarter Projects
Estimated costUnder $20

Dimensions

Use the size-specific shopping and cut lists below.

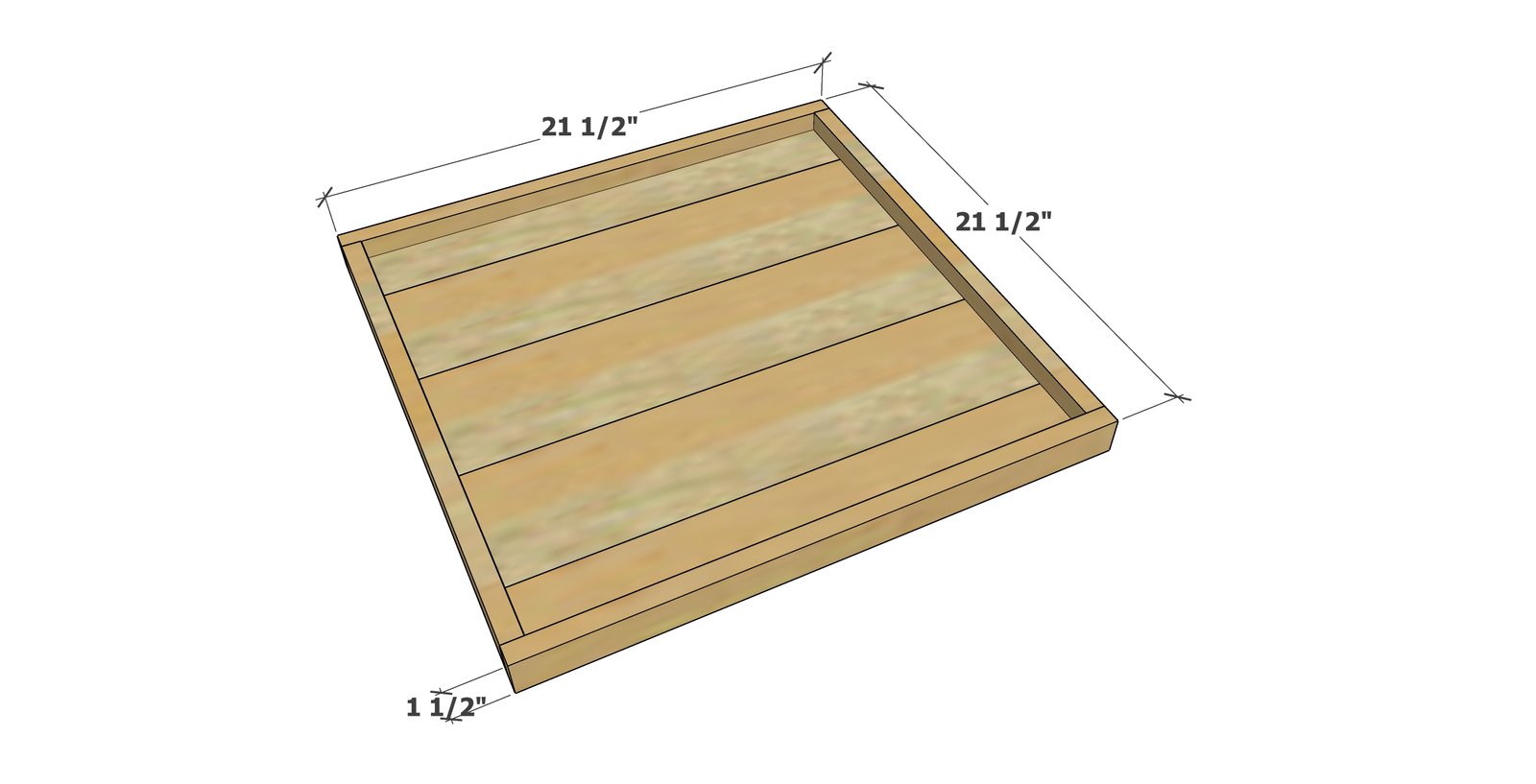

Tongue and Groove Ottoman Tray dimension diagram 1

Shopping List

  • 1 - 1x2 @ 8 feet long
  • 1 - 1x6 pine tongue and groove board, 8 feet long
  • 1-1/4" brad nails
  • wood glue

Cut List

  • 4 - 1x6 tongue and groove boards @ 20"
  • 1x2 for the frame should be measured and cut to fit

Tools

  • measuring tape
  • pencil
  • safety glasses
  • circular saw
  • nailer
  • sander

Step-by-step Instructions

1

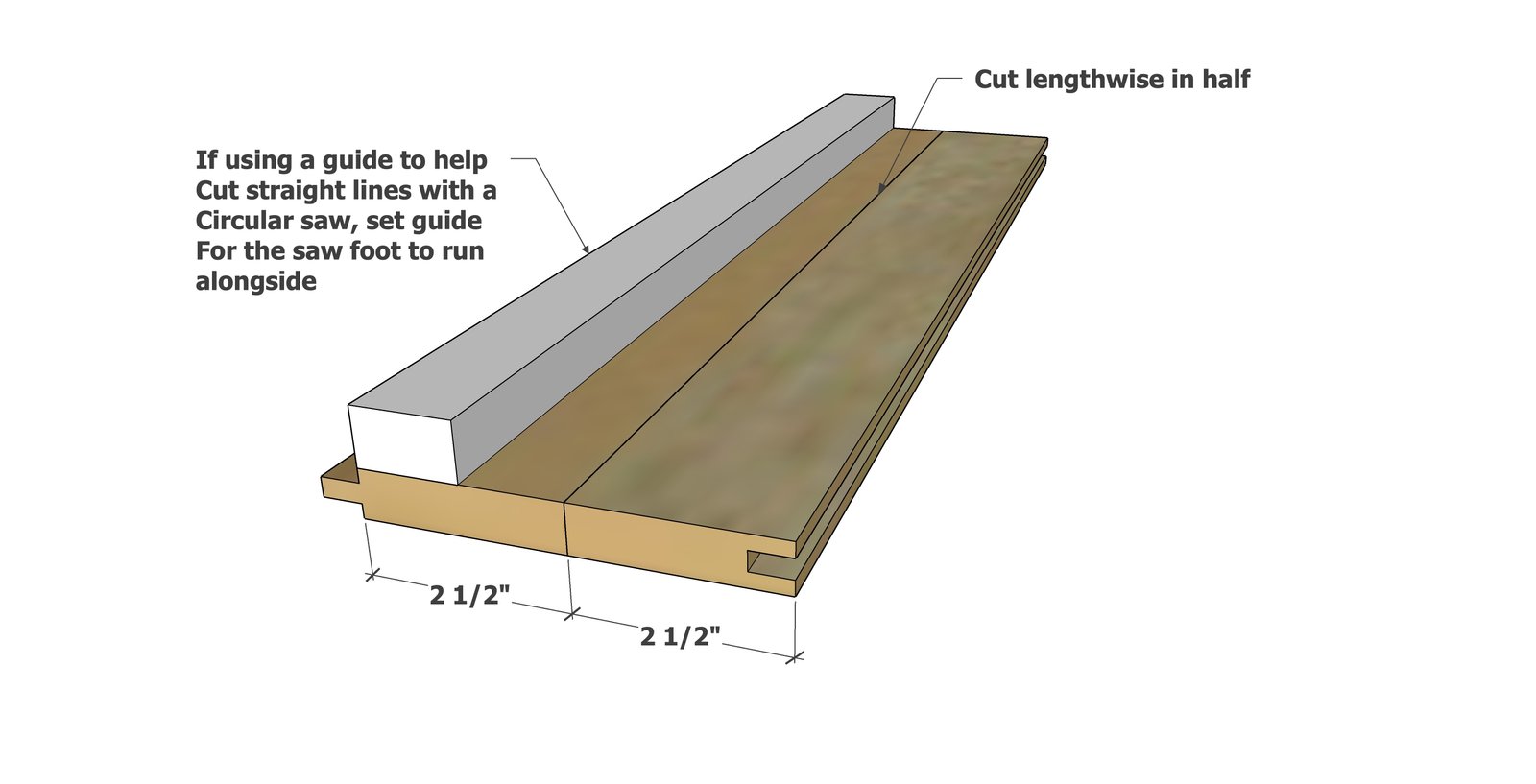

One of the tongue and groove boards should be cut in half lengthwise.

The easiest way to do this is with a tablesaw. If you don't have a tablesaw, you can use a guide and a circular saw. The guide should be clamped offset from the desired cut to match the circular saw foot offset. Clamp the board securely to a work surface and cut with circular saw.

Tongue and Groove Ottoman Tray — step 1
2

Step 2

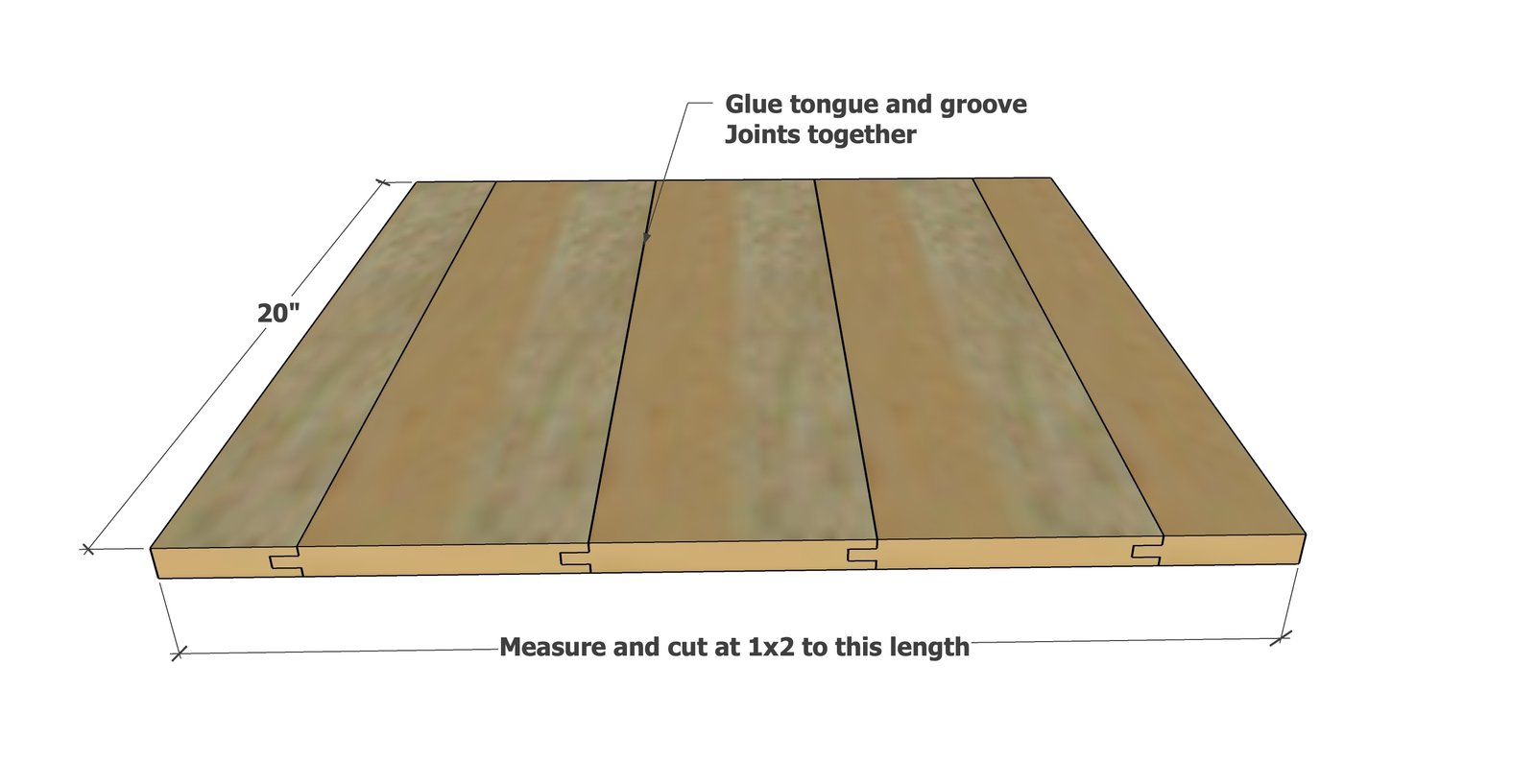

Glue the tongue and groove pieces together, with the two cut pieces on each end.

Tongue and Groove Ottoman Tray — step 2
3

Step 3

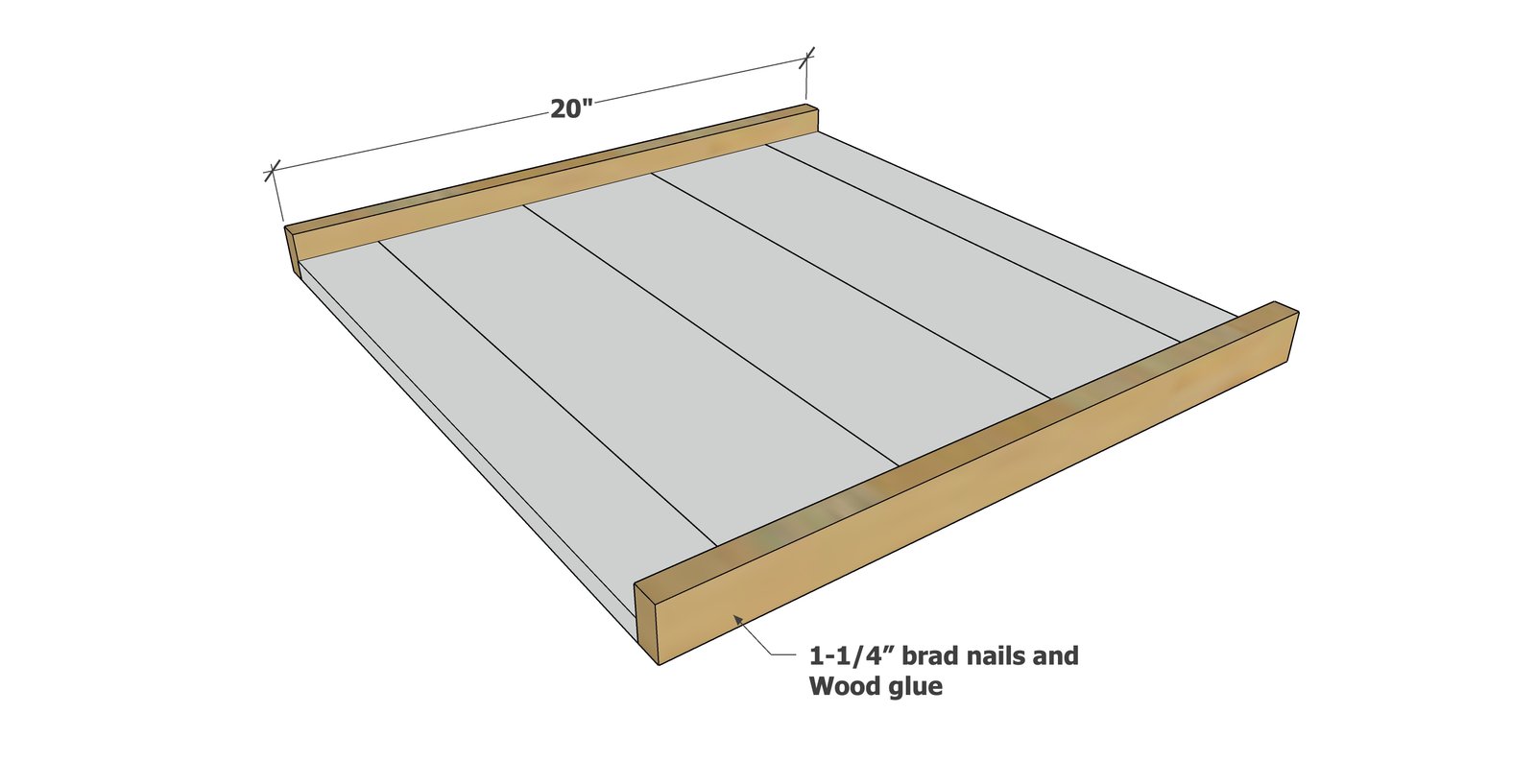

Measure the width of the tray and cut two 1x2s to match. Attach with 1-1/4" brad nails and glue.

Tongue and Groove Ottoman Tray — step 3
4

Step 4

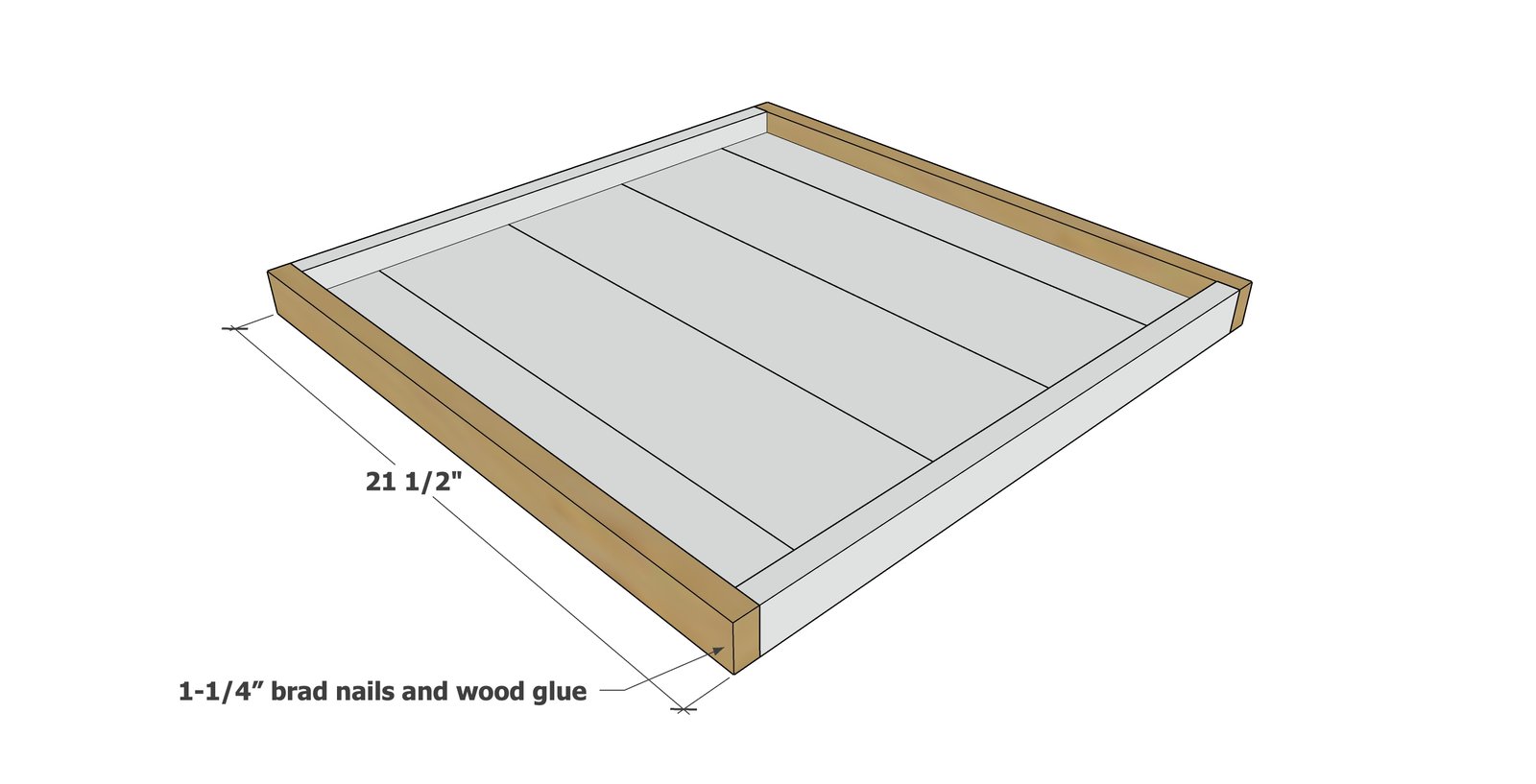

Measure the remaining edges of the tray and cut two 1x2s to match. Attach with 1-1/4" brad nails and glue.

Tongue and Groove Ottoman Tray — step 4
5

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
