Toy Makeup Set
This toy makeup set keeps everything together and carries like a lunchbox; it folds open for unlimited pretend play! Make it with scrap wood (or new wood pieces under $20). This is a beginner woodworking projects and is easy to build. include step by step diagrams, shopping and cut list. Built and photographed by Jaime Costiglio for Handbuilt Holiday 2019
Specifications
| Project type | Toys |
|---|---|
| Room | Kids and Toys |
| Difficulty | Beginner Projects |
| Estimated cost | Under $20 |

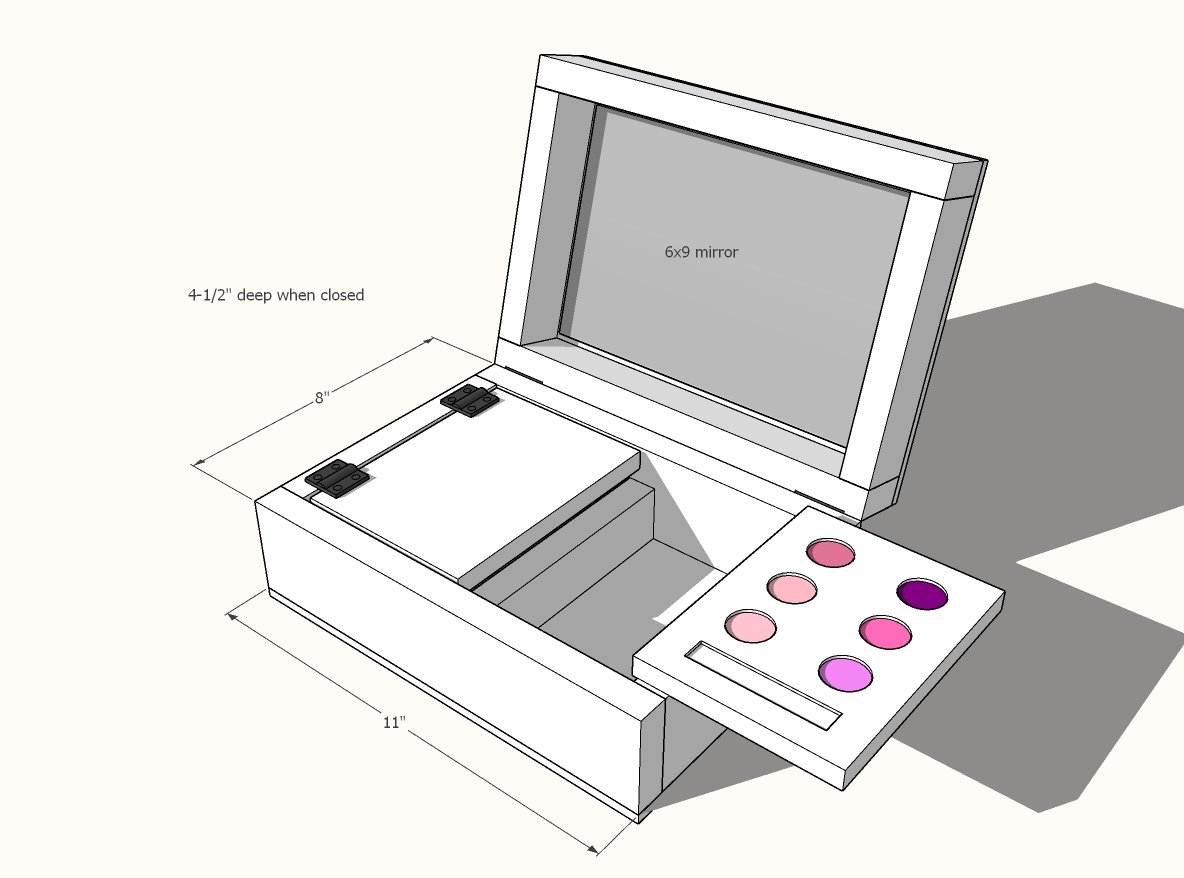

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
- 3 feet of 1x3 boards
- 4 feet of 1x2 boards
- 24" x 24" piece of 1/4" plywood
- 2 - sets of 1" utility hinges
- 1 - 6" long pull (square in shape is best)
- 1 - locking closure
- 1 - 6" x 9" acrylic mirror
- 3/4" and 1-1/4" brad nails
- wood glue
Cut List
- 2 - 1x3 @ 6-1/2"
- 2 - 1x3 @ 11"
- 3 - 1x2 @ 6-1/2"
- 2 - 1x2 @ 11"
- 2 - 1/4" plywood @ 11" x 8"
- 4 - 1/4" plywood @ 6-1/4" x 4-5/8"
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- drill
- circular saw
- nailer
- sander
- countersink drill bit
Step-by-step Instructions
Step 1

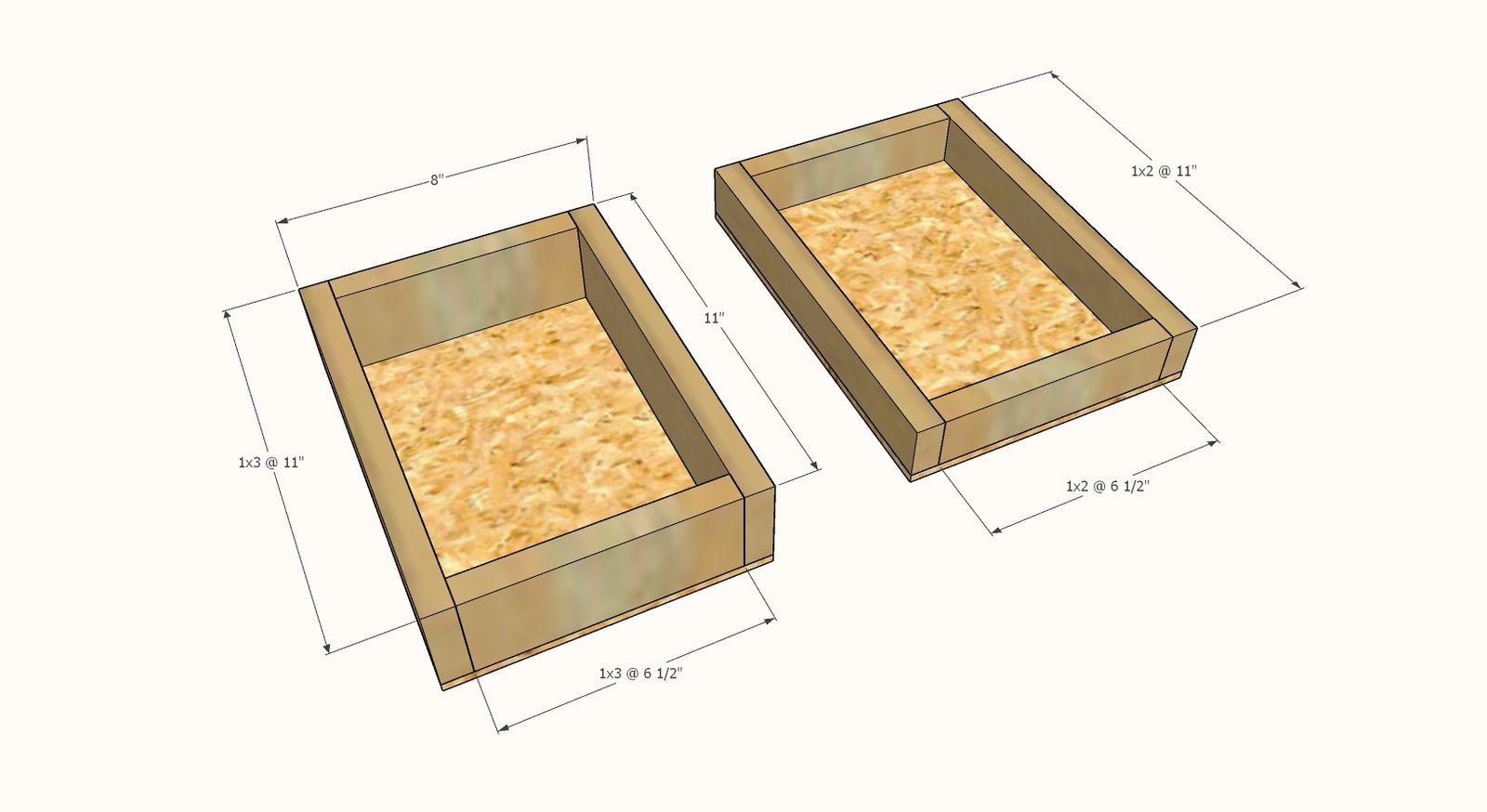

Cut out boards with a circular saw or miter saw. If using a circular saw, a piece of foam under the wood can make things much easier. Nail the 1x2 and 1x3 frames together with 1-1/4" brad nails and glue. Attach 1/4" plywood pieces to bottoms with 3/4" brad nails and glue.
Step 2

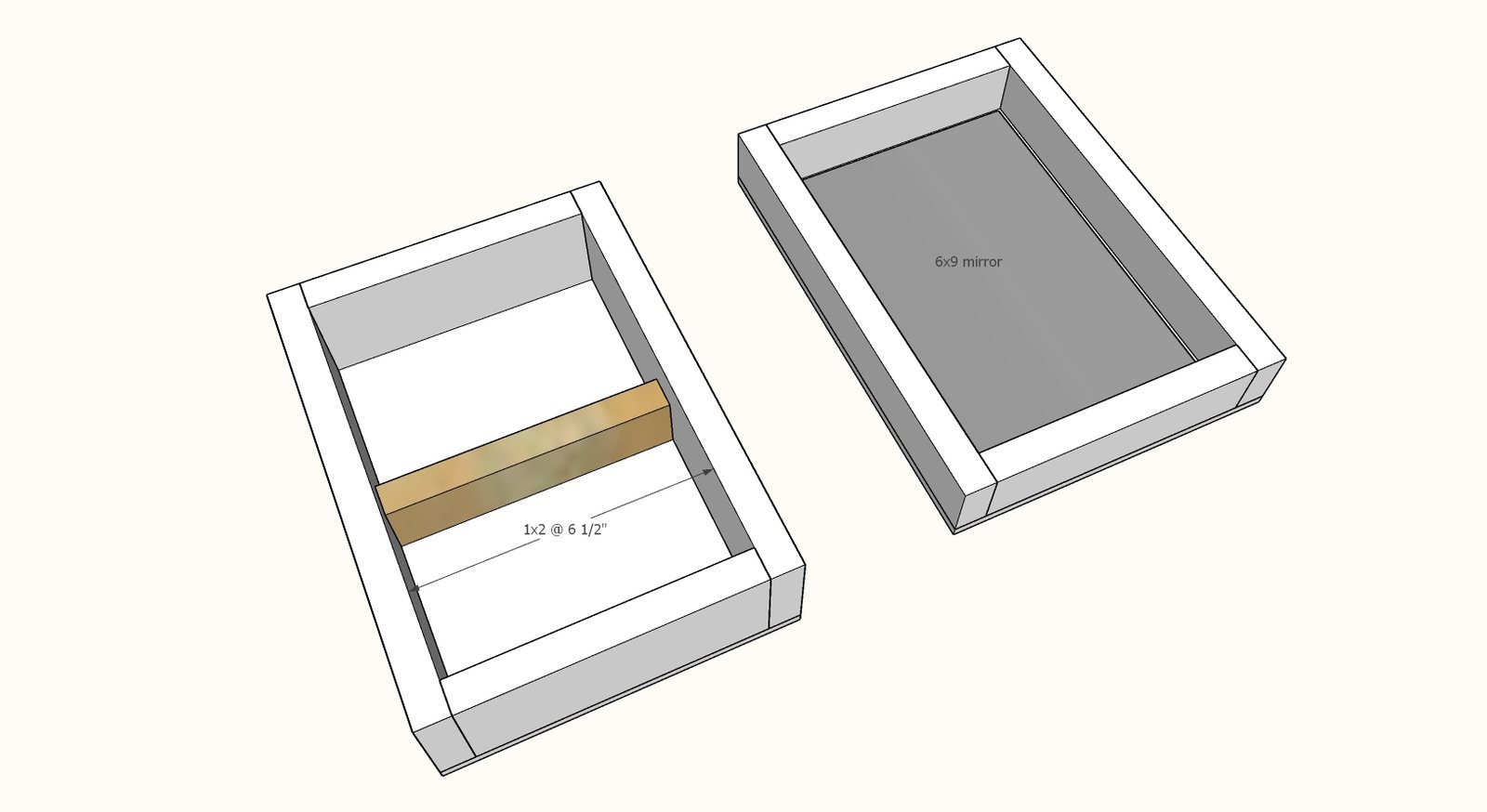

Add divider to the larger tray. NOTE: It would be better if the divider was 1/2" taller. If you can rip a 1x3 down to a 2" width on a tablesaw that would work. You can also add two layers of 1/4" plywood (each piece 3/4" wide x 6-1/2" long) to get the right height. If this doesn't make sense, see step 4. Mirror can be added to the smaller tray.

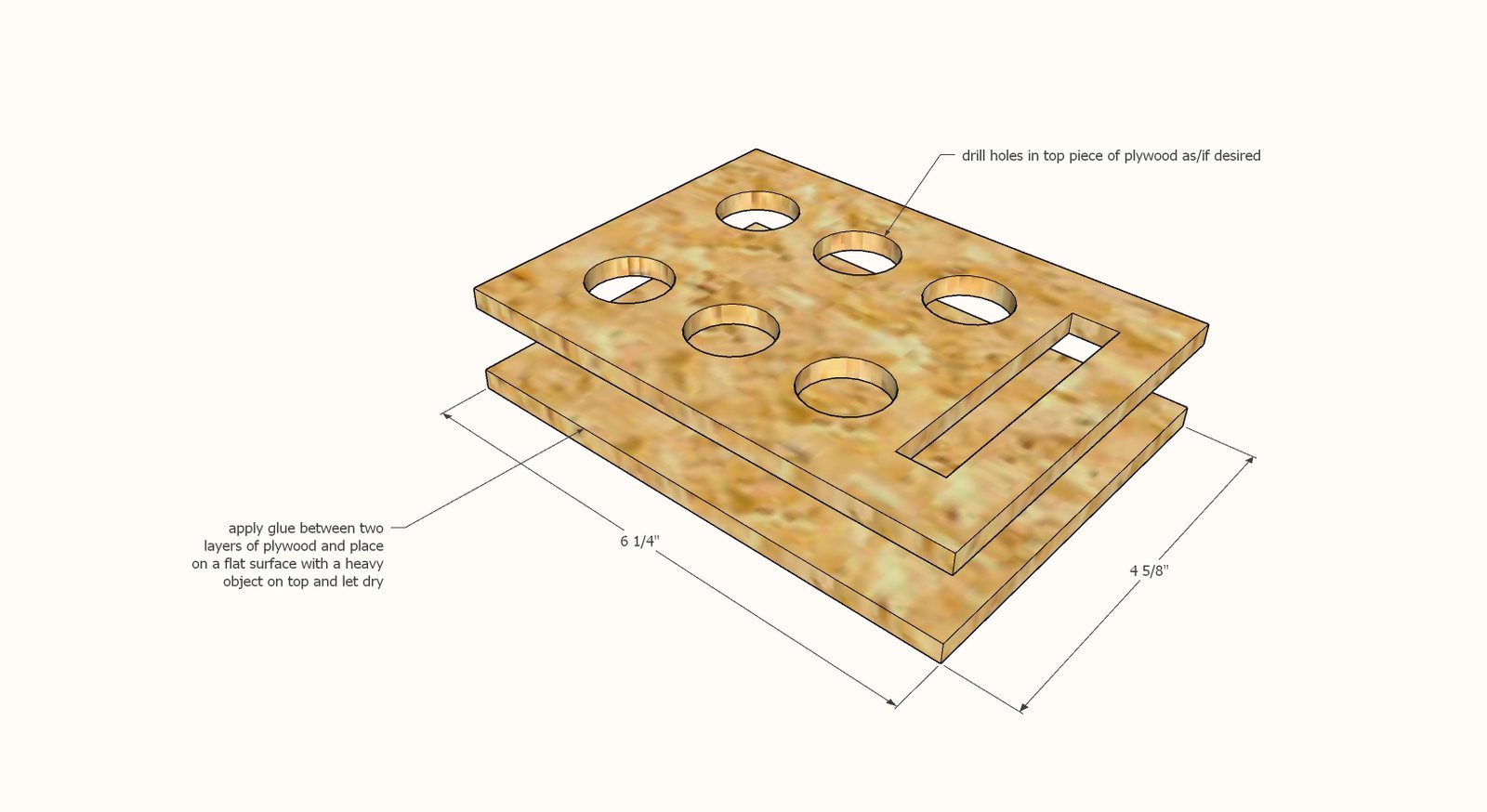

Cut out the pieces for the flip out trays.
Use Jaime's pattern here for the top tray cut outs. Paint the colors first on the under tray. Glue the two pieces together and let dry.

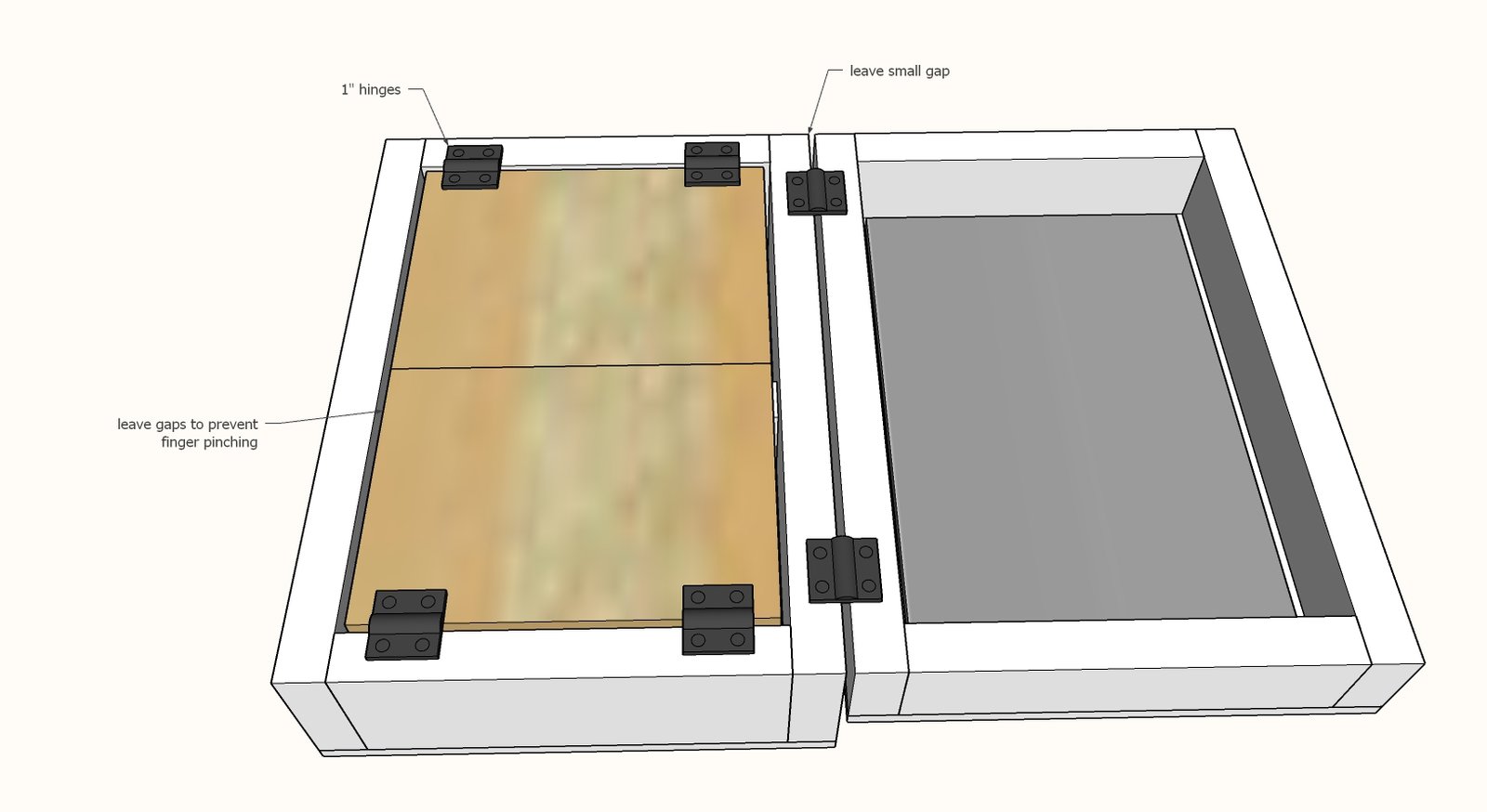

Hinge the trays to the sides.
Hinge the two lids together.

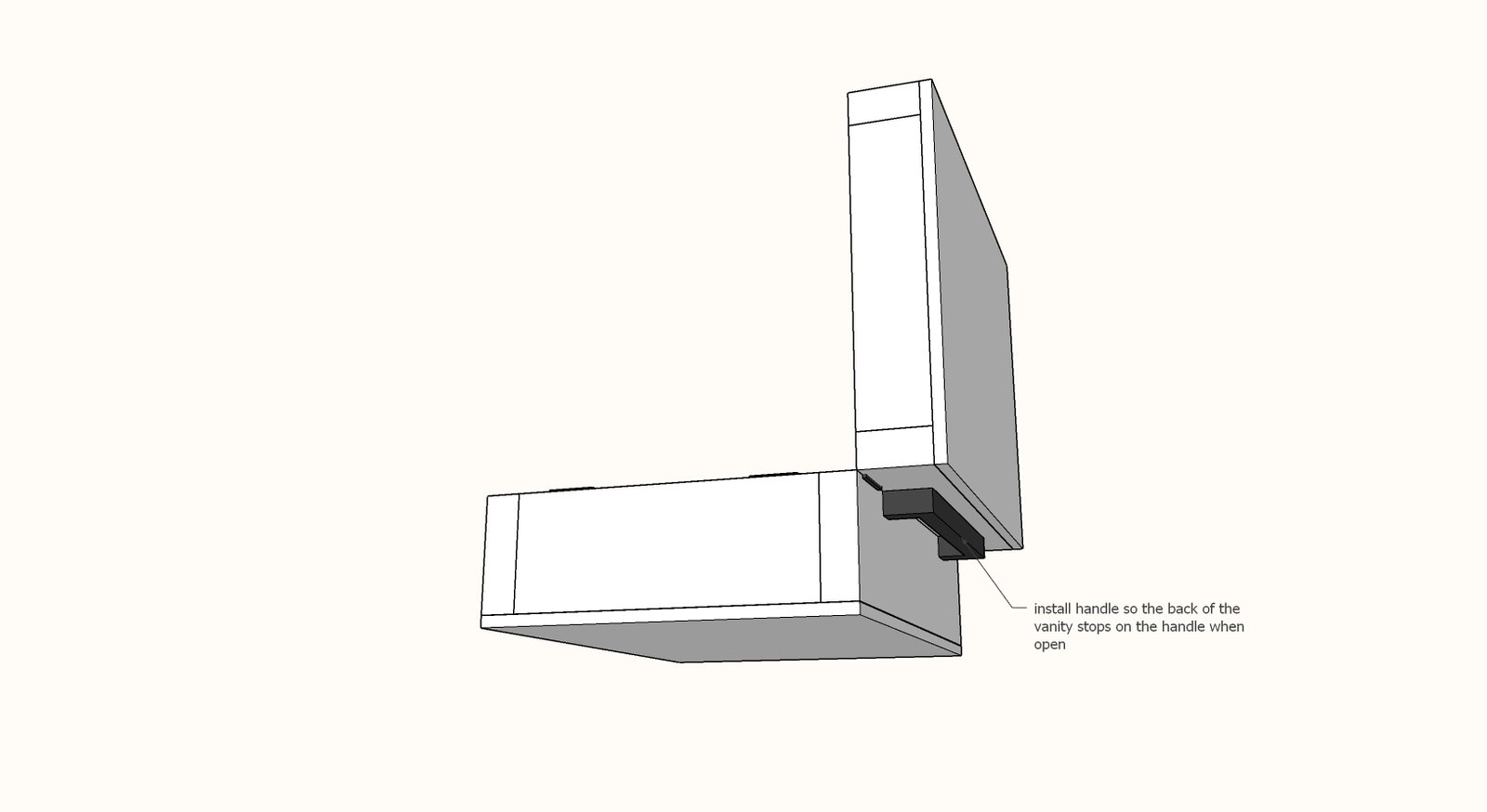

Add the handle on the back positioned so when the vanity is open, the handle works as a prop up.
Add clasp as front to keep vanity shut when not in use.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
