Triple Pedestal Farmhouse Bench

This goregous DIY farmhouse bench matches our Triple Pedestal Farmhouse Table plans. Plans include free step by step diagrams, shopping list and cut list.

Triple Pedestal Farmhouse Bench

Specifications

Project typeBench
Roomdining room
StyleFarmhouse Furniture
DifficultyIntermediate

Dimensions

Use the size-specific shopping and cut lists below.

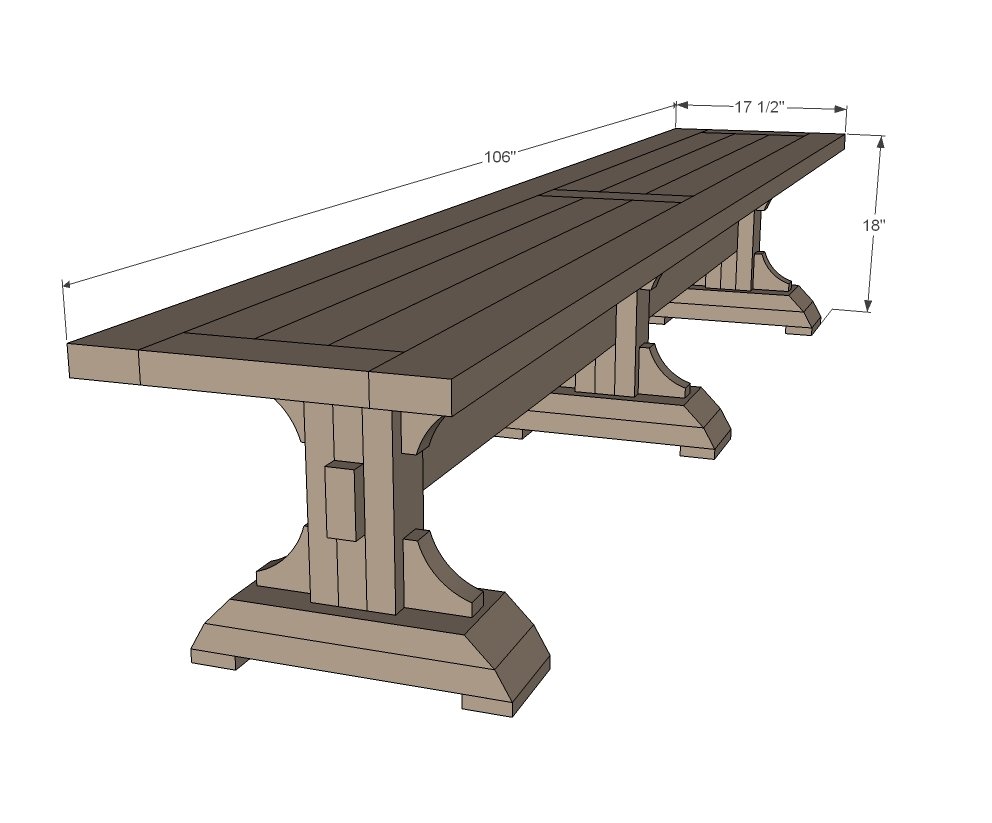

Triple Pedestal Farmhouse Bench dimension diagram 1

Shopping List

  • 3 - 2x4 @ 8 feet long
  • 2 - 2x4 @ 9 feet long (try 9’ studs or 10 footers)
  • 2 - 2x6 @ 8 feet long
  • 1 - 1x3 @ 4 feet long
  • 3 - 1x4 OR 2x4 @ 8 feet long (for the bench top)
  • 2” brad nails
  • 2 1/2” and 3” self tapping wood screws
  • Wood glue
  • Pocket hole screws for the top: 2 1/2” for 2x4s or 1 1/4” for 1x4s

Cut List

LEGS

  • 6 - 2x4 @ 11 1/4”
  • 6 - 2x4 @ 3 7/8”
  • 6 - 2x6 @ 15 1/4” (both ends beveled at 45 degrees off square longest point, not parallel)
  • 12 - 2x4 @ 3 1/2” (cut in arch shape)
  • 3 - 2x6 @ 17” (both ends beveled at 30 degrees off square longest point not parallel)
  • 6 - 1x3 @ 5 1/2” STRETCHER
  • 1 - 2x4 @ 90 1/2”

TOP

  • 2 - 2x4 @ 106”
  • 3 - 2x4 @ 10 1/2”
  • 6 - 1x4 or 2x4 @ 47 3/4”

Tools

  • measuring tape
  • square
  • pencil
  • safety glasses
  • hearing protection
  • kreg-jig
  • drill
  • jigsaw
  • compound miter saw
  • nailer
  • sander

Step-by-step Instructions

1

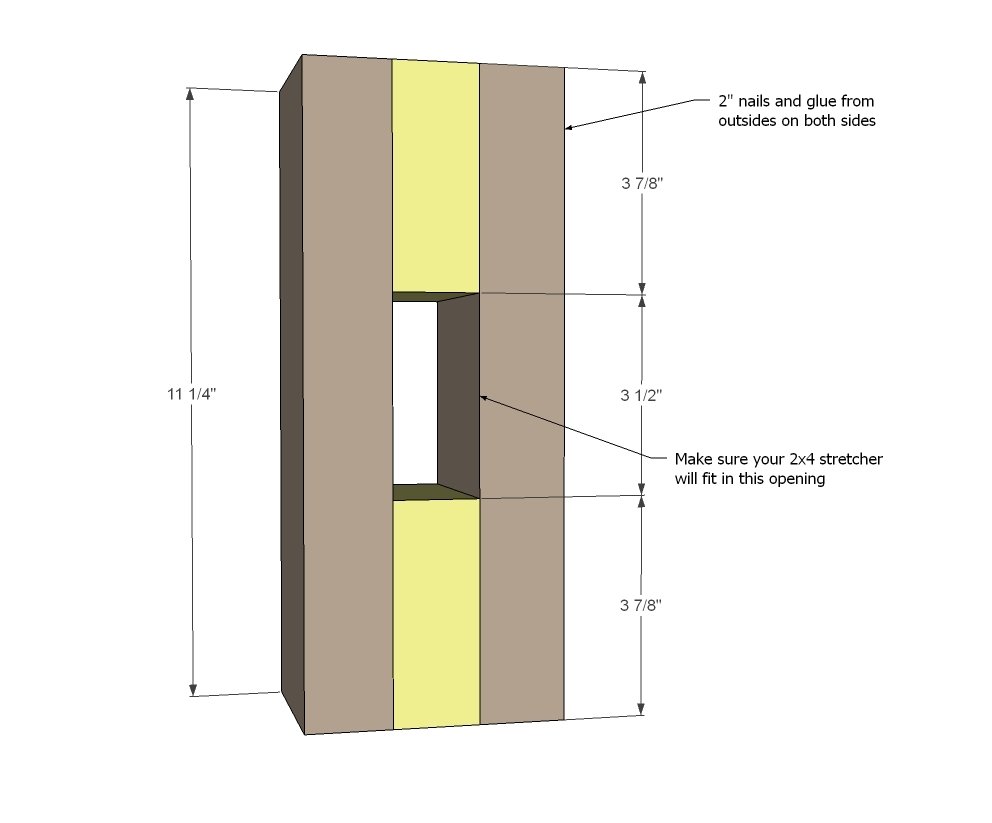

Step 1

Lets start in the center and work our way outward. You'll be building three pedestal bases per each bench. For these, glue and nails will do the trick. Make sure you can get your stretcher in the center opening.

Triple Pedestal Farmhouse Bench — step 1
2

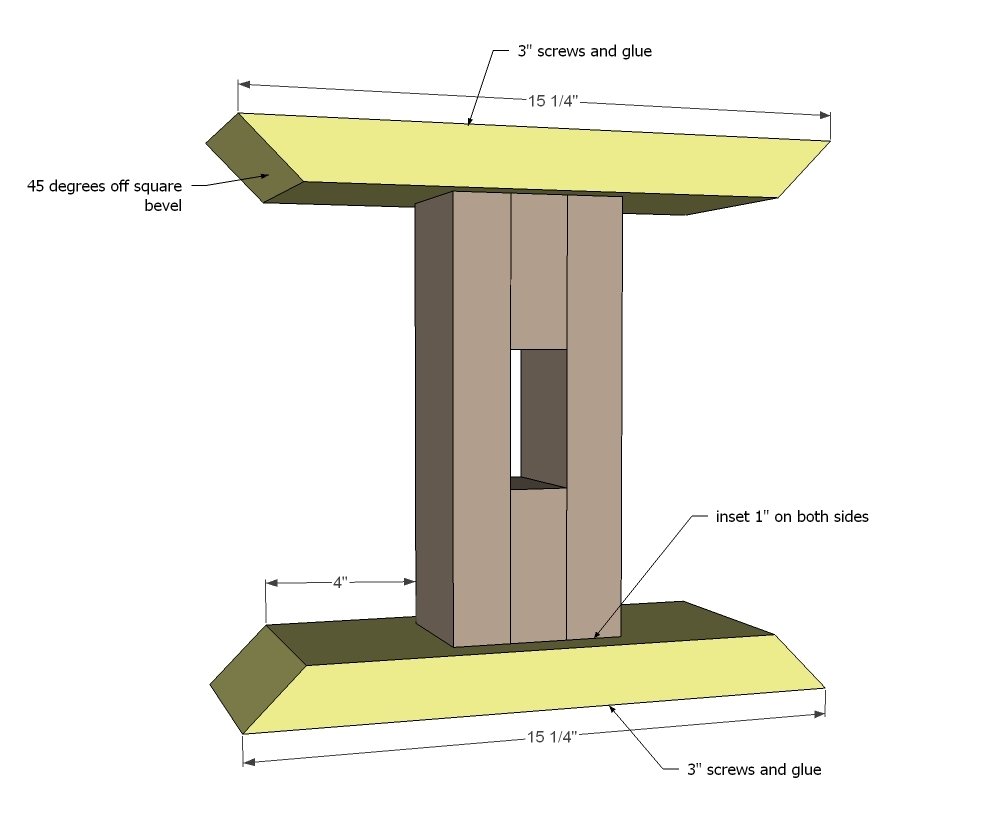

Step 2

Now add the top and bottom.

Triple Pedestal Farmhouse Bench — step 2
3

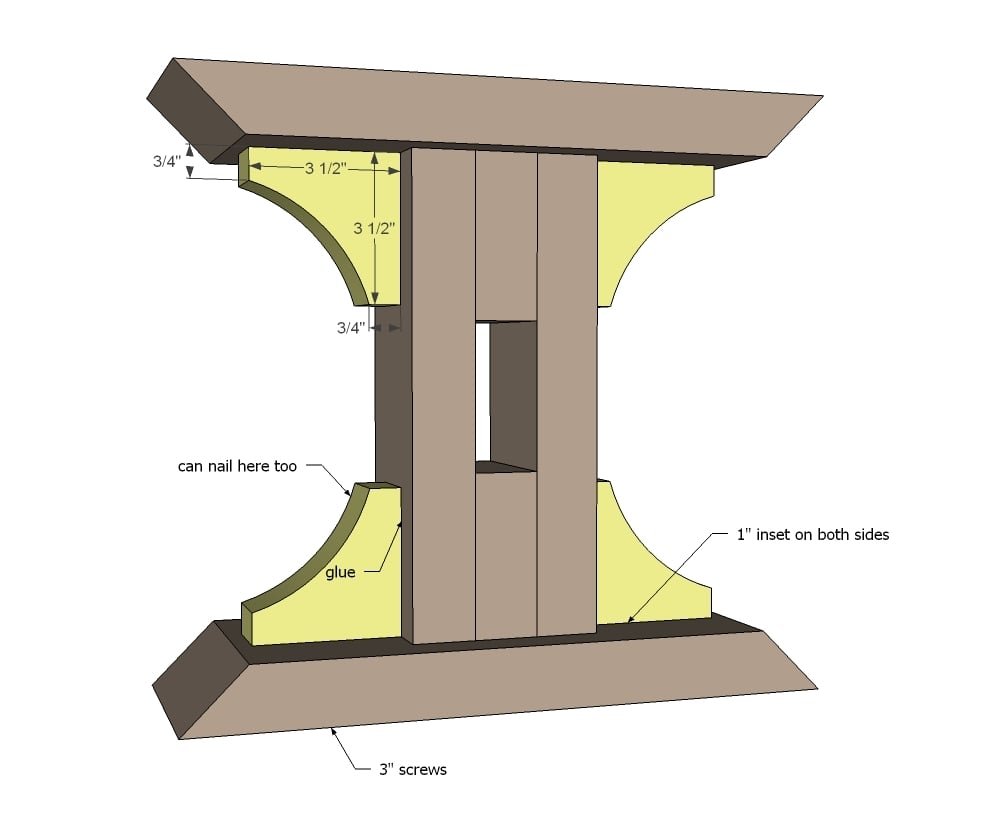

Step 3

Cut out with jigsaw and sand until smooth. Attach with glue and nails. NOTE: These could potentially be attached before step 1 from the insides - it's up to you.

Triple Pedestal Farmhouse Bench — step 3
4

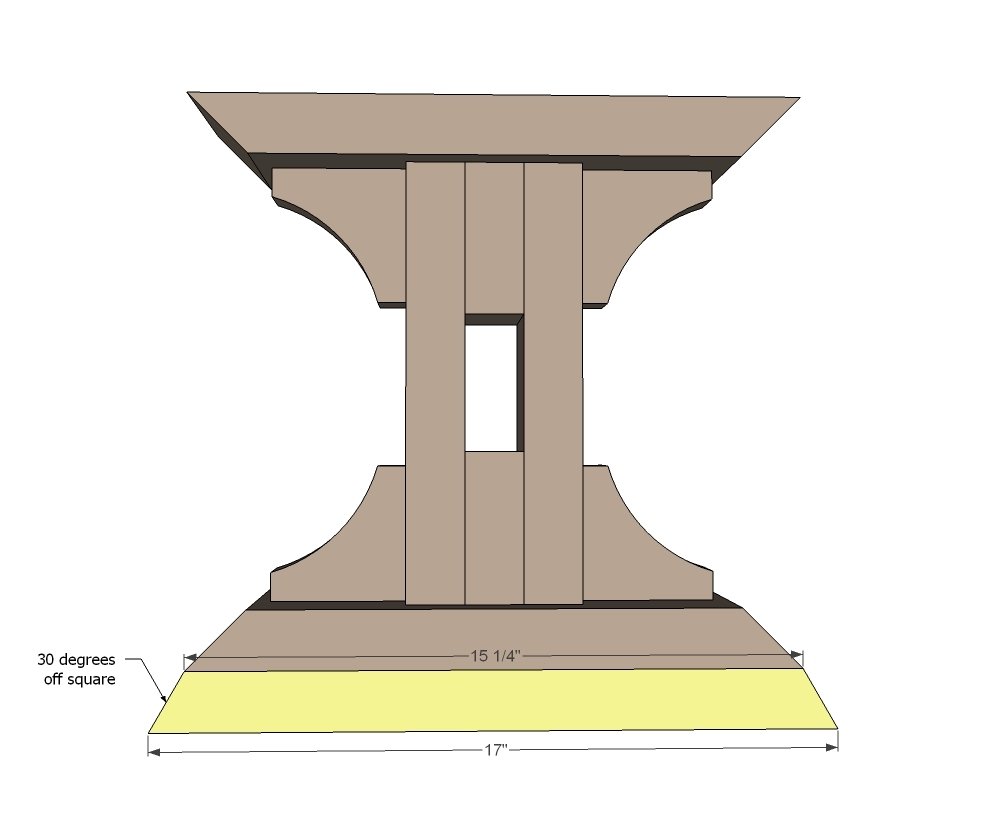

Step 4

Now add the bottom to the pedestals.

Triple Pedestal Farmhouse Bench — step 4
5

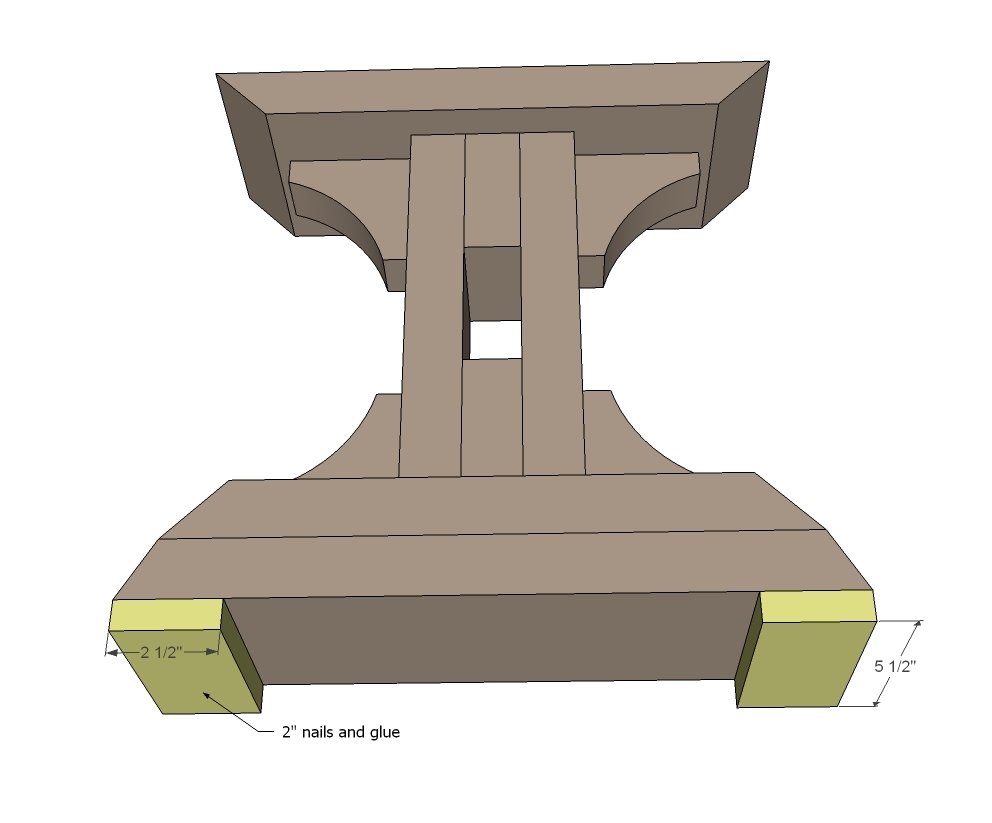

Step 5

Nail and glue the feet to the bottom of the bench. The feet will help the bench rest on "points" instead of rocking. We also recommend felt pads to protect your floors.

Triple Pedestal Farmhouse Bench — step 5
6

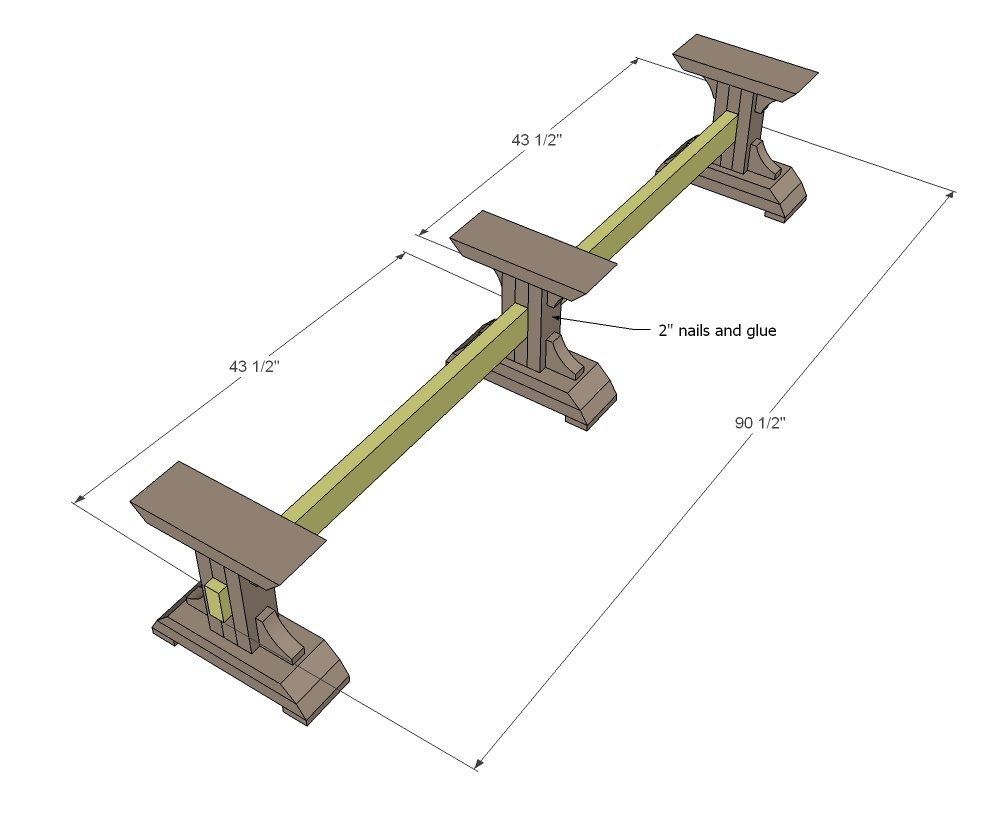

Step 6

Thread through center stretcher and attach pedestals to center stretcher.

Triple Pedestal Farmhouse Bench — step 6
7

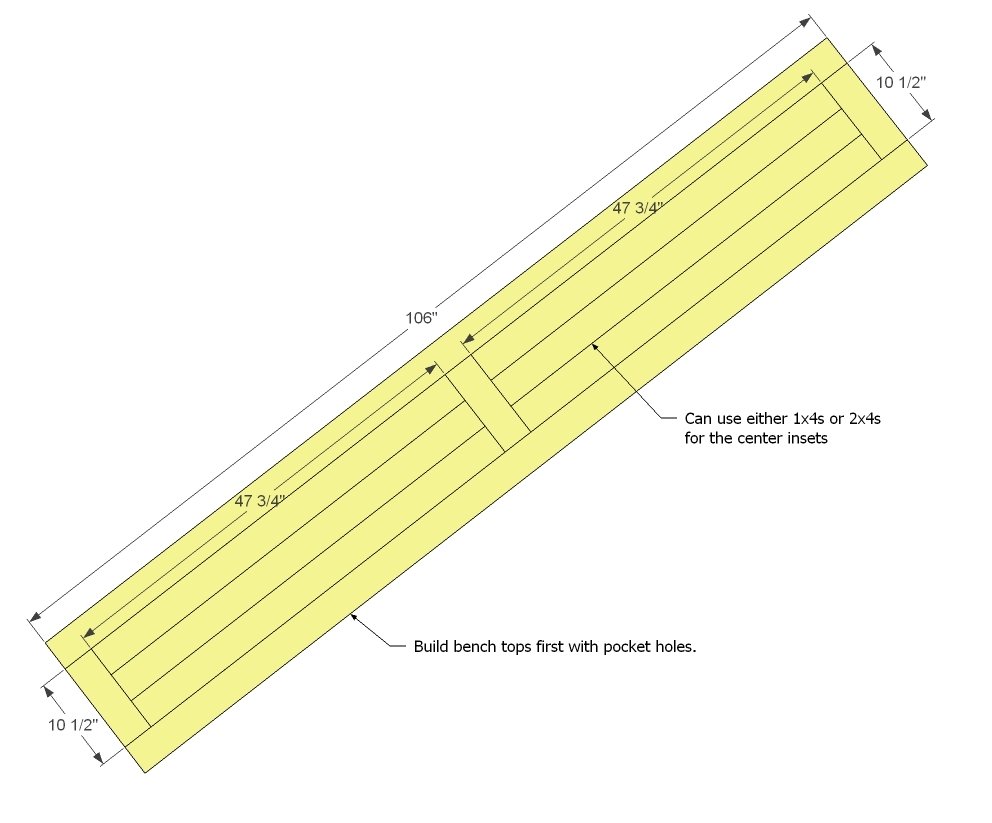

Step 7

Build top first with pocket holes.

Triple Pedestal Farmhouse Bench — step 7
8

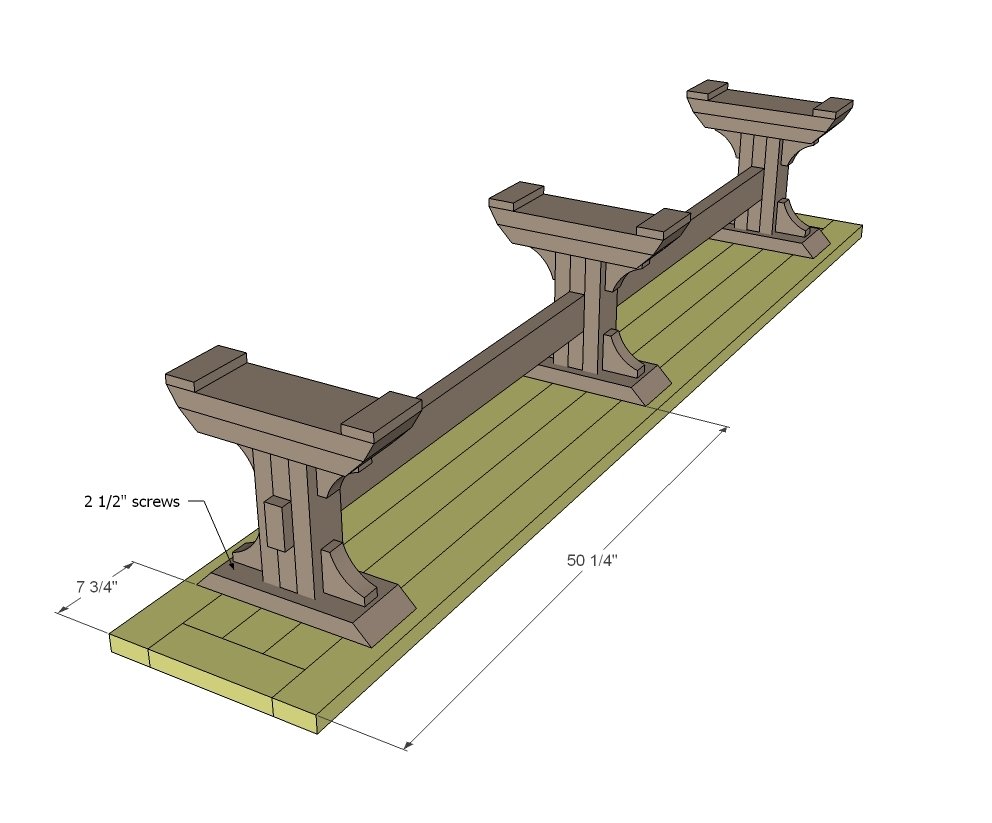

Step 8

Attach pedestal bases to the top and you are done with one bench!

Triple Pedestal Farmhouse Bench — step 8
9

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
