Under Loft Bed Desk System with Storage

Convert space under a loft bed into storage and a desktop space. Simple plans even have a spot to hide a cpu! Works with the loft bed and the loft bed big bookcase plans

Under Loft Bed Desk System with Storage

Specifications

Project typeBeds and Bed Frames
RoomBedroom
StyleChildren's and Kid's Room Furniture and Toy Plans
DifficultyIntermediate
Estimated cost$50 - $100

Dimensions

Use the size-specific shopping and cut lists below.

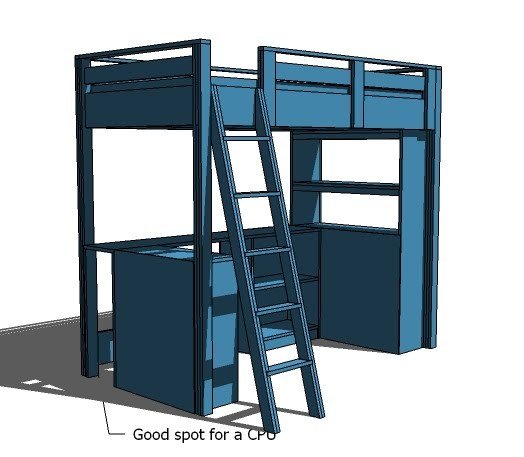

Under Loft Bed Desk System with Storage dimension diagram 1

Shopping List

  • 1 – 1×4, 6′ Length
  • 3 – 1×12, 8′ Length
  • 1 – 1×12, 6′ Length (Desktop)
  • 1 – 1×3, 8′ Length
  • 1/4″ Plywood
  • 2″ self tapping wood scews
  • 1 1/4″ self tapping wood screws (or brad nails and wood glue)
  • Wood Glue
  • Wood Filler
  • Finishing Supplies

Cut List

  • 4 – 1×12 @ 29 1/4″ (Bookshelf Sides)
  • 4 – 1×12 @ 24 1/2″ (Bookshelf Shelves)
  • 1 – 1×12 @ 26″ (Small Bookshelf Desktop)
  • 1 – 1×12 @ 67″ (Large Desktop)
  • 2 – 1×3 @ 24 1/2″ (Footer)
  • 2 – 1/4″ Plywood @ 26″ x 30″ (Backs)
  • 2 – 1×4 @ 29 1/4″ (Desktop Legs)

Tools

  • measuring tape
  • square
  • pencil
  • safety glasses
  • hearing protection
  • drill
  • circular saw
  • nailer
  • sander

Step-by-step Instructions

1

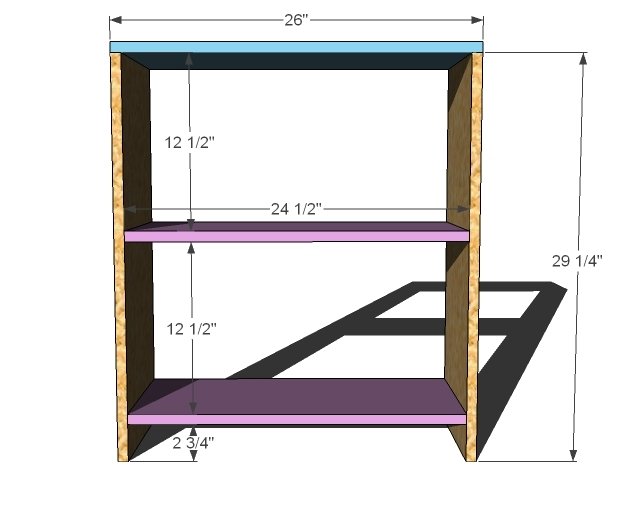

BUILD THE BOX

Build the box as shown above using 2″ screws and glue. Build one as shown above, and the other without the top attached.

Under Loft Bed Desk System with Storage — step 1
2

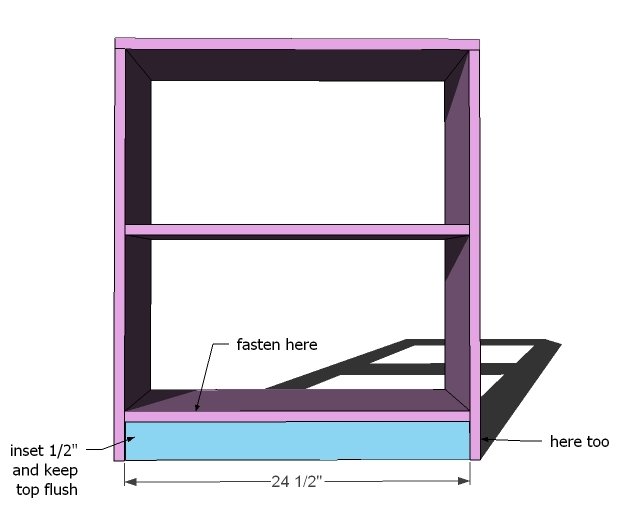

FOOTERS

Attach the footer as shown above, using 2″ screws and glue. Inset the footers 1/2″ and also keep the top edges flush. The bottom edge will be just shy of meeting the ground.

Under Loft Bed Desk System with Storage — step 2
3

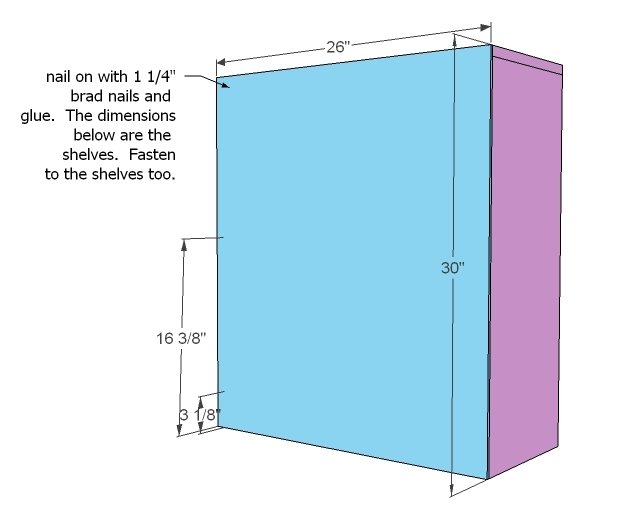

BACKS

Attach the backs to the bookcases. You may need to wait to attach the top in the next step to the second bookcase before adding the backs. Make sure you fasten to the shelves too. Use glue and 1 1/4″ nails.

Under Loft Bed Desk System with Storage — step 3
4

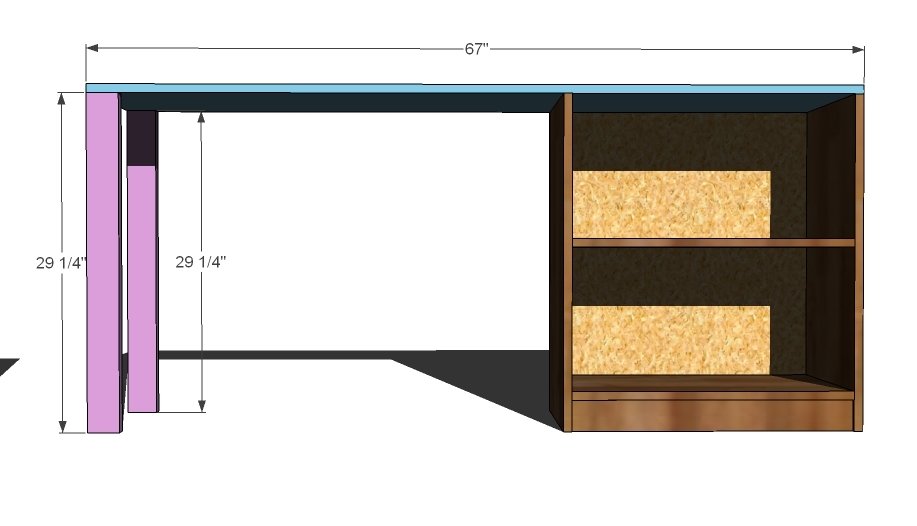

LARGE DESKTOP

Attach the large desktop to the top of the second bookcase, and the legs too. Use 2″ screws and glue.

Under Loft Bed Desk System with Storage — step 4
5

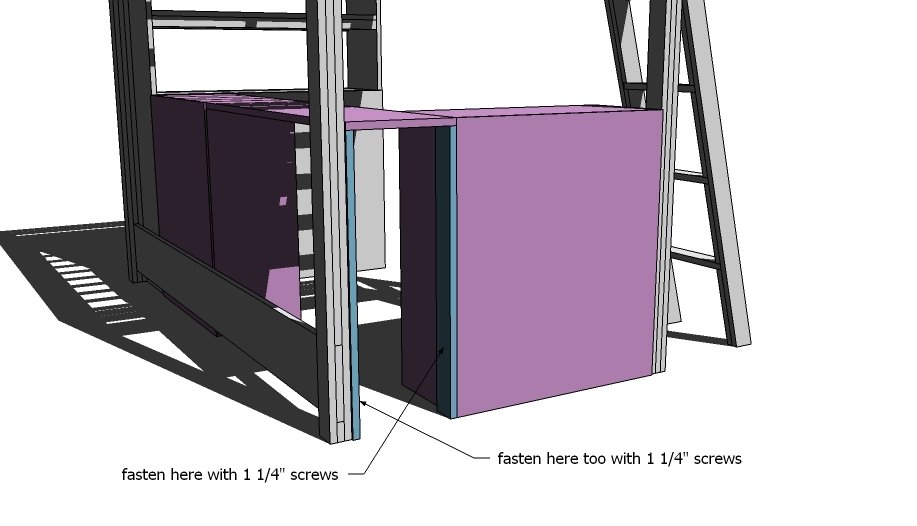

Step 5

Under Loft Bed Desk System with Storage — step 5
6

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
