Vintage Bar Stool
Are you needing barstools, but not willing to pay hundreds of dollars for each... and you need several?
Specifications
| Project type | Stools |
|---|---|
| Room | kitchen |
| Style | Cottage Style Furniture Plans |
| Difficulty | Intermediate |

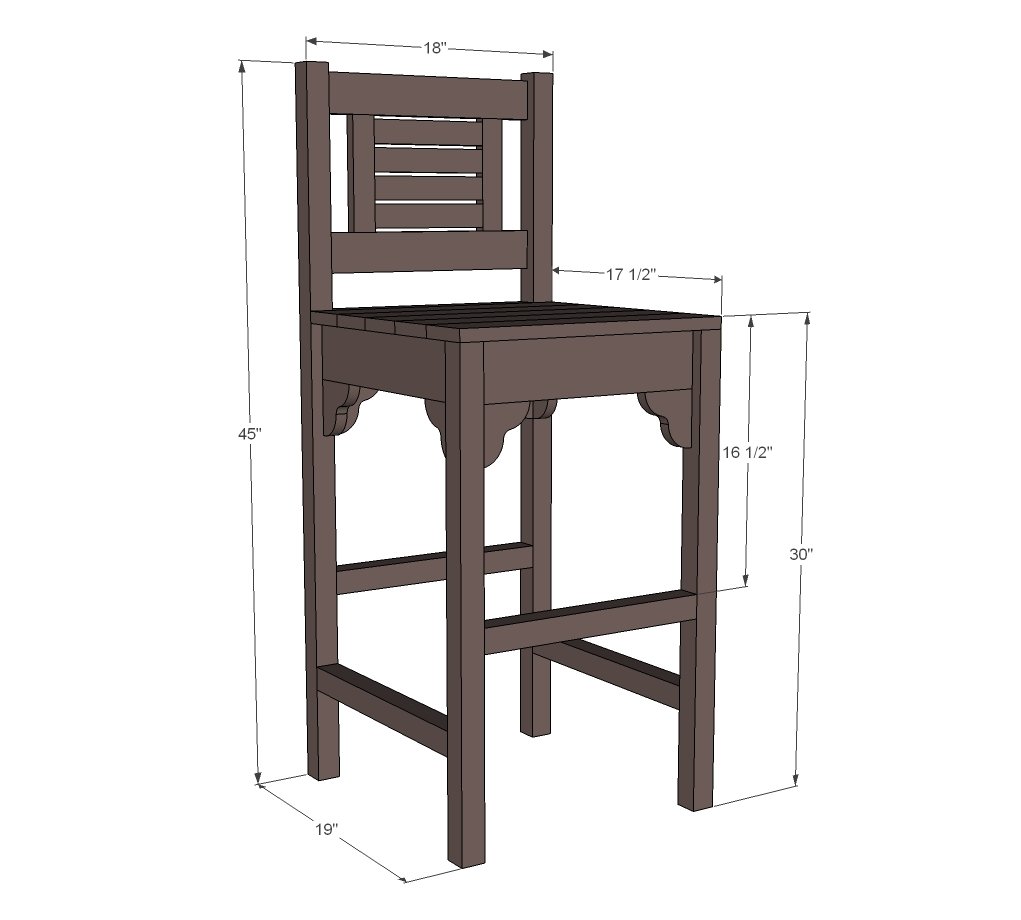

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
1 – 1x2 @ 8 feet long
2 – 2x2 @ 8 feet long
1 – 1x3 @ 3 feet long
2 – 1x4 @ 8 feet long
1 ¼” PH screws
2 ½” PH screws (8)
Wood glue
Cut List
4 – 1x2 @ 8”
2 – 1x2 @ 7 ¼”
2 – 1x3 @ 15”
1 – 1x2 @ 15”
2 – 1x4 @ 15”
2 – 2x2 @ 45”
2 – 1x4 @ 16”
2 – 2x2 @ 29 ¼”
2 – 2x2 @ 15”
2 – 2x2 @ 16”
5 – 1x4 @ 18”
8 – 1x4 @ 3 ½”
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- kreg-jig
- drill
- circular saw
- jigsaw
- sander
Step-by-step Instructions

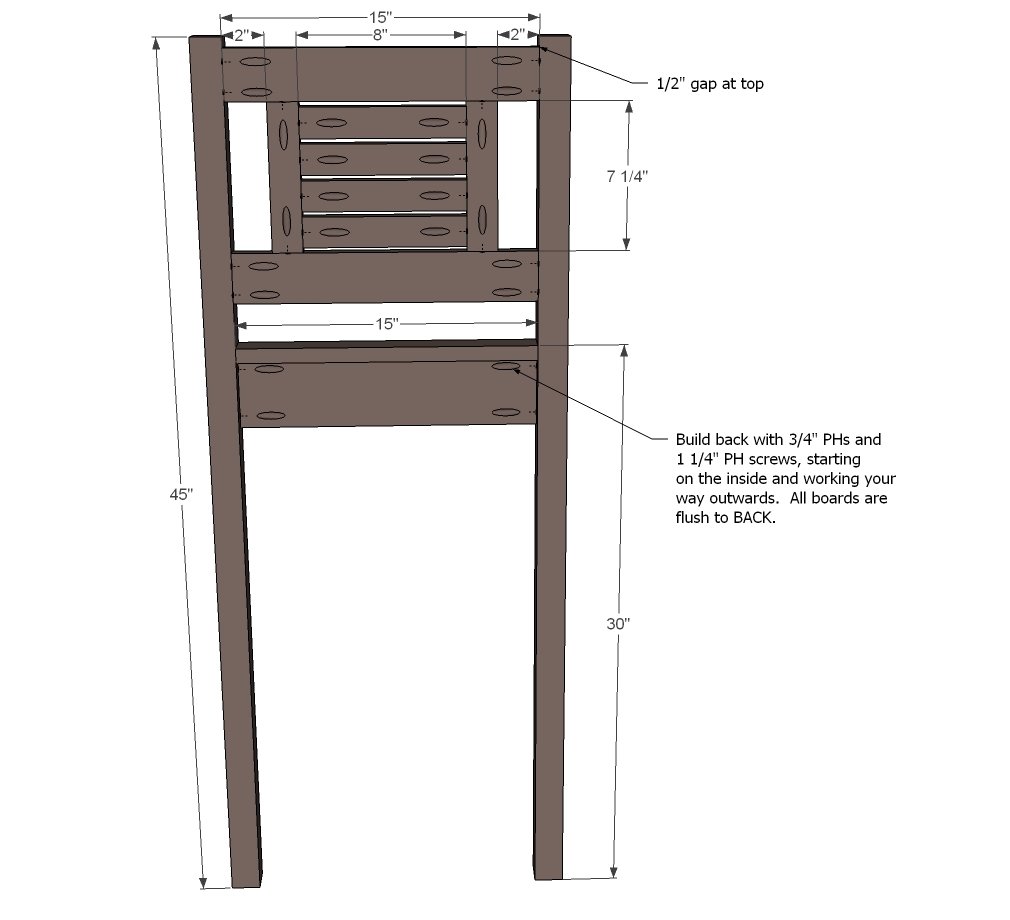

Step 1
Build the back as shown above.

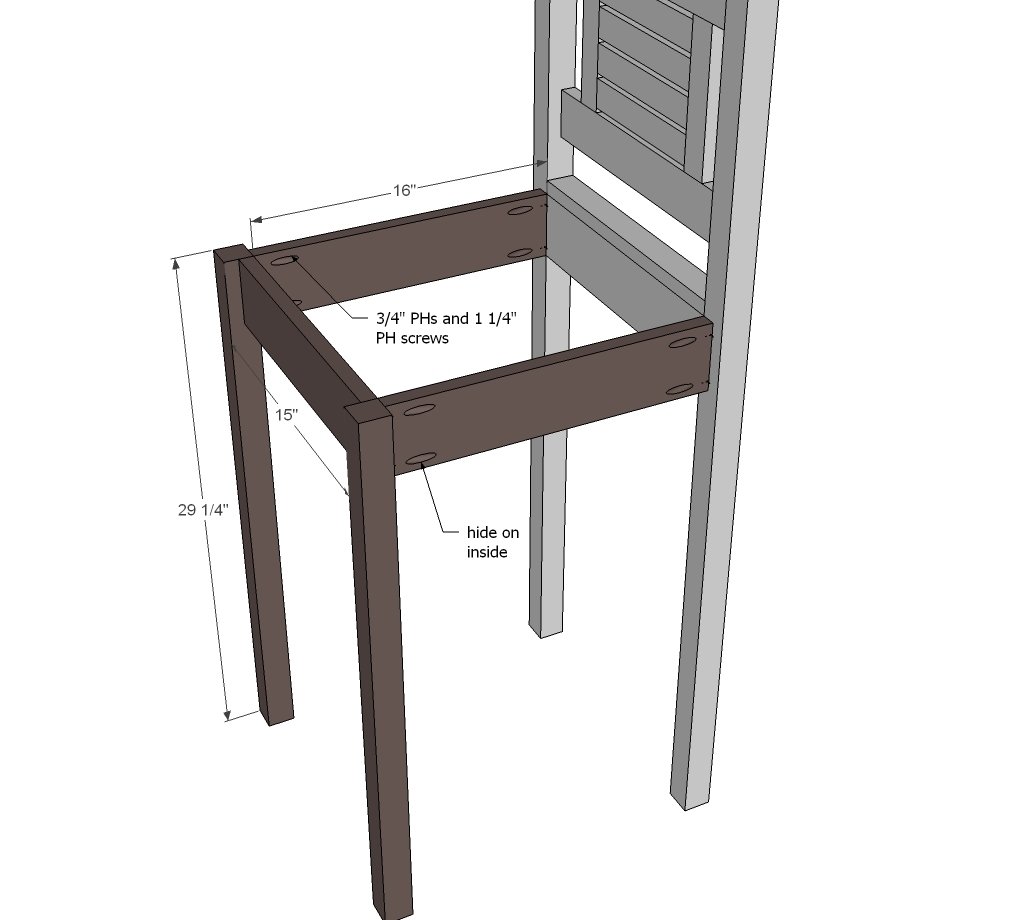

Step 2
TIP: If you drill ¾” PHs facing UPWARD on inside of aprons, you can use those PHs later on to attach seat. Also, if you feel the stool needs it, you can add corner bracing at this step.

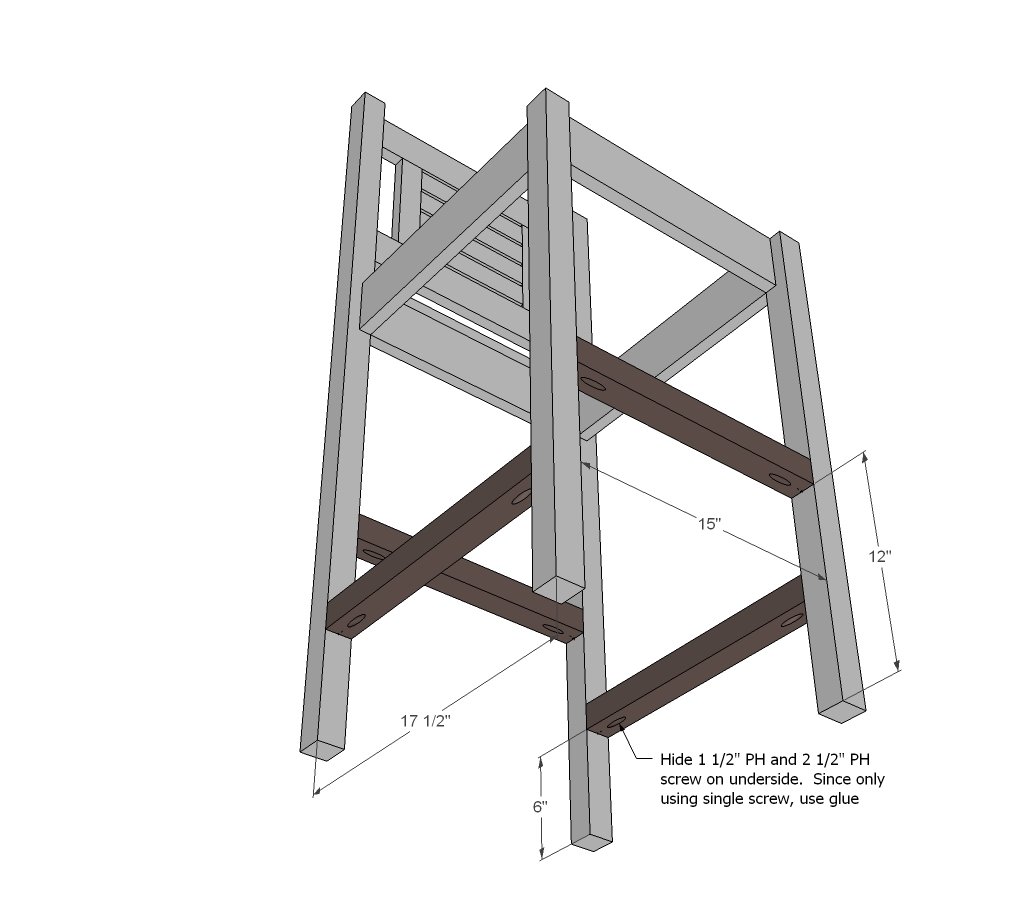

Step 3
Add the stretchers. A tip I learned from Patrick Hosey is to drill a PH on two different sides to create the best joint on a 2x2:)

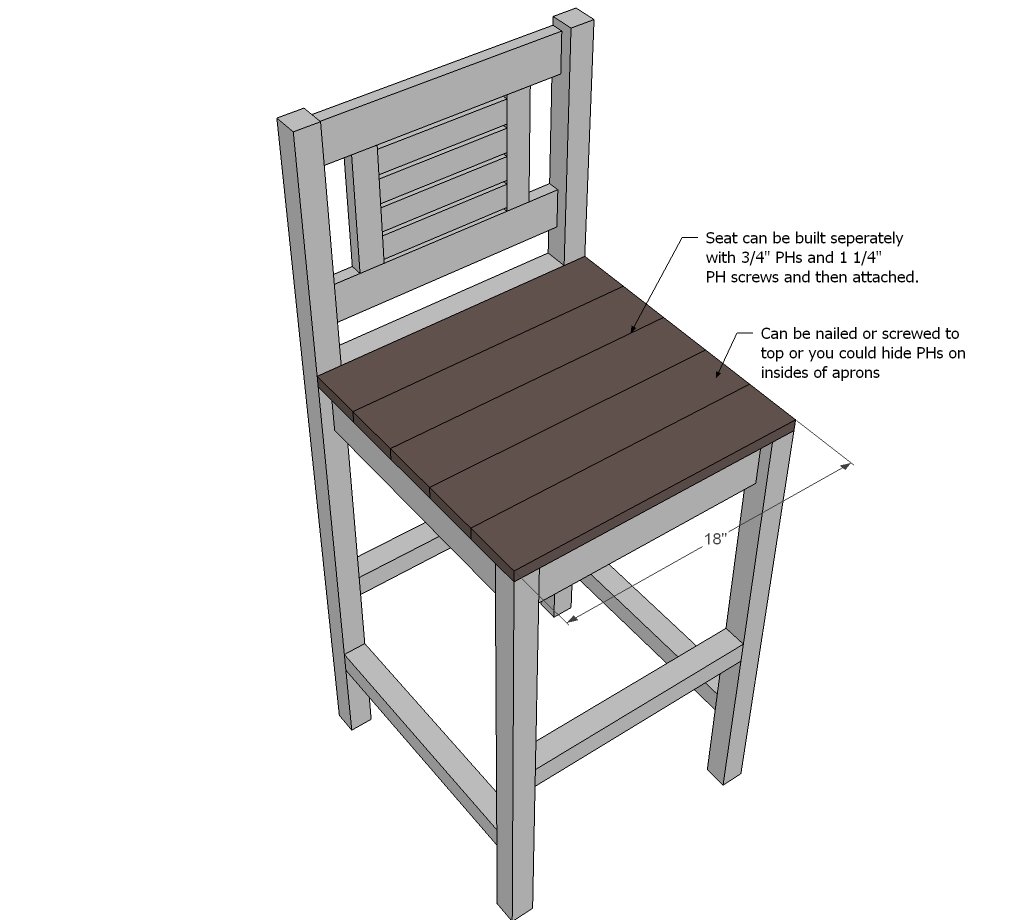

Step 4
Now add the seat. If you followed along and drilled the PHs in the aprons in step 2, attach with 1 1/4" PH screws from underneath.

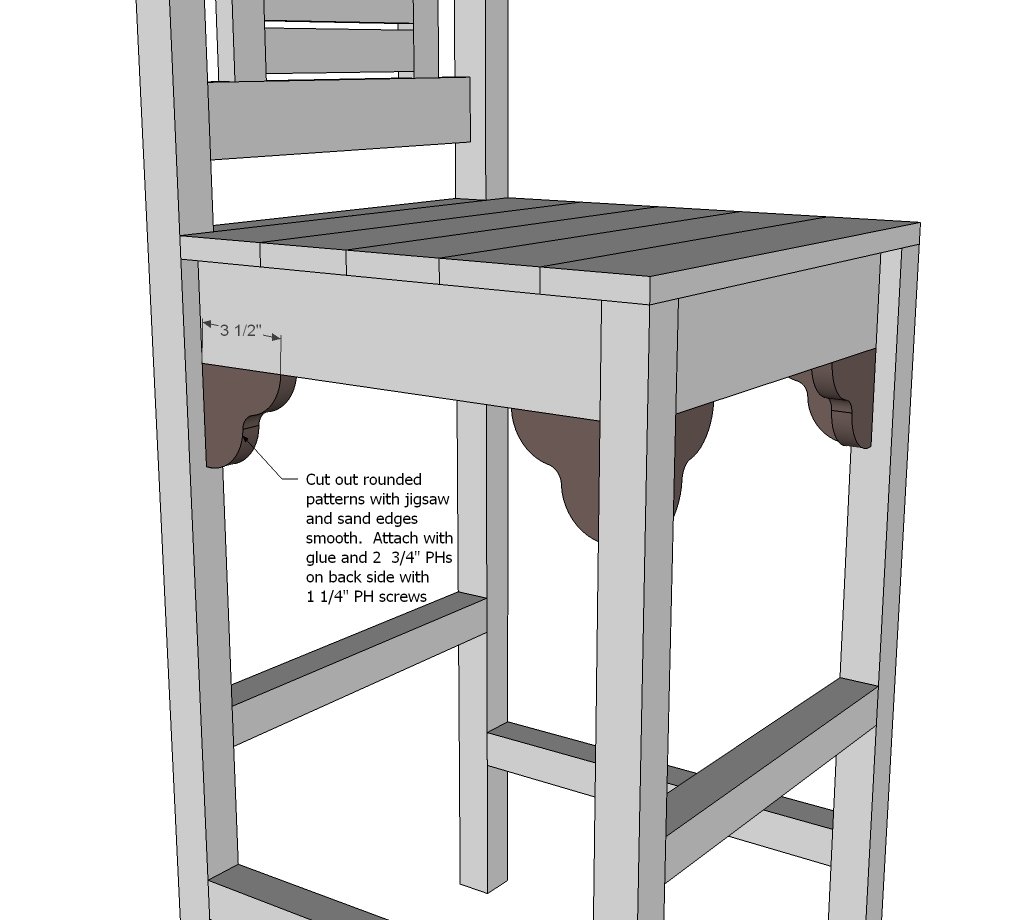

Step 5
Step 6

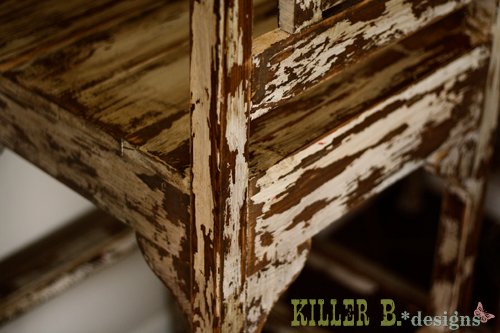

Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
