Wall Cubby Crate Shelves
DIY wall cubbies -
Specifications
| Project type | Crate Plans and Projects Made with Crates |
|---|---|
| Room | Storage Solutions |
| Style | Farmhouse Furniture |
| Difficulty | Intermediate |
| Estimated cost | $20 - $50 |

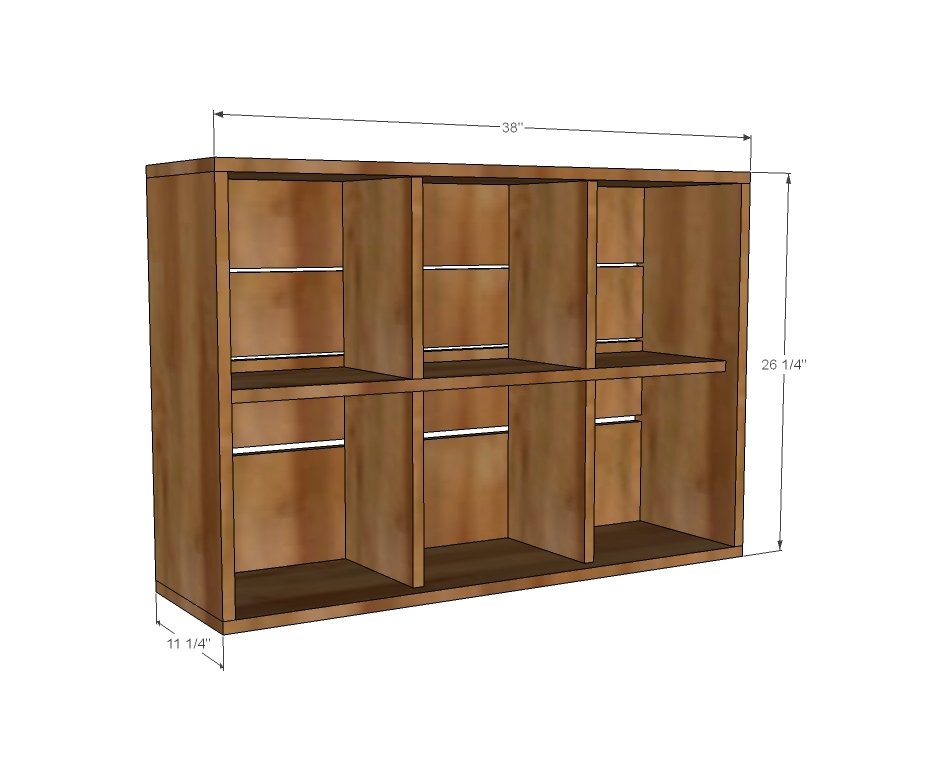

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
1 - 1x12 @ 8 feet long
1 - 1x10 @ 8 feet long
scrap 1x boards (1x3-1x8s) to fill in back at least 36-1/2" long
Cut List
FOR ONE CUBBY SHELF 4 - 1x10 @ 12" (vertical dividers) 1 - 1x10 @ 36-1/2" (middle shelf) 2 - 1x12 @ 38" (top and bottom) 2 - 1x12 @ 24-3/4" (sides)
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- kreg-jig
- drill
- circular saw
- nailer
- sander
Step-by-step Instructions

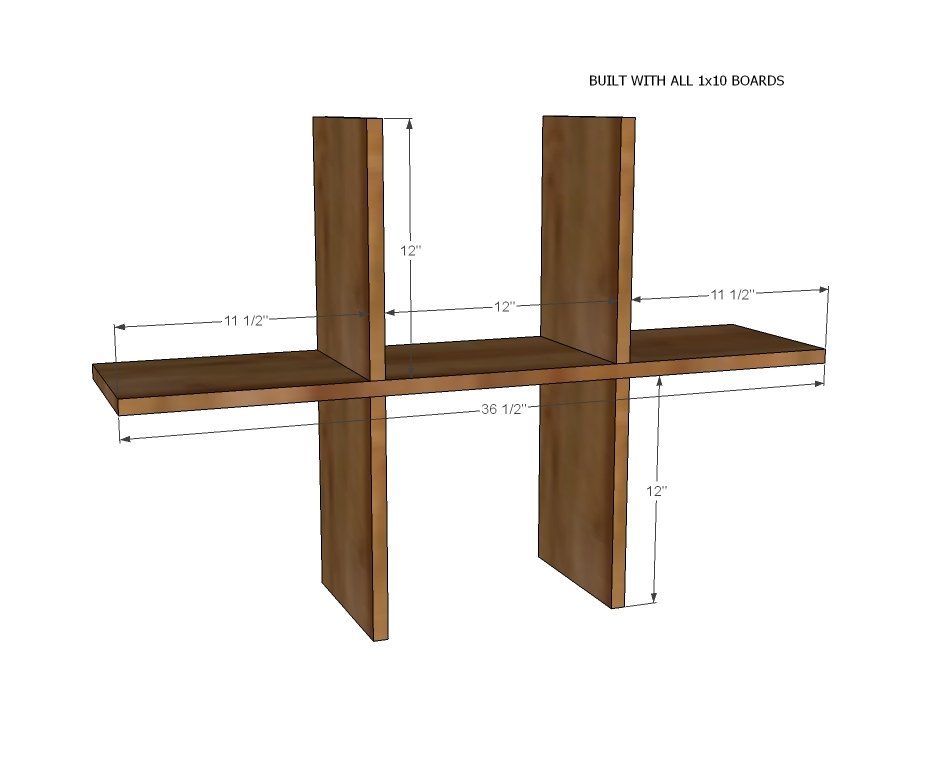

Step 1
Start by building the interior shelf and vertical dividers. I built mine with 3/4" pocket holes and 1-1/4" pocket hole screws.

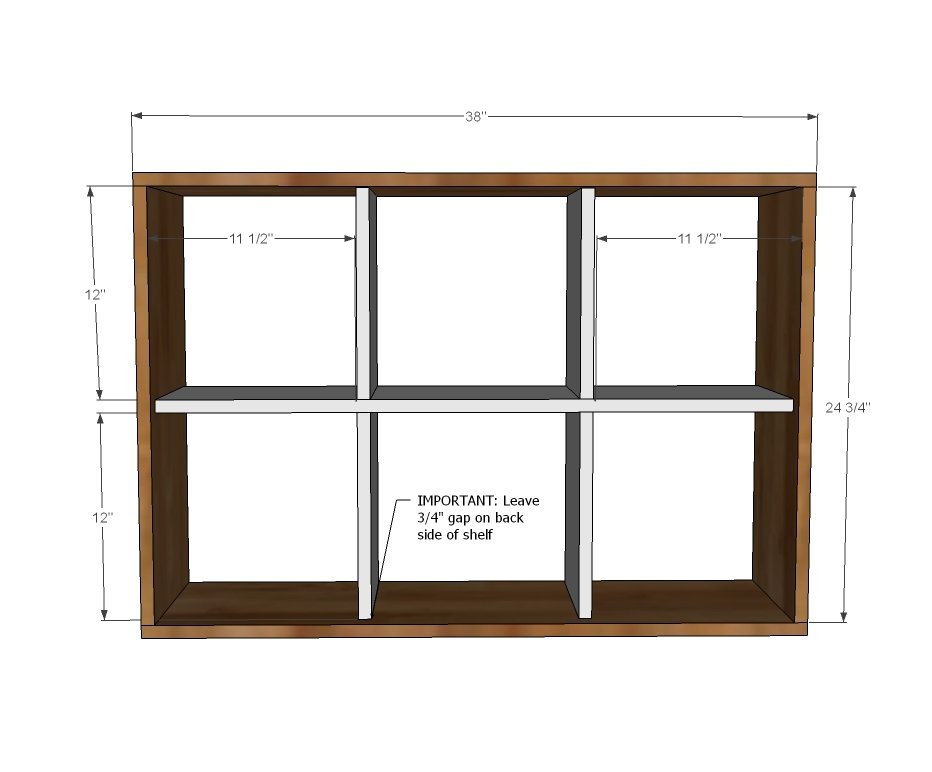

Step 2
Then I built the outer frame, all out of 1x12 boards, again with pocket holes. But since I couldn't fit my drill inside to pocket hole the inner divider pieces to the outer frame, I used glue and 1-1/4" brad nails to attach the outer frame to the inner divider pieces. IMPORTANT - Leave 3/4" gap on the back to allow for the back pieces to sit inset (see next step).

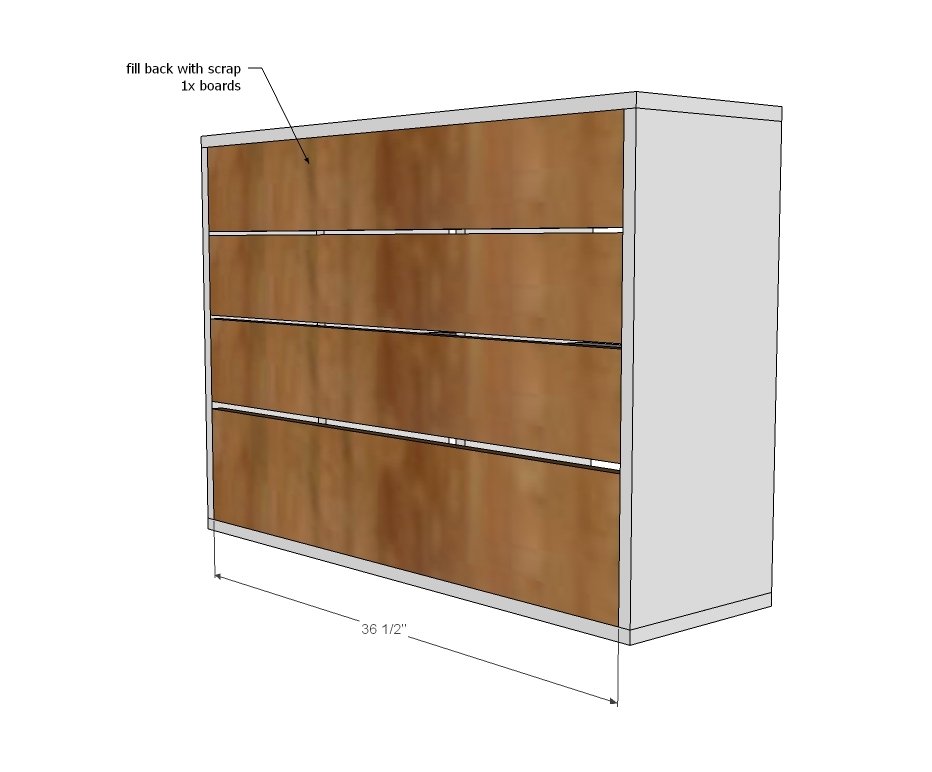

Step 3
Then I just found scrap 1x boards and place in the back, leaving gaps in between. I nailed and glued except for the top board I screwed in place because I used this board to hang the shelf to the wall.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
