Wood Cash Register DIY
Make this cute wood cash register! Simple hinge top. Free
Specifications
| Project type | Toys |
|---|---|
| Room | Kids and Toys |
| Style | Children's and Kid's Room Furniture and Toy Plans |
| Difficulty | Beginner Projects |

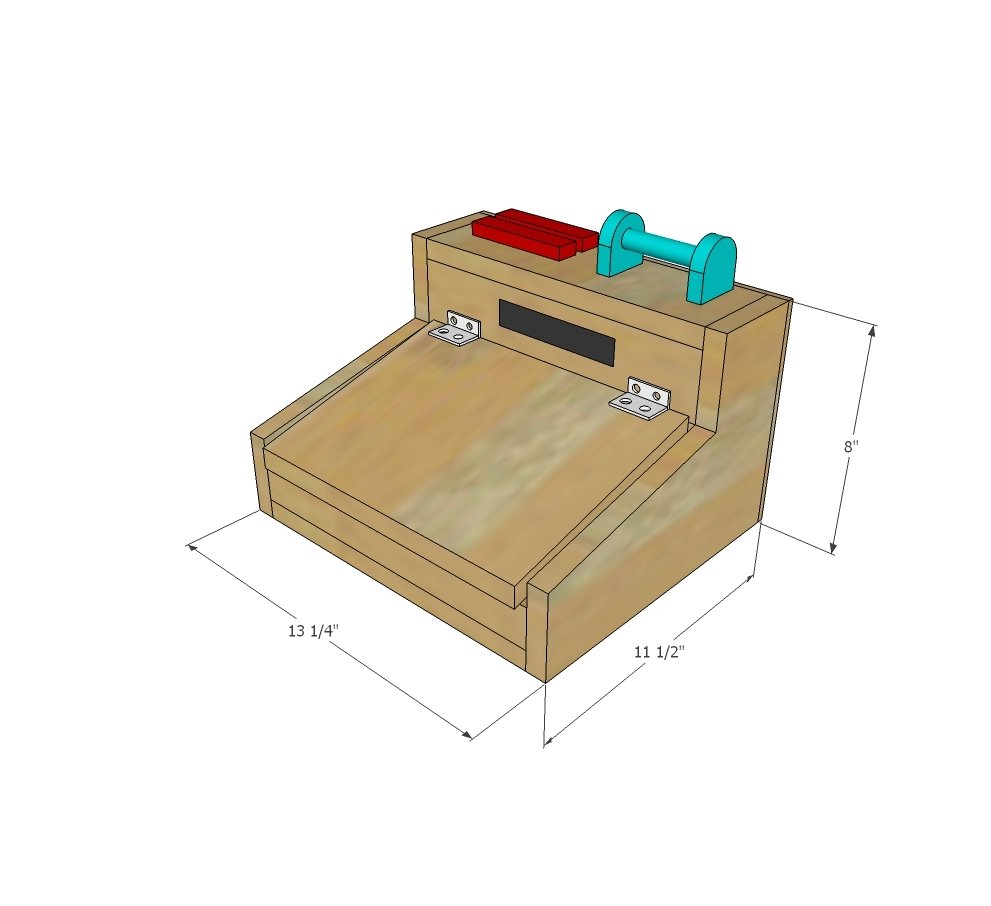

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
38" of 1x12 boards
12" of 1x2
12" of 1x3
12" of 1x4
1/4" plywood 13-1/4" x 8"
1 set of hinges
soft close pads
wood glue
1-1/4" and 3/4" nails or your preferred method of fastening
Cut List
2 - 1x12 @ 8" - sides
1 - 1x12 @ 11-3/4" - bottom
1 - 1x2 @ 11-3/4" front
1 - 1x4 @ 11-3/4" - top
1 - 1x3 @ 11-3/4" - top front
1 - 1/4" plywood @ 13-1/4" x 8" - back
1 - 1x12 @ 8-1/4" both ends bevel cut at 15 degrees off square (optional) hinged top
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- drill
- jigsaw
- compound miter saw
- nailer
- sander
Step-by-step Instructions
Step 1

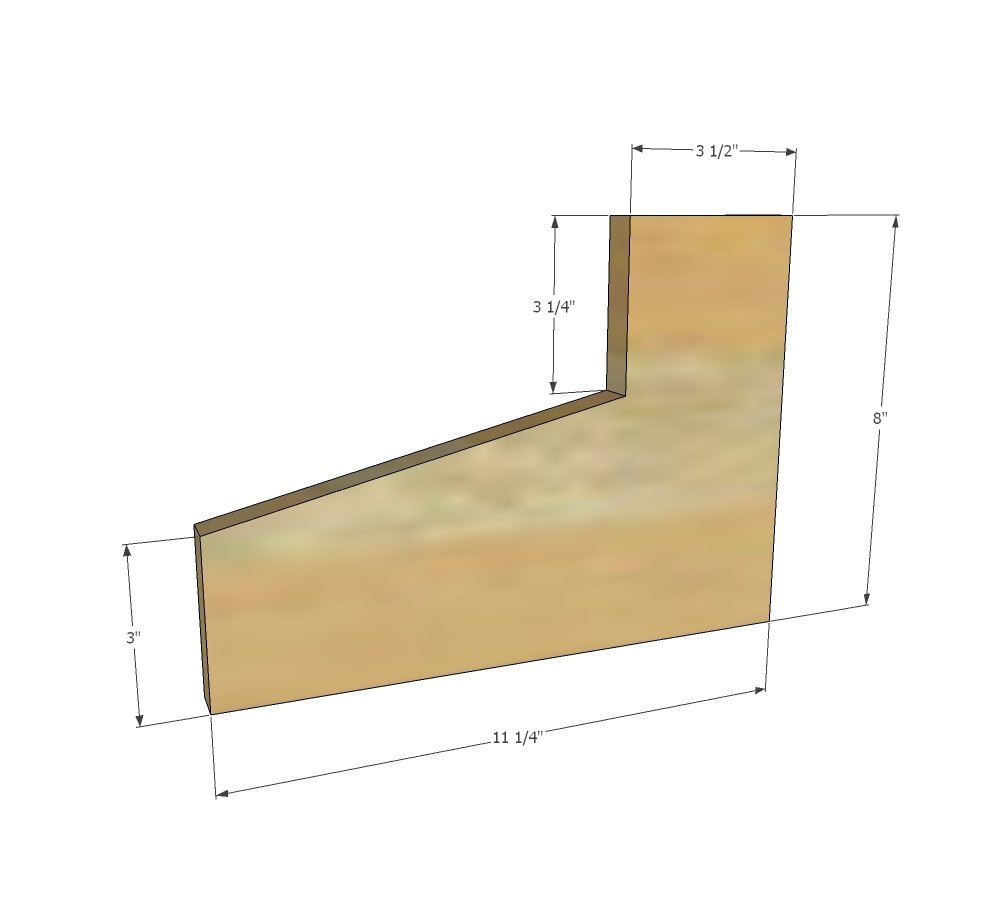

From the 1x12 side pieces, mark out the side profiles. Cut carefully with a jigsaw and sand all edges.
Step 2

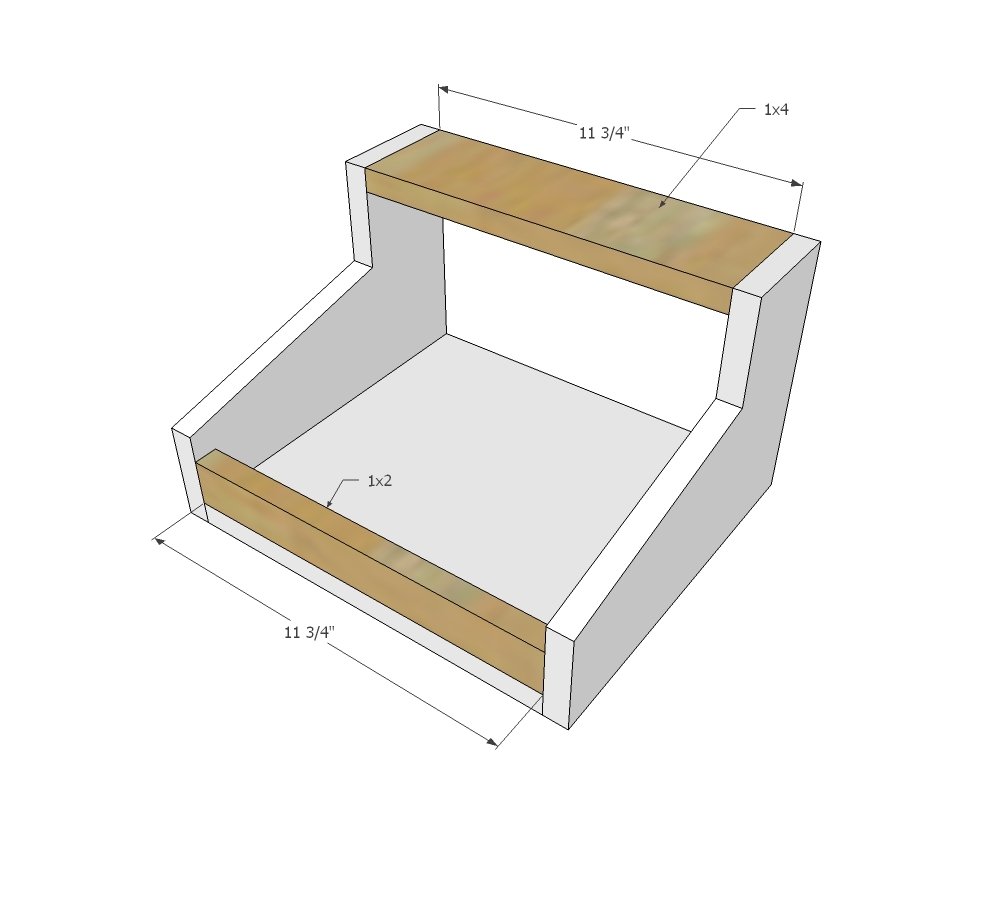

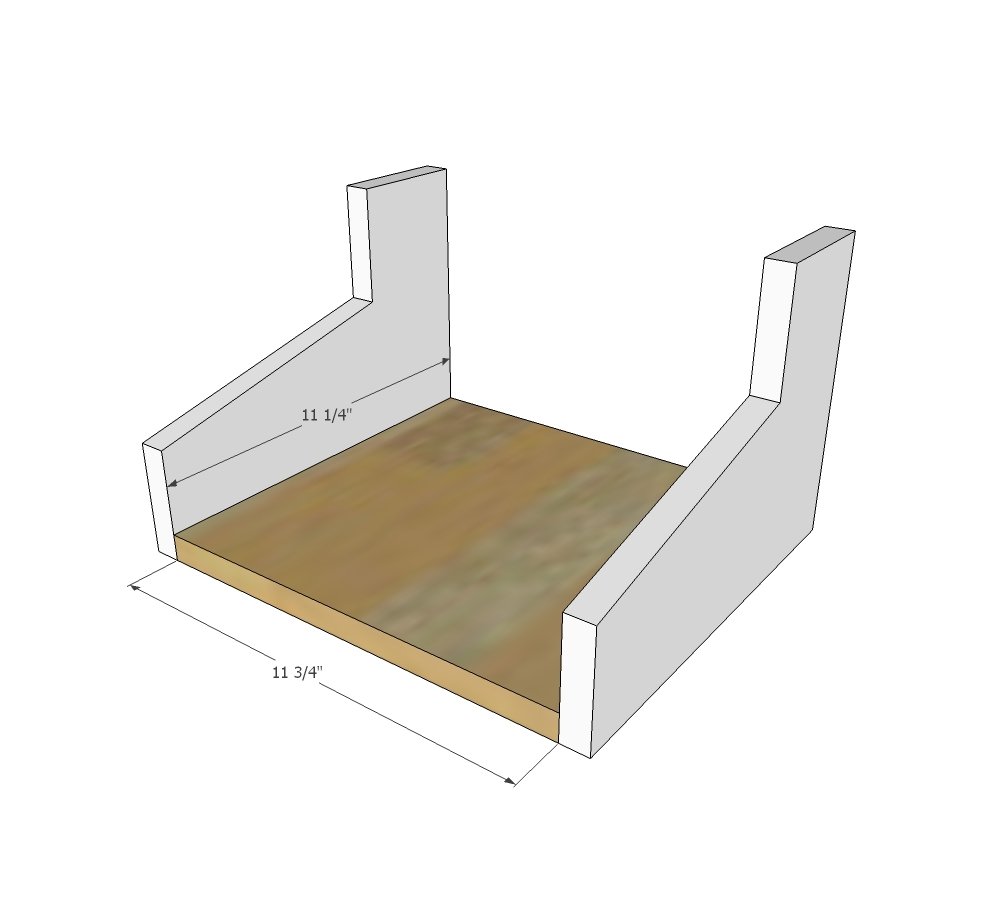

Attach sides to the bottom. You can use Kreg Jig, screws or 1-1/4" nails and glue to attach (all joints are reinforced).
Attach top and front, 1-1/4" nails and wood glue or wood screws.
NOTE: The front piece should be notched out as Jaime did to prevent a hard closing hazard.
Step 4

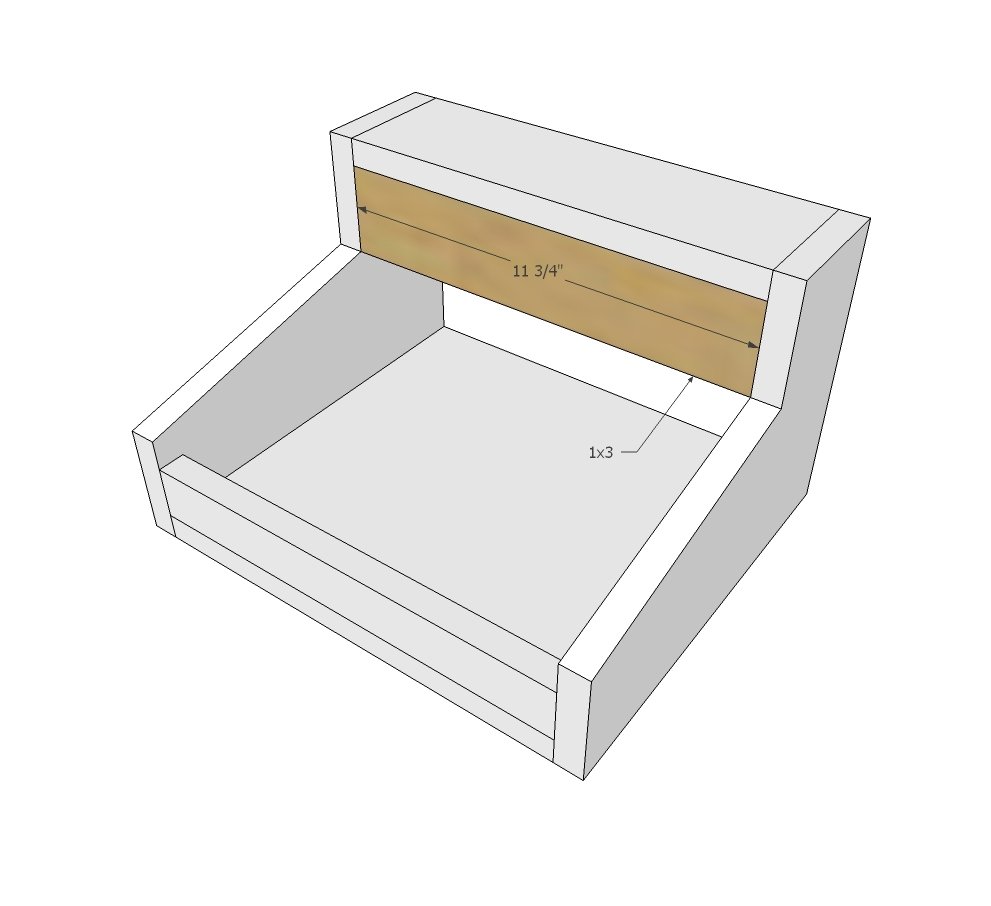

Attach top front piece as you did the top and front.

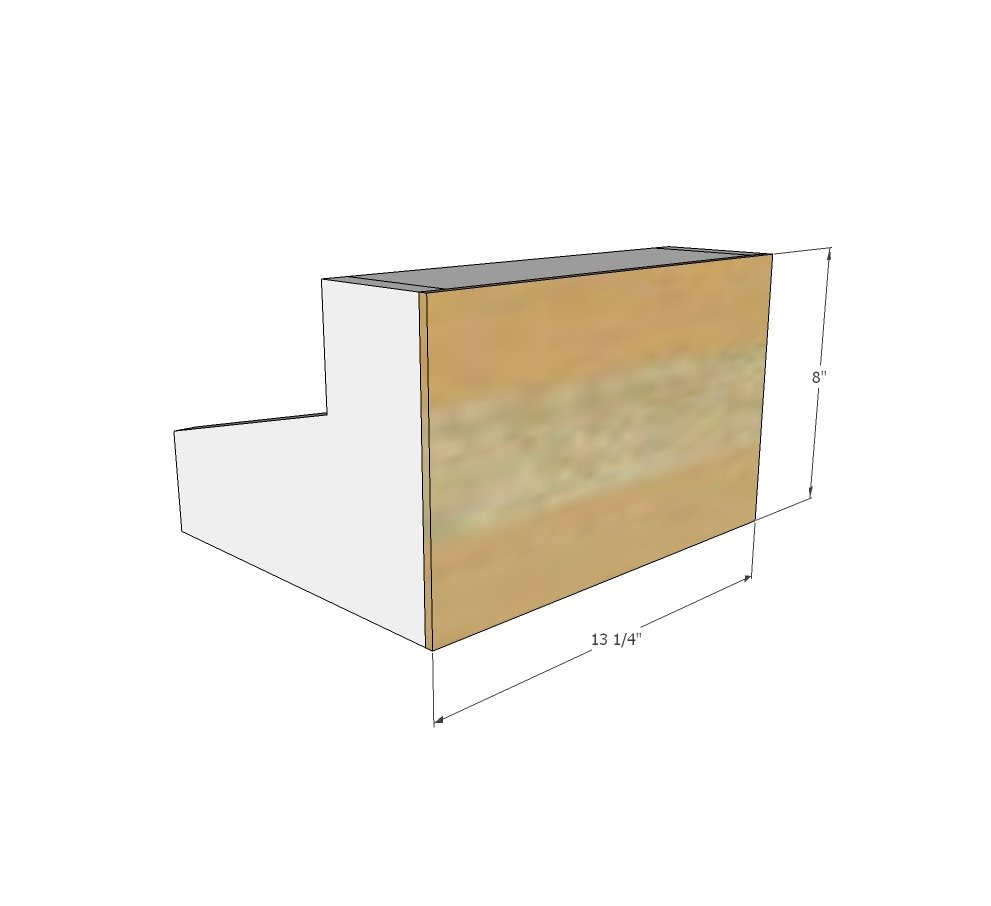

Step 5
Step 6

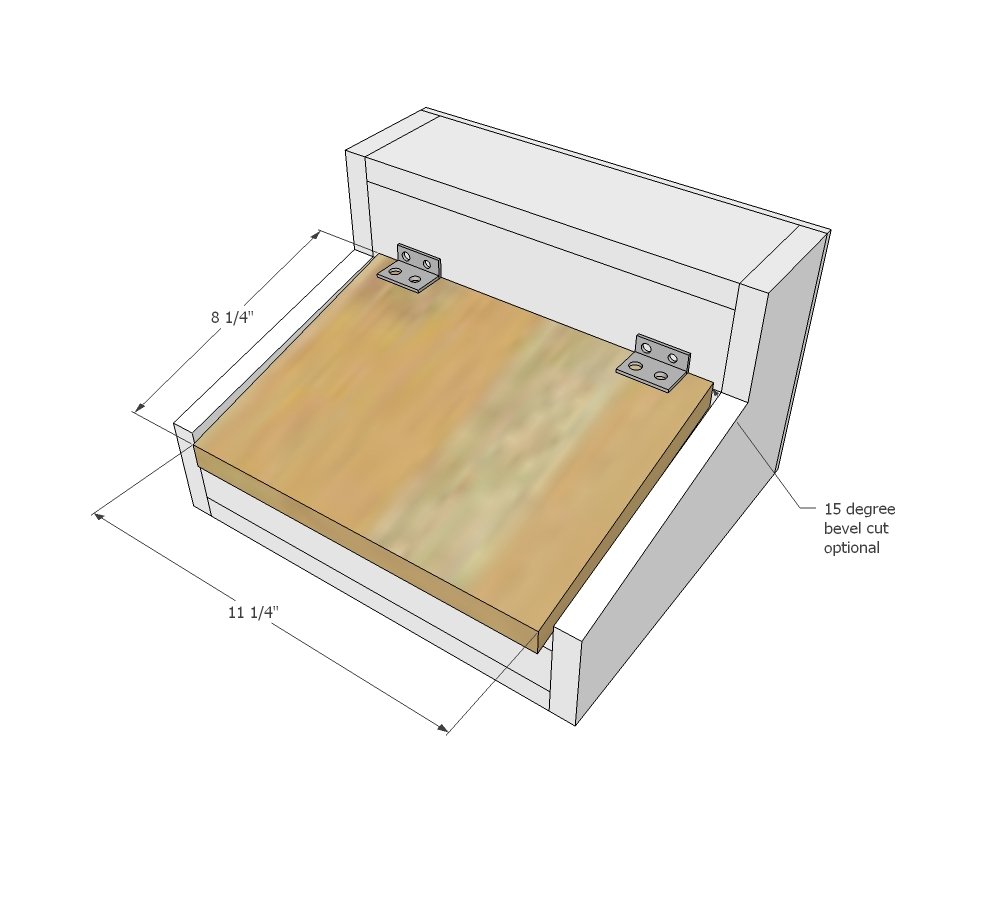

Hinge the top on with small hinges.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
