Wood Doll Pram or Stroller
to build your own wood doll pram or stroller - step by step instructions with diagrams, shopping and cut list from
Specifications
| Project type | Toys |
|---|---|
| Room | Kids and Toys |
| Difficulty | Intermediate |

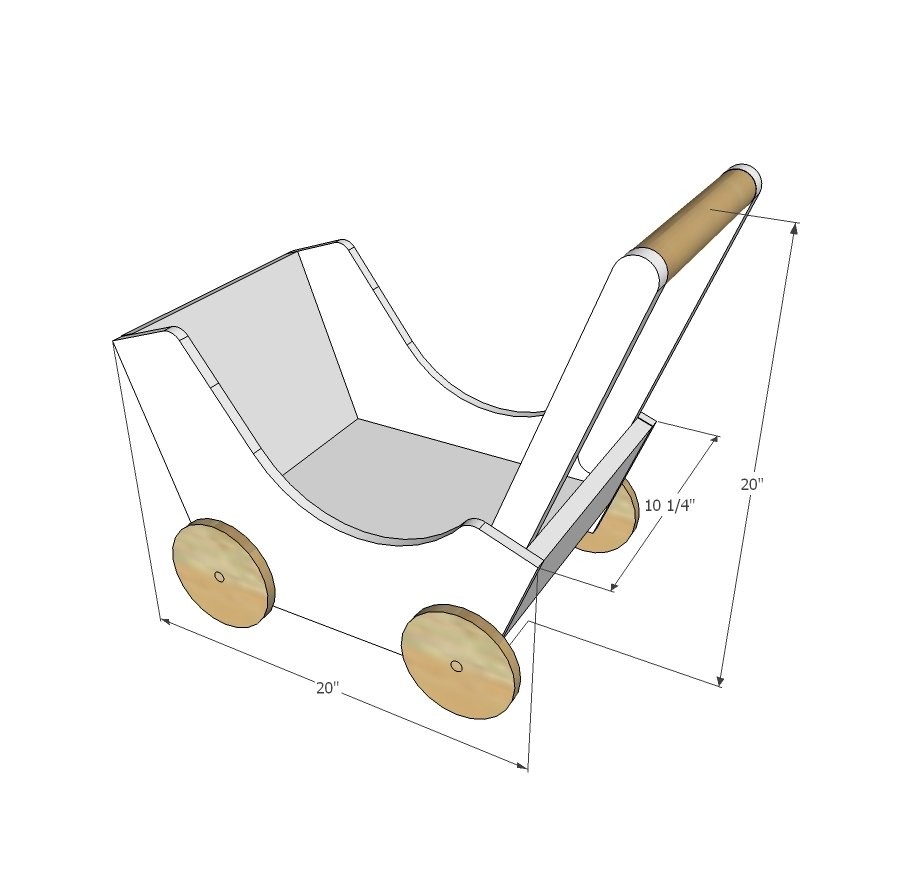

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
4 - 5" rounds or store bought wheels and bolts
1 - sheet of 1/2" plywood @ 24" x 24" (available in project panel section of hardware store)
1 - 1x10 @ 36" long
1 - 1x2 @ 36" long
1 - 1" dowel @ 7-3/4" long
Cut List
2 - 1/2" plywood @ 19-1/4" x 12" (sides of pram - will be cut out with jigsaw)
1 - 1x10 @ 9-3/4" - long point measurement, one end cut at 20 degrees off square (front of pram)
1 - 1x10 @ 5" - long point measurement, one end cut at 20 degrees off square (back of pram)
1 - 1x10 @ 13-3/8" - long point to long point measurement, both ends cut at 20 degrees off square, ends are NOT parallel (bottom of pram)
5" rounds or store bought wheels
2 - 1x2 @ 16" long
1 - 1" dowel cut at 7-3/4" long
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- kreg-jig
- drill
- jigsaw
- compound miter saw
- nailer
- sander
Step-by-step Instructions

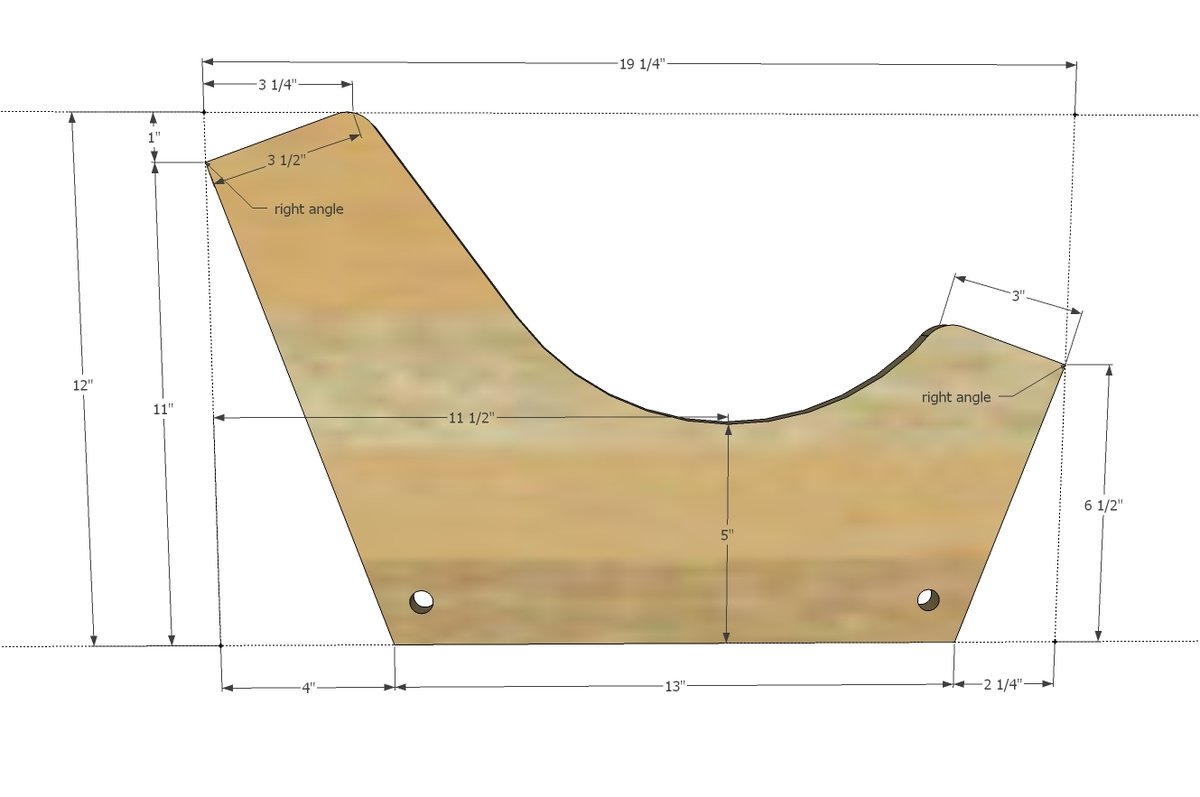

Step 1
Transfer side pattern on to your 1/2" plywood. Cut out with jigsaw. Copy and create a second side. Sand the two together so edges match. Drill holes through both sides for the wheels at this step (sized for your hardware).

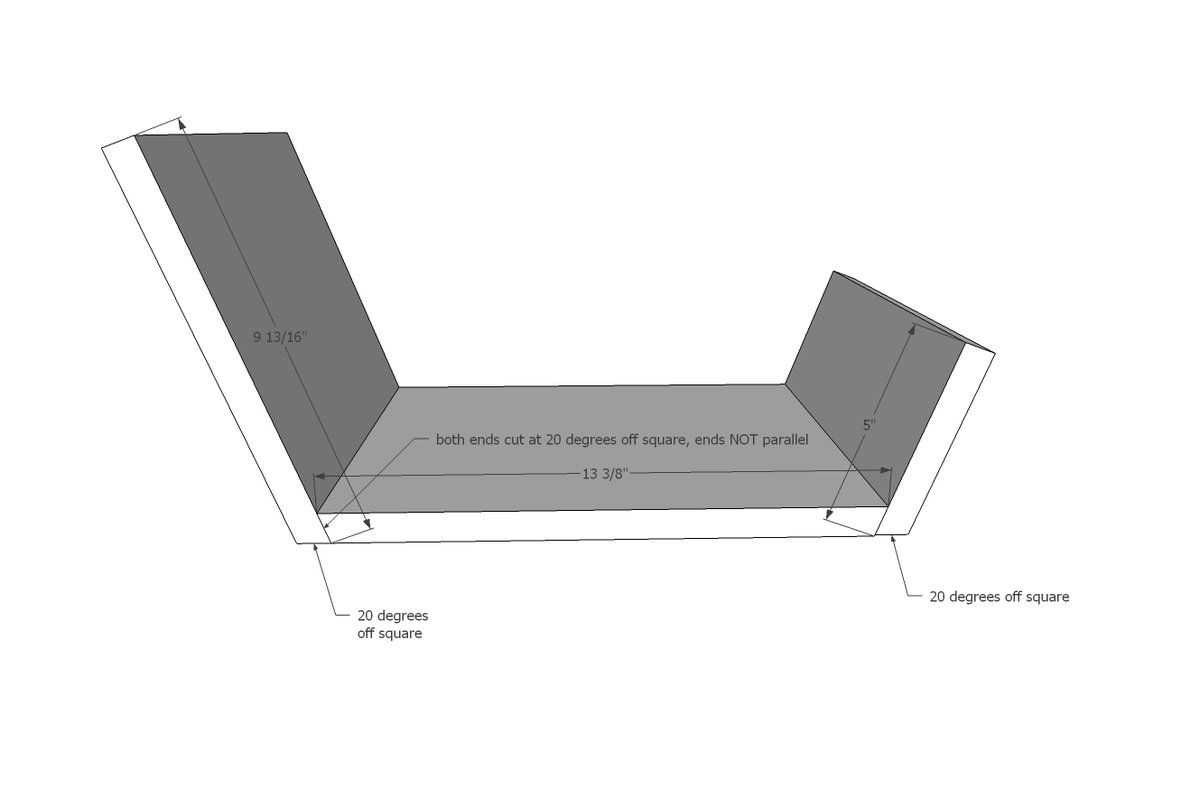

Step 2
Build the pram bottom and ends with 3/4" pocket holes on underside.

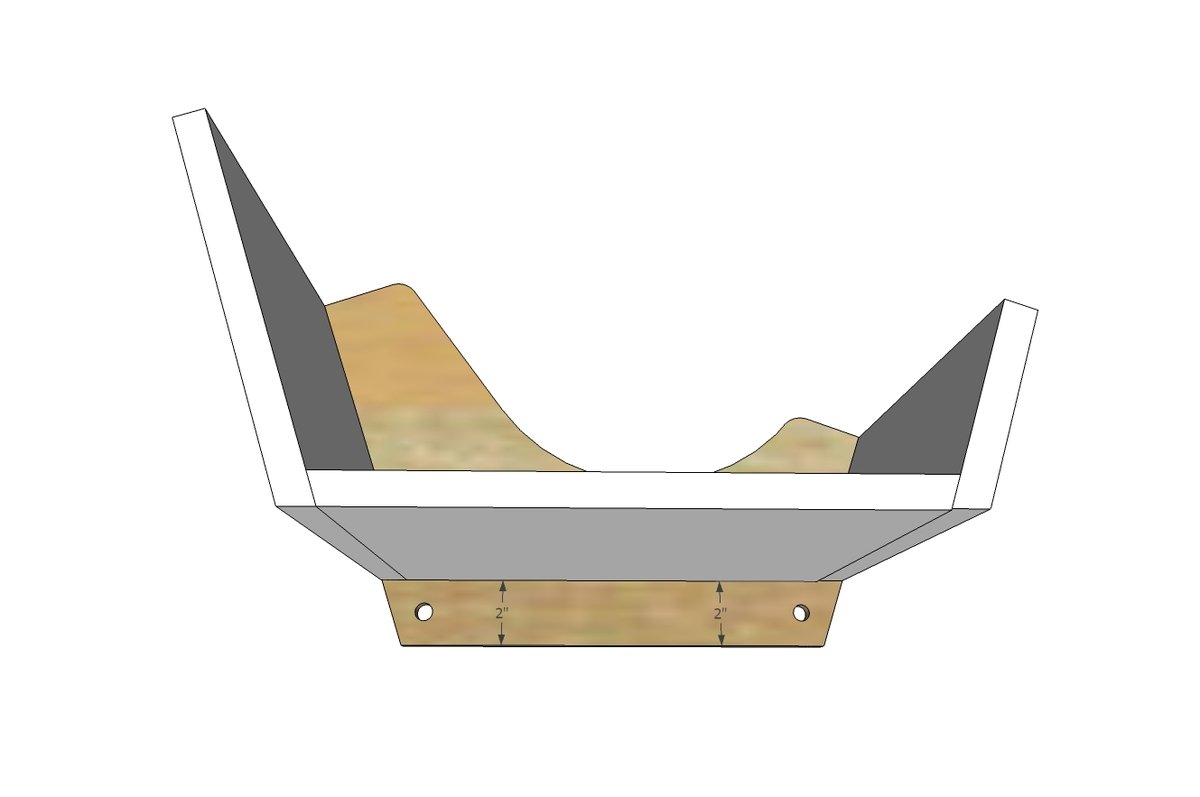

Step 3
Attach sides to the bottom and ends with glue and finish nails.

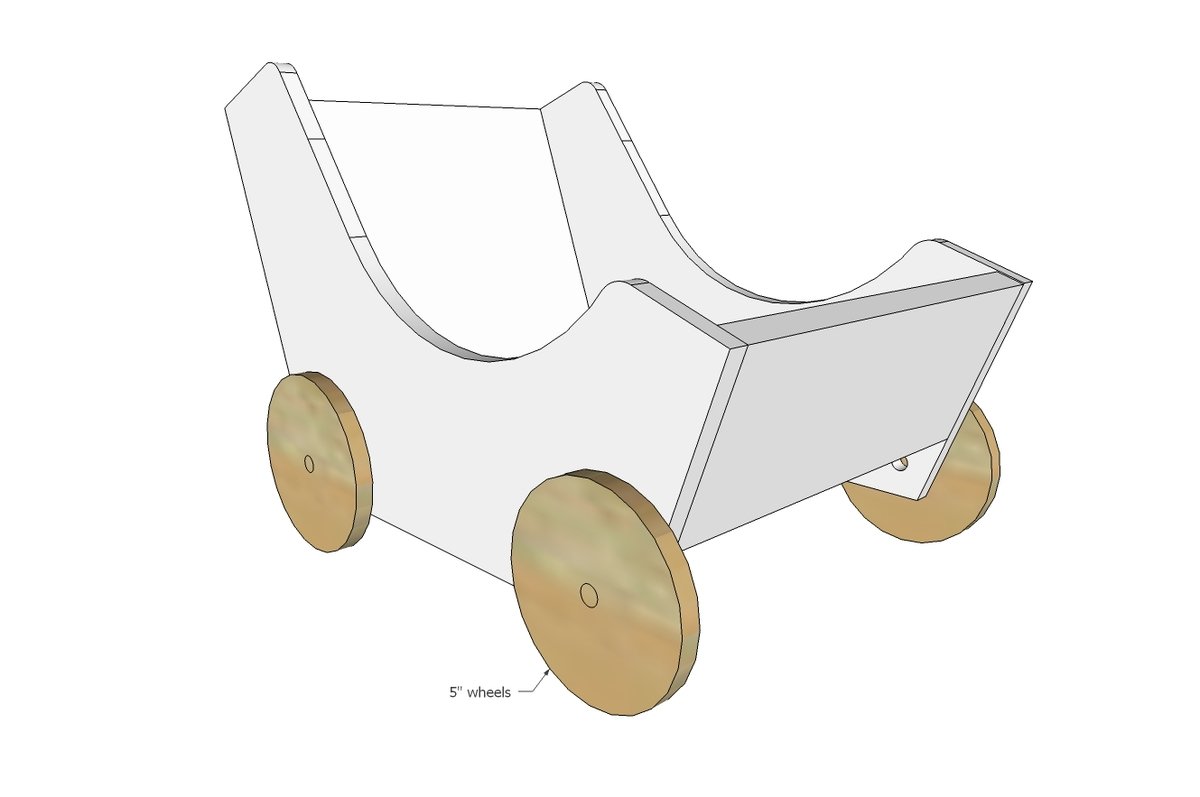

Step 4
Install wheels to sides through predrilled holes. For more details on Jaime's wheels and how she installed them, please go here.

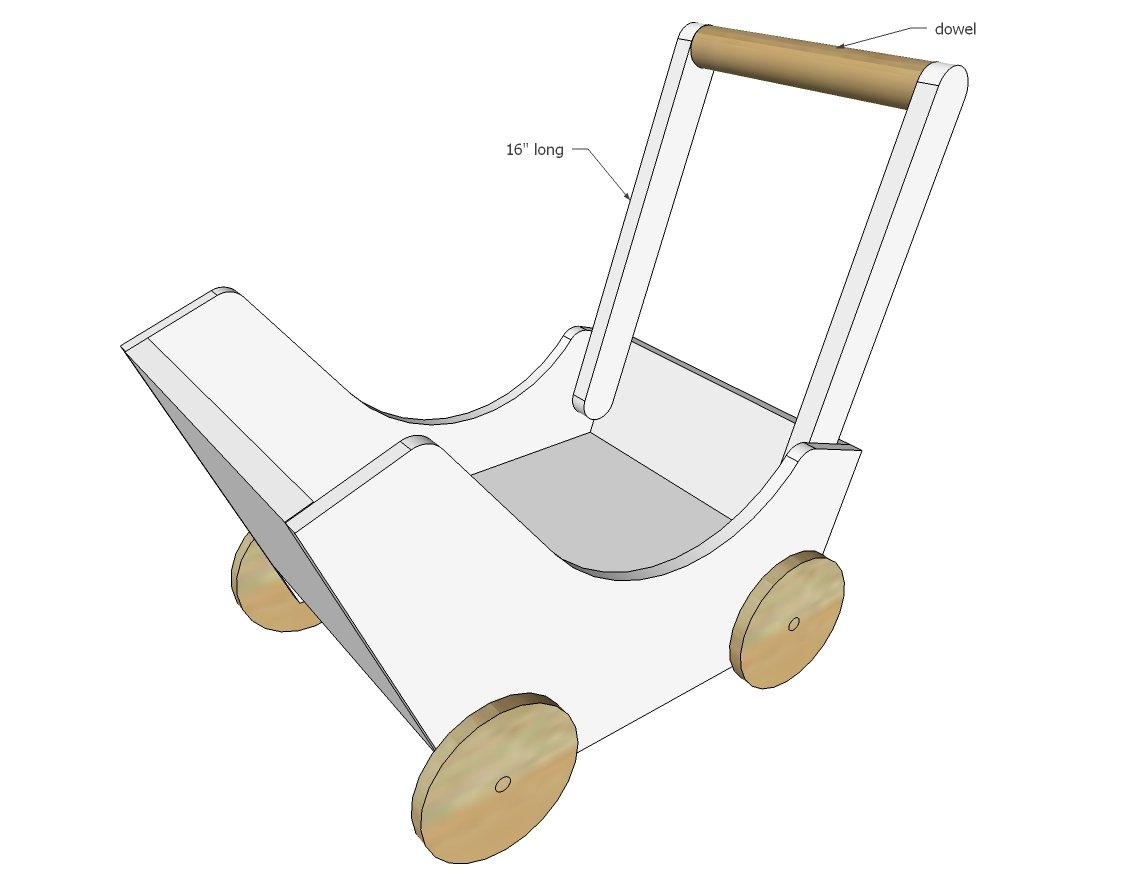

Step 5
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
