Wood Lantern Tutorial
The ultimate wood lantern tutorial! Plans for three different sizes, and three different styles. Build in bulk for a wedding, or a few to add decor to your space, these beautiful wood lanterns are inexpensive and easy to make. with video, diagrams, shopping and cut lists from
Specifications
| Project type | Home Decor |
|---|---|
| Room | Outdoor |
| Style | Farmhouse Furniture |
| Difficulty | Starter Projects |
| Estimated cost | Under $20 |

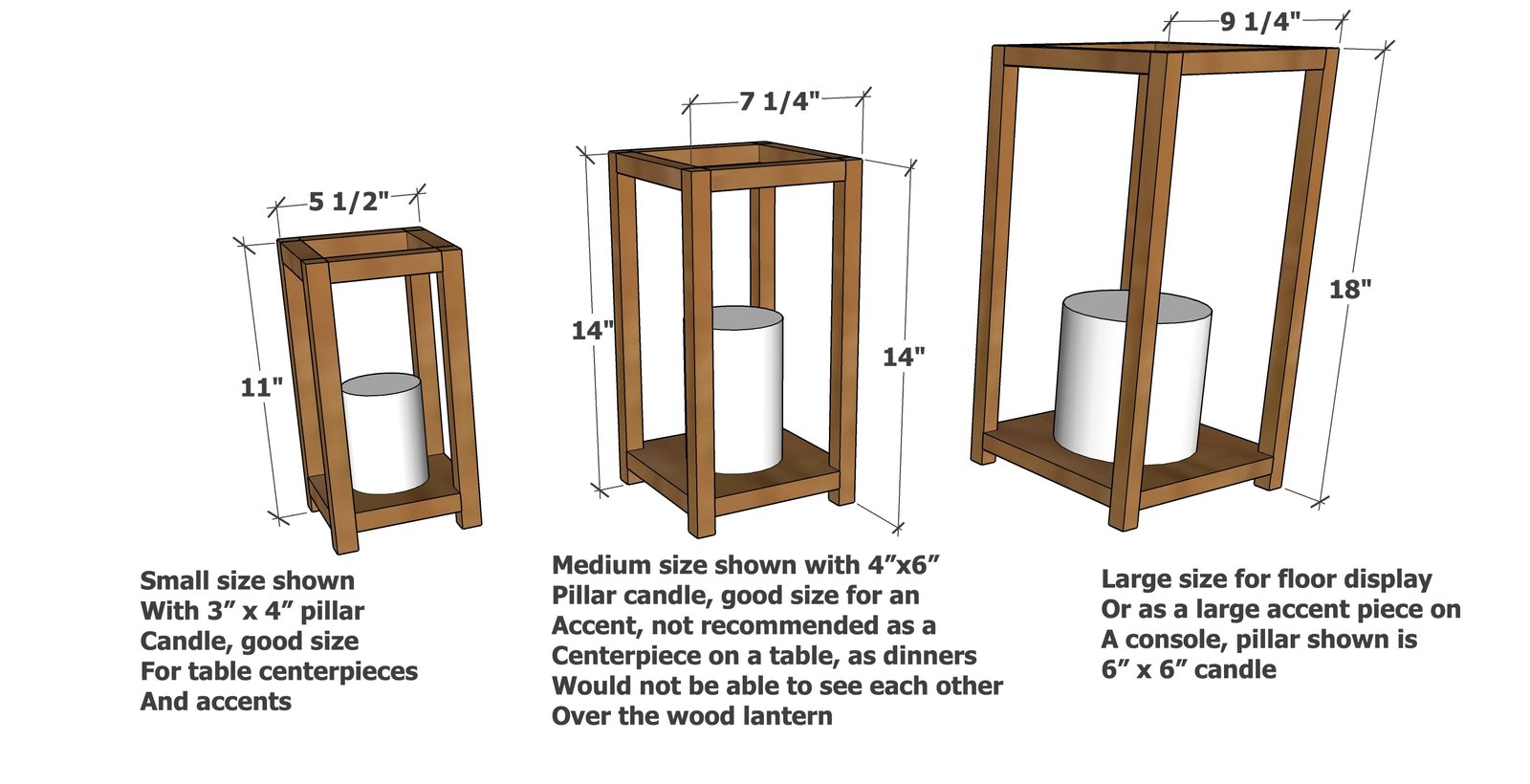

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
Option 1 - Jigsawed Out Corners - Shopping list for 1 Lantern
Small
Medium
Large
3/4" x 3/4" wood dowels
60"
80"
104"
Bottoms
1x6 @ 5-1/2"
1x8 @ 7-1/4"
1x10 @ 9-1/4"
1-1/4" brad nails
wood glue
Option 2 - Small Feet at Each Corner - Shopping list for 1 Lantern
Small
Medium
Large
3/4" x 3/4" wood dowels
60"
80"
104"
Bottoms
1x6 @ 5-1/2"
1x8 @ 7-1/4"
1x10 @ 9-1/4"
1-1/4" brad nails
wood glue
Option 3 - Double Bases - Shopping list for 1 Lantern
Small
Medium
Large
3/4" x 3/4" wood dowels
60"
80"
104"
Bottoms
1x6 @ 5-1/2"
1x8 @ 7-1/4"
1x8 @ 7-1/4"
1x10 @ 9-1/4"
1x10 @ 9-1/4"
1x12 @ 11-1/4"
1-1/4" brad nails
wood glue
Cut List
Option 1 - Jigsawed Out Corners
Small
Medium
Large
(4) 3/4" x 3/4" wood dowels
11"
14"
18"
(4) 3/4" x 3/4" wood dowels
4"
5-3/4"
7-3/4"
Bottom, cut one
1x6 @ 5-1/2"
1x8 @ 7-1/4"
1x10 @ 9-1/4"
Option 2 - Small Feet at Each Corner
Small
Medium
Large
(4) 3/4" x 3/4" wood dowels
9-1/2"
12-1/2"
16-1/2"
(4) 3/4" x 3/4" wood dowels
4"
5-3/4"
7-3/4"
Bottom, cut one
1x6 @ 5-1/2"
1x8 @ 7-1/4"
1x10 @ 9-1/4"
(4) 3/4" x 3/4" wood dowels
3/4"
3/4"
3/4"
Option 3 - Double Bases
Small
Medium
Large
(4) 3/4" x 3/4" wood dowels
9-1/2"
12-1/2"
16-1/2"
(4) 3/4" x 3/4" wood dowels
4"
5-3/4"
7-3/4"
Bottom, cut one
1x6 @ 5-1/2"
1x8 @ 7-1/4"
1x10 @ 9-1/4"
Second bottom, cut one
1x8 @ 7-1/4"
1x10 @ 9-1/4"
1x12 @ 11-1/4"
Tools
- measuring tape
- pencil
- safety glasses
- compound miter saw
- nailer
- sander
Step-by-step Instructions

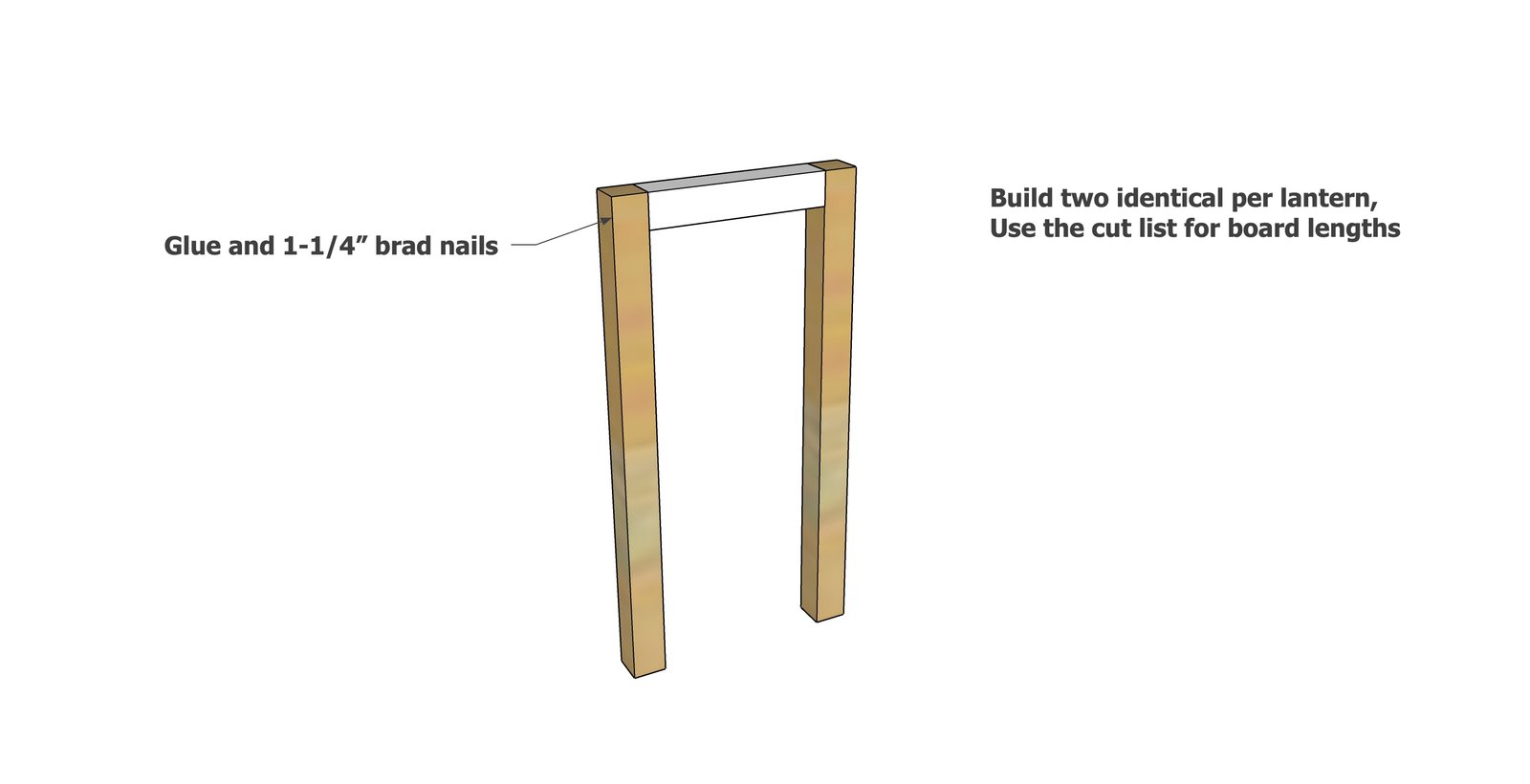

Step 1
Attach two of the longer 3/4" dowel pieces to one of the shorter 3/4" dowel pieces. Build two identical.

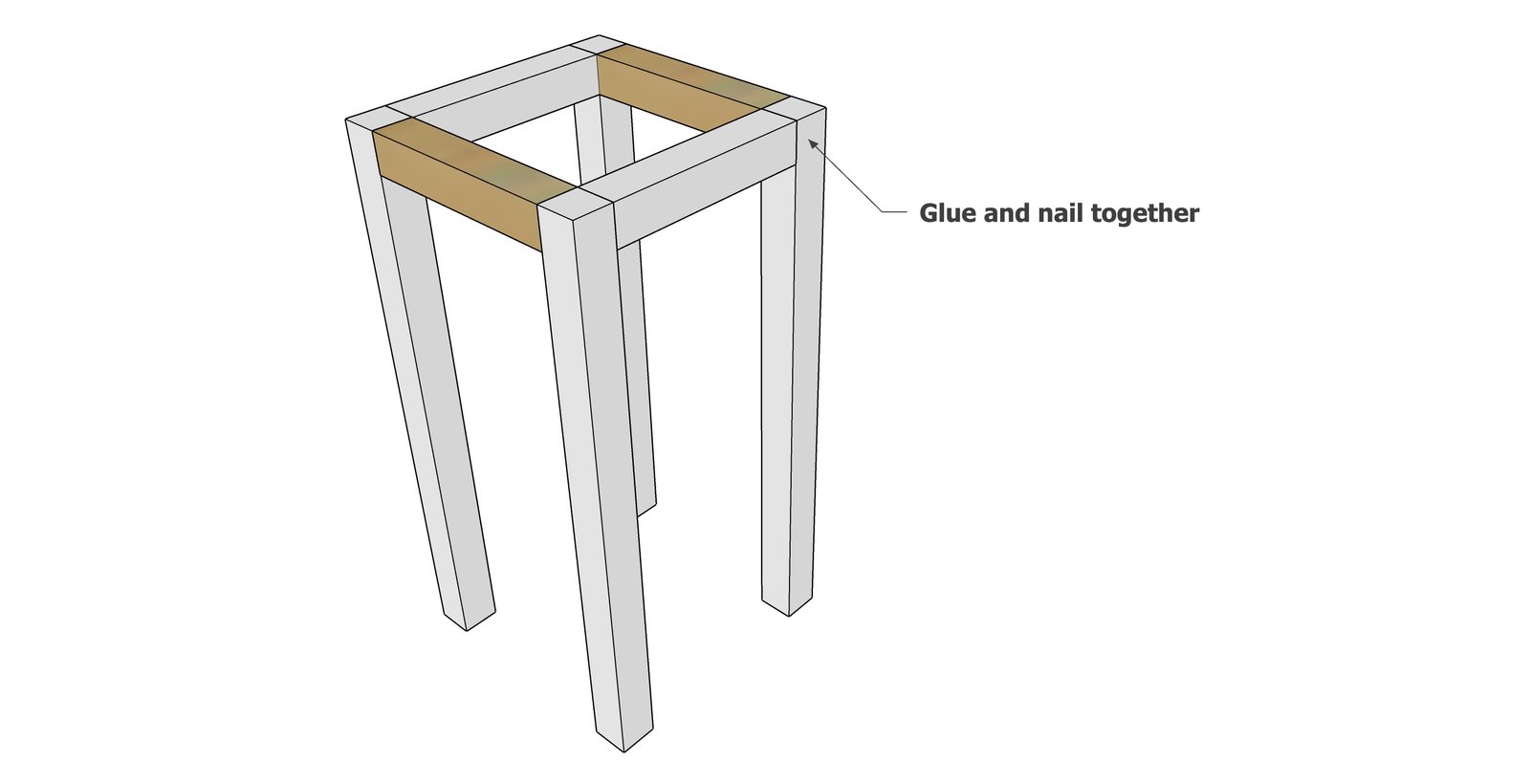

Step 2
Attach the two pieces built in step 1 together with the remaining 3/4" dowel pieces.

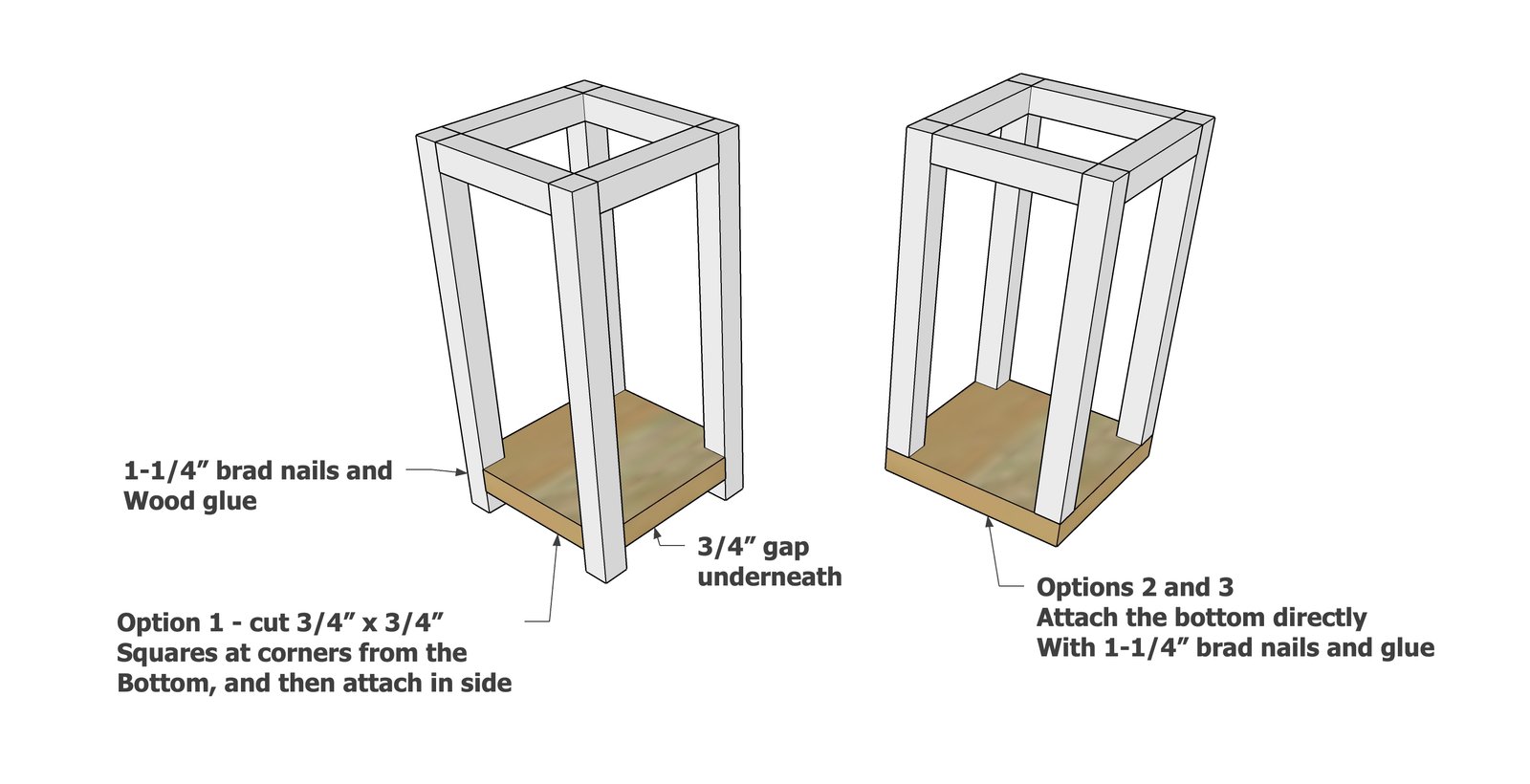

Step 3
For option 1, cut the corners of the base out with a jigsaw, cutting out a 3/4" x 3/4" space. Attach the base inside the lantern legs with 1-1/4" brad nails and glue. For options 2 and 3, simply attach to the base with brad nails from the bottom.

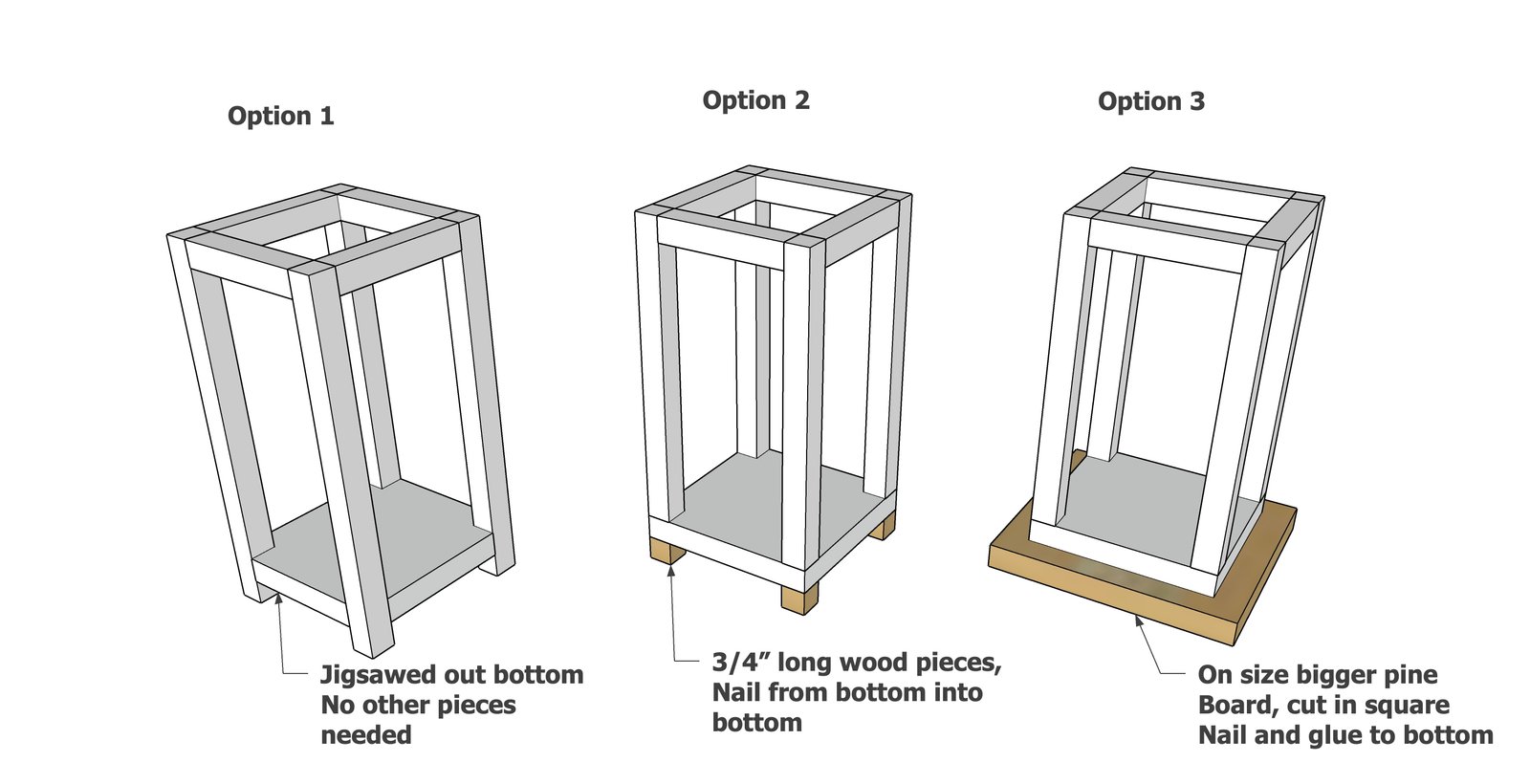

Step 4
For options 2 and 3, add the feet or second base to the bottom with glue and 1-1/4" brad nails.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
