Wood Lath Crate Shelves

Little crates made from wood lath, can be used as trays, or wall frames for wall storage. We love these wood crates as wall shelves that beautifully frame your items. from

Wood Lath Crate Shelves

Specifications

Project typeCrate Plans and Projects Made with Crates
RoomBathroom
StyleFarmhouse Furniture
DifficultyStarter Projects
Estimated costscraps

Dimensions

Use the size-specific shopping and cut lists below.

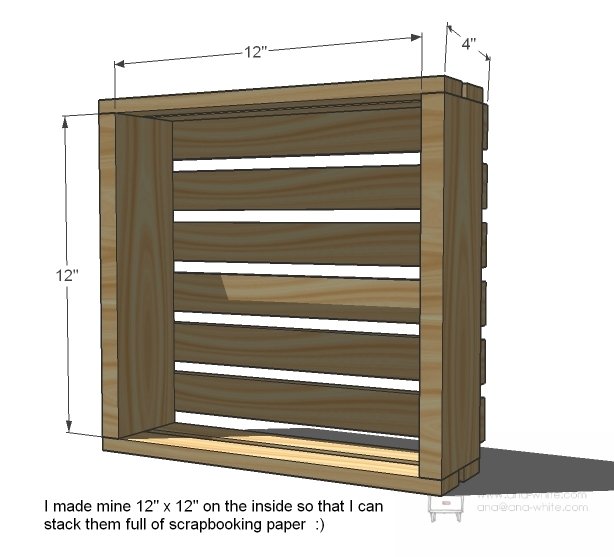

Wood Lath Crate Shelves dimension diagram 1

Shopping List

  • 2 feet of 1×4
  • 3 – 48″ long lath sticks
  • 1-1/4 nails wood glue

Cut List

  • 2 – 1×4 @ 12″
  • 10 – wood laths @ 13 1/2″

Tools

  • measuring tape
  • square
  • pencil
  • hammer
  • safety glasses
  • hearing protection
  • circular saw

Step-by-step Instructions

1

Step 1

So here is the trickiest part – at least if you are sans a nailer. Glue and nail the lath to the back of the 1x4s as shown above.

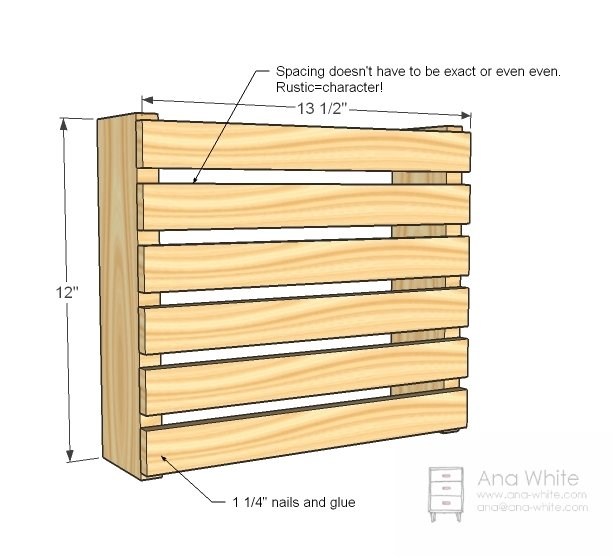

Wood Lath Crate Shelves — step 1
2

Step 2

And now the ends. And you are done! I added a two coats of Antique White in Satin by Valspar. These stack and hang quite nicely!

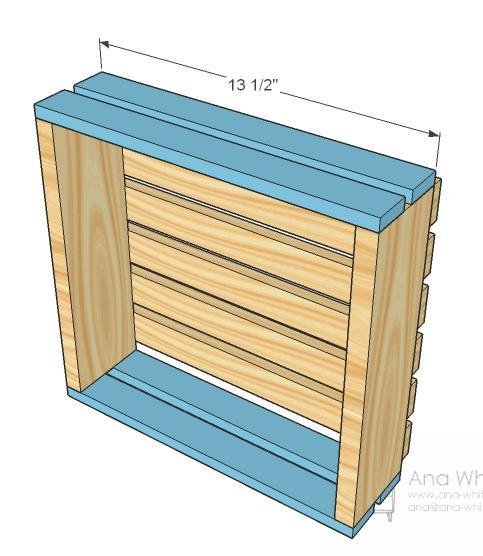

Wood Lath Crate Shelves — step 2
3

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
