Wood Manger Scene
Build your own wood manager using fence pickets to celebrate Christmas. This simple beautiful wood display is the perfect backdrop for your Christmas figurines. from
Specifications
| Project type | Toys |
|---|---|
| Room | Kids and Toys |
| Style | Children's and Kid's Room Furniture and Toy Plans |
| Difficulty | Beginner Projects |
| Estimated cost | Under $20 |

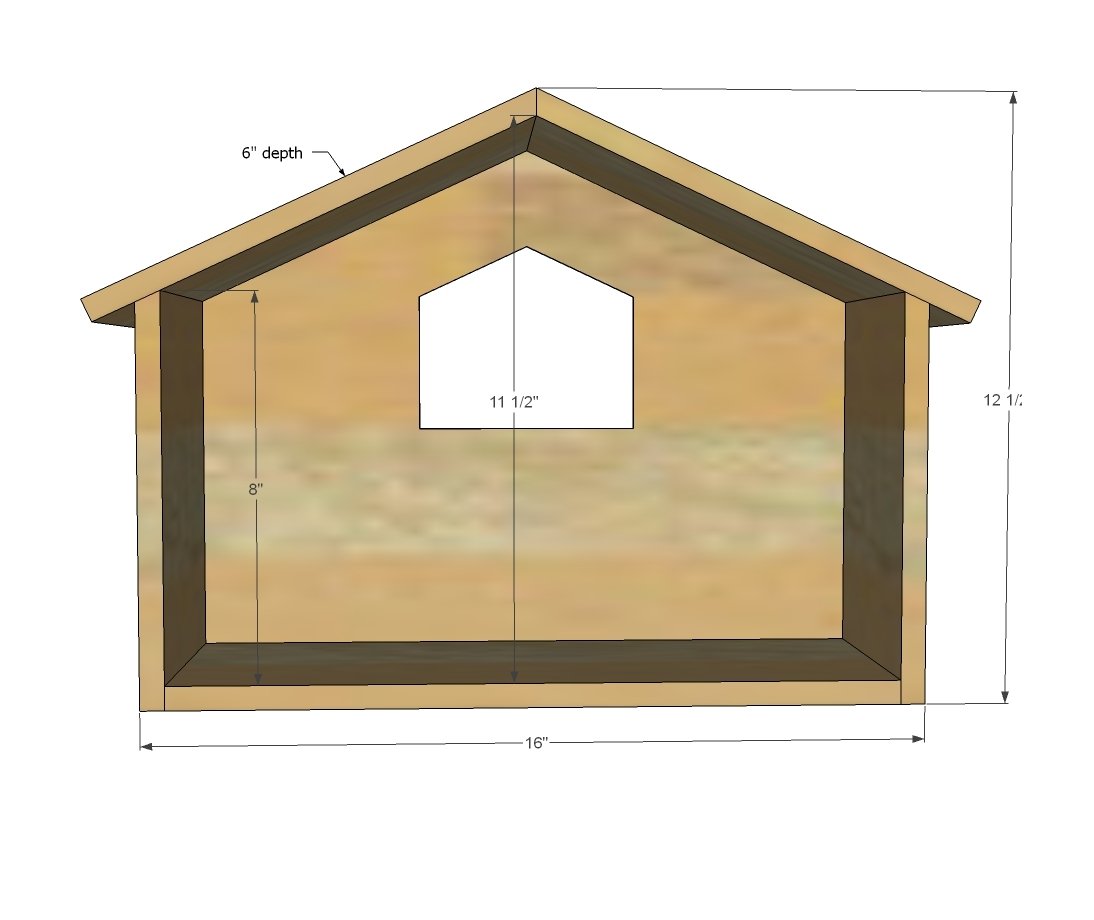

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
- 1 cedar fence picket measuring 5-1/2" wide x 1/2" thick x 72" long
- 1/4" scrap plywood for back OR cover back in cedar fence pickets
- Hot glue and glue gun for attaching
- Can also be nailed or stapled
Cut List
CUT FROM FENCE PICKET:
- 1 @ 15" long (bottom)
- 2 @ 8-1/2" long - longest point measurement, top end BEVELED at 25 degrees off square (sides)
- 2 @ 10" long - longest point measurement, top end BEVELED at 25 degrees off square (roof)
- Cut back to fit
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- jigsaw
- compound miter saw
Step-by-step Instructions
Step 1

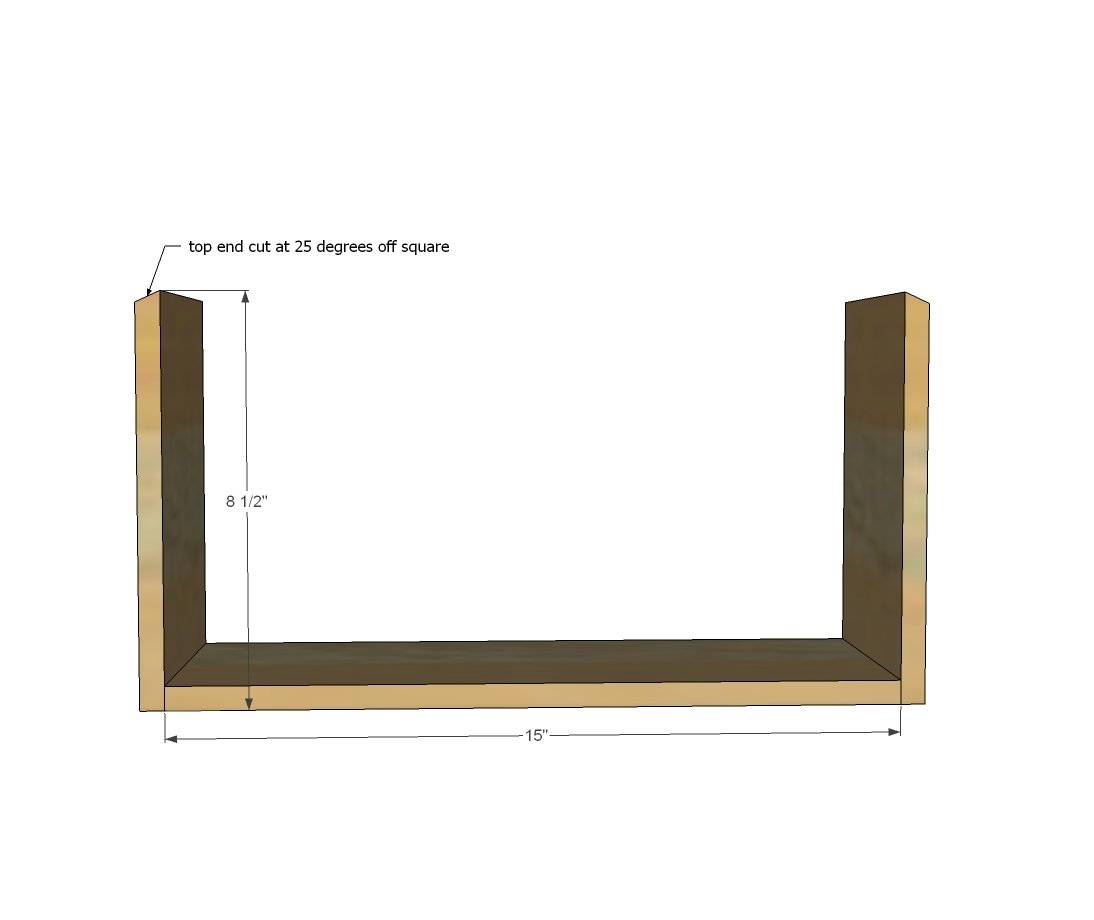

Attach sides to bottom, make sure the top angles are placed so the bevel is long point on inside.
Step 2

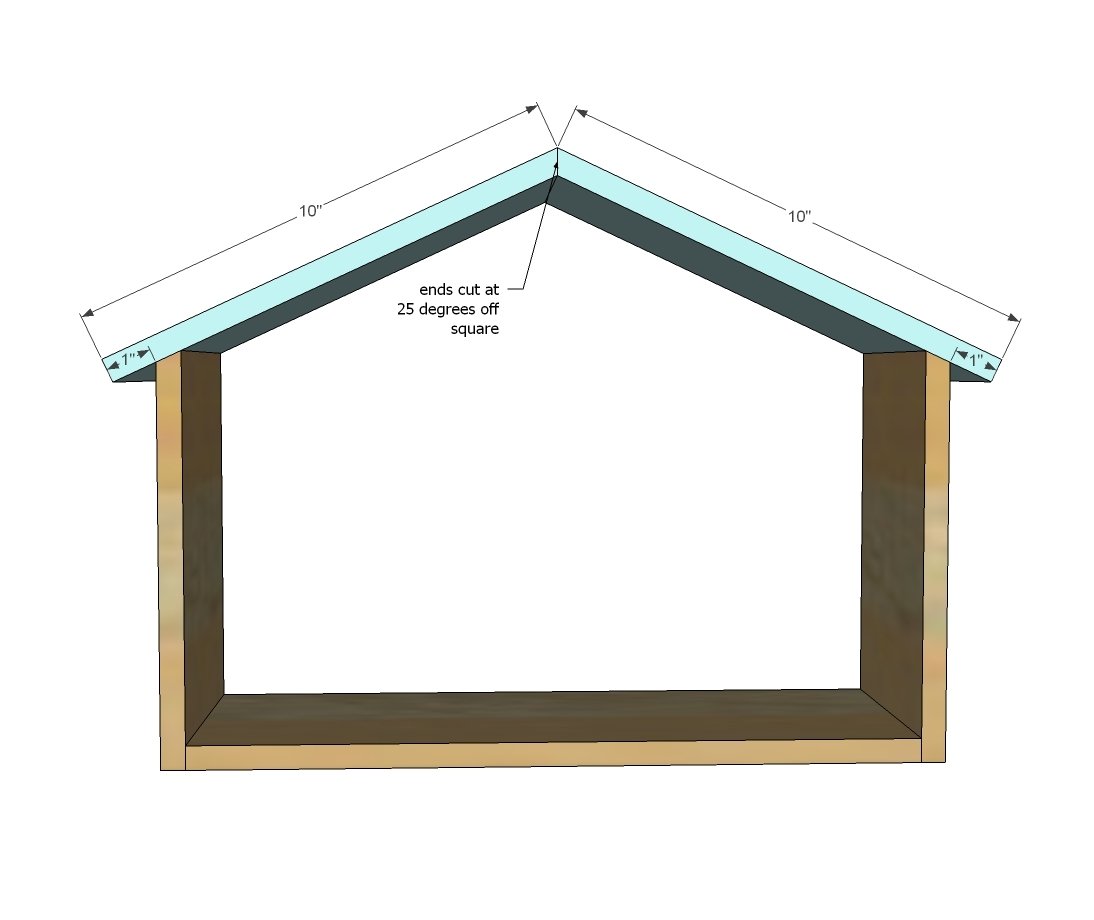

Mark the roof pieces one inch in from square cut end (to mark roof overhangs). Hot glue the two roof panels together, and then attach the two panels to the sides, lining up roof overhang marks with outside of sides. Glue and staple or nail to sides.
Step 3

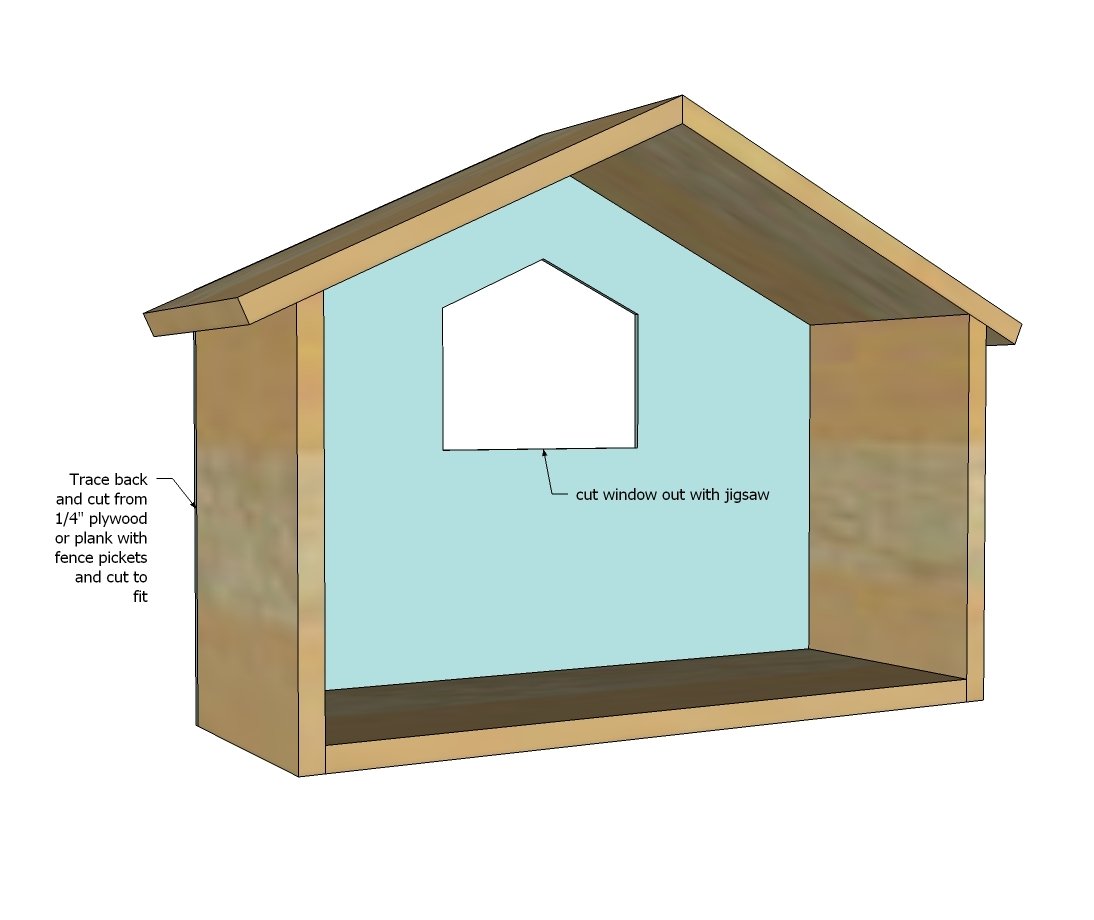

For the back, trace the shape out on a piece of 1/4" plywood or other backer board material. You can also plank the back ( like Jaime did here ) with cedar fence pickets. Cut a window out with a jigsaw. You can also check out how Jaime trimmed her window out here.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
