Wood Mantel with Hidden Storage
This easy to build wood mantle has a flip down front - so you can hide controllers and remotes inside. from RELATED: DIY Shiplap Fireplace Tutorial
Specifications
| Project type | shelves |
|---|---|
| Room | living room |
| Difficulty | Beginner Projects |

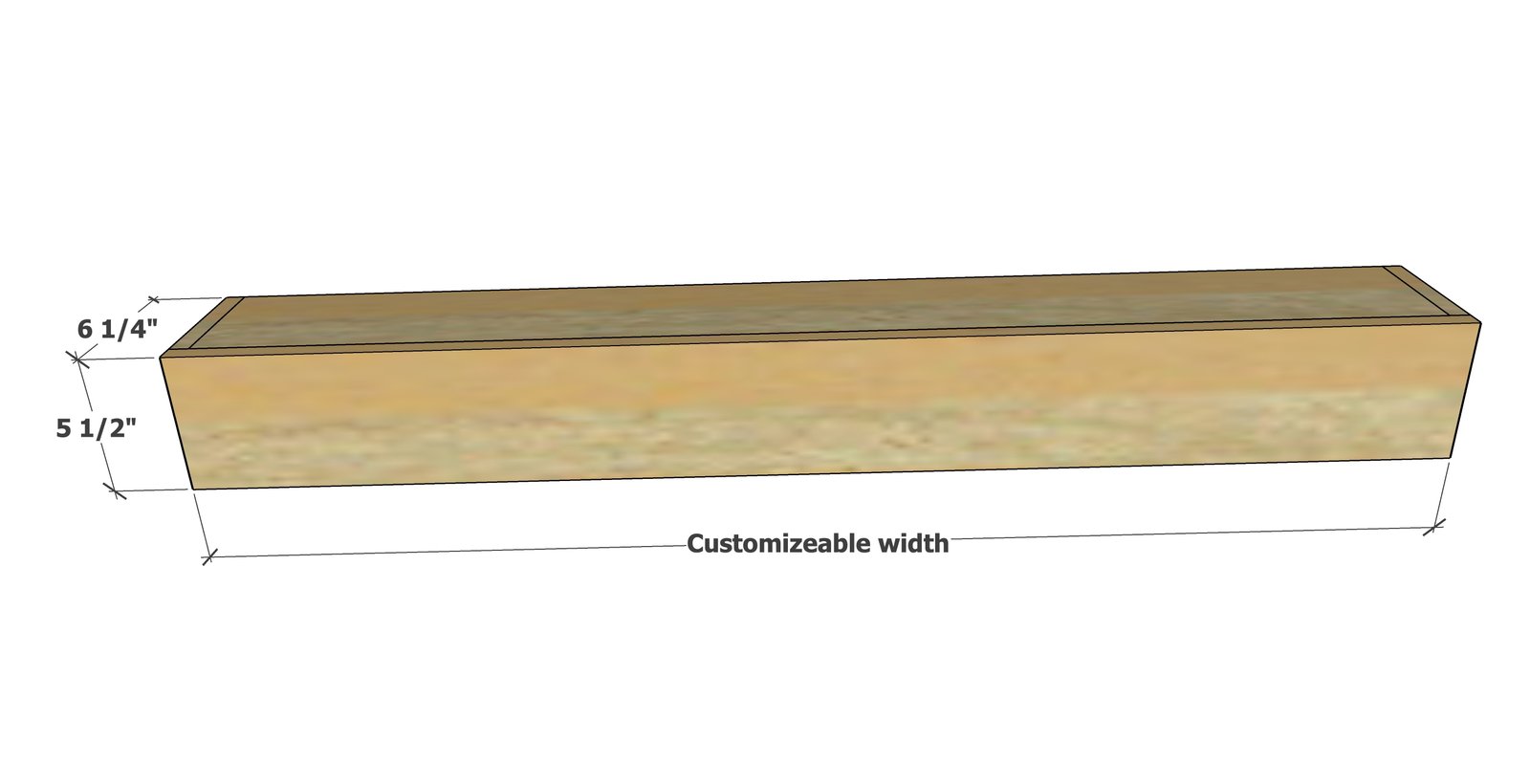

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
- 1x6 boards, approximately 3 times the overall mantle length plus another foot
- 1x3 boards for hanging
- Concealed surface mount hinges like this
- 1-1/4" brad nails
- wood glue
- 2-1/2" long self tapping star bit screws (for hanging)
Cut List
- 2 - 1x6 @ desired length of mantle MINUS 1-1/2" (top and bottom)
- 2 - 1x6 @ 5-1/2" (ends)
- 1 - 1x6 @ 4" (center)
- 1 - 1x6 @ desired length of mantle (front)
- 2 - 1x3 - measured and cut to fit
Tools
- measuring tape
- square
- pencil
- safety glasses
- drill
- compound miter saw
- nailer
Step-by-step Instructions

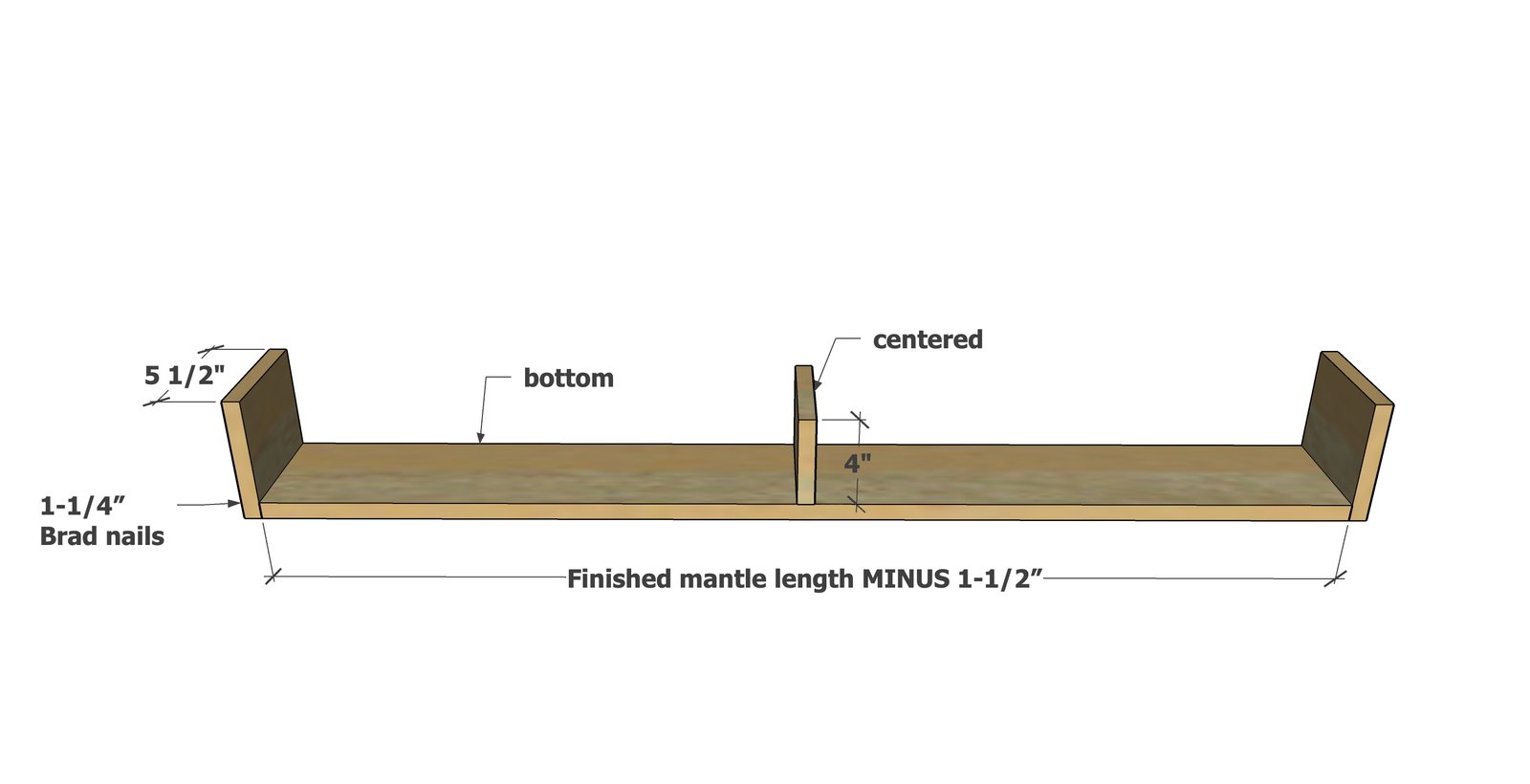

Attach the sides to the bottom and center divider with glue and 1-1/4" brad nails.
Orientate the sides so the wood grain runs horizontal.
Step 2

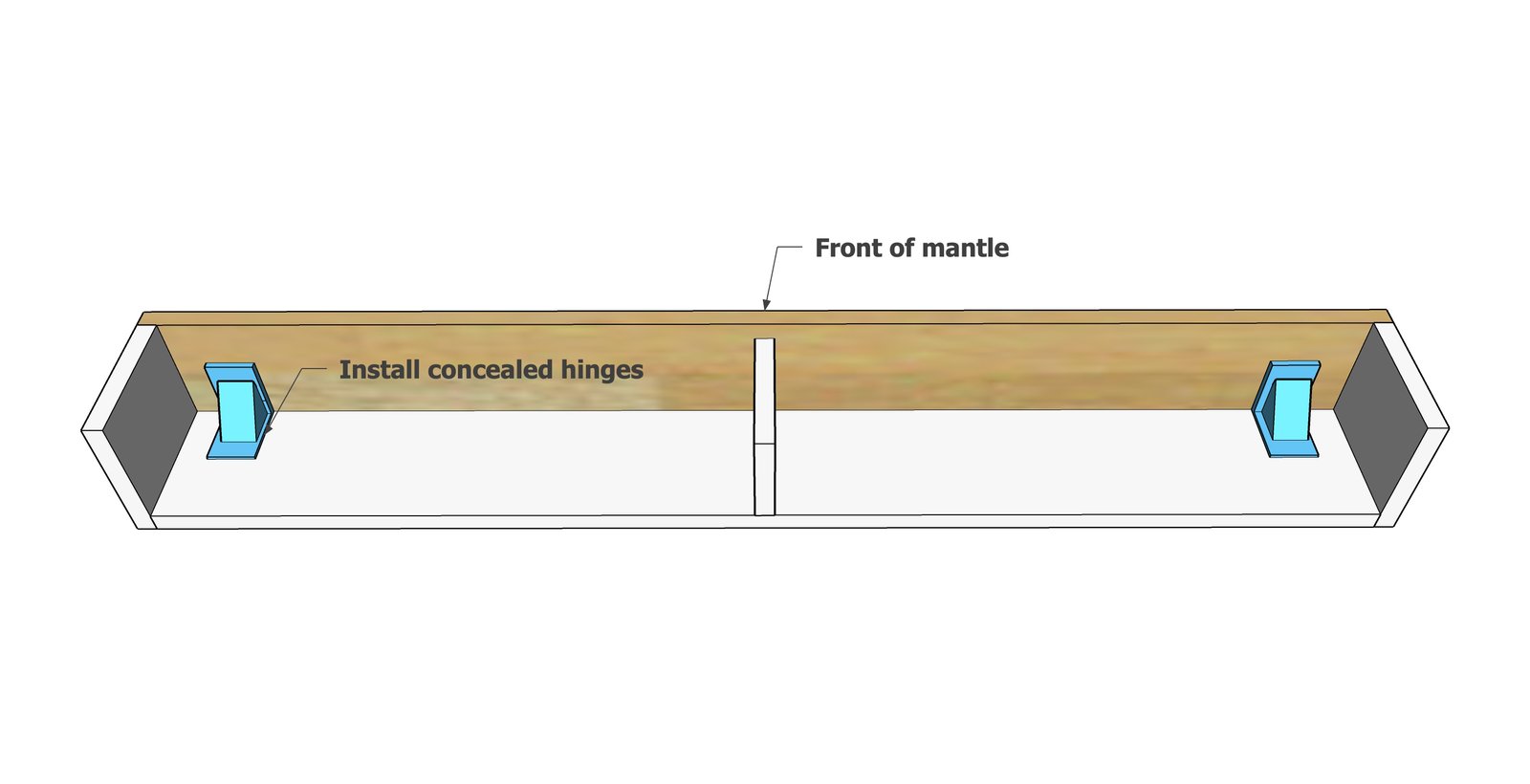

If you wait to install hinges after the building is complete, it will be very difficult to reach inside with a drill. Install the front so it's flush on the bottom and sides using the concealed surface mount hinges. Test and adjust for a perfect fit.
Step 3

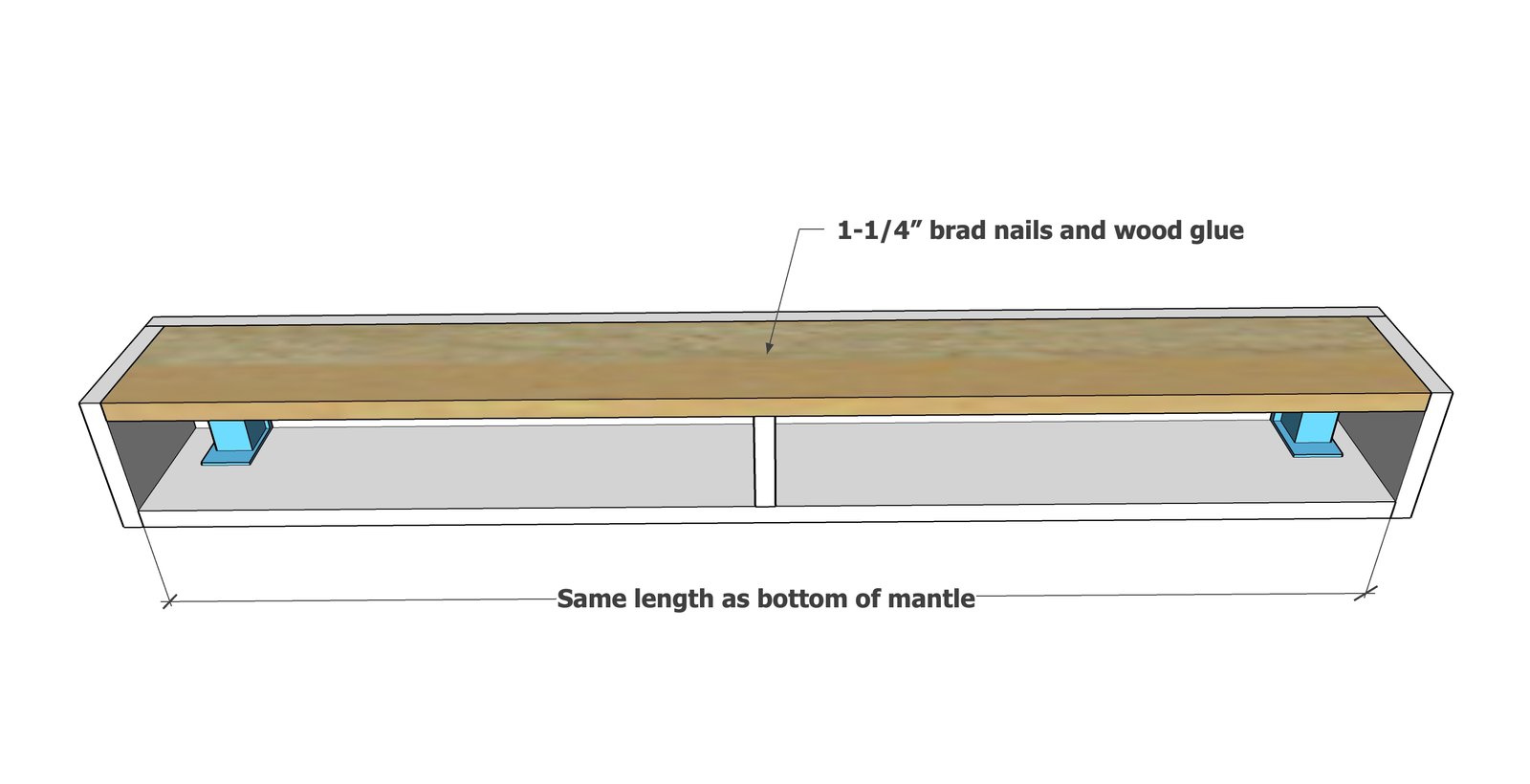

Attach the top of the mantle to the sides and center divider, do not attach to the front.

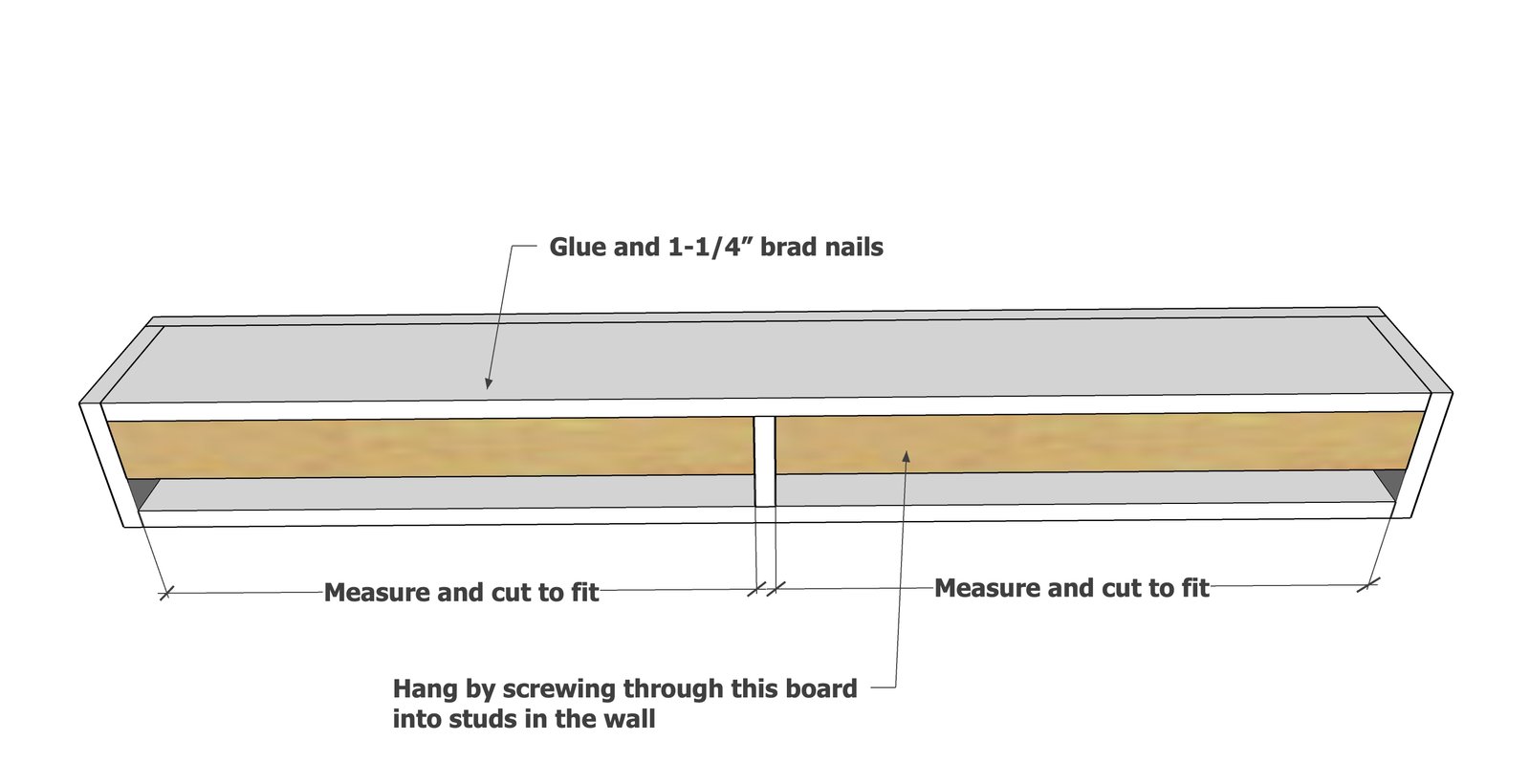

Measure and cut the 1x3s to fit inside and nail and glue in place.
Hang the mantle to studs in the wall using the 2-1/2" screws, using a level to make sure the mantle is hung level.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
