Wood Toy Fishing Game

Beautiful handcrafted wood fishing game with wood pole and wood fish. Free DIY

Wood Toy Fishing Game

Specifications

Project typeToys
RoomKids and Toys
StyleChildren's and Kid's Room Furniture and Toy Plans
DifficultyBeginner Projects
Estimated costscraps

Dimensions

Use the size-specific shopping and cut lists below.

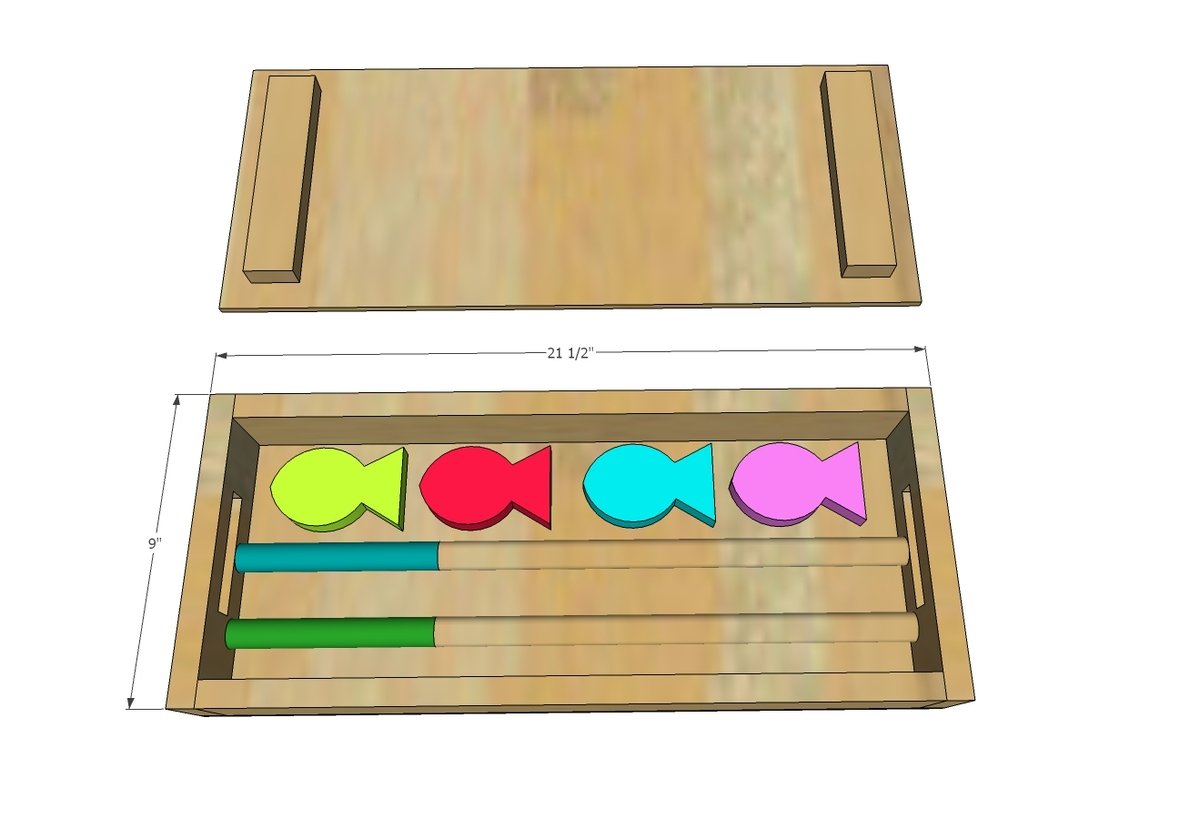

Wood Toy Fishing Game dimension diagram 1

Shopping List

1 piece of 1/4" plywood 24" x 24" (or scraps see cut list) 1 - 1x3 @ 8 feet long 40" long dowel, 3/4" diameter rope recommend 1/2" plywood for the fish cutouts 1/2" screws with washers for the fish magnets 2 magnets for the poles

Cut List

2 - 1x3 @ 20" 2 - 1x3 @ 9" 2 - 1/4" plywood @ 21-1/2" x 9"

Tools

  • measuring tape
  • pencil
  • safety glasses
  • hearing protection
  • circular saw
  • nailer

Step-by-step Instructions

1

Step 1

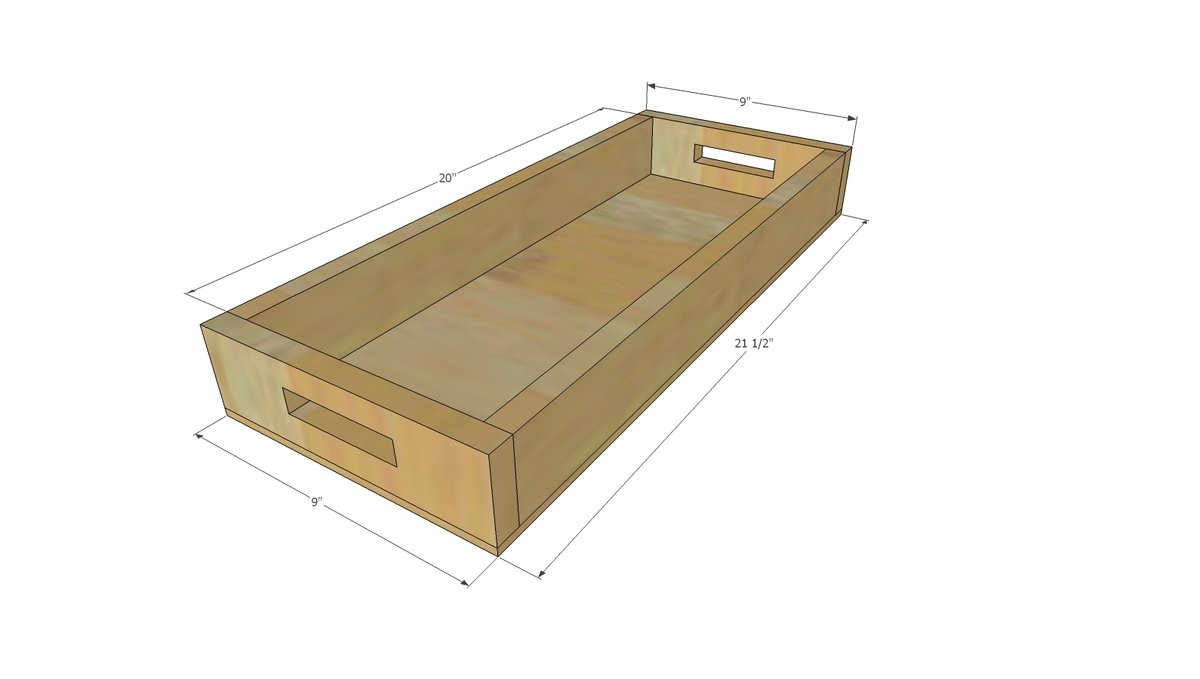

Attach the 1x3 boards together at corners to create the box. Then attach 1/4" plywood to the bottom of the box with 3/4" nails or staples and glue.

Wood Toy Fishing Game — step 1
2

Step 2

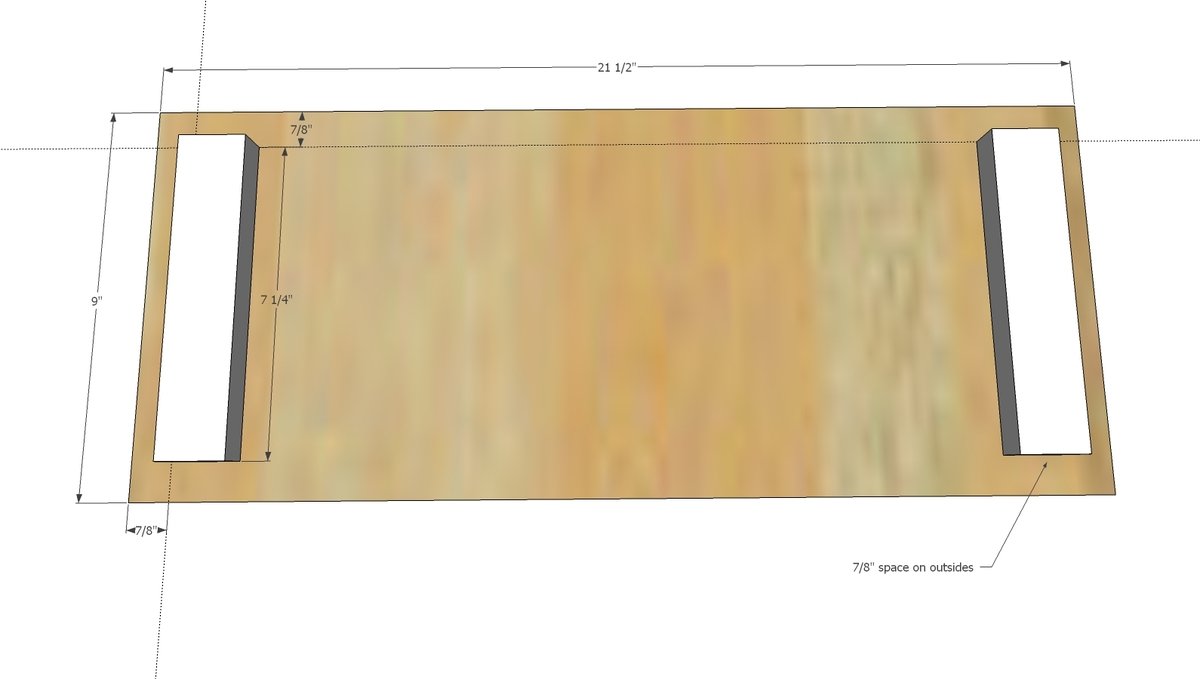

Use the 3/4" nails or staples and wood glue to attach 1/4" plywood to the 1x2s. TIP: Apply glue to the 1x2s and set in position with 7/8" in on all outside edges. Let the glue dry. Then flip over and add the 3/4" nails or staples to further secure.

Wood Toy Fishing Game — step 2
3

Step 3

For the fish, this free template was used. Use a jigsaw to cut the fish out of 1/2" plywood. Clamp the plywood to a stable worksurface, and cut where jigsaw blade can move freely below the plywood. You may need to re-position wood to cut the entire shape out.

4

Step 4

Fishing poles - cut the 3/4" dowels to 20" in length. Drill a hole in the end and attach rope. If you are concerned about the weight of the magnet, you can also place the magnets on the fish, and use a smaller magnet on the end of the pole.

5

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
