Wood Vertical Bike Rack
A vertical bike rack made of wood to accent your space, this DIY wall bike mount protects your wall, stores a helmet, and is easy to hang and use. This is a free DIY project plan with video, steps, and supplies list from
Specifications
| Project type | shelves |
|---|---|
| Room | Storage Solutions |
| Difficulty | Beginner Projects |
| Estimated cost | $20 - $50 |

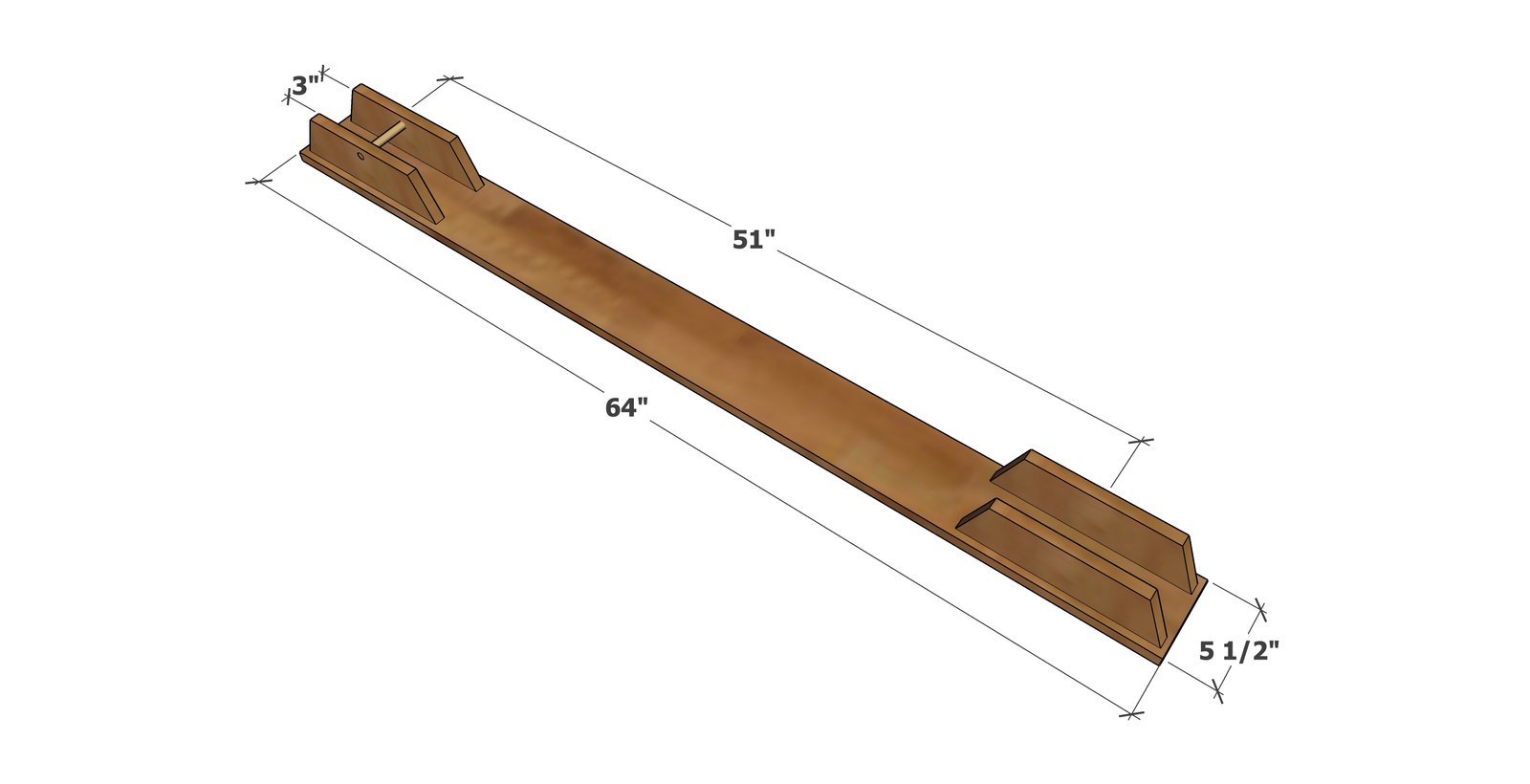

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
- 1 - 1x6 @ 6 feet long
- 1 - 1x4 @ 4 feet long
- 8" of 1/2" wood dowel
- 2-1/2" self tapping screws (about 14 screws needed)
- wood glue
Cut List
- 1 - 1x6* @ 64"
- 4 - 1x4** @ 12" - long point to long point measurement, both ends cut at 30 degrees off square, ends NOT parallel
- 1 - 1/2" dowel @ 8" long
*For fat tire bikes or wide bike tires, use a 1x8 instead
**For bigger bike tires, like mud tires or fat bike tires, use a 1x6 instead
Tools
- measuring tape
- square
- pencil
- drill
- compound miter saw
Step-by-step Instructions
Step 1

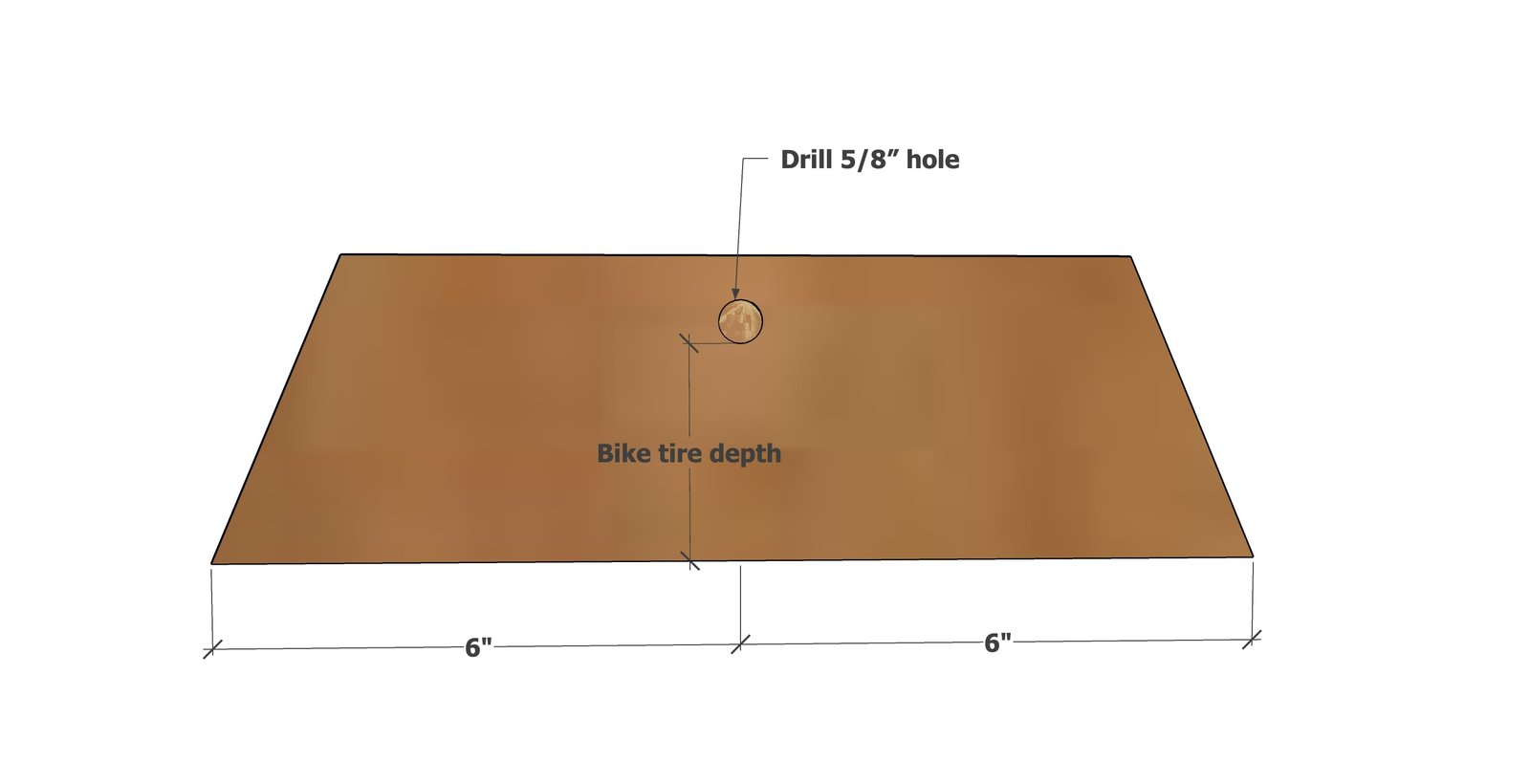

Measure your bike tire depth and drill a hole to match as shown using a 5/8" drill bit.

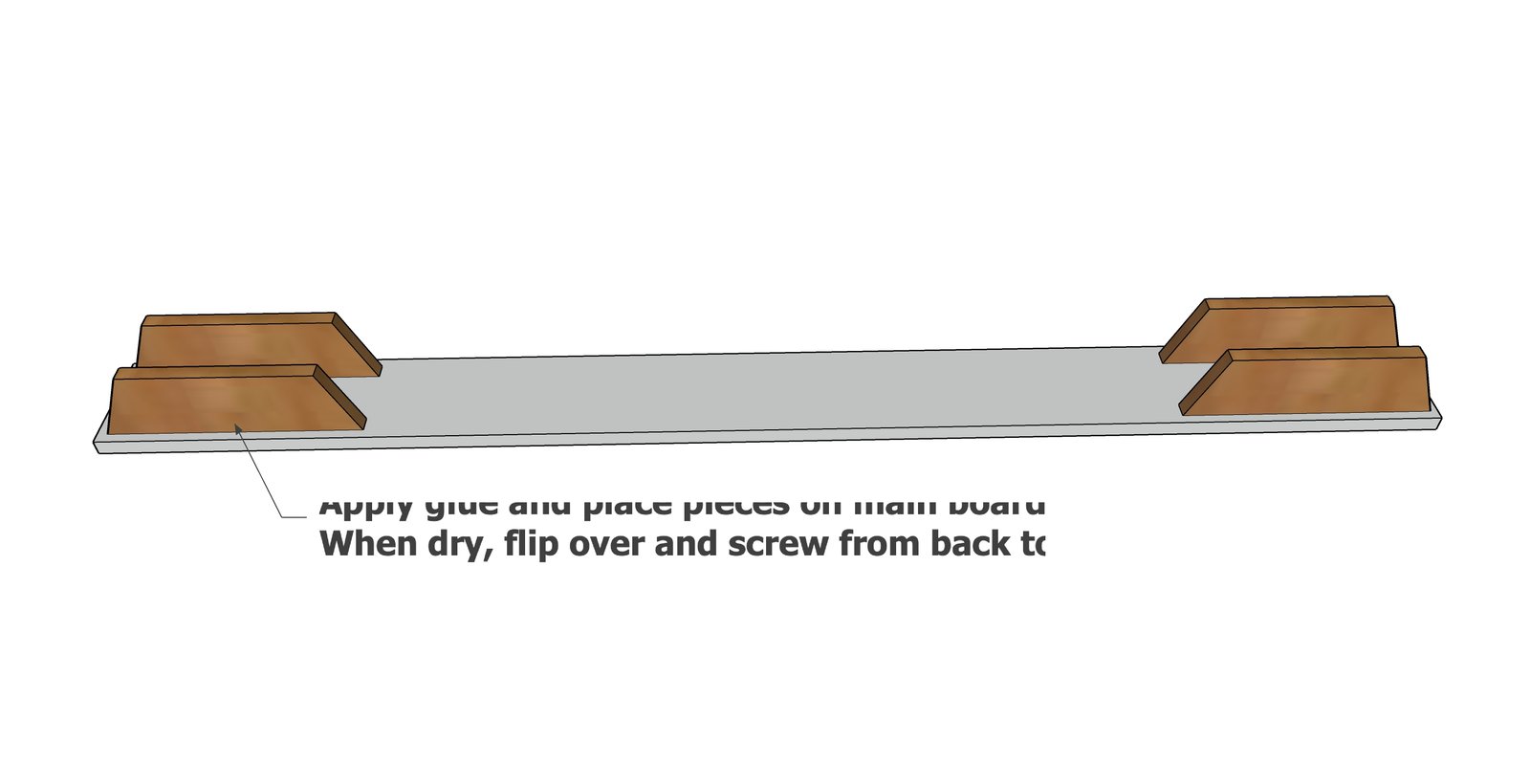

Apply glue to back edges of 1x4 pieces and set on the 1x6. Let dry.
When dry, flip over and attach with screws from back side.

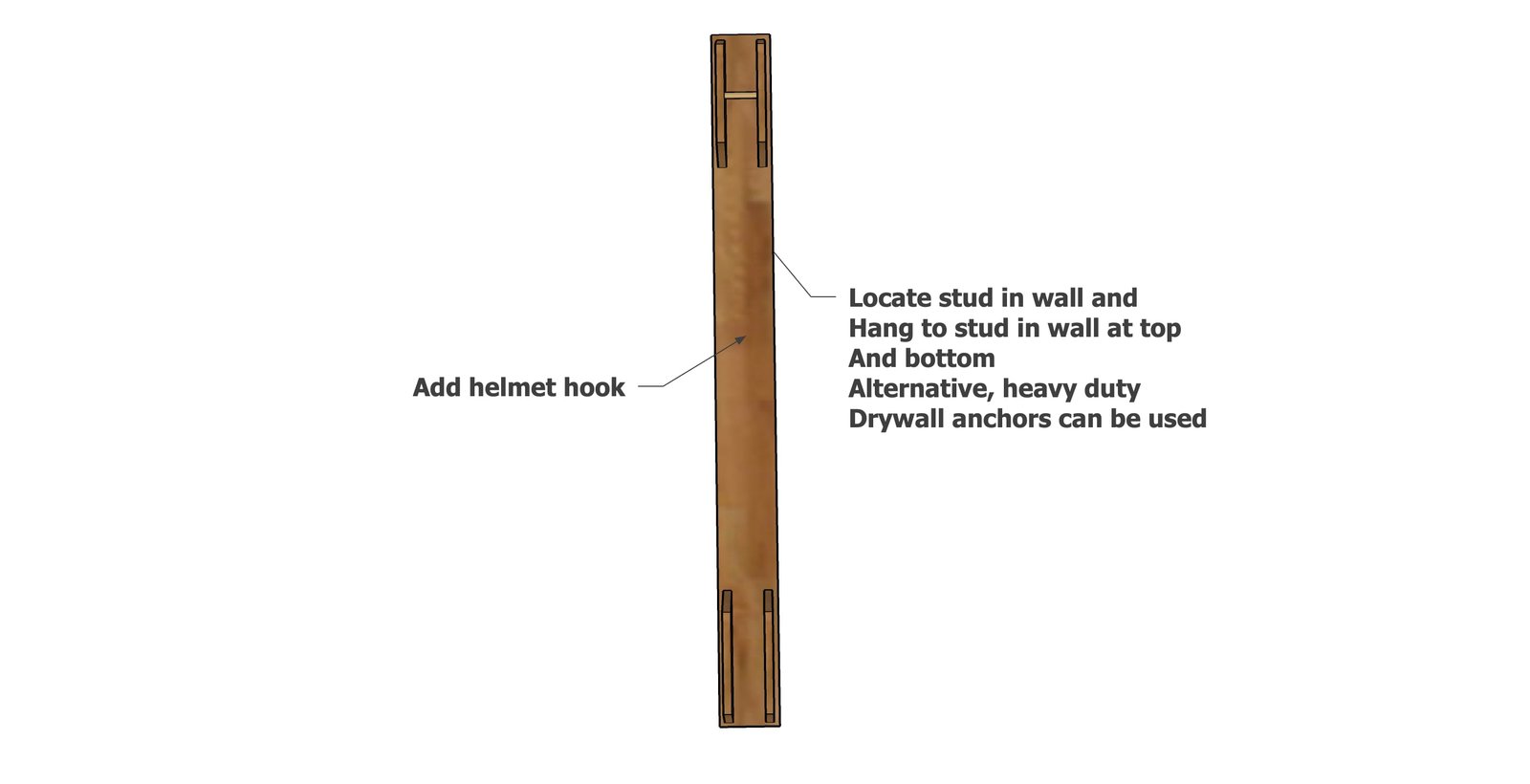

Locate studs in the wall and hang.
Add the helmet hanger.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
